T012 Dynamic Strength & 2m/s Tester is used test dynamic strength for wheeled ride-on toys.

Simulate children wheeled ride-on toys vertically crush the inelastic step 50 x 50 mm at the stable speed of 2m/s±0.2/s, and then check the damage degree.

This device can be used for children ride-on toys, such as children tricycle, toy bikes, scooters, etc.

Test Principle

A load is secured to the toy, and articulated arms with the elbow joints in a downward position are attached to the steering wheel or handlebars if the toy is so equipped. The toy is driven three times into a non-resilient step.

Standards

EN 71-1,

ASTM F963,

ISO 8124-1,

GB 6675

Features

1.PLC touch screen control system equipped which is in English.

2.Testing frame in stainless steel materials is durable with long service life.

3.Available for testing various children ride-on toys, such as children tricycle, toy bikes, scooters, etc.

4.Each parts of whole tester mark the number for installation easily.

5.Human-made operational system which is easy for use.

Application

T012 Dynamic Strength & 2m/s Tester  is applicable to the determination of:

children ride-on toys, such as children tricycle, toy bikes, scooters, etc.

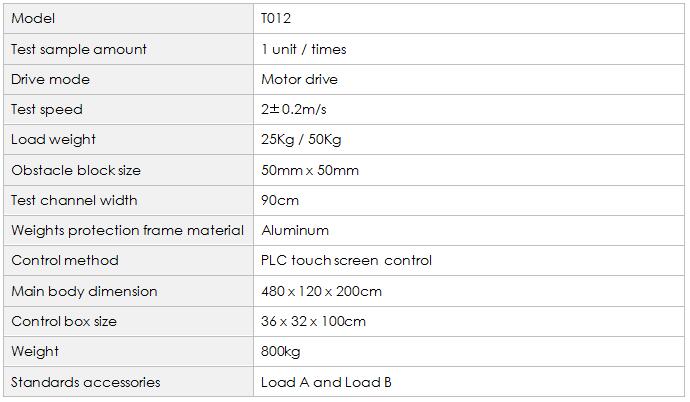

Key Specifications
