Trapezoidal stainless steel hook is suitable for most T-shape trapezoidal roofs. If you send us the accurate size of steel rook,the most suitable roof hook can be customized.
Technical Parameters
|
Installation Angle
|
flat
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/m2
|
|
PV Modules
|
Framed,unframed
|
|
Module Orientation
|
Landscape
|
|
Standards
|
AS/NZS 1170
|
|
|
DIN 1055
|
|
|
JIS C 8955：2017
|
|
|
International Building Code IBC 2009
|
|
|
California Building Code CBC 2010
|
|
Material
|
Al6005-T5(Anodized)
|
|
Color
|
Silvery or according to customer requirements
|
|
Warranty
|
12 years
|

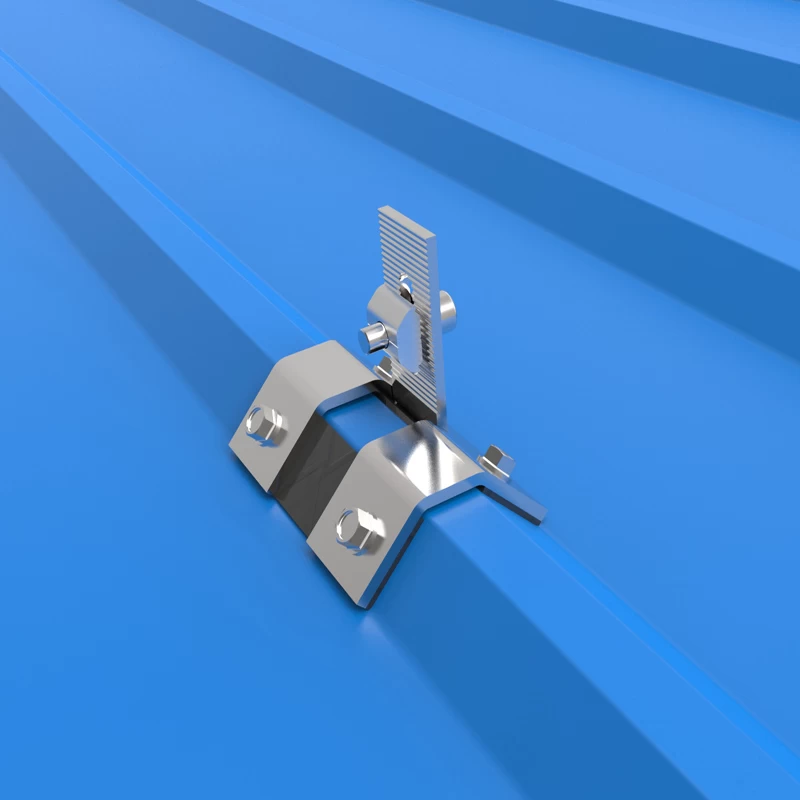

Trapezoidal stainless steel hook
Feature:
1. Trapezoidal stainless steel hook is
suitable for the specific trapezoidal tile; adopts self-tapping screws from side
door to fix the stainless steel hook to the color steel tile
2. The rubber trap attached to the bottom
of the trapezoidal stainless steel hook,to prevent the color steel tile from
leaking.
Advantage
1.Easy installation;
2.High strength,anti-uv,high frequency insulation(design standard:IS C 8955:2017,GB 50009-2012,IBC 2009,CBC 2010);
3.Chemical resistance&weatherability(certificate:AS/NZS 1170,MCS,CSA etc);
4.Max wind speed:up to 60m/s;
5.Anti-corrosive:anodized;
6.Duration:25 years.
Component photos of trapezoidal stainless steel hook

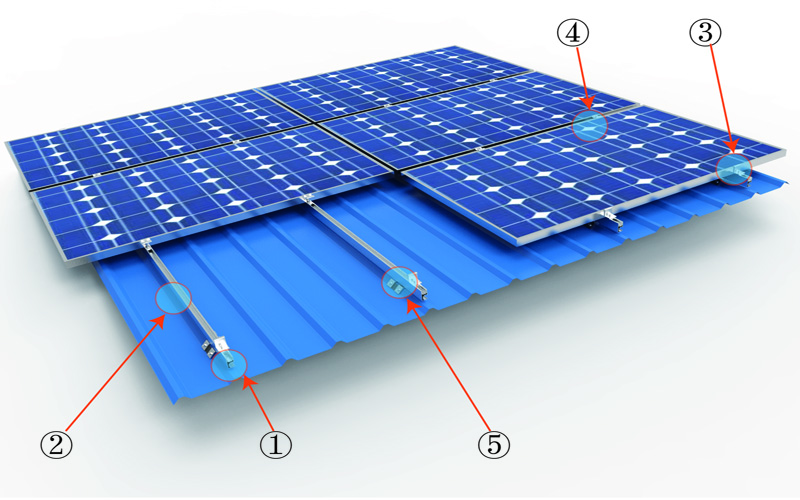

1. Solar roof rail 2. Solar roof rail splice 3. Solar end clamp 4. Solar inter clamp
5. Hook for galvanized roof

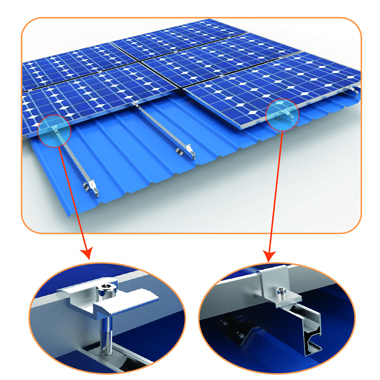

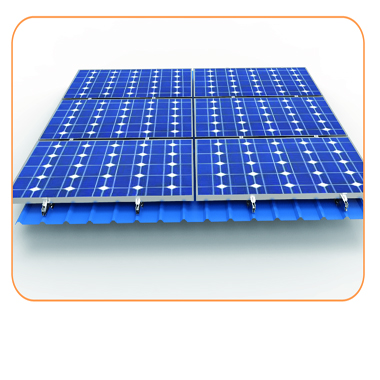

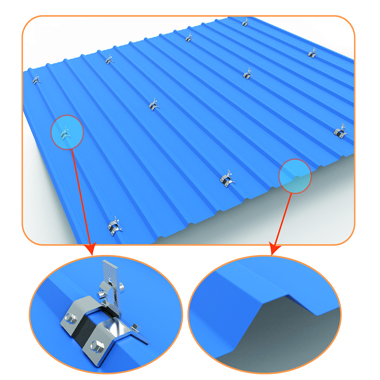

Installation photos of trapezoidal stainless steel hook

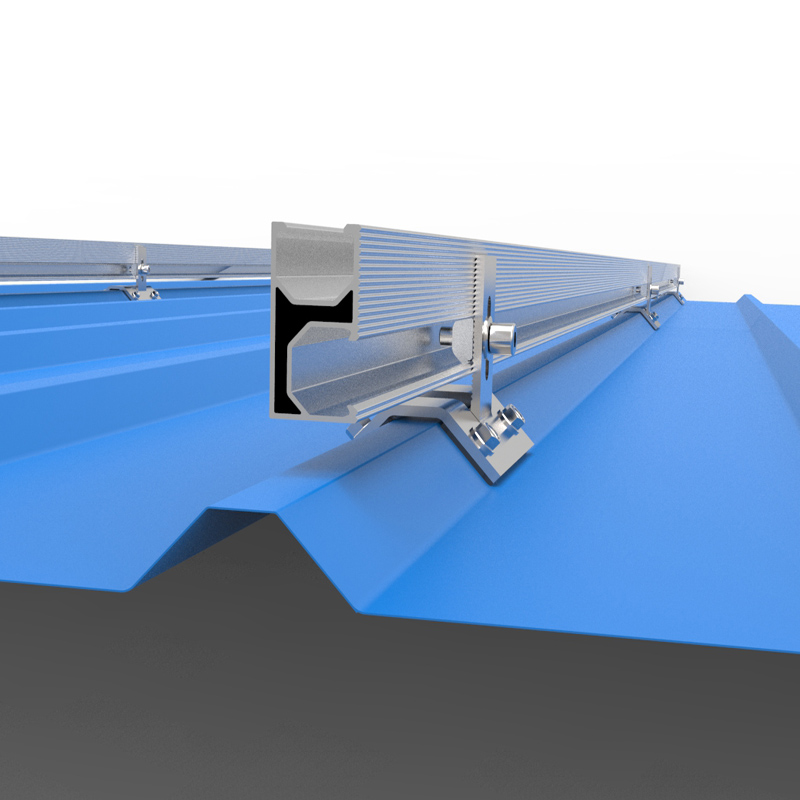

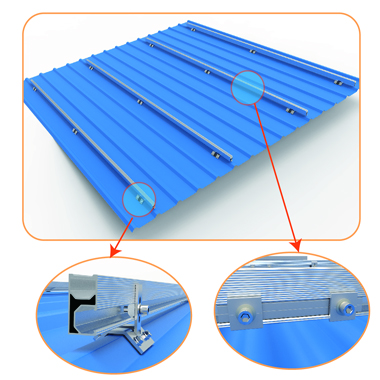

Step1：Install galvanized roof Step2：Install roof rails and rail splices
hook according to the drawing
Install galvanized Shape of galvznized roof Hook and rail Rail splice
roof hook
Step3：Fasten panel by inter clamps Step4： Installation completion diagram
and end clamps
Inter clamp End clamp
