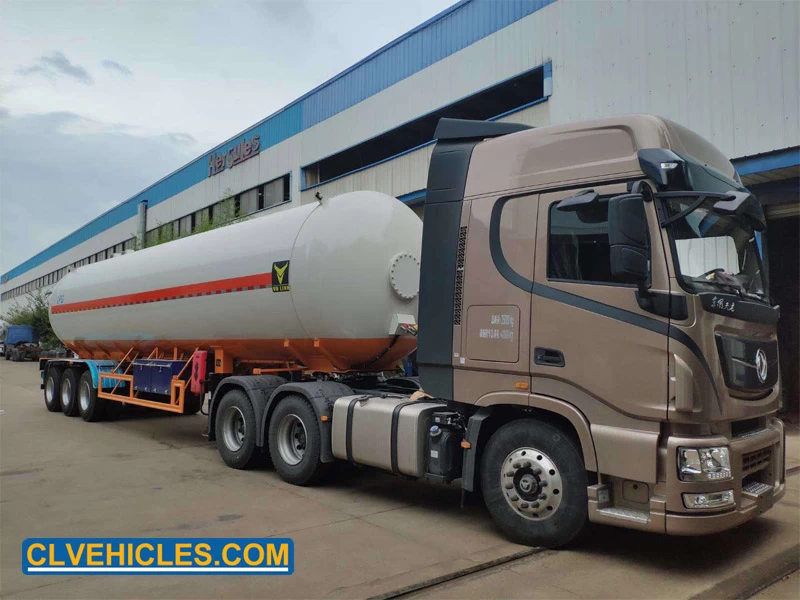

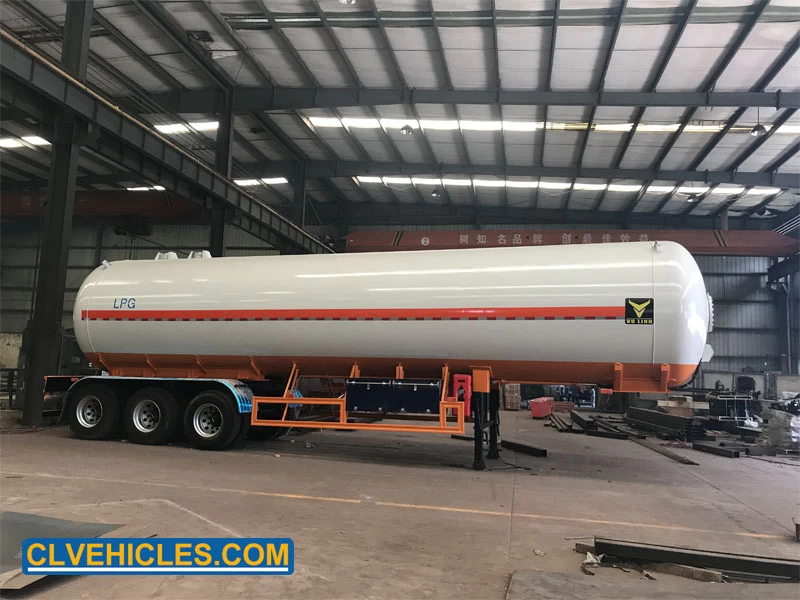

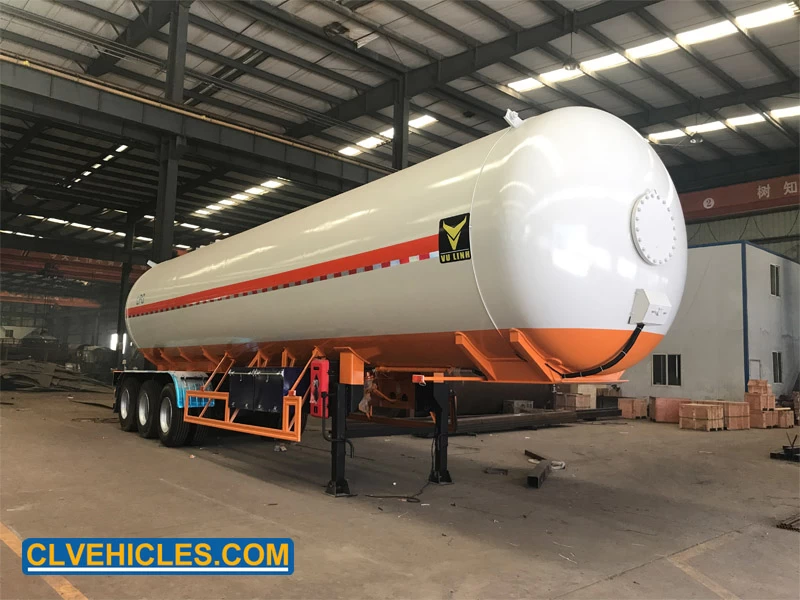

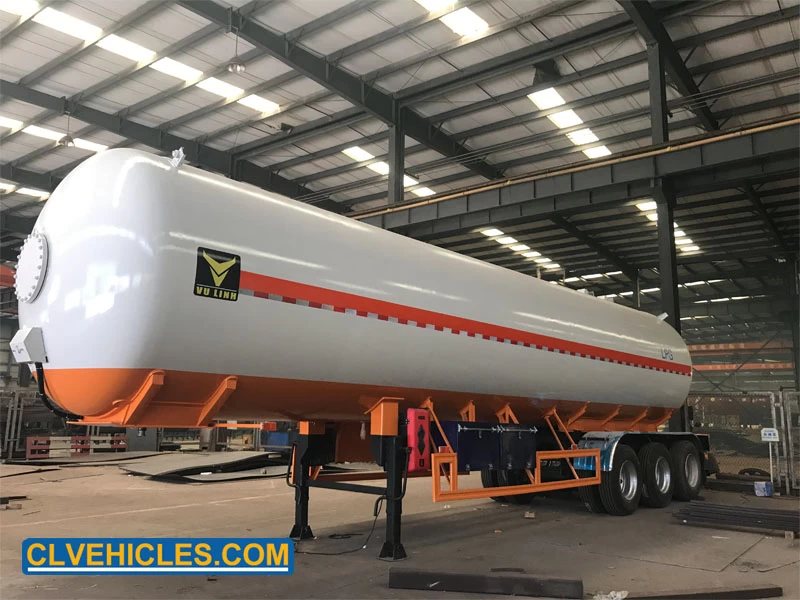

3 Axles LPG Tank Semi-Trailer 52CBM LPG Propane Tanker Trailer
Liquefied petroleum gas (LPG) tank trailer include LPG tank body (made of Q345R steel plate), axle, tire, support leg, traction pin, double outlet double valve box (pressure gauge, thermometer, tight cut valve, ball valve), iron anti-wave plate, safety valve, level gauge, fire-extinguishing appliance, toolbox, anti-static tape, spare tire frame, plastic tire fender, etc.
Quick Details
|
Material of Tank
|
Carbon Steel Q345R
|
|
Propane tank capacity
|
50000 liter
|
|
Design temperature
|
50℃
|
|
Design pressure
|
1.77Mpa
|
|
Leak test pressure
|
1.77Mpa
|
|
Hydraulic test pressure
|
2.3Mpa
|
Applications
Liquefied petroleum gas (LPG) tank trailer include LPG tank body (made of Q345R steel plate), axle, tire, support leg, traction pin, double outlet double valve box (pressure gauge, thermometer, tight cut valve, ball valve), iron anti-wave plate, safety valve, level gauge, fire-extinguishing appliance, toolbox, anti-static tape, spare tire frame, plastic tire fender, etc.
Competitive Advantages
|
|
|
|
Our LPG tanker trailer is made of Q345R steel which is specialized for pressure vessel 100% X-ray inspection
|
Emergency shut off valve fore safety
|
|
|
|
Double side for discharge and loading ,double tool box and valve box
|
LPG dispenser optional with automatic fault detection and overload protection
|
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
|
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
Supply only upper body without chassis. According to your chassis drawing,
design function parts.
Customization
Communicate with engineer,making design drawings and produce customized products.
Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts
on trucks as tank and box.
|
|
