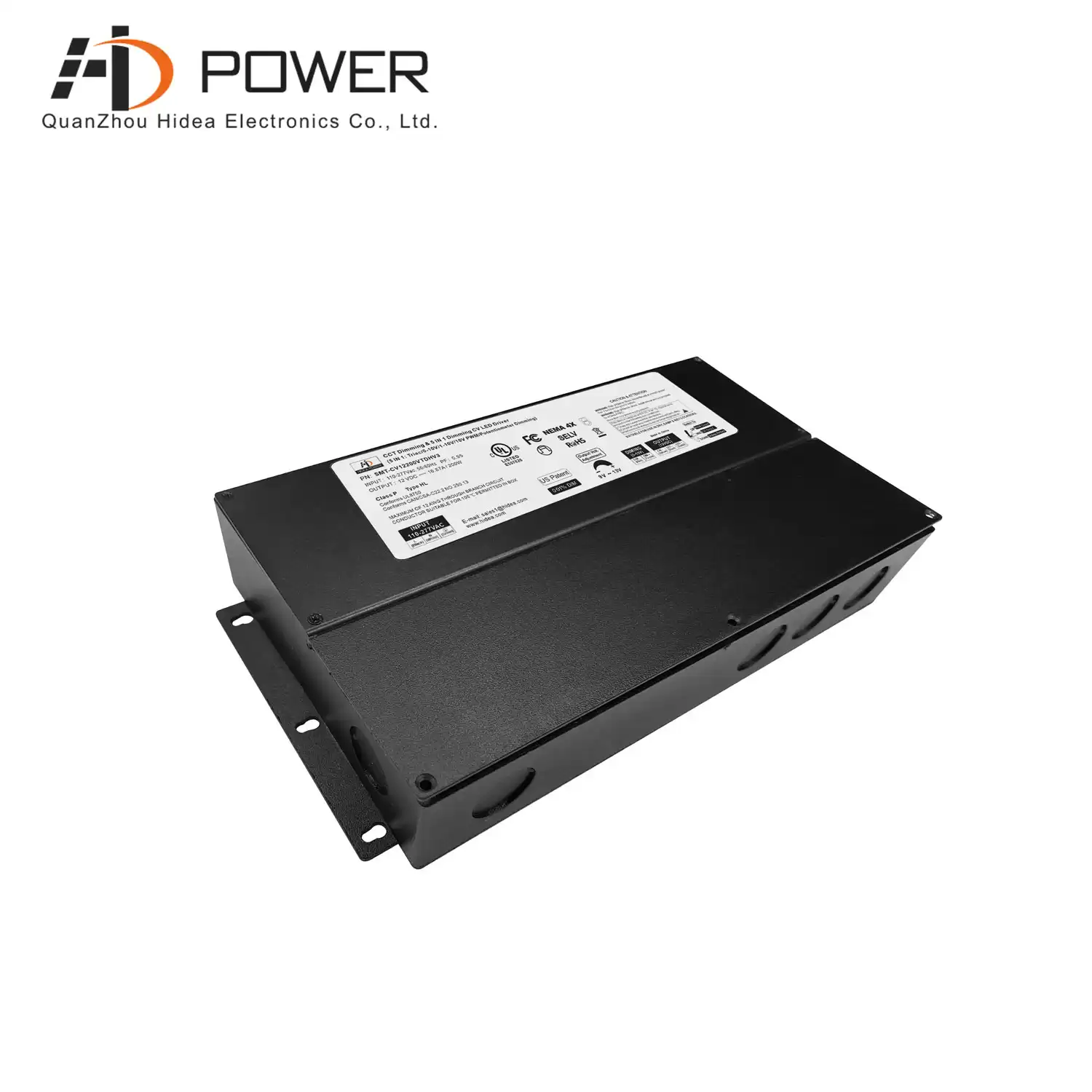

Hidea power dimming two-color 5-in-1 dimming power
supply can be controlled by PWM output mode or by
switching to voltage regulation output, both of which
can realize the color temperature control of dim to warm
color temperature lamps.
|
|
Specification
|
Model Number
|
SMT-CV12200-VTDHV3
|
SMT-CV24200-VTDHV3
|
SMT-CV36200-VTDHV3
|
SMT-CV48200-VTDHV3
|
|
OUTPUT
|
|
Rated Power
|
200W
|
200W
|
200W
|
200W
|
|
Rated Voltage
|
12V
|
24V
|
36V
|
48V
|
|
Rated Current
|
16.6A
|
8.33A
|
5.56A
|
4.17A
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
INPUT
|
|
Voltage Range
|
100-277V
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(typ.)
|
0.98@120VAC 0.95@277VAC Full load
|
|
Total Harmonic Distortion
|
THD< 20%@120VC/277VAC;
|
|
Efficiency(Typ.)
|
85%@120VAC
86%@277VAC
|
86% @ 120VAC
87% @277VAC
|
85% @ 120VAC
86% @277VAC
|
86% @ 120VAC
87% @277VAC
|
|
AC Current(Typ.)
|
2.32A
|
|
Inrush Current(Typ.)
|
15A, 50%, 1.4ms @120VAC; 30A, 50% 1.4ms @277VAC
|
|
Leakage Current
|
<0.5mA/ 120VAC
|
|
PROTECTION
|
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Load
|
≤120% shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Temperate
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
ENVIRONMENT
|
|
Working Temp.
|
Tcase=-40 ~ +60 ℃
|
|
Max. Case Temp.
|
Tcase=+90℃
|
|
Working humidity
|
20 ~ 95% RH non-condensing
|
|
Storage temp., Humidity
|
-40 ~ +90, 10 ~ 95% RH
|
|
Temp .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
SAFETY & EMC
|
|
Safety standards
|
UL8750, CSAC22.2 No. 250.0-08
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
|
|
EMC Emission
|
Compliance to FCC part 15 Subpart B
|
|
OTHERS
|
|
Dimension
|
254x132x42.5mm (L*W*H) N.W: 1.86kg
|
|
Packing
|
10pcs/CTN G.W:19.8KG SIZE: 300*285*250mm
|

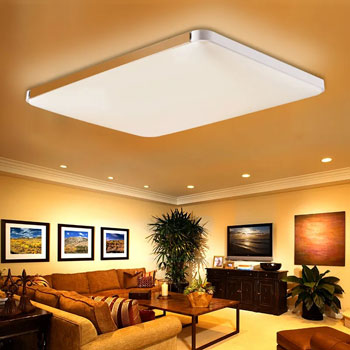

Compatible Light Type

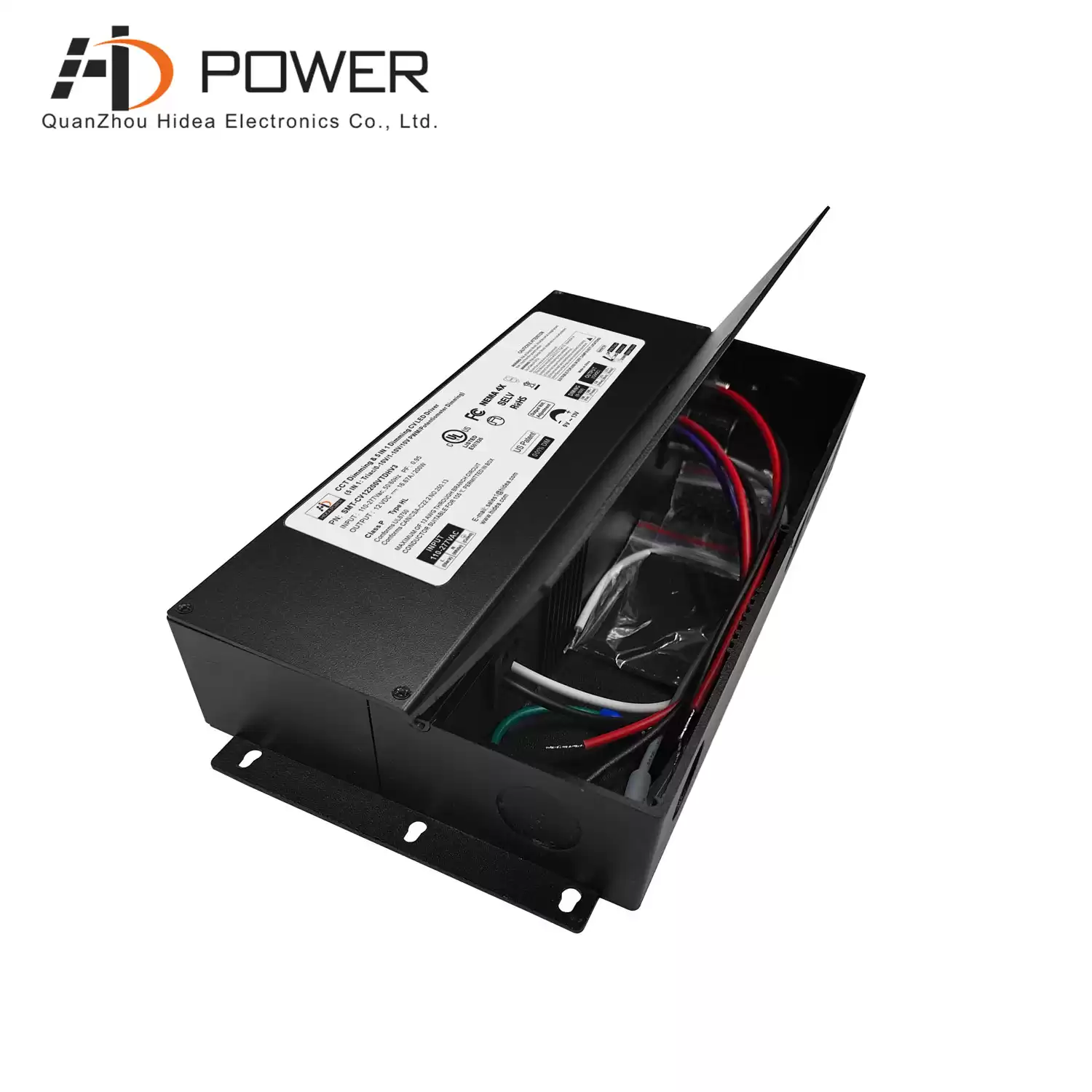

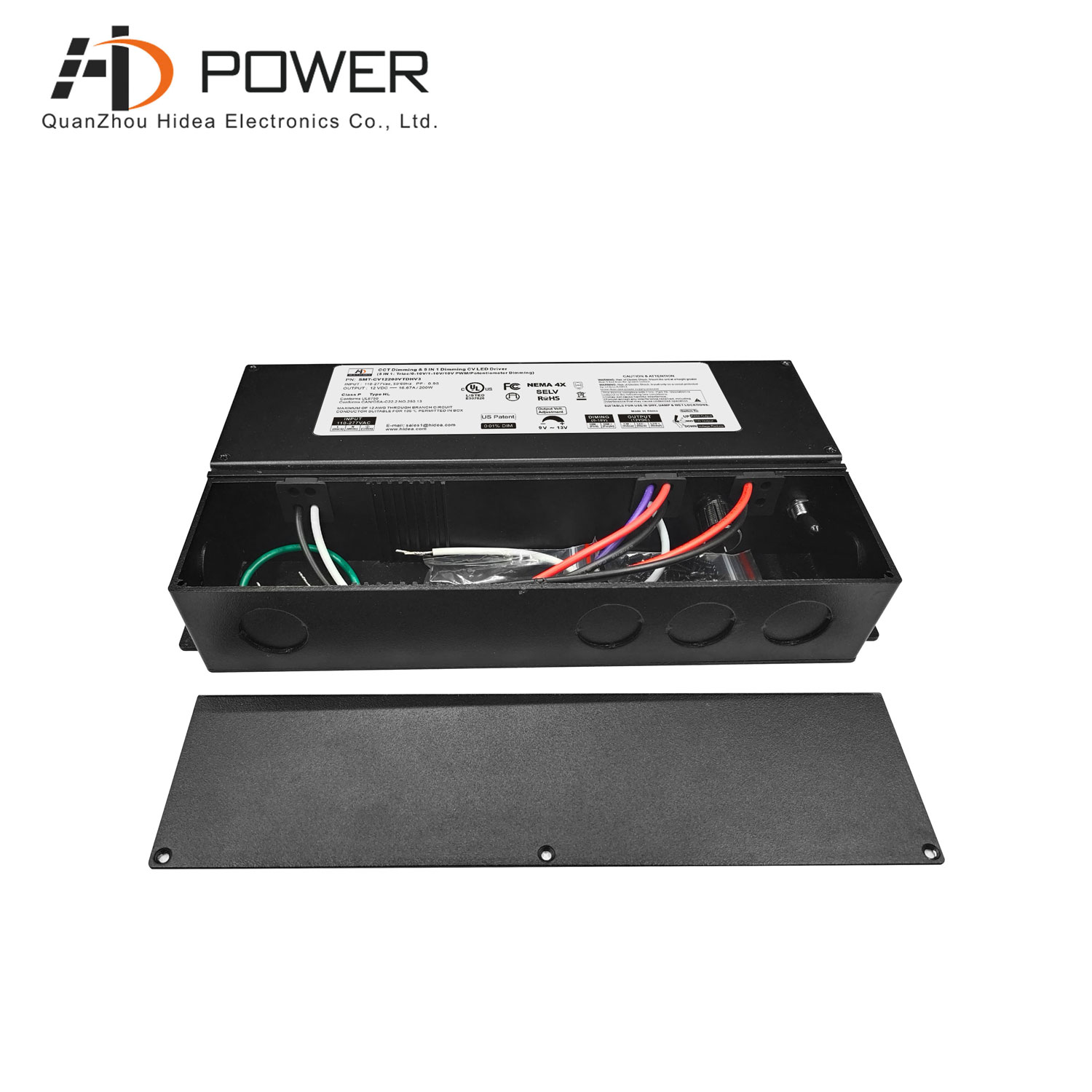

The 200W 5 in 1 dimmable led driver integrates the power supply and the junction box. The unique flip junction box can make the wiring more convenient for users.
Related Products
|

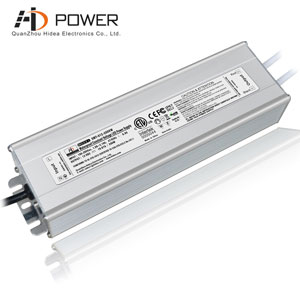

 ETL CE certified constant voltage led driver 200W 12v passed the global lighting regulations, safe and reliable waterproof performance, suitable for use in outdoor projects
