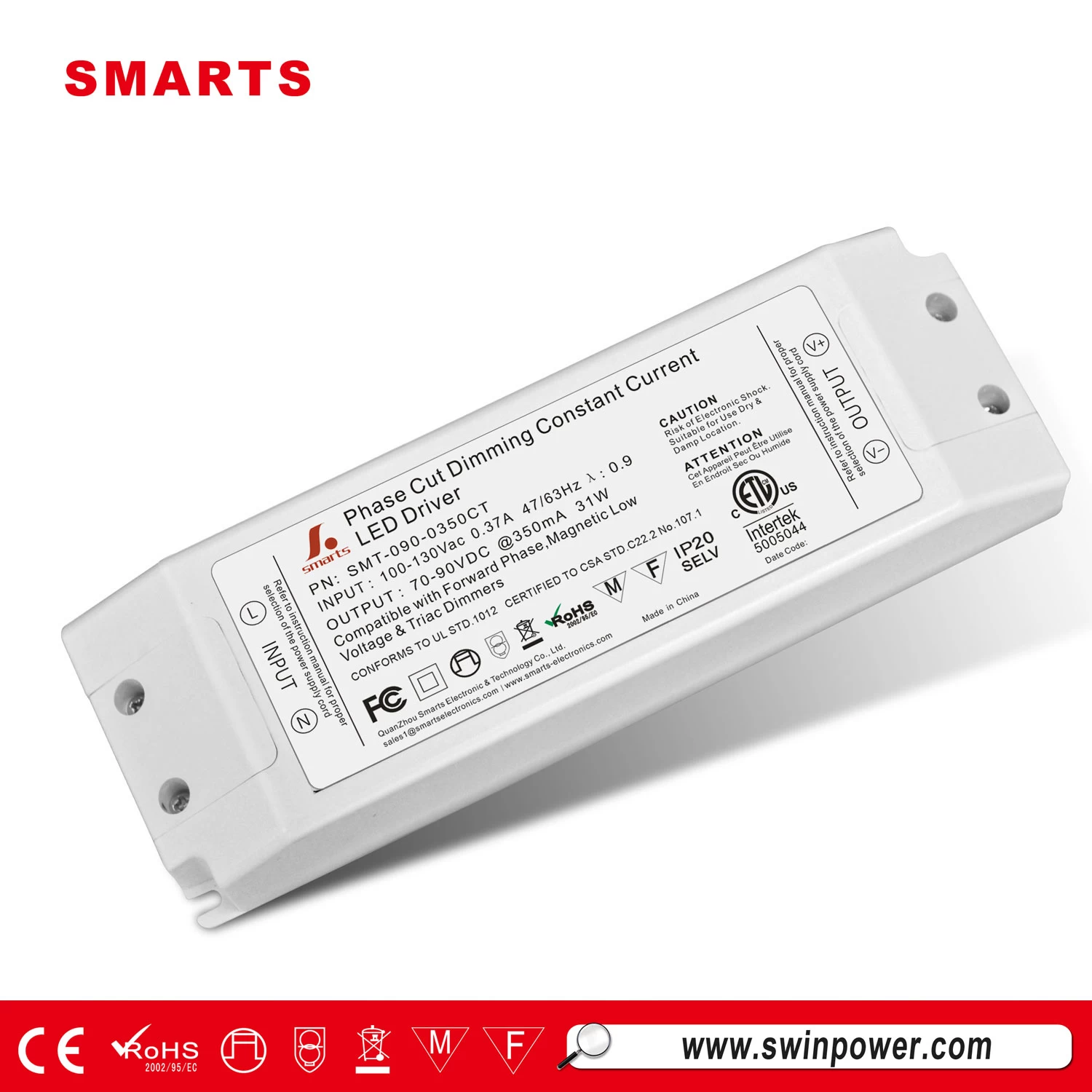

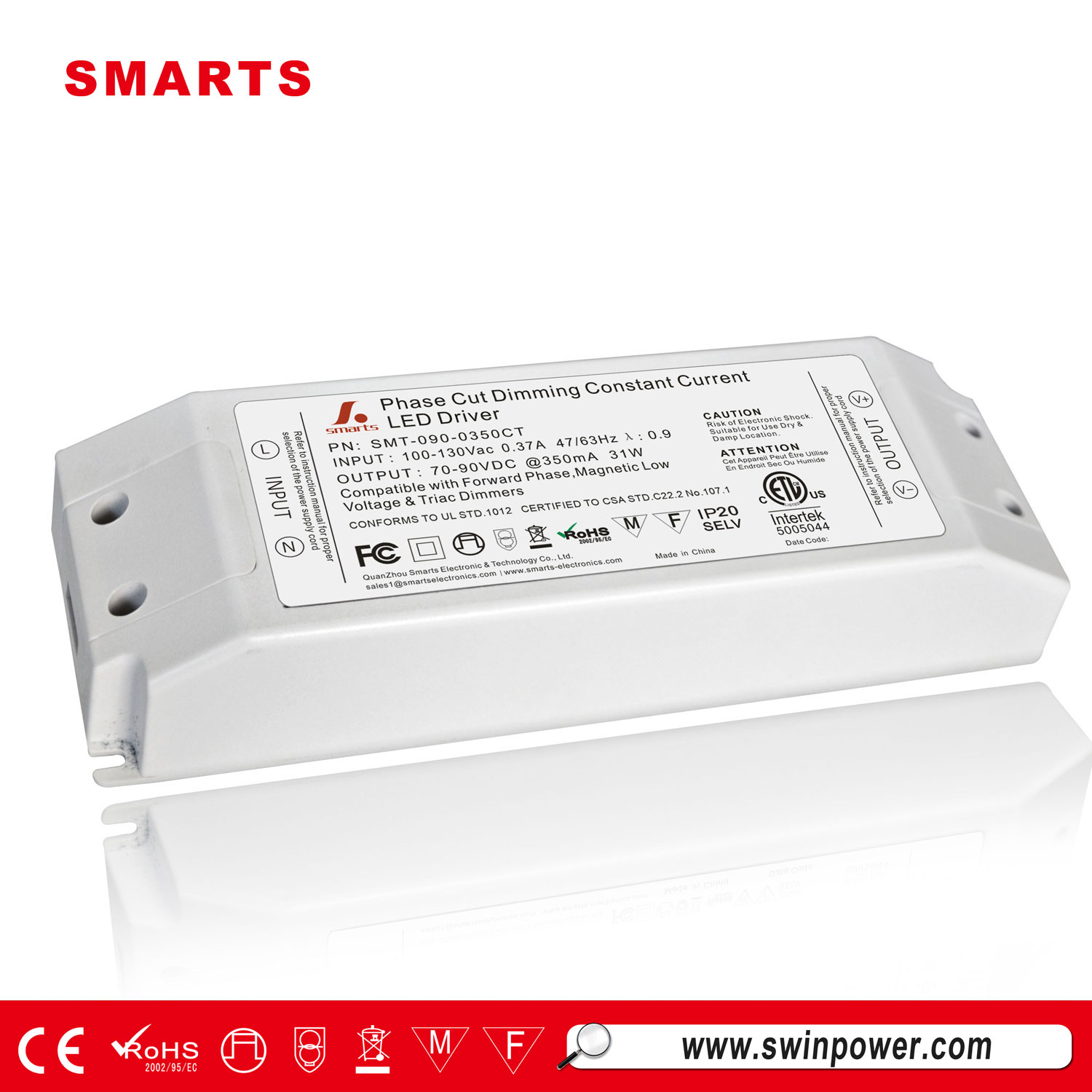

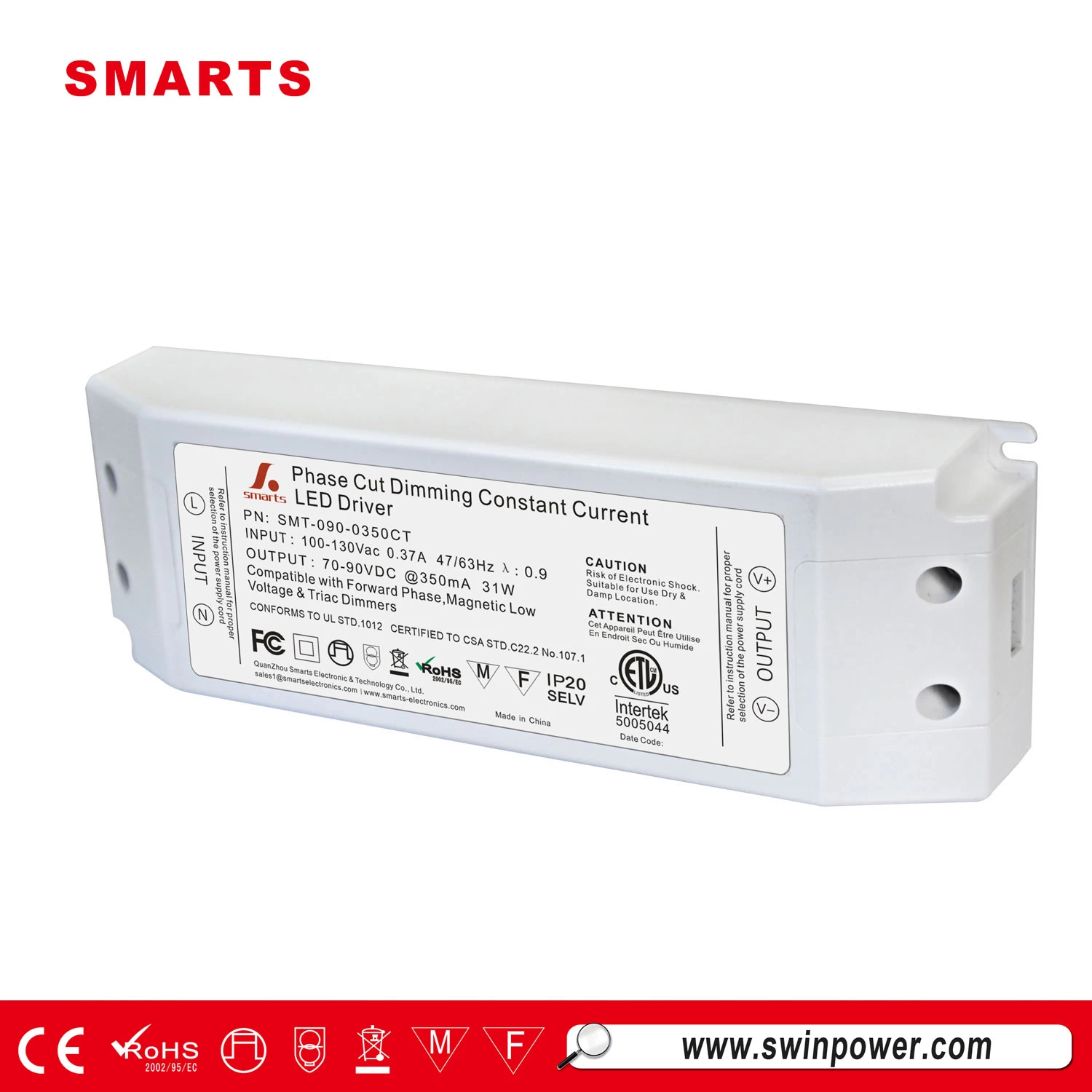

triac dimmable constant current led driver 31w 70-90v 500ma
triac led driver devide two series: triac dimmable constant voltage led driver and triac dimmable constant current power source, that are our strength product.
Product Description
|
Model
|
Input voltage(vAC)
|
Working Frequency (Hz)
|
Output voltage
(vDC)
|
Output Current (A)
|
Output power (W)
|
Working Temp.
|
Protection grade
|
|
SMT-090-0350CT
|
90-135V/
170-265V
|
47~63Hz
|
70-90vDC
|
350mA
|
31W
|
-25~50°C
|
IP20
|
|
SMT-060-0500CT
|
90-135V/
170-265V
|
47~63Hz
|
40-60vDC
|
500mA
|
30W
|
-25~50°C
|
IP20
|
|
SMT-048-0500CT
|
90-135V/
170-265V
|
47~63Hz
|
30-48vDC
|
500mA
|
24W
|
-25~50°C
|
IP20
|
|
SMT-070-0500CT
|
90-135V/
170-265V
|
47~63Hz
|
50-70vDC
|
500mA
|
35W
|
-25~50°C
|
IP20
|
|
SMT-030-0700CT
|
90-135V/
170-265V
|
47~63Hz
|
15-30vDC
|
700mA
|
21W
|
-25~50°C
|
IP20
|
|
SMT-045-0700CT
|
90-135V/
170-265V
|
47~63Hz
|
27-45vDC
|
700mA
|
31W
|
-25~50°C
|
IP20
|
Features:
-
Case material: plastic case
-
Cooling by free air convection
-
100% full load burn-in test
-
High reliability
-
Suitable for LED lighting and moving sign applications
Environment parameter:
-
Working temperature:-40 -80°C
-
Store temperature:-40 -85°C
-
Working humidity:10-90%
-
Lifespan:(MTBF)50,000 hours
-
Case machine specifications
-
Case: plastic case
Product Features:
-
Universal AC input (90~135VAC, 170~ 265VAC)
-
Protections: Short circuit/Overload/Over voltage/Over temp.
-
Built-in active PFC function
-
PF>0.90
-
designing standard: Ul1310 Class 2 power unit
-
Cooling by nature
-
Suitable for dry location
-
Suitable for LED lighting and moving sign applications
-
Follow the global lighting safety regulations
Safety:
-
Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
-
Withstand Voltage : I/P-O/P: 3000KVAC
-
Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Question:
1. Just to confirm the drivers are Three In One Dimming Function Compatible With Leading-edge/Trailing-edge Dimmer, No Flicker? No Min load?
Answer:
Our Triac dimmable led drivers are compatible with Leading-edge/Trailing-edge Dimmer,no flicker,no min load.
Certifications : ETL/cETL,UL/CUL, CE,ROHS approval.
