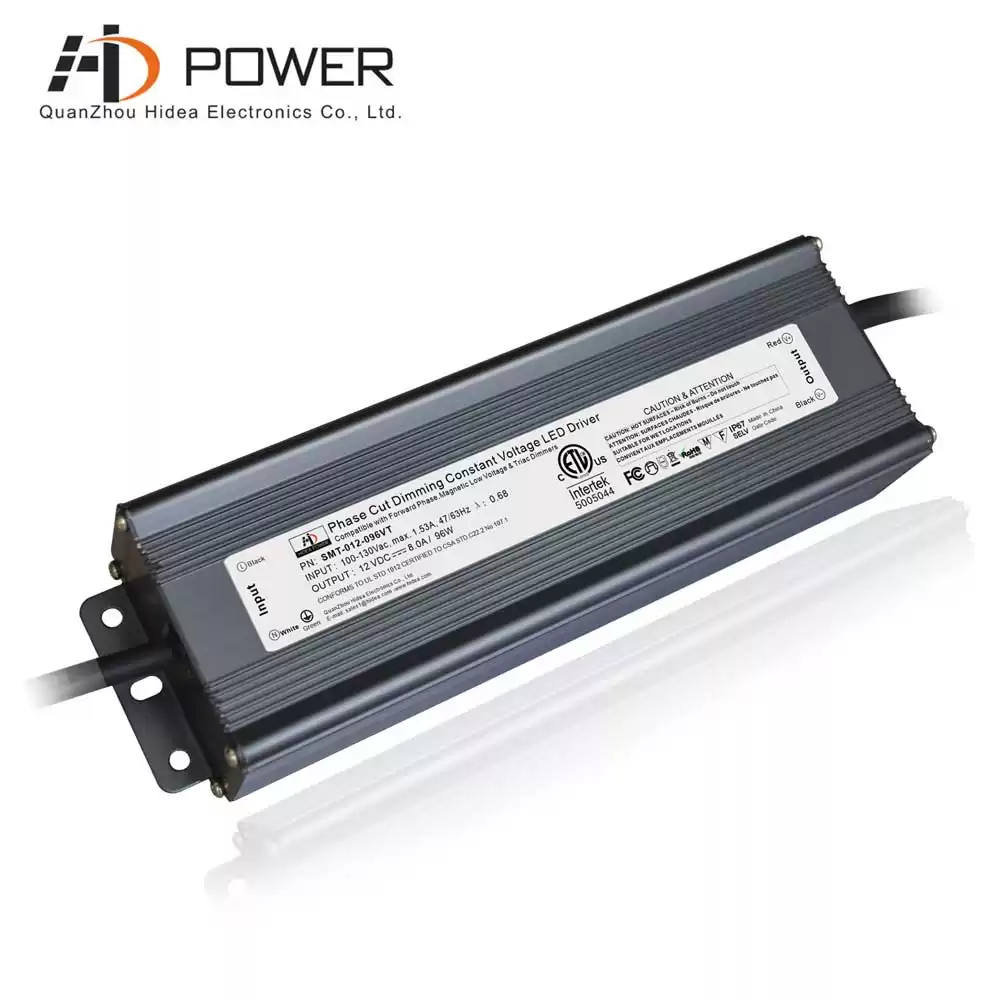

Triac dimmable constant voltage led driver has short-circuit/overload/over-temperature protection, working efficiency up to 87%, aluminum housing design with air convection cooling, good heat dissipation, with five-year warranty
Specification
|
Model
|
SMT-012-100VT
|
SMT-024-096VT
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Rated current
|
8.33A
|
4.0A
|
|
Rated power
|
100W
|
96W (class 2)
|
|
Input
|
Voltage Range
|
100~130VAC
|
|
Frequency Range
|
50~60HZ
|
|
Power Factor
|
0.65(Full loading)
|
|
Efficiency(Typ.)
|
81%
|
83%
|
|
AC Current(Max.)
|
1.7A
|
1.7A
|
|
Leakage current
|
﹤0.50mA/120VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recover automatically after fault condition is removed
|
|
Over Current
|
≤1.2*I out
|
|
Over Loading
|
≤120%
|
|
Over temperature
|
100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~95%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,5G 12min./1 cycle,period for 72min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL1012
|
|
Withstand voltage
|
I/P-O/P:1500VAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Net. Weight
|
1.2Kg
|
With junction 1.84Kg
|
|
Size
|
230*70*46mm (L*W*H)
|
380*77*57mm (L*W*H)
|
|
packing
|
324*279*176mm 10PCS/CTN
|
415*360*190mm 10PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃ of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
|
3.Loading should be 5-100%.
|
Compatible Light Type
100w dimmable led driver have got UL/cUL listed, Class P, Type HL, CE, ROHS approval, compliance to worldwide safety regulations for lighting. It can match Brandon-Lighting LED Strip Light 100W.
