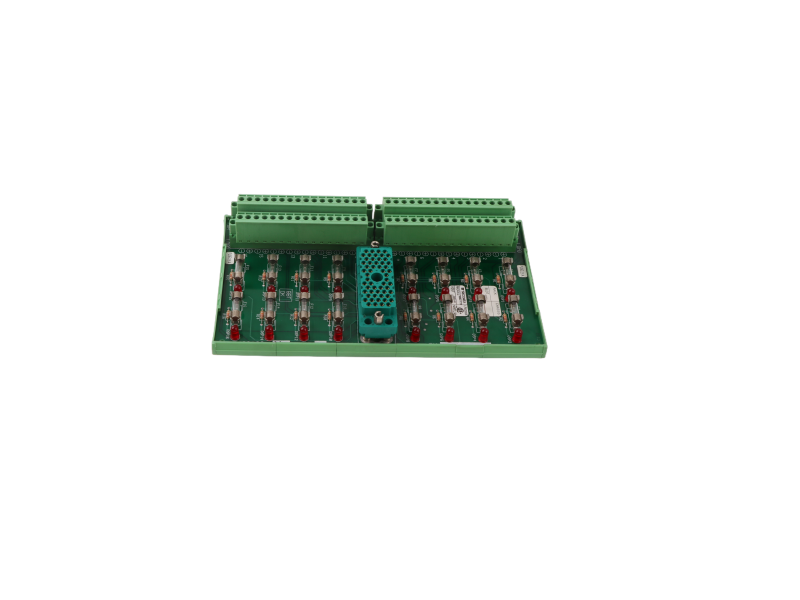

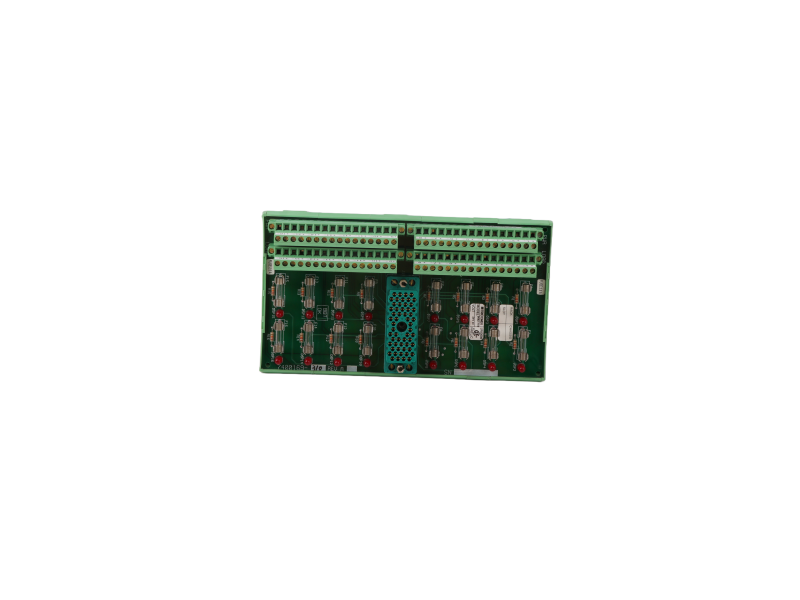

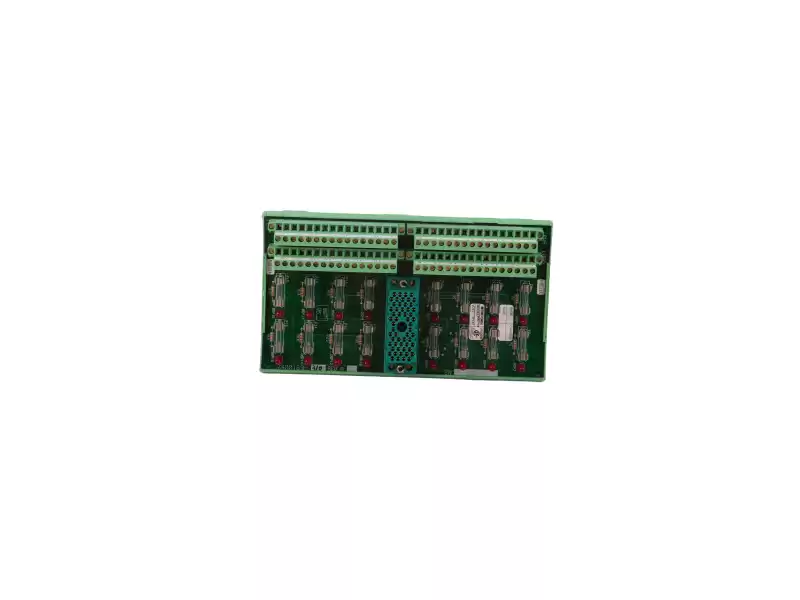

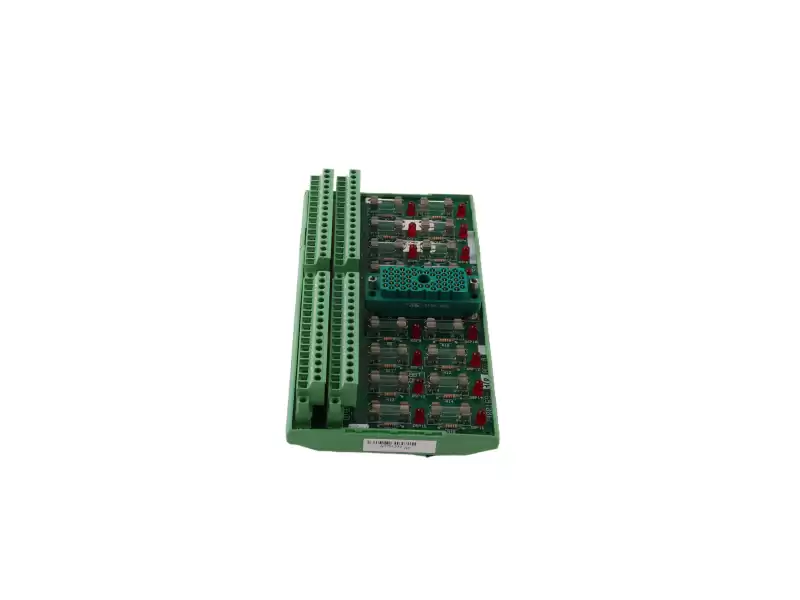

1. Core.Identity
Part Number: 7400169-310 / 9662-1XX
Type: Terminal Panel (not an output module)
Function: Bolts to the front of a Triconex analog or digital I/O module and provides pluggable, fused, clearly labelled field terminals.
Acts as a wire marshalling strip that maintains the TMR (Triple Modular Redundancy) signal path while connecting field cables.
2. Verified Specifications
|
Item
|
Specification
|
|
Part Number
|
7400169-310 / 9662-1XX
|
|
Function
|
Trident / Tricon I/O termination panel
|
|
Field Connector
|
Cage-clamp screw terminals, 16 channels
|
|
Voltage Range
|
0–5 VDC / 0–10 VDC / ±5 VDC analog; supports 24 VDC digital
|
|
Current Rating
|
3 A per terminal, with PTC self-reset fuse on each channel
|
|
Operating Temp
|
–40 °C to +85 °C (panel only)
|
|
Dimensions
|
22.6 cm × 12.4 cm × 2.2 cm – DIN-rail or panel mount
|
|
Certifications
|
CE, UL, CSA, RoHS
|
3. Typical Applications
Offshore WHCP panels: Terminate 4–20 mA position feedback signals without using a separate junction box.
Refinery SIS retrofits: Replace older 9662-110 panels with 9662-1XX to benefit from per-channel fuses.
OEM skids: Allow Trident I/O modules to remain in a purged cabinet while field wiring terminates at the front panel.
