1.What it is

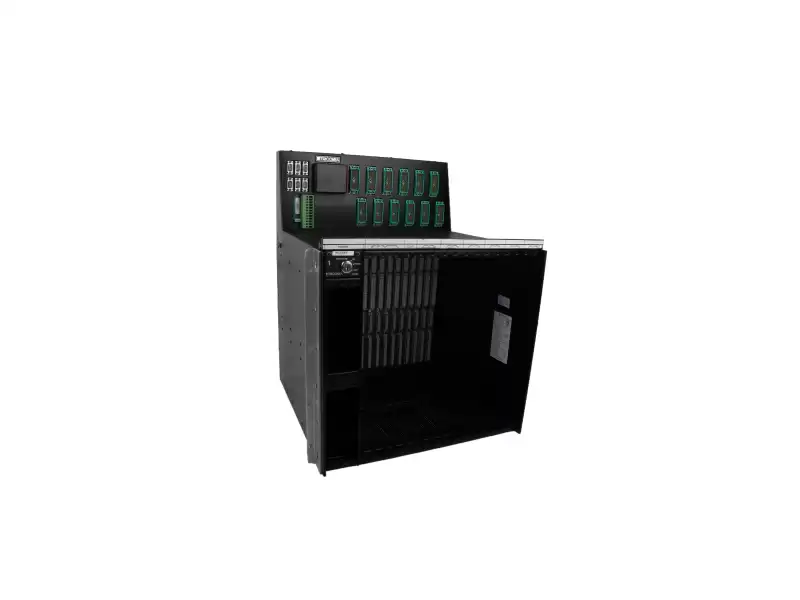

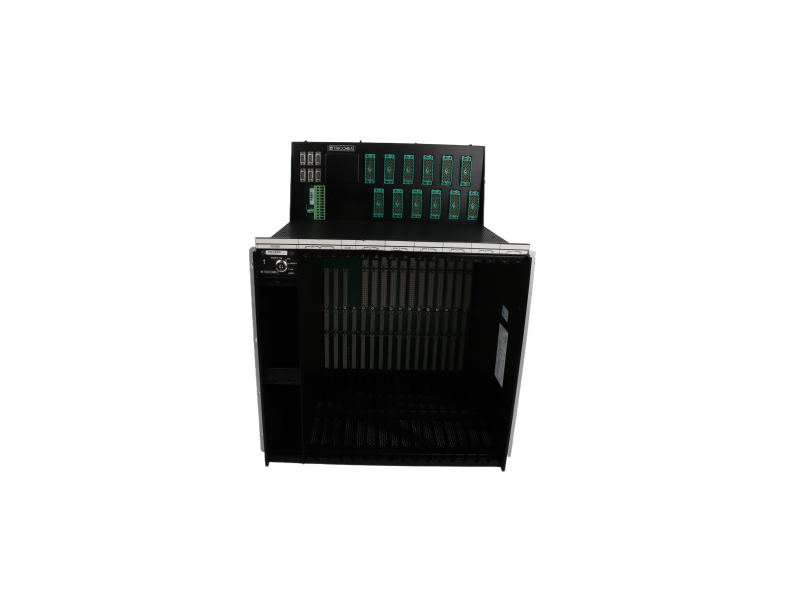

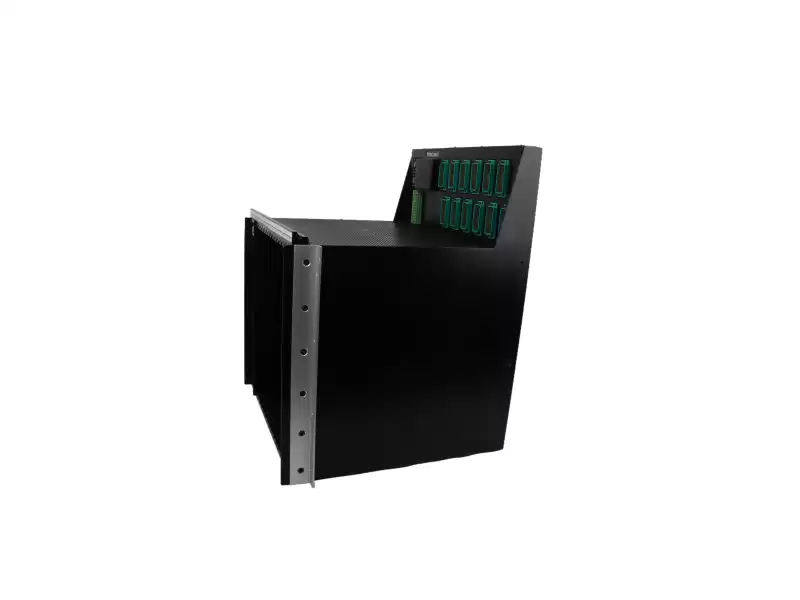

The 8110 is the physical heart of every TRICONEX Tricon Safety Instrumented System (SIS).
Built for SIL-3, TMR (Triple Modular Redundancy) architecture, it gives you three independent legs of power, data and diagnostics in a single 19-inch rack—no single point of failure, no hot-spare gaps.
2.Key technical data
|
Mechanical / Power
|
Specification
|
|
Rack slots
|
32 high-density I/O slots (4 rows × 8)
|
|
Foot-print
|
482 mm W × 222 mm H × 333 mm D (19" × 5U)
|
|
Weight (empty)
|
24.5 kg
|
|
Input power
|
10 A @ 120 VDC (redundant supplies)
|
|
Isolation
|
1 500 V RMS module-to-bus
|
|
Temp / Humidity
|
40 °C … +70 °C / 5 … 95 % RH non-condensing
|
|
Shock / Vibe
|
5 g ½-sine 20 ms / 0.03 g 5-500 Hz
|
|
Enclosure rating
|
IP 20 (chassis); conformal-coated back-plane
|
|
Certifications
|
SIL 3 per IEC 61508, ATEX, CE, UL, cUL
|
|
Communication on back-plane
|
Ports
|
|
TriBus (internal TMR)
|
3 × parallel leg buses
|
|
I/O expansion
|
6 × RS-485 (isolated, 115 kbps)
|
|
Remote chassis link
|
2 × fibre or RS-485 per project
|
|
Time sync
|
1 PPS or IRIG-B optional
|
Where it is used
Oil & gas ESD, LNG trains, refinery fire & gas, chemical reactor interlocks, nuclear auxiliary systems, power-gen turbine protection—any place where IEC 61511 demands a SIL-3 response time < 100 ms.
Why 8110 still matters
• Hot-swappable I/O – replace any module without tripping the process.
• Triple power buses – keep two on-line while you service the third.
• Field-proven for > 30 years; spares and upgrade CPUs remain available worldwide.
