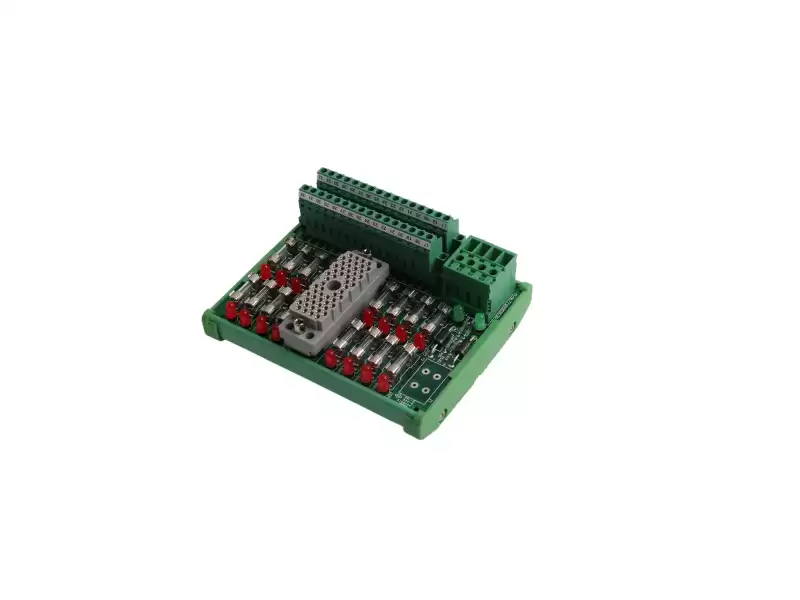

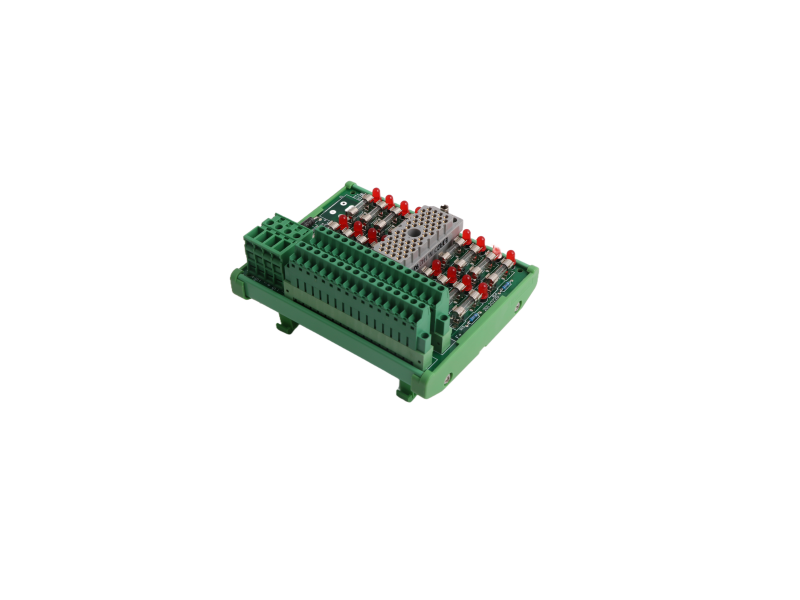

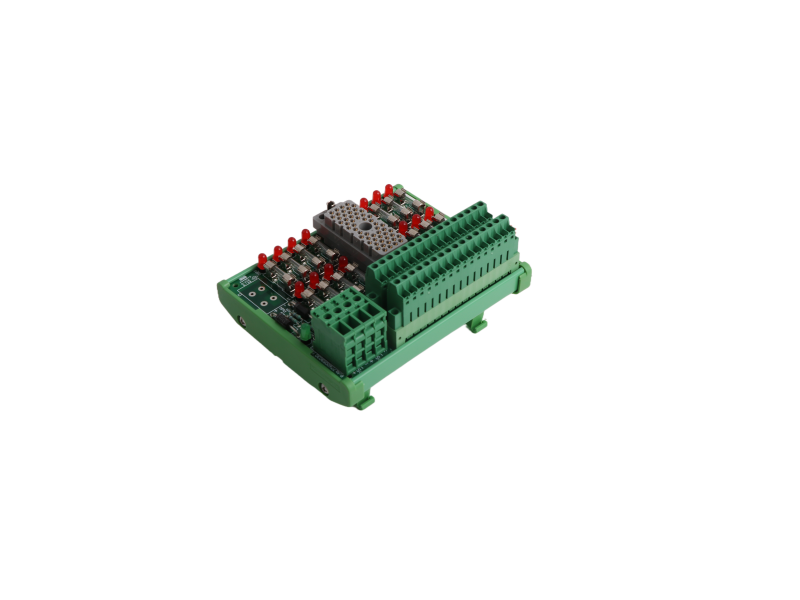

Xiamen-based PLC Autocontroller has spent 20 years shipping automation spares worldwide. One part that never stays on the shelf for long is the TRICONEX 9563-810.
Built for Tricon TMR safety racks, this front-end panel turns 24 VDC field contacts into triplicated, fault-tolerant data—exactly what you need for SIL 3 emergency-shutdown loops, fire-&-gas panels or compressor anti-surge logic.
Key facts in one glance
|
Model number
|
9563-810 (Tricon TMR series)
|
|
Function
|
32-channel isolated digital input
|
|
Voltage window
|
18 – 36 VDC (24 VDC nominal)
|
|
Response time
|
< 2 ms (typical)
|
|
Power draw
|
< 5 W per module
|
|
Isolation
|
Channel-to-channel & field-to-logic
|
|
TMR feature
|
Triple data paths voted on-board
|
|
Hot-swap
|
Yes – no rack power-down needed
|
|
Enclosure rating
|
IP67 (dust-tight, 1 m immersion)
|
|
Operating range
|
–40 °C to +70 °C
|
|
Certifications
|
SIL 3 / IEC 61508, CE, UL, ATEX option
|
Why engineers like it
1. Three-way vote inside the module—no single-point failure reaches the safety logic.
2. Pluggable cage-clamp terminals shrink MTTR to minutes.
3. Works with both Tricon V9 & V10 racks; firmware auto-adapts.
4. Supports SOE (Sequence-of-Events) time-stamping at 1 ms resolution for trip forensics.
Ordering & service snapshot
|
SKU
|
Description
|
Warranty
|
|
9563-810
|
Brand-new, sealed OEM box
|
12 months
|
|
9563-810-FR
|
Factory-rebuilt to OEM spec
|
12 months
|
|
9563-810-EX
|
ATEX-certified version (on request)
|
12 months
|
Need configuration help?
For quotation, simply mail the quantity and destination to ab@mooreplc.com
