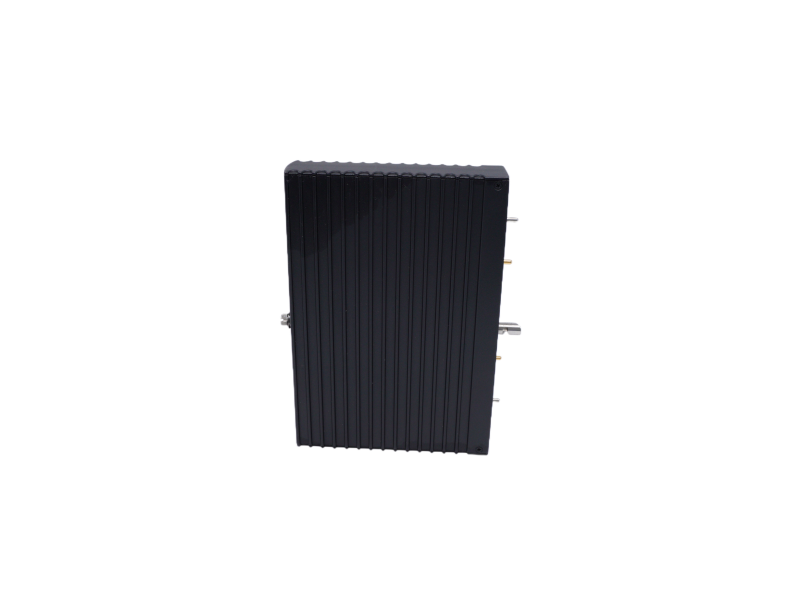

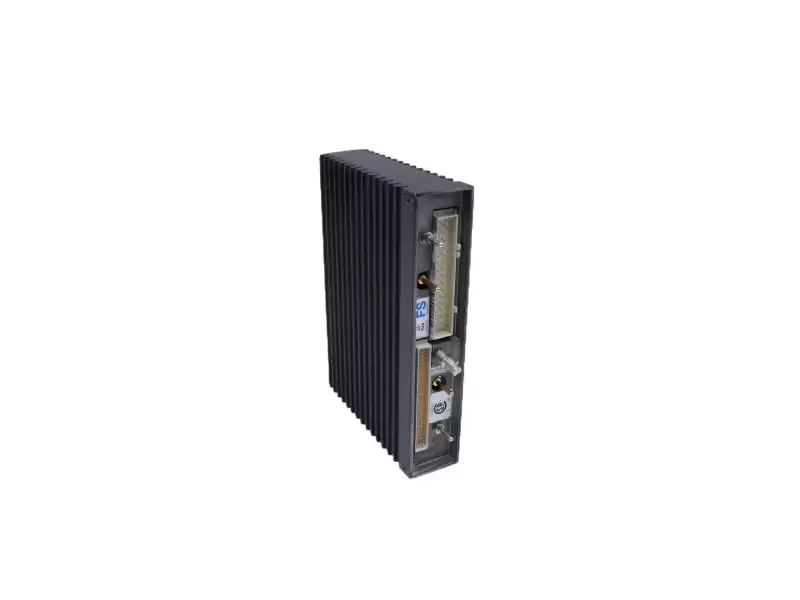

MP3101 is the second-generation Main Processor for Tricon TMR systems. It occupies the left-most slot of any rack, executes 2oo3 voting, scans all I/O, time-stamps SOE events, manages communication and runs the user application.
Three MP3101 units operate in parallel; any single failure leaves the system SIL-3 capable.
1.Key specifications (@ 25 °C, 5 V backplane)
|
Item
|
Value
|
Remarks
|
|
CPU
|
PowerPC 7448
|
900 MHz per triad
|
|
SDRAM
|
512 MB
|
battery-backed ≥ 72 h
|
|
Flash
|
128 MB
|
firmware + application
|
|
Scan time
|
< 15 ms
|
typical 1 K FBD
|
|
SOE resolution
|
1 ms
|
100 000 rolling records
|
|
Ports
|
2×RS-485, 1×RS-232
|
expandable to Ethernet/UCN
|
|
Protocols
|
Modbus RTU/TCP, TSAA
|
on-board
|
|
Voting delay
|
< 250 µs
|
hardware comparator
|
|
Temperature
|
40…+70 °C
|
horizontal forced-air
|
|
Power
|
5 V @ 2 A
|
10 W typical
|
|
Size
|
194 × 110 × 50 mm
|
single-slot width
|
|
Hot-swap
|
yes
|
< 2 min, tool-free
|
|
SIL / Cert
|
SIL 3, IEC 61508
|
TÜV report shipped
|

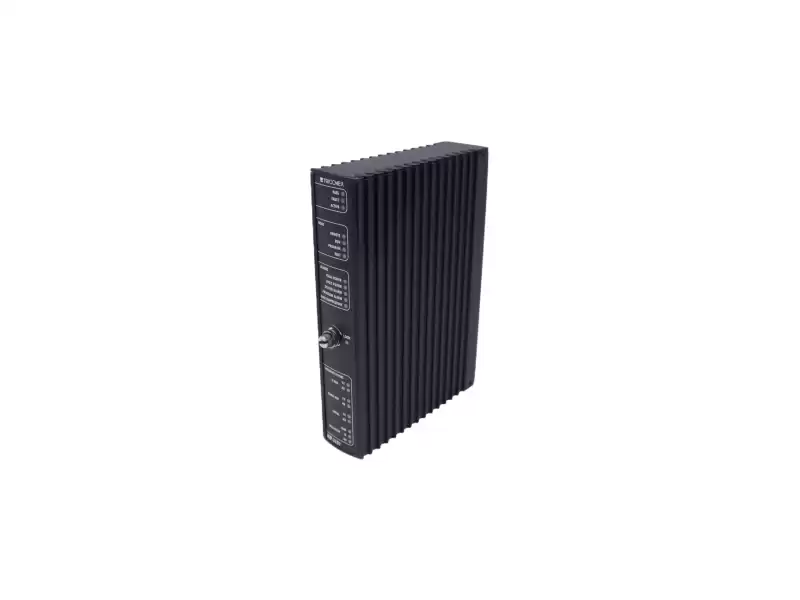

2.Front-panel LEDs at a glance
|
LED
|
Color
|
Meaning
|
|
PASS
|
green
|
CPU self-test OK
|
|
FAULT
|
red
|
CPU faulted
|
|
ACTIVE
|
green
|
controlling triad
|
|
STANDBY
|
amber
|
hot-spare
|
|
MEMORY
|
green/red
|
battery & RAM OK/low
|
|
COM
|
green flash
|
traffic active
|
3.Snapshot applications
u Petrochemical: 62 000 I/O olefin ESD, 12 ms scan on triple MP3101
u Power: 9F gas-turbine BMS flame-out protection, 1 ms SOE pinpoints first-out trip
u LNG: triplicated pump discharge pressure, 2oo3 cut-off ≤ 40 ms
