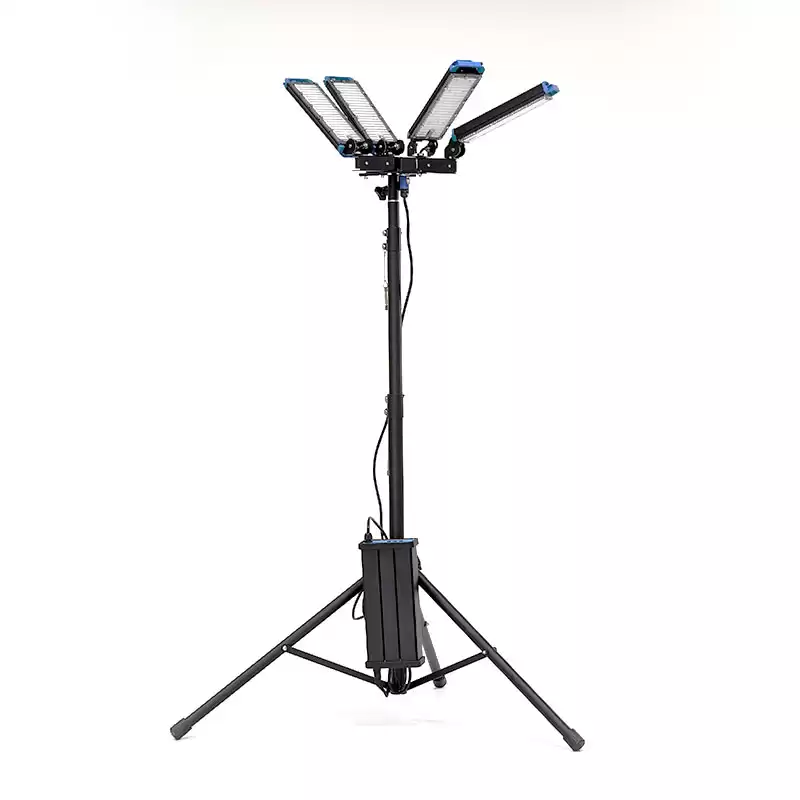

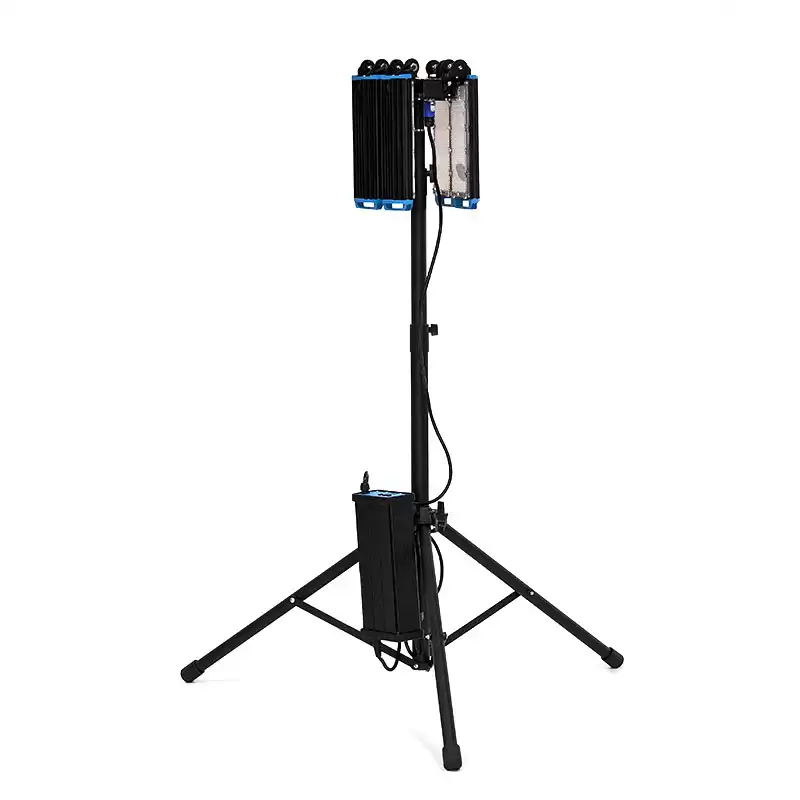

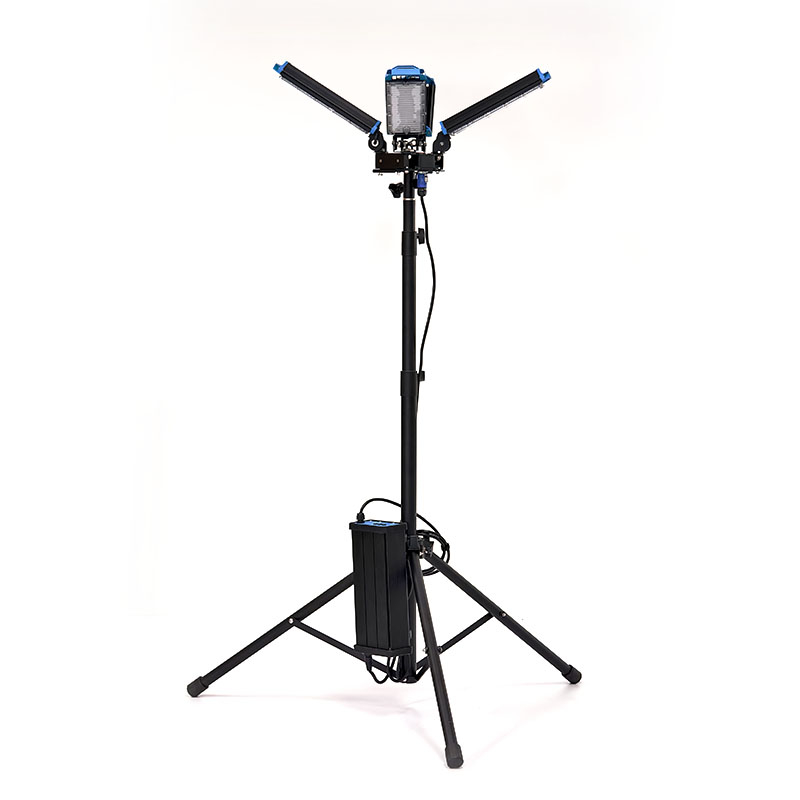

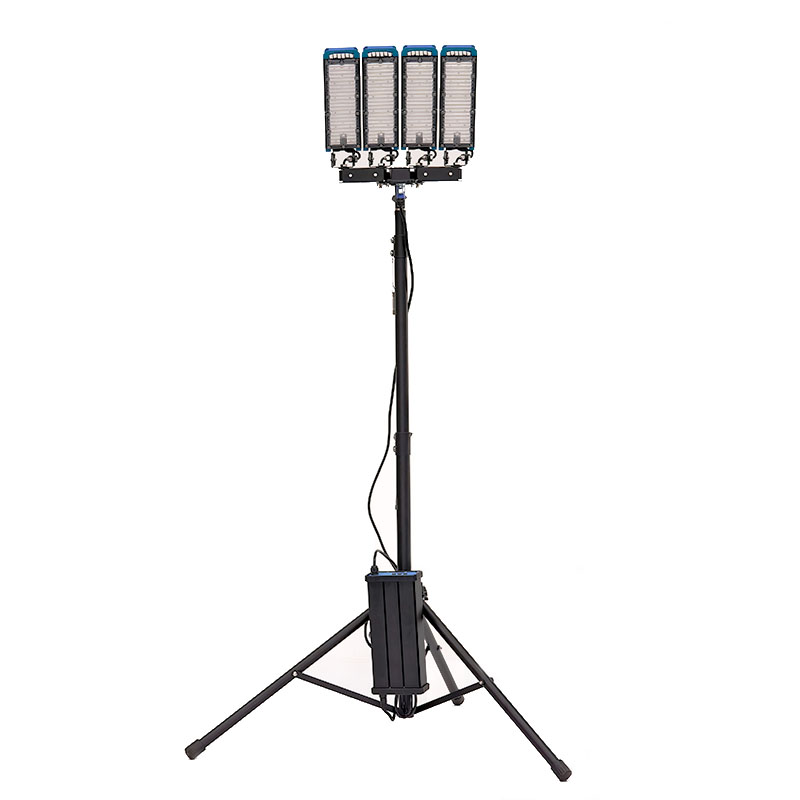

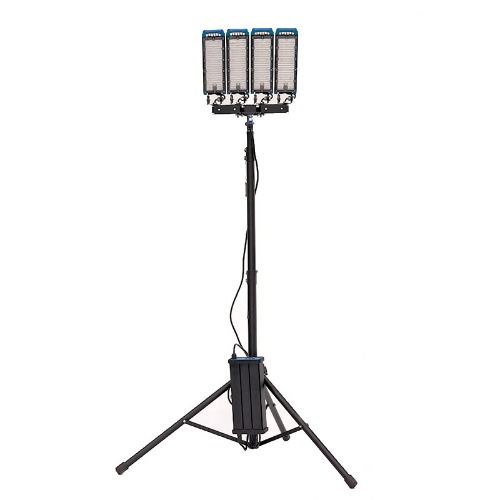

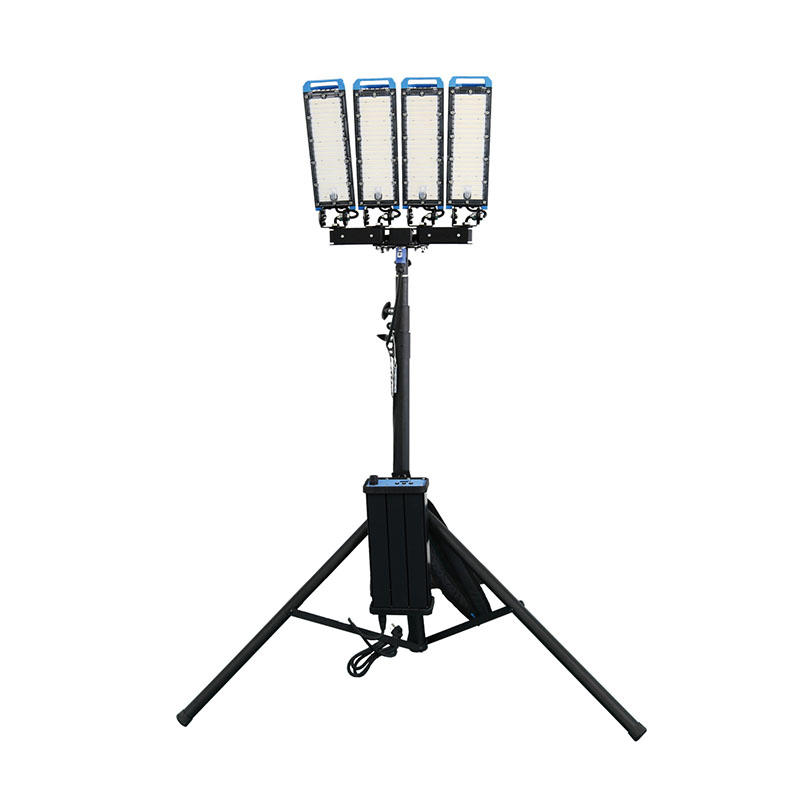

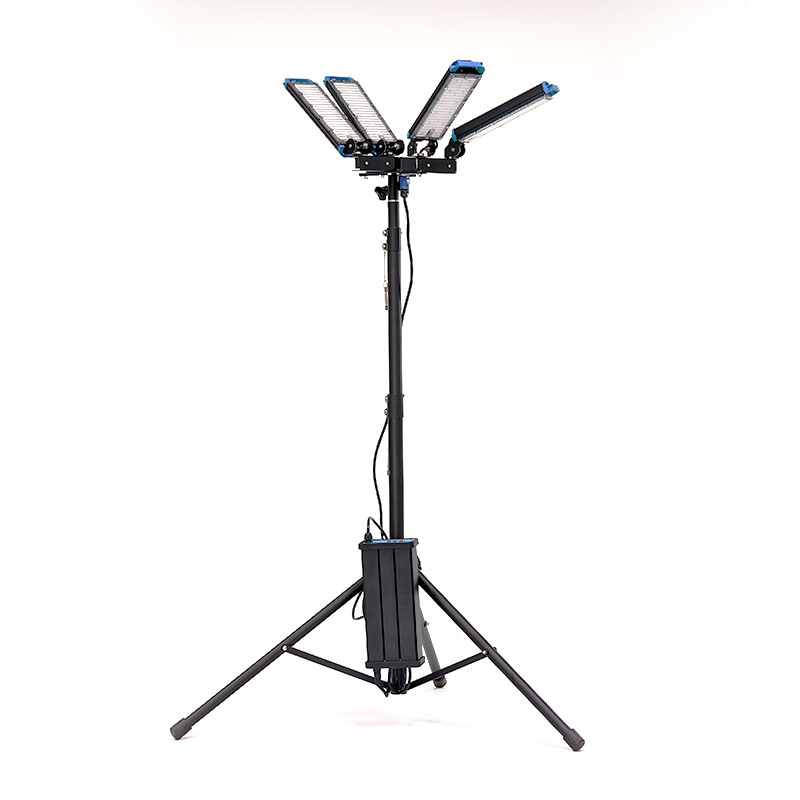

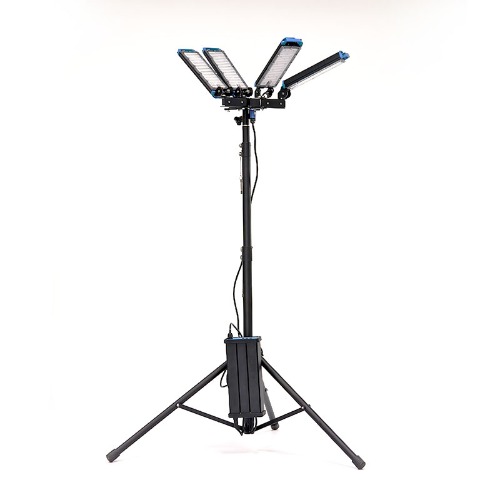

MKT1-320/480 mobile multi module floodlight is designed for harsh environment like mine and quarry, equiped with high level of protection against dust, water, impact and viberation.
Fitted with high performance LED chips, self-developed light configuration and balanced heat dispersing structure, it can achieve an overall satisfying lighting effect.
Floodlight is not easy to degenerate over time, it can uphold 95% of the performance after 3 years of usage, 10 hours per day.
| Model |
MKT1-480 |
| Floodlight type |
4 pcs angle adjustable floodlight |
| Power |
Maximum 480 W, dimmable
|
| Effective brightness |
72000 lm |
| Input voltage |
AC 100~277 V |
| Frequency |
50 / 60 Hz |
| Color temperature |
5000 k |
| Color rendering |
Ra70 |
| Protective performance |
IP66 / IK10 |
| Lens type |
Long-distance flood |
Dimensions - When the light projector is deployed
|
255x230x370 mm |
Weight
|
7.4 kg(light) 5.8 kg(driver) 6 kg(tripod) 9.8 kg(case)
|

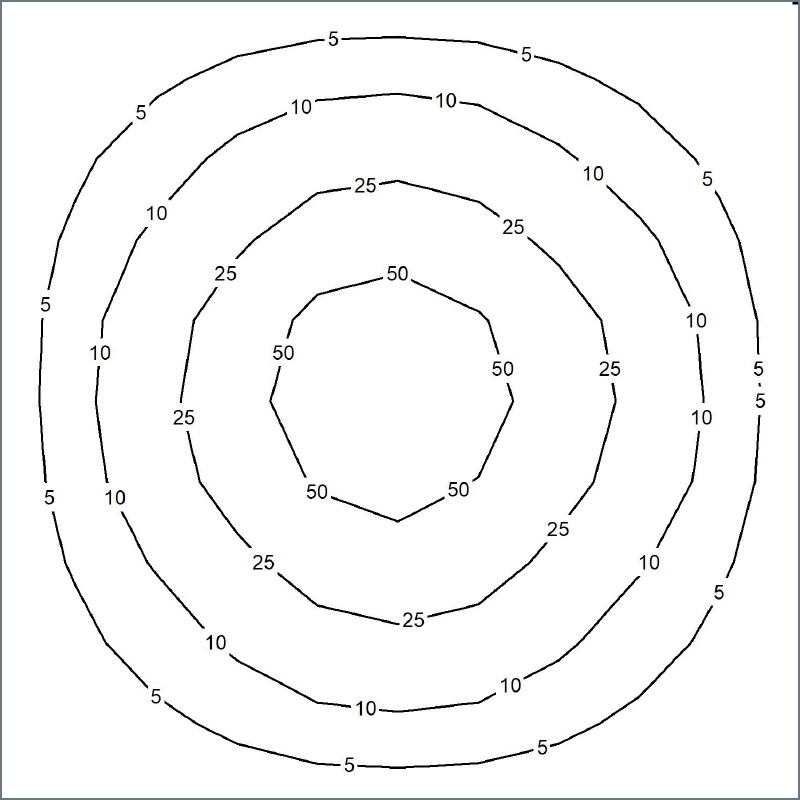

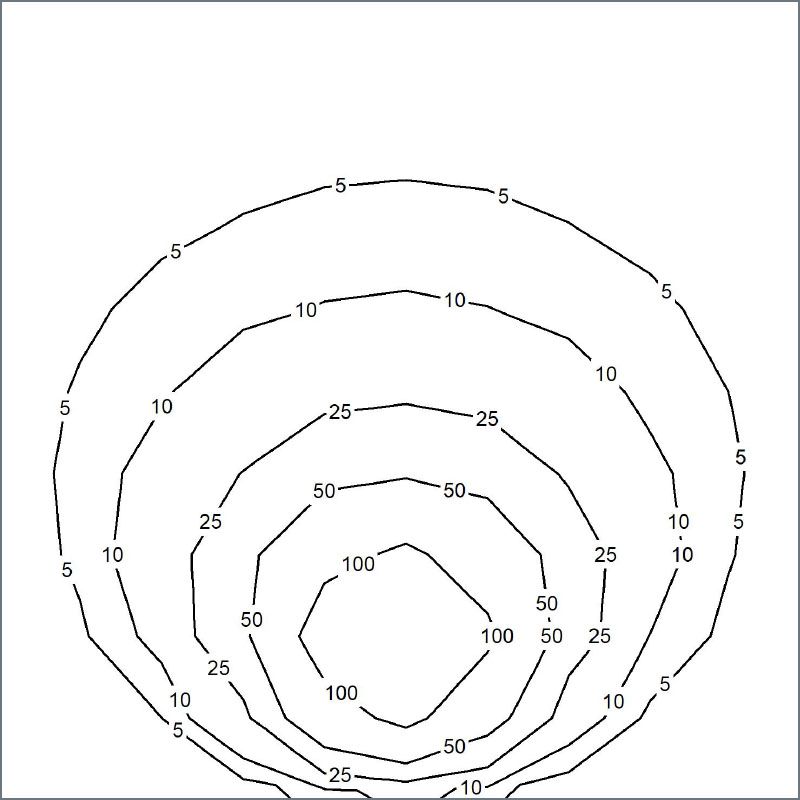

Illuminance distribution diagram
360-degree irradiation (balloon mode)
1 mobile floodlight, floodlight height 2.5M, irradiation angle 70°
Spotlight mode
1 mobile floodlight, floodlight height 2.5M, irradiation angle 70°
