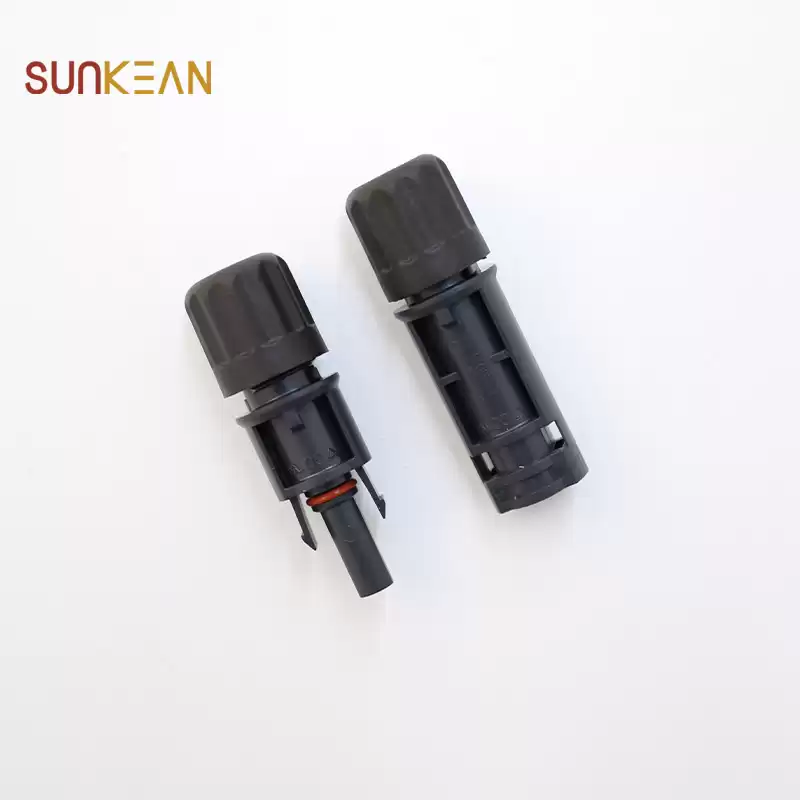

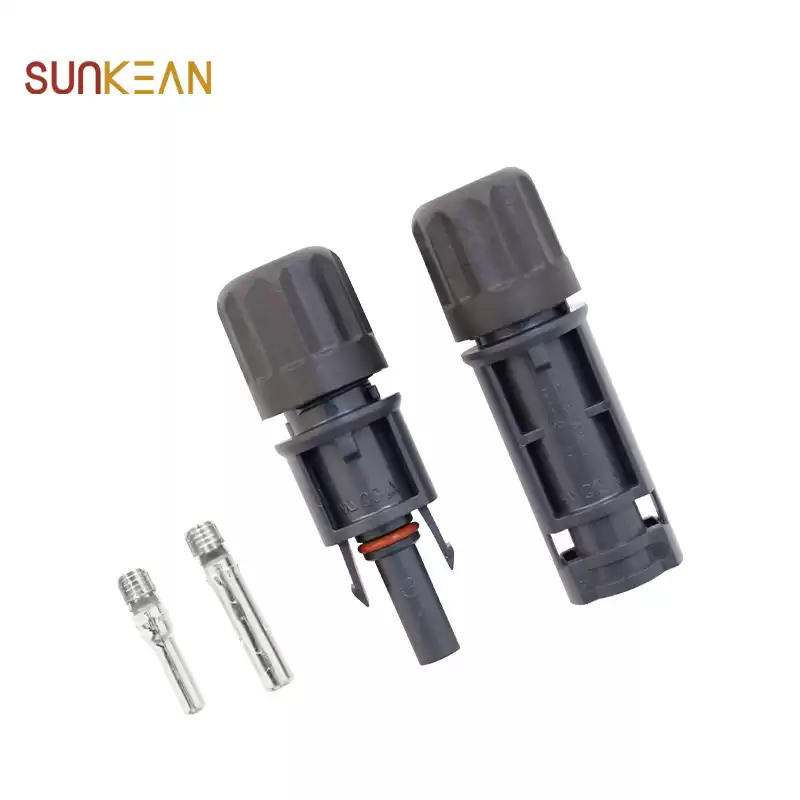

TUV&UL Approved High Quality Photovoltaic 1500V solar connector

The solar PV 1500V connector is cost-effective and suitable for solar power stations, photovoltaic connectors and photovoltaic junction boxes.



TUV&UL Approved High Quality Photovoltaic 1500V solar connector

*Simple on-site processing

*Mating safety provided by keyed housings

*Mutiple plugging and unplugging cycles

*Accomodates PV cable with deferent insulation diamaters

*High Voltage and Current carrying capacity

*TUV and UL approved

*Competitive price


Product Information:


Rated voltage
IEC 1500V&UL1500V
Rated current
35A,41A,46A
Size of Cables
2.5mm²,4.0mm²,6mm²/14AWG,12AWG,10AWG
Match Connector
MC4,H4
Overvoltage category/Pollution degree
II
Flammability class 5VA
Ambient temperature range

-40°C…+85°C(IEC)

Contact resistance
≤5mΩ
Degree of protection IP68


Packing & Delivery:

Solar Pv Cables And Connectors


Global Exhibitions:


Company Profile:

SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover IP68 Solar cable connectors, solar cables, Solar Panel Connectors , solar energy off grid, solar hot water panels, inverters etc solar products .

SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.


FAQ:

Q: How could i get the sample ?

A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.

Q: How long is the delivery time?

A1)For Sample: 1-3 Days;

A2)For small Orders: 3-10 Days;

A3)For mass Orders:15-20 Days;

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.


If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
