High Quality TV Box Circuit Board Assembly Suppliers

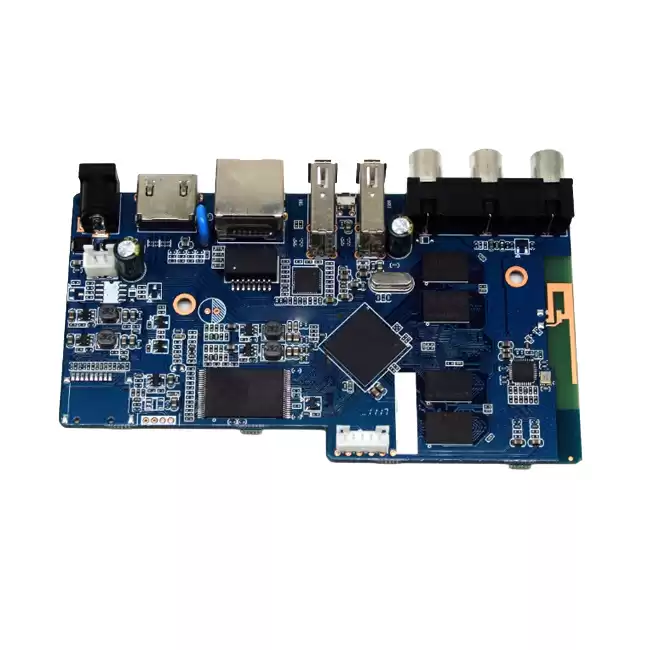

Features of TV box circuit board with components:
This network set-top box design is based on SOC chip
architecture, embedded CPU in SoC chip, integrated peripheral interface, audio
input and output, network connection, external storage interface, etc. This
structure can load multiple applications, adopts deep submicron technology, has
short development cycle, low development cost, low power consumption and good
system stability.
|
PCB Layers
|
6 Layers
|
|
Material
|
FR4
|
|
Thickness of copper
|
1oz
|
|
Size & thickness of board
|
171*128*1.6mm
|
|
Surface Treatment
|
Spray Tin
|
|
Chip
|
RK3328 Quad-Core 64bit Cortex-A53
|
|
Flash
|
EMMC 32GB
|
|
SDRAM
|
4GB DDR3
|
|
Power Supply
|
DC 5V/2.5A
|
|
High Definition video output
|
4K(4096×2160 pixel)
|
|
Power Indicator (LED)
|
Power ON: Blue; Standby :Red
|
|
Wireless
|
2.4G /5G dual-band Wifi
|
|
HDMI
|
HDMI 2.0a for 4k@60Hz
|
|
LAN
|
Ethernet:10/100M standard RJ-45
|
|
Other Interfaces
|
USB,AV Audio & Video Interface
|
|
Proofing Times
|
2 weeks
|
Our engineers choose to use cortex-a53 (the processor that some big
brands of high-end smart TV will also use). Cortex-a53 adopts cortex-a50 series
processor based on armv8 architecture, which is the most advanced and most
powerful processing chip of arm at present. It has high performance, good
expansibility, convenient data transmission, can use infrared signal control,
low power consumption and relatively low cost. The disadvantage is that
compared with DSP and CPU solutions, it lacks flexibility and supports Limited
audio formats.
As an operator who has just entered the market, he mainly
provides IPTV business. He has to consider the cost and have good sales volume.
Quality is sales volume. He occupies his own market with good reputation. He
provides users with free high-quality set-top boxes and professional
after-sales support. Later, it has been proved that his strategy plays a very
good role in business promotion, high-quality TV box PCBA makes his business
better.
PCB
manufacturing is the process of transcribing a circuit board design onto
the physical structure of the circuit board, and PCB manufacturing
helps prevent designers from making any unnecessary mistakes during the
design phase.
FAQ:
Q: Are you TV box pcba trading company or manufacturer?
A: We
are professional TV box PCB assembly manufacturer. And
we trade our products with our clients directly.
Q: Do you provide OEM/ODM?
A: Sure, OEM and ODM are both acceptable. The material,
color, style can customize, the basic quantity we will advise after we discuss.
Q: How can I get the TV box PCB assembly quotation?
A: Please send us Gerber files and BOM list. If you don't have this, please tell us your requirements to sale managers.
