Two Profiles Roofing Panel Roll Forming Machine

Roofing Panel Roll Forming Machine with One Machine Two Profiles.



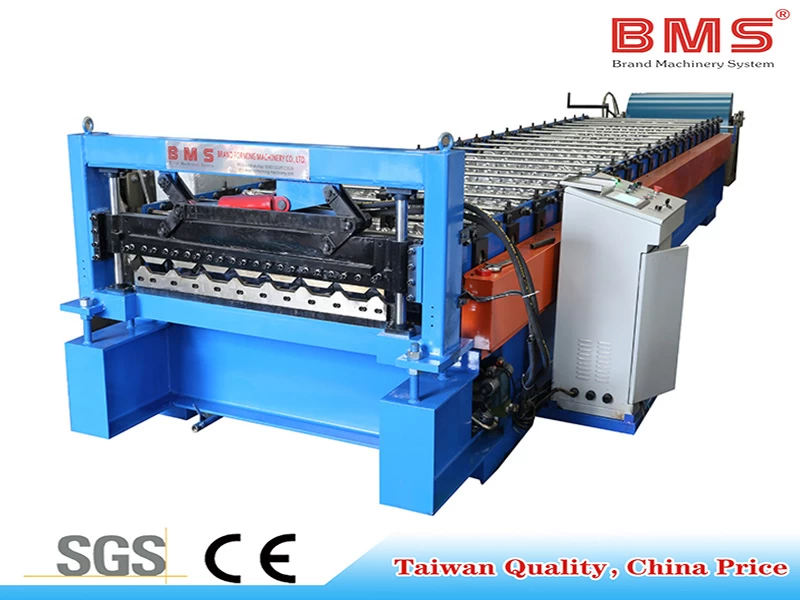

Roofing Panel Roll Forming Machine(One Machine Two Profiles)


Click Here To View The Video


roofing panel roll forming machine


Profile



roofing panel roll forming machine

roofing panel roll forming machine


Material

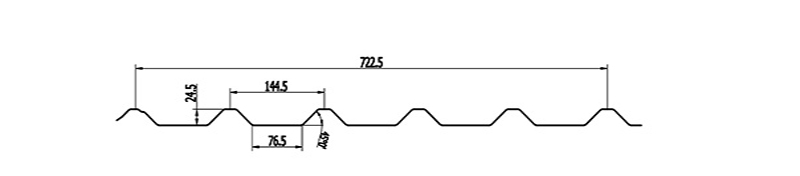

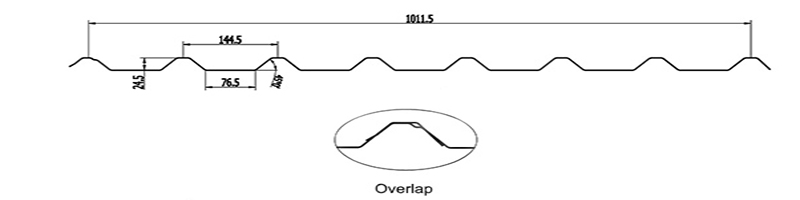

Effective width:722.5/1011.5mm
Feeding width: about 914/1219mm
Material Thickness: 0.35-0.8mm
Applicable material:Galvanized Steel(GI)
Cold roll steel(CRC)with yield strength 345-550Mpa


Work Follow

Decoiler→Manual Pre-Cutter→Guide Feeding →Roll Forming System→Hydraulic Post Cutter →Exit Rack


roofing panel roll forming machine


Machine Components


1) Manual Decoiler: one set


Un-powered, Manually control steel coil inner bore shrinkage and stop.Max Feeding width: 1250mm,coil ID range 508mm±30mm.
Capacity: Max. 5 Ton.





2) Manual Pre-Cutter



With manual pre-cutter for easy operation and save material:The pre-cutter is connected with PLC control system,PLC is calculating profile length within roll forming. Once
material is required to change,PLC is calculating the length for total quantity and remind operator production finishes and able to manual shearing material before roll forming so as to change material for new production.
It is the advanced function and good for production to save material, no waste.

roofing panel roll forming machine

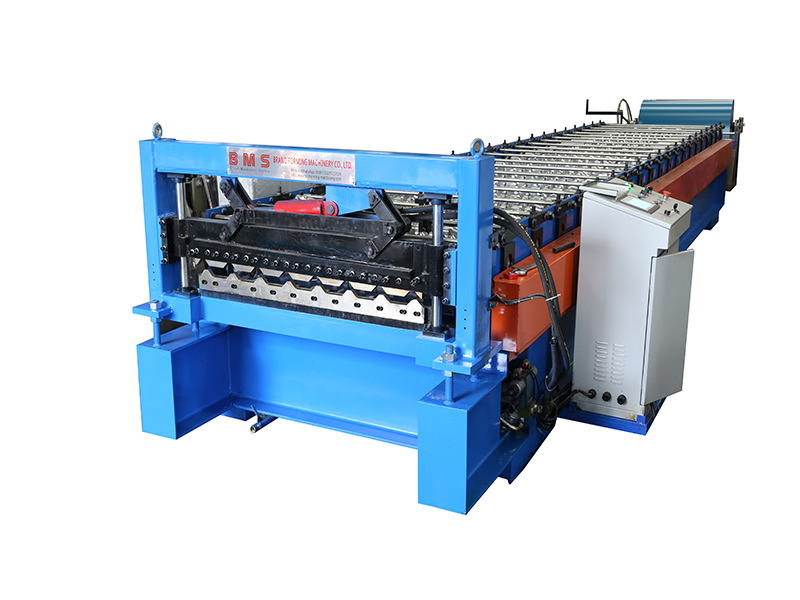

3) Main Machine


With feeding material guide, body frame made from H400 type steel by welding.
Side wall thickness: Q235 t18mm.

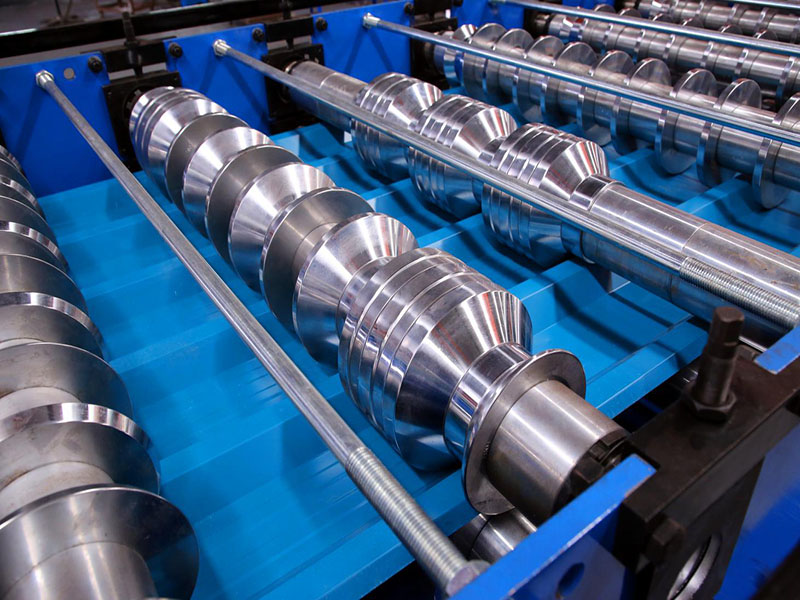

Rollers manufactured from 45# steel,CNC lathes,Heat Treatment,hard Chrome Coated,with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust).
Shafts Diameter=ф75/90mm,precision machined.
Main Motor=7.5KW,Frequency speed control.
Gear/Sprocket driving,about 18-step to form.


roofing panel roll forming machine

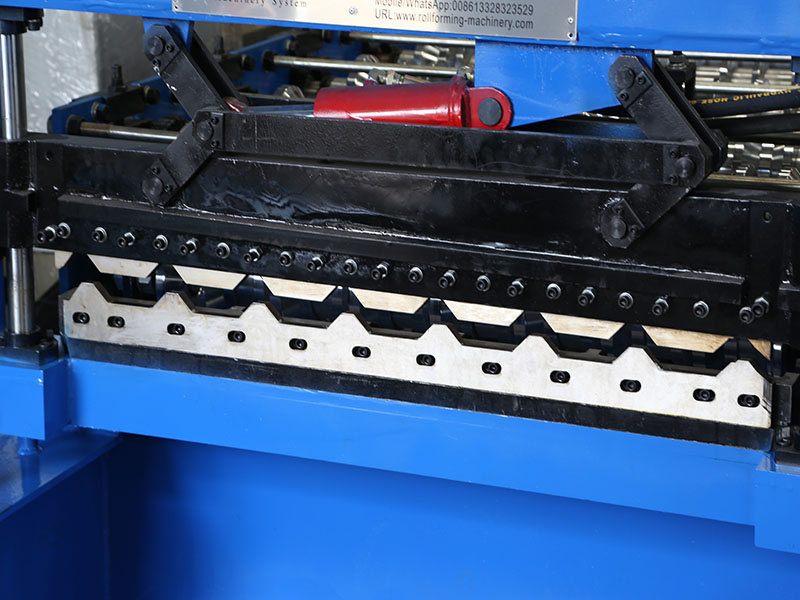

4) Post Hydraulic Cutting Device

Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking.
Hydraulic motor: 3KW.
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree.
The cutting power is provided by the main engine hydraulic station.


roofing panel roll forming machine

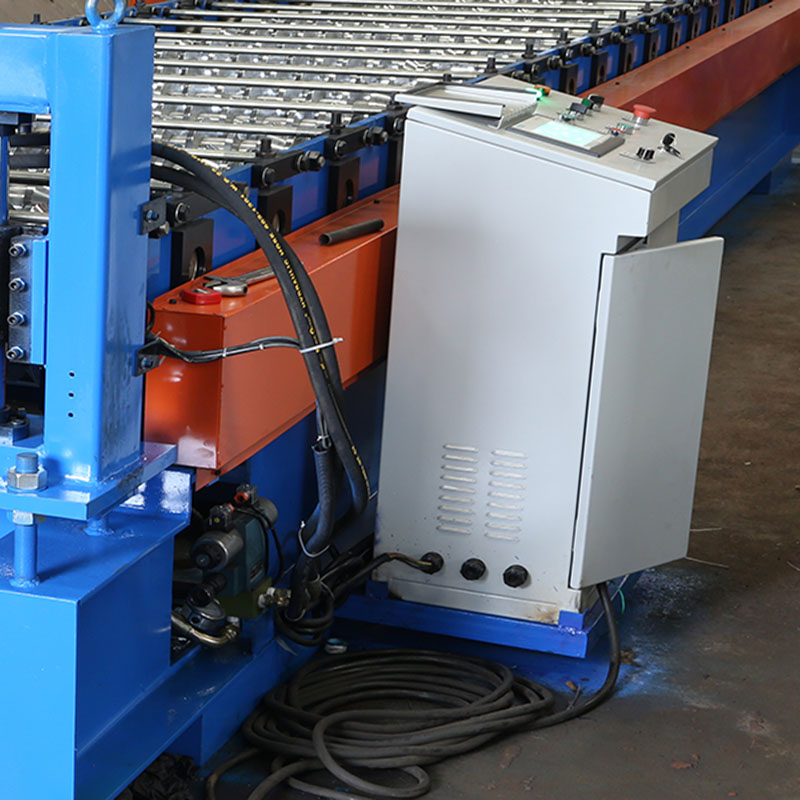

5) PLC Control System

Control The Quantity And Cutting Length Automatically.
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.


roofing panel roll forming machine




6)Exit Rack

Un-powered, Three units,with rollers on it for easy movement.





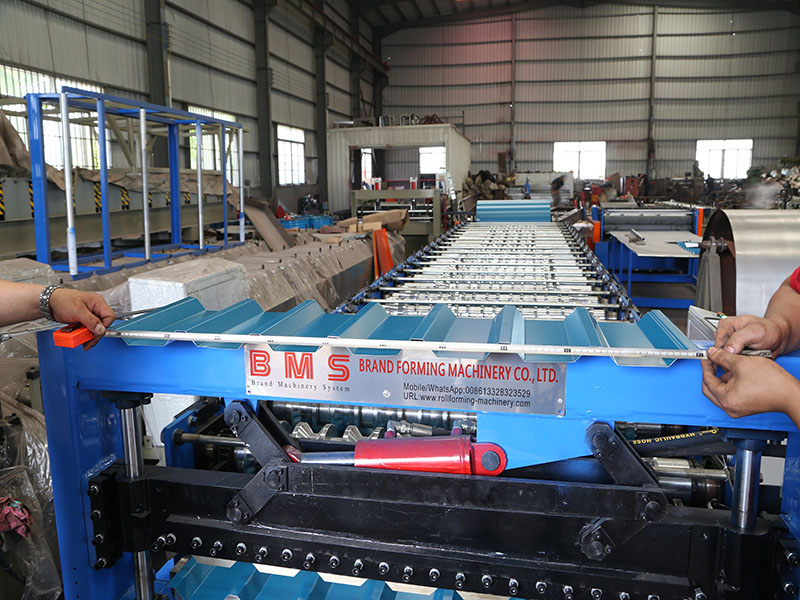

7)Product Show


roofing panel roll forming machine





Packing Style

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.





After-Sale Service

1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.


Terms Of Trade

1.Minimum order quantity (MOQ): 1 Set.
2.Delivery time: about 45 workdays.
3.Port of loading: port of Xiamen.
4.Type of payment: by T/T or by L/C.
5.Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,
Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc.
