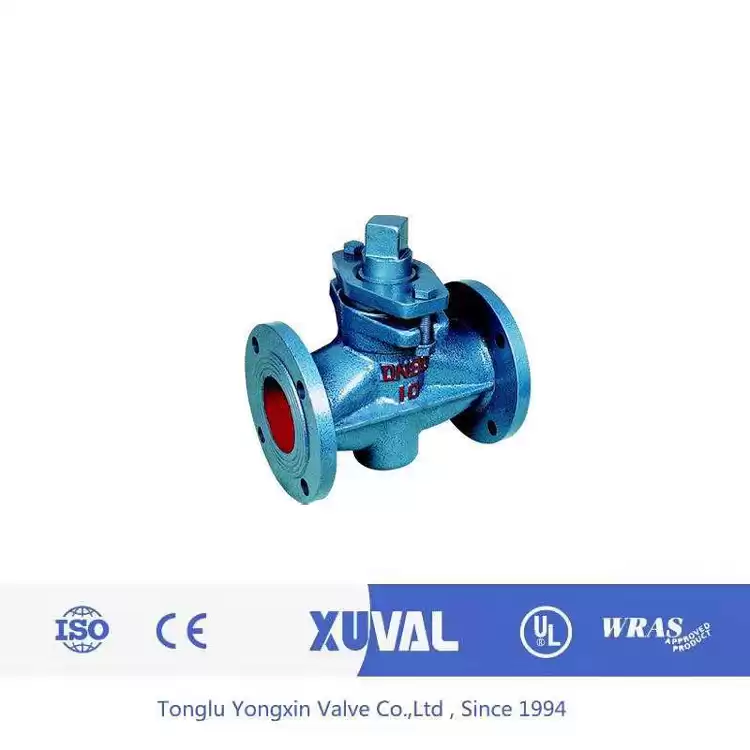

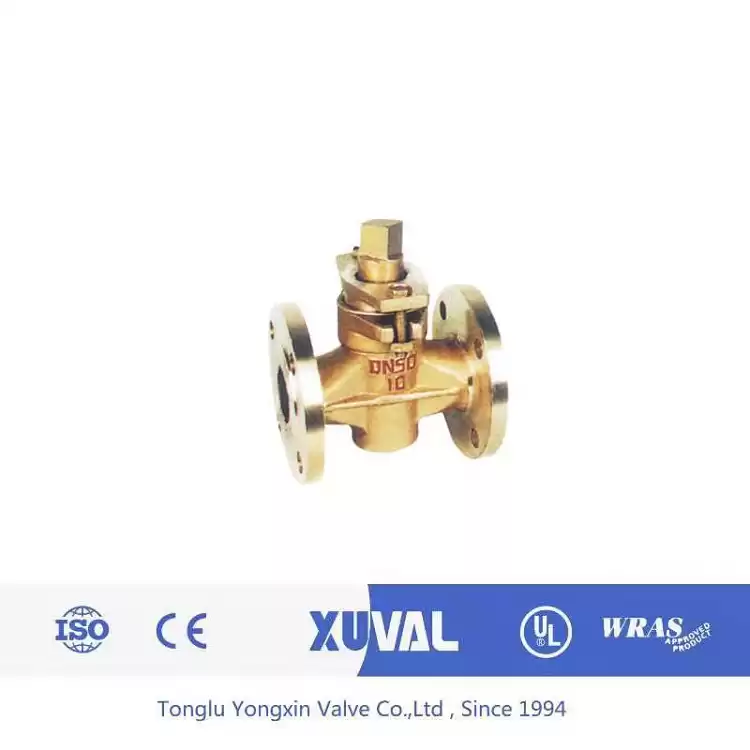

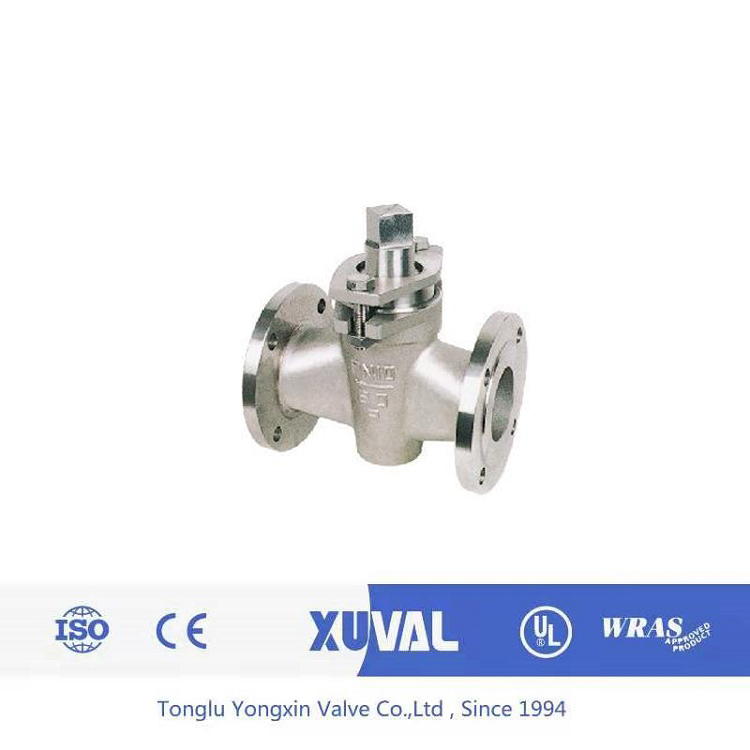

X43W|X43T type plug valve is suitable for opening and closing of water, oil, gas and other medium pipelines with nominal pressure of 0.6-1.0mpa and temperature ≤100℃
The characteristics:
1, suitable for frequent operation, open and close quickly, light
2. Simple structure, relatively small volume, light weight, easy maintenance
3, not limited by the direction of installation, the flow of the media can be arbitrary
Main performance specification:
Model
|
Nominal pressure
PN(Mpa)
|
Test pressure PS(Mpa)
|
Applicable medium
|
Working temperature
(℃)
|
shell
|
seal
|
|
X43W-1.0T
|
1.0
|
1.5
|
1.1
|
Water, steam, oil
|
≤100
|
|
X43T-1.0
|
1.0
|
1.5
|
1.1
|
Water, steam, oil
|
≤100
|
|
X43W-1.0
|
1.0
|
1.5
|
1.1
|
Gas, oil
|
≤100
|
Main dimensions：
Model
|
Nominal diameter
DN(mm)
|
SIZE(mm)
|
|
L
|
D
|
D1
|
D2
|
f
|
b
|
Z-φd
|
□S
|
h
|
H
|
|
X43W-1.0T
X43T-1.0
X43W-1.0P
|
15
|
80
|
95
|
65
|
45
|
2
|
14
|
4-14
|
14
|
26
|
99
|
|
20
|
90
|
105
|
75
|
55
|
2
|
16
|
4-14
|
14
|
34
|
124
|
|
25
|
110
|
115
|
85
|
65
|
2
|
16
|
4-14
|
17
|
38
|
133
|
|
32
|
115
|
135
|
100
|
78
|
2
|
18
|
4-18
|
18
|
45
|
152
|
|
40
|
150
|
145
|
110
|
85
|
3
|
18
|
4-18
|
26
|
55
|
212
|
|
50
|
170
|
160
|
125
|
100
|
3
|
20
|
4-18
|
28
|
74
|
260
|
|
65
|
220
|
180
|
145
|
120
|
3
|
20
|
4-18
|
32
|
82
|
295
|
|
80
|
250
|
195
|
160
|
135
|
3
|
22
|
4-18
|
40
|
95
|
327
|
|
100
|
300
|
215
|
180
|
155
|
3
|
26
|
8-18
|
45
|
135
|
425
|
|
125
|
350
|
245
|
210
|
185
|
3
|
24
|
8-18
|
54
|
154
|
482
|
|
150
|
400
|
280
|
240
|
210
|
3
|
24
|
8-23
|
62
|
172
|
512
|
|
200
|
450
|
335
|
295
|
365
|
3
|
24
|
8-23
|
75
|
195
|
605
|
|
250
|
530
|
390
|
350
|
320
|
3
|
28
|
12-23
|
85
|
230
|
660
|
|
300
|
580
|
440
|
400
|
368
|
4
|
30
|
12-23
|
100
|
263
|
760
|
Main parts and materials：
Part name
|
Body
|
Plug
|
Packing gland
|
Packing
|
|
X43W-1.0T
|
Cast Copper
|
Cast Copper
|
Cast Copper
|
Oil-soaked asbestos packing
Flexible graphite
|
|
X43T-1.0
|
Cast Iron
|
Cast Copper
|
Cast Iron
|
|
X43W-1.0
|
Cast Iron
|
Cast Iron
|
Cast Iron
|
Packing & Delivery :
Packing Details : all by seaworthy plywood case and packed strongly by packing belt as below
Delivery Details : Generally it is 5-10 days if the goods are in stock. or 15-30 days if the goods are OEM or not enough subject to the order quantity. But anyway, normally, we are able to make sure the delivery will not exceed 45 days.
