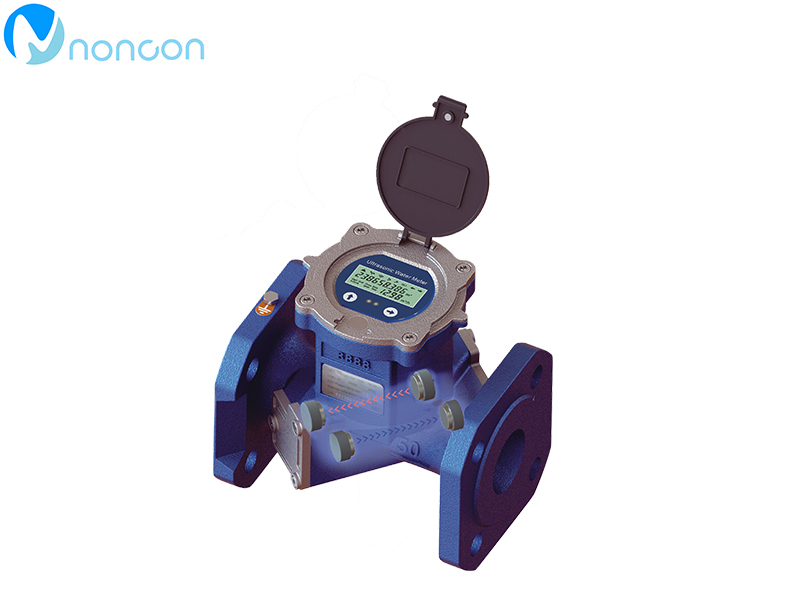

Overview
UF2800 series reflective ultrasonic water meter is based on the principle of ultrasonic "time difference method", which can measure the flow rate of water in the pipe and then obtain the flow measurement method. The flow meter parts and integrator are completely independent research and development. The production of the product has a strict production process, perfect detection means, in line with the national standard GBT778-2007;
Application
Ultrasonic water meters are used to measure and display the volume flow or mass of water flowing through the pipeline:
Main application areas: municipal water supply company residential building water supply network system household table of all kinds
Water supply network system for commercial buildings;
Measurement of main water pipeline of residential buildings;
Water metering system of various commercial, school and other construction companies;
Product features
■No moving parts, never wear, measurement accuracy is not affected by the use cycle;
■Not affected by magnetic materials, impurities and chemicals in the medium;
■Horizontal vertical arbitrary installation;
■High measurement accuracy, ultra-low power consumption, stable and reliable work;
■Using TI micropower MCU design, life can reach more than 8 years;
■A variety of communication methods can be selected with photoelectric interface, pulse, RS485With self-diagnosis function;
■With self-diagnosis function;
Technical data (continued)
|
Execution standard
|
GB/T 778-2007、JJG 162-2009
|
|
Measuring fluid
|
Water, sewage, sea water
|
|
Fluid temperature
|
0.1~80℃
|
|
working environment
|
Temperature: 0.1~45℃;Humidity ≤95%RH
|
|
Work pressure
|
1.6MPa
|
|
Communication Interface
|
RS485/USART/infrared
|
|
Output signal
|
Two isolated OCT or TTL pulses, one 4-20mA current
|
|
Power supply
|
Built-in lithium battery, external DC8-36VDC power supply
|
|
Protection level
|
IP 68
|
|
Local display
|
Double - line display includes 9 - bit accumulative display and 4 - bit instantaneous flow display
|
|
Data storage
|
Automatic record of the previous 128 months and 512 days of accumulated traffic
|
|
Flow measurement cycle
|
Measurement status: 1 time/second;Check status: 4 times/second
|
|
Power consumption
|
DN15-DN150 battery used for more than 10 years; DN150 or above battery used for more than 6 years
|

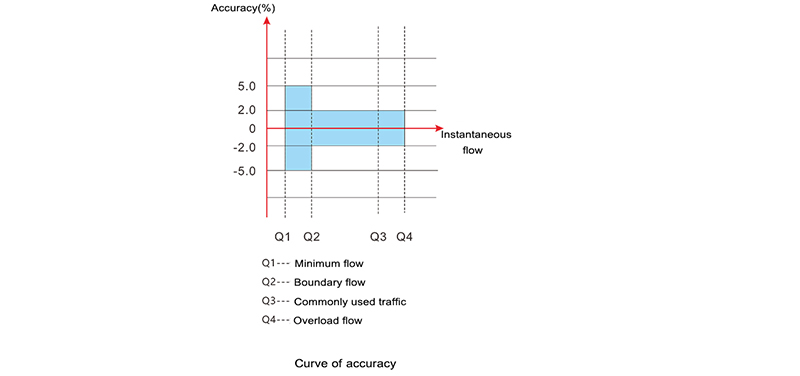

Flow range
|
Nominal diameter
|
Range ratio
|
Flow(m3/h)
|
|
(mm)
|
R
|
Starting flow
|
Minimum flow Q1
|
Demarcation flow Q2
|
Common traffic Q3
|
Overload flow Q4
|
|
DN15
|
200
|
0.003
|
0.0125
|
0.020
|
2.500
|
3.125
|
|
DN20
|
200
|
0.0035
|
0.016
|
0.026
|
3.200
|
4.000
|
|
DN25
|
200
|
0.007
|
0.020
|
0.032
|
4.000
|
5.000
|
|
DN32
|
200
|
0.010
|
0.032
|
0.050
|
6.300
|
7.875
|
|
DN40
|
200
|
0.015
|
0.100
|
0.160
|
20.000
|
25.000
|
|
DN50
|
100
|
0.030
|
0.400
|
0.640
|
40.000
|
50.000
|
|
DN65
|
100
|
0.059
|
0.630
|
1.008
|
63.000
|
78.750
|
|
DN80
|
100
|
0.064
|
1.000
|
1.600
|
100.00
|
125.000
|
|
DN100
|
100
|
0.094
|
1.600
|
2.560
|
160.00
|
200.000
|
|
DN125
|
100
|
0.120
|
2.000
|
3.200
|
200.00
|
250.000
|
|
DN150
|
100
|
0.270
|
2.500
|
4.000
|
250.00
|
312.00
|
|
DN200
|
100
|
0.315
|
4.000
|
6.400
|
400.00
|
500.000
|
|
DN250
|
100
|
0.508
|
4.000
|
6.400
|
400.00
|
500.000
|
|
DN300
|
100
|
0.770
|
6.300
|
10.080
|
630.00
|
787.500
|

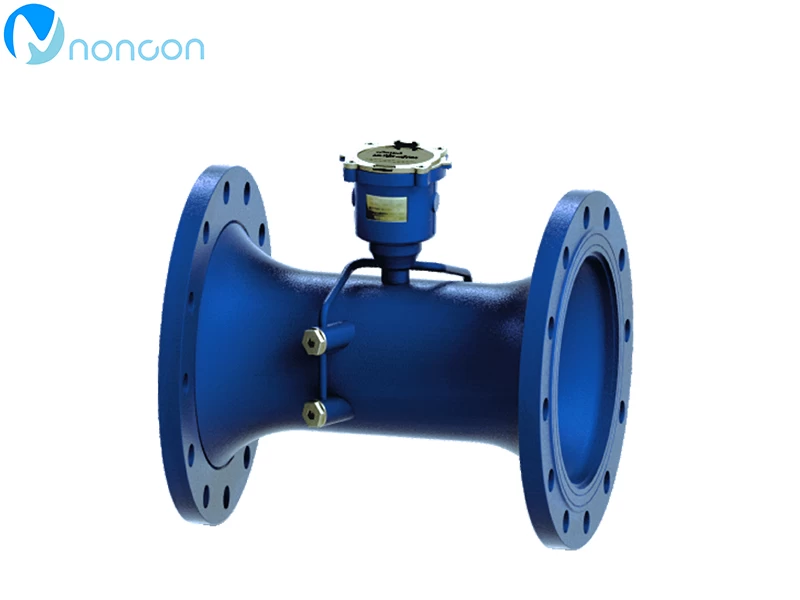

Product categories

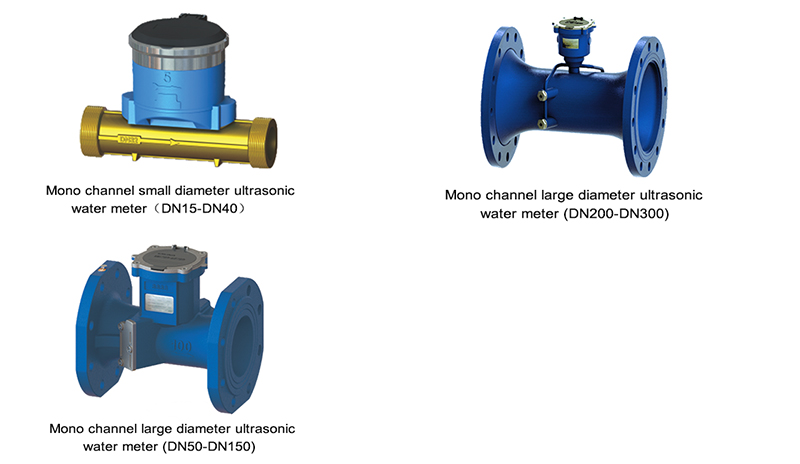

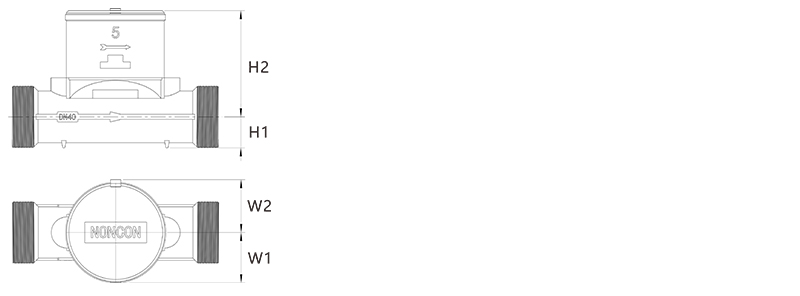

Product outline dimension drawing

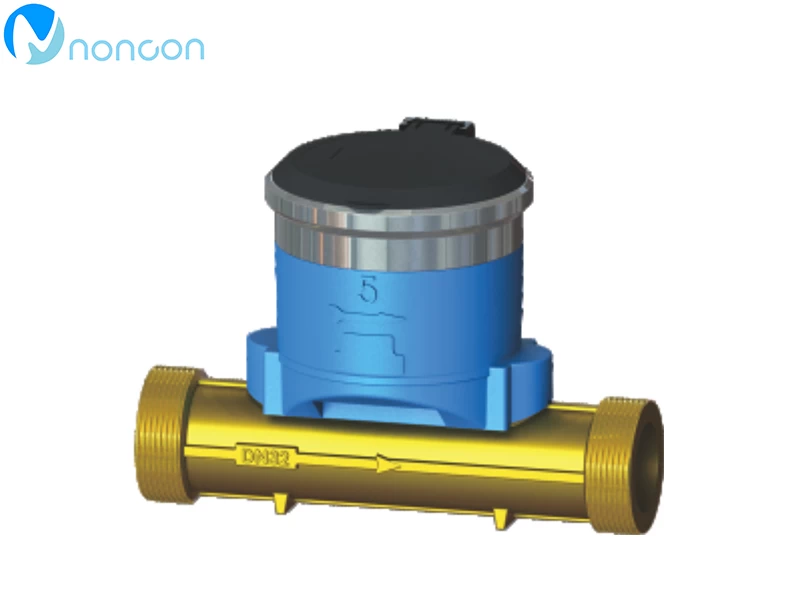

1.Small diameter ultrasonic water meter outline dimension drawing
|
Nominal diameter
|
Overall dimensions
|
Threaded connection A
|
Effective thread length
|
Weight
kg
|
Pressure Level
MPa
|
|
L
|
H1
|
H2
|
W1
|
W2
|
|
DN15
|
110
|
98
|
14.5
|
47.5
|
58
|
G3/4B
|
10
|
0.87
|
1.6
|
|
DN20
|
130
|
101
|
17
|
47.5
|
58
|
G1B
|
12.5
|
0.94
|
1.6
|
|
DN25
|
160
|
103
|
21.5
|
47.5
|
58
|
G11/4B
|
13
|
1.24
|
1.6
|
|
DN32
|
180
|
107
|
23.5
|
47.5
|
58
|
G11/2B
|
14.5
|
1.36
|
1.6
|
|
DN40
|
200
|
109
|
30
|
47.5
|
58
|
G2B
|
16
|
1.89
|
1.6
|

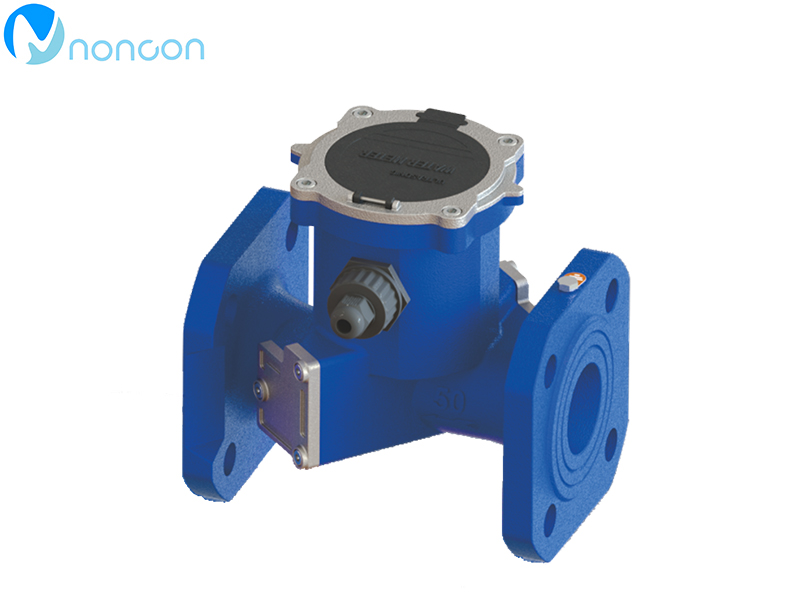

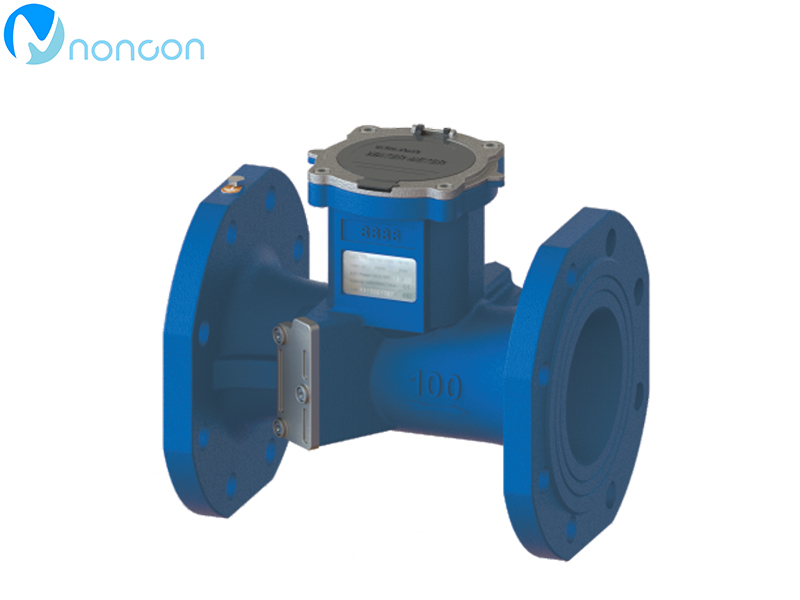

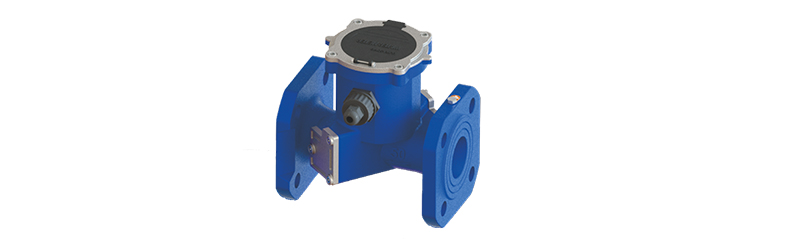

2.Dimension drawing of fixed flange ultrasonic water meter
|
Nominal diameter
|
Overall dimensions Flange size
|
|
L
|
H1
|
H2
|
W1
|
W2
|
Outside diameter D
|
Bolt hole center circle diameter D1
|
Bolt aperture × number
Φ×n
|
Sealing surface
|
Flange thickness C
|
Weight
kg
|
Pressure Level
MPa
|
|
D2
|
f
|
|
DN50
|
200
|
70
|
131
|
76
|
95
|
165
|
125
|
18×4
|
102
|
2
|
19
|
10.0
|
1.6
|
|
DN65
|
200
|
75
|
135
|
79
|
95
|
185
|
145
|
18×4
|
122
|
2
|
20
|
11.5
|
1.6
|
|
DN80
|
225
|
94
|
132
|
94
|
95
|
200
|
160
|
18×8
|
138
|
2
|
20
|
13.6
|
1.6
|
|
DN100
|
250
|
104
|
140
|
104
|
104
|
220
|
180
|
18×8
|
158
|
2
|
22
|
18.6
|
1.6
|
|
DN125
|
275
|
117
|
148
|
117
|
117
|
250
|
210
|
18×8
|
188
|
2
|
22
|
23.5
|
1.6
|
|
DN150
|
300
|
134
|
155
|
114
|
114
|
285
|
240
|
22×8
|
212
|
2
|
24
|
30.0
|
1.6
|
|
DN200
|
350
|
165
|
254
|
165
|
165
|
340
|
295
|
22×12
|
268
|
2
|
26
|
35.5
|
1.6
|
|
DN250
|
450
|
197
|
269
|
197
|
197
|
405
|
355
|
26×12
|
320
|
2
|
29
|
58.0
|
1.6
|
|
DN300
|
500
|
223
|
287
|
223
|
223
|
460
|
410
|
26×12
|
370
|
2
|
32
|
76.0
|
1.6
|
