Feature:
◆Working frequency 865~868Mhz/902~928Mhz

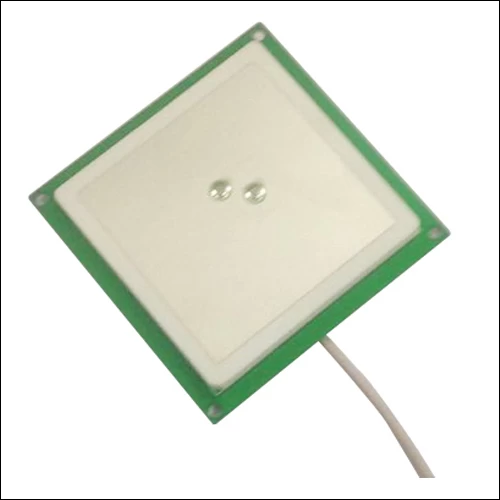

◆RFIDceramic antenna
◆4dBi RHCP circular polarization
◆Size 60*60mm 70*70MM
Specification:
|
Performance parameters:
|
|
Item No.
|

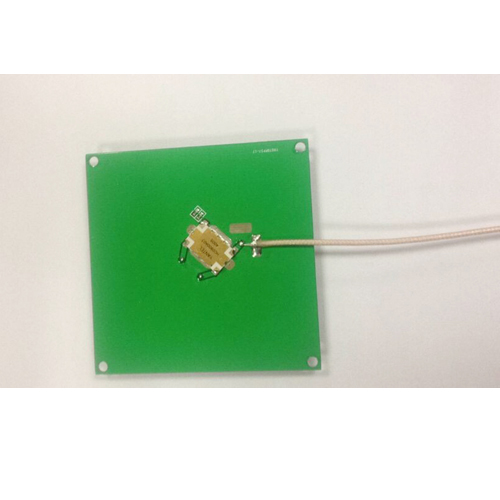

JT-606A/B (JT-606A:single feeder point ceramic
antenna;JT-606B double feeder points ceramic antenna)
|
|
Working Frequency
|
902~928
MHz or 865~868MHz
|
|

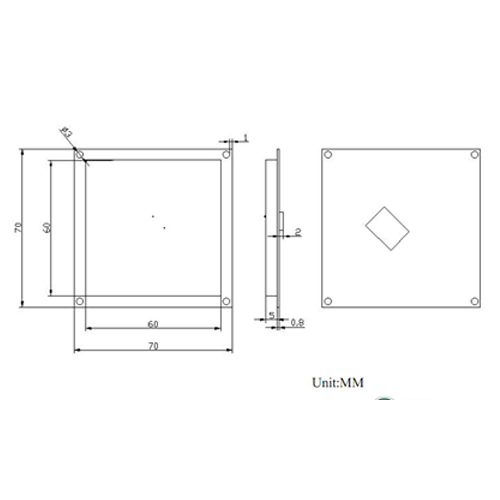

Dimension
|
60x60x4mm
|
|
Reflecting plate size
|
70x70x1mm
|
|
Antenna gain
|
4dBi
|
|
Polarization
|
RHCP
Circular polarization
|
|
V.S.W.R
|
1.5
|
|
Impedance(Ω)
|
50
|
|

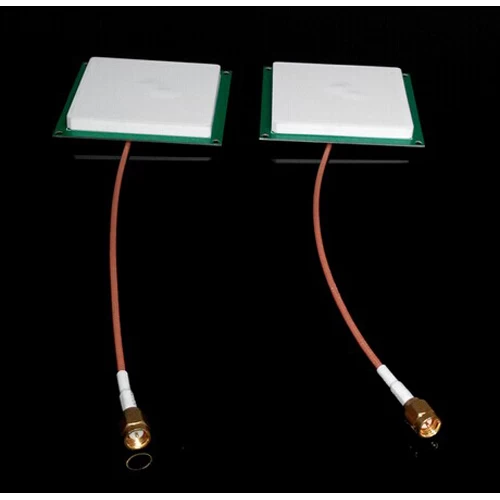

Connector
|
SMA
internal male screws(accept customized)
|
|
working temperature
|
-30℃~+ 70℃
|

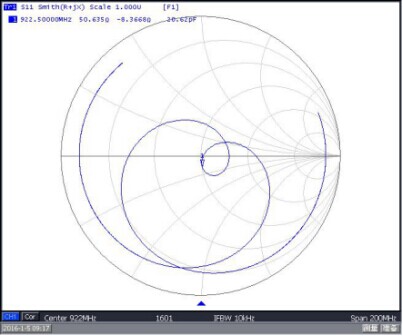

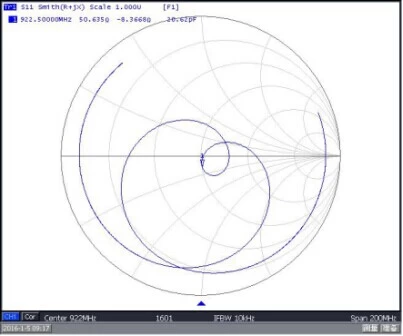

Patch Simth& VSWR
