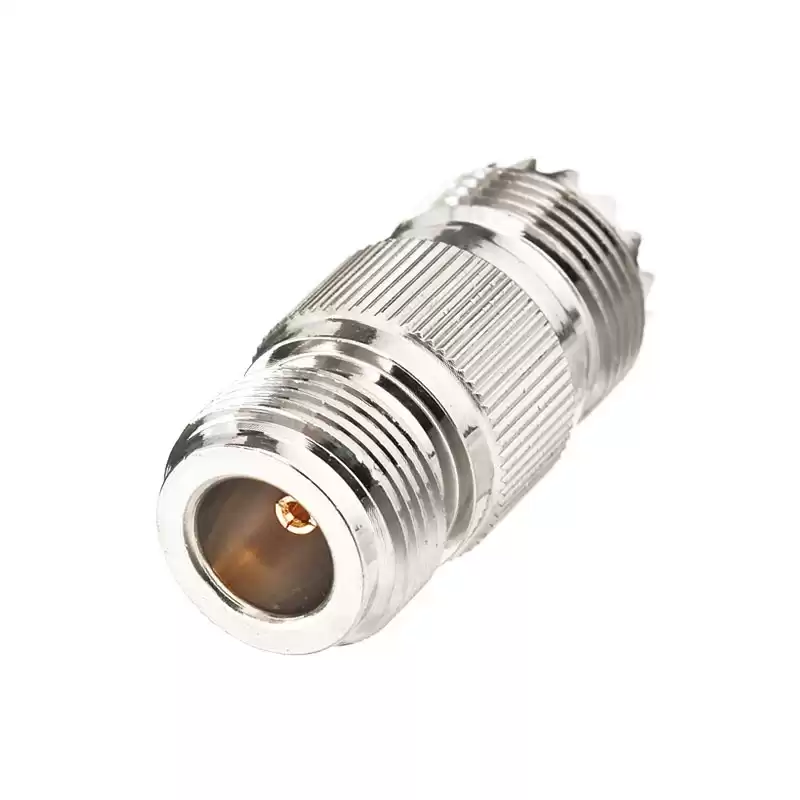

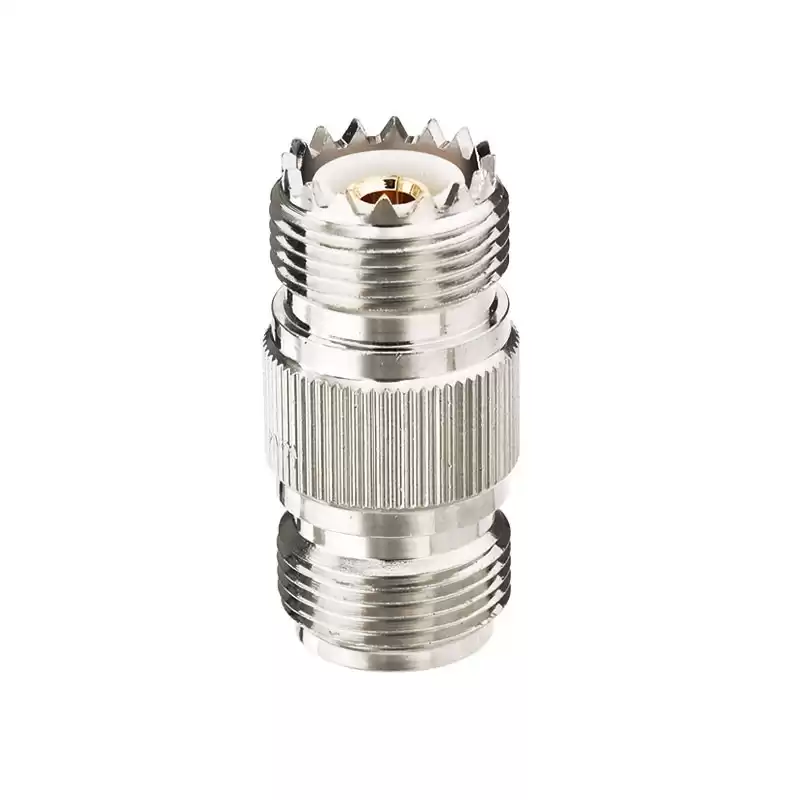

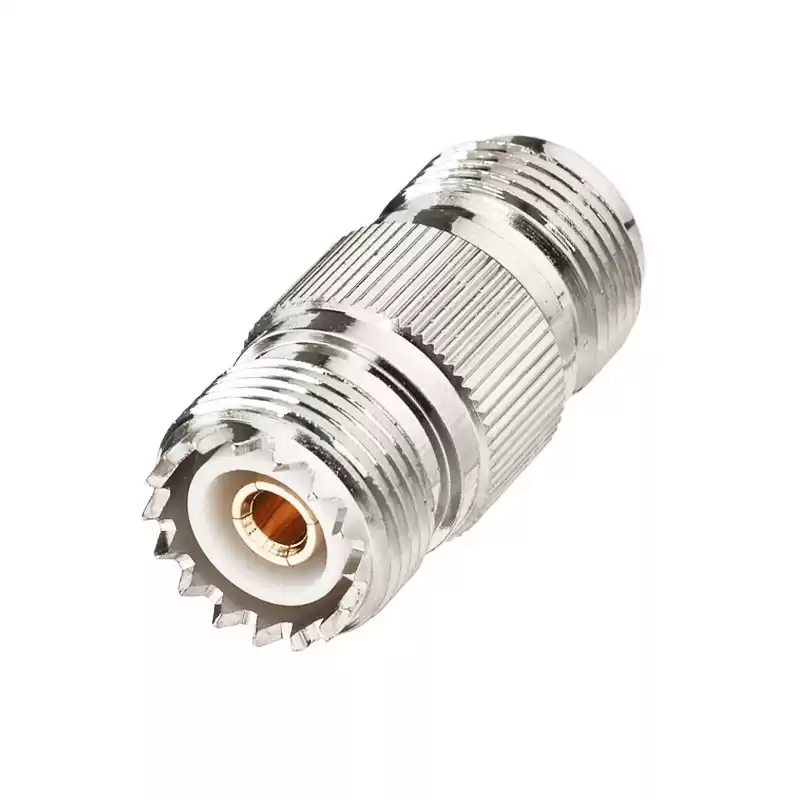

UHF Female SO239 to N Female Straight RF Connector Adapter
The UHF Adapter has different UHF to N adapter gender, that is between a series coaxial adapter, The UHF to N adapters has female to female, female to male, male to female or male to male gender. This UHF female to N female adapter has a maximum frequency of 300MHz, and is a straight body adapter.
Specifications
| ELECTRICAL DATA |
|
| Adapter Side 1 Series |
UHF |
| Adapter Side 1 Style |
Female |
| Adapter Side 2 Series |
N |
| Adapter Side 2 Style |
Female |
| Frequency (Max GHz) |
300MHz |
| Impedance (Ohms) |
50 |
| Low PIM |
No |
| Orientation |
Straight |
| Temp (Max Degrees Celsius) |
165 |
| Temp (Min Degrees Celsius) |
-65 |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Civil wave band communication system
- Closed-circuit television
- Car radio device products
- General Purpose Test
