General Description

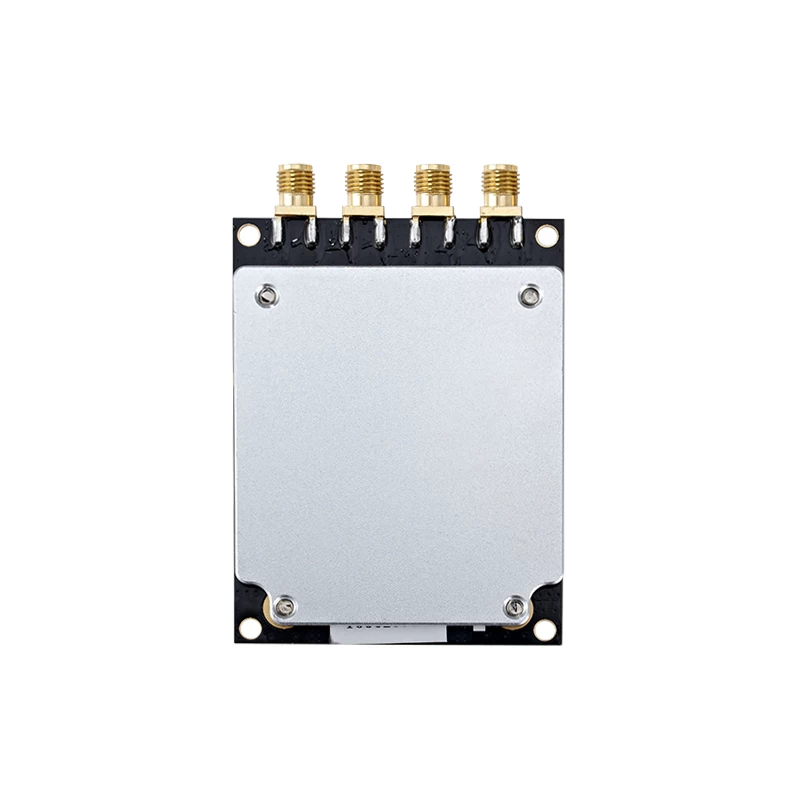

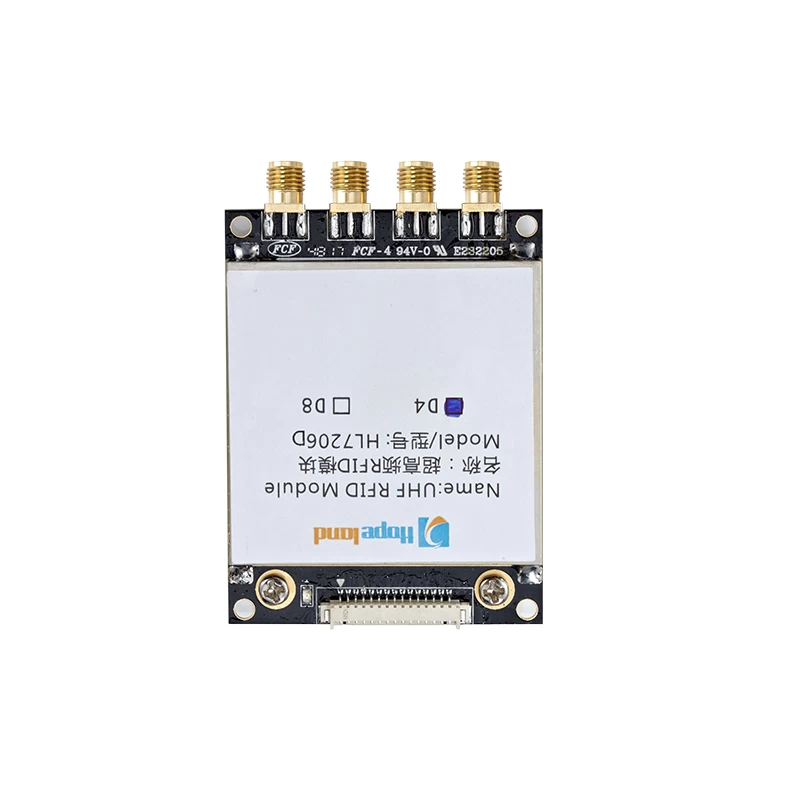

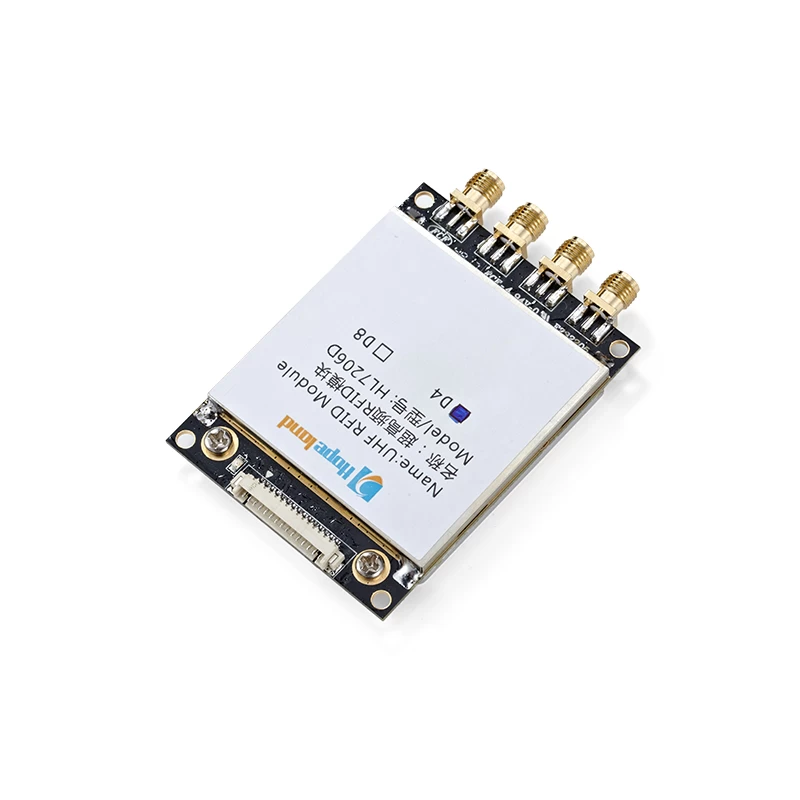

The HL7206D4 module is a miniaturized UHF RFID reader. The core components of the core platform adopts R2000 which is a high-performance highly integrated reader IC and integrated with analog RF front-end and baseband digital signal processing module etc. Users only need to make power processing on the basis of the module, and can be very easy to use the API library to control module work, suitable for a variety of scenarios development.

Typical Applications

ü Split-type Fixed RFID Reader integration

ü Integrated RFID Reader

ü RFID Tag Writer

Key Features

ü UHF RFID Transceiver

ü Frequency range: 840MHz - 960MHz

ü Power consumption :1200mA @ +30dBm

ü +5V single supply operation

ü ISO 18000-6C/C1G2, ISO 18000-6Bsupport

ü Decoding: FM0, Miller 2/4/8

ü Data rate: 40k ,160k,320k, 400k

ü Fully interoperable in different global regulatory environments such as US, EU, GB
