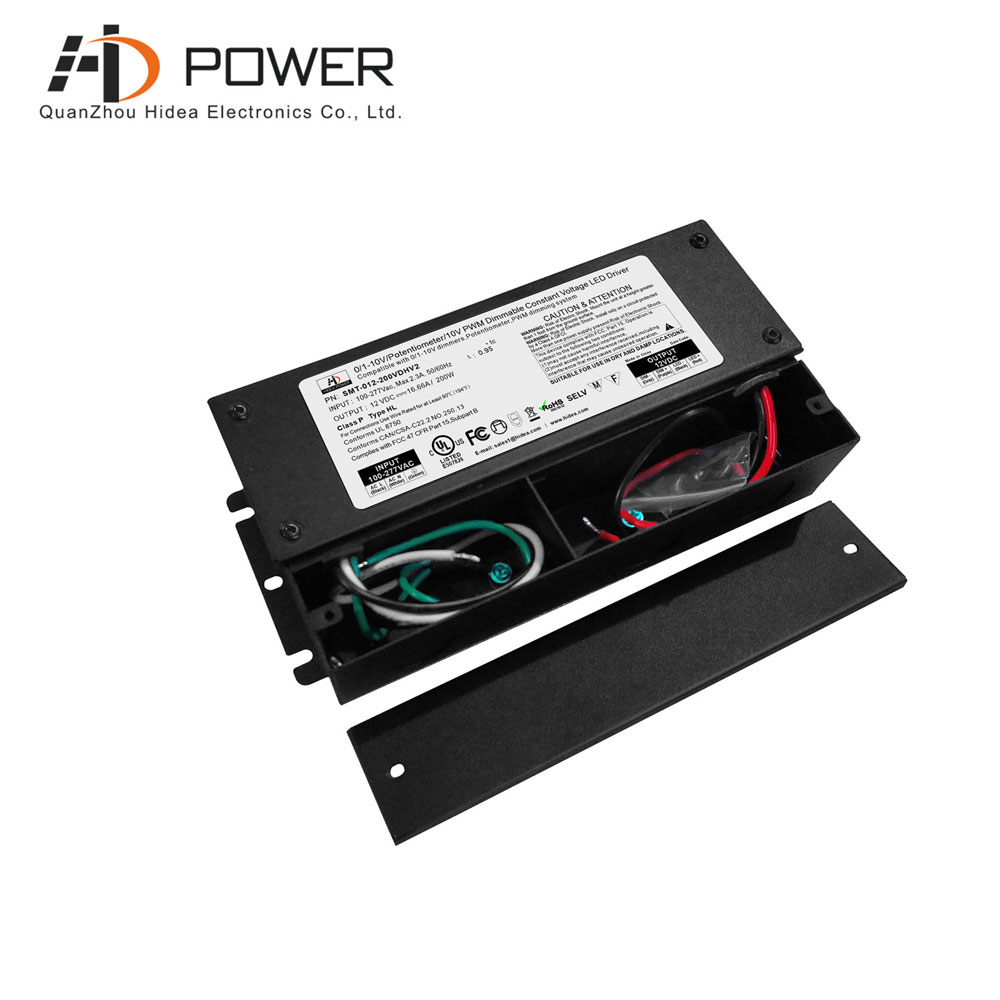

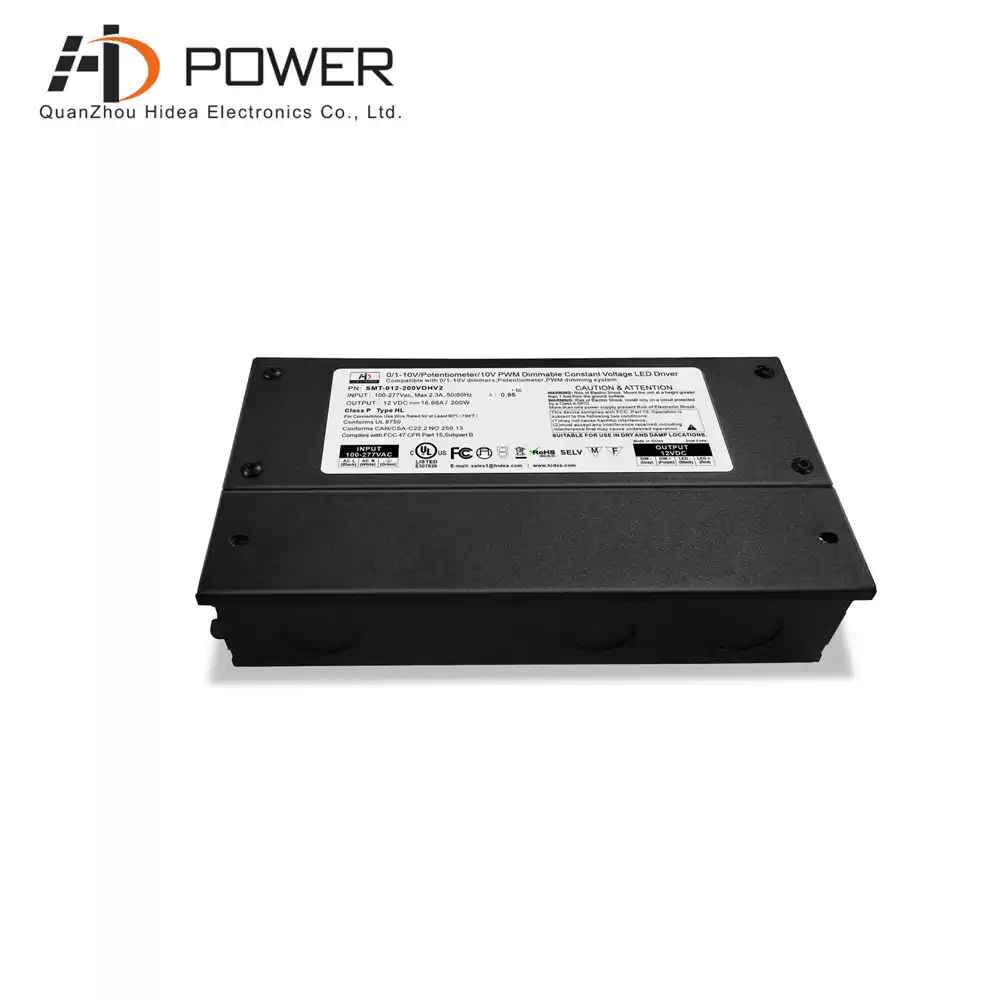

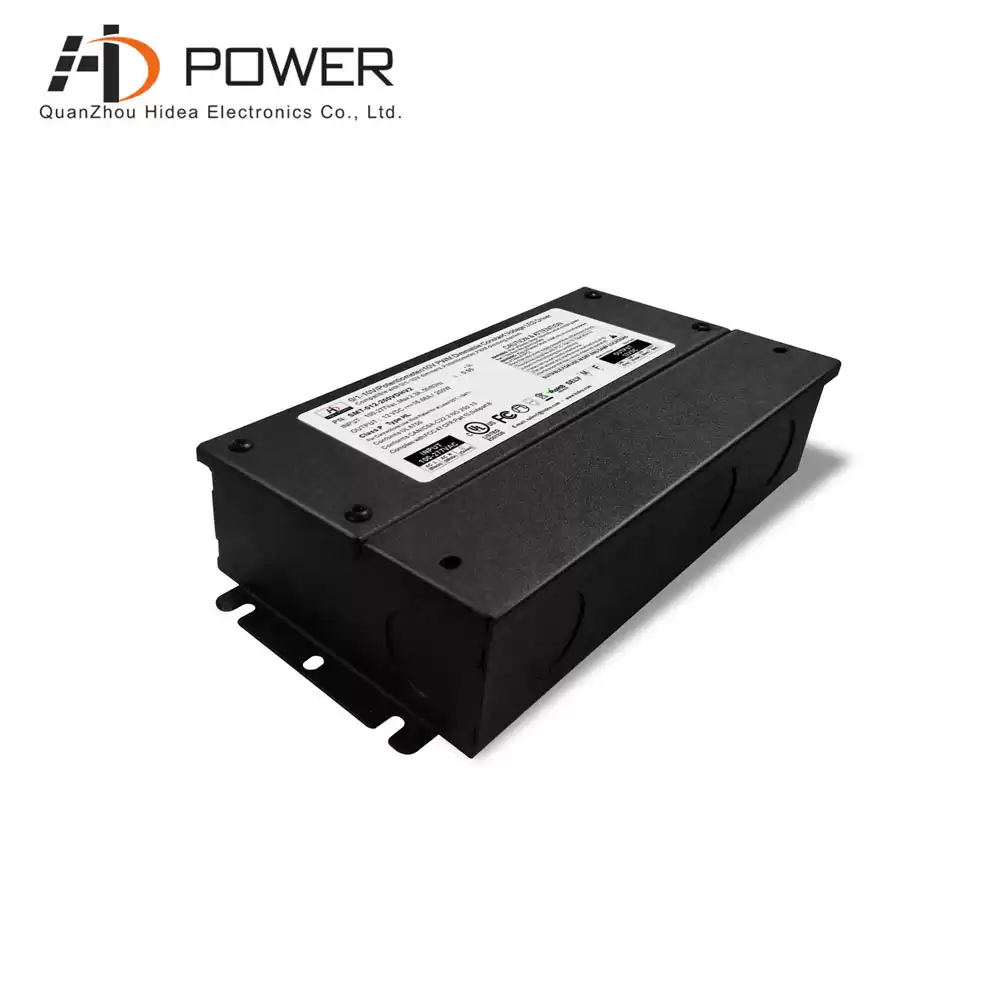

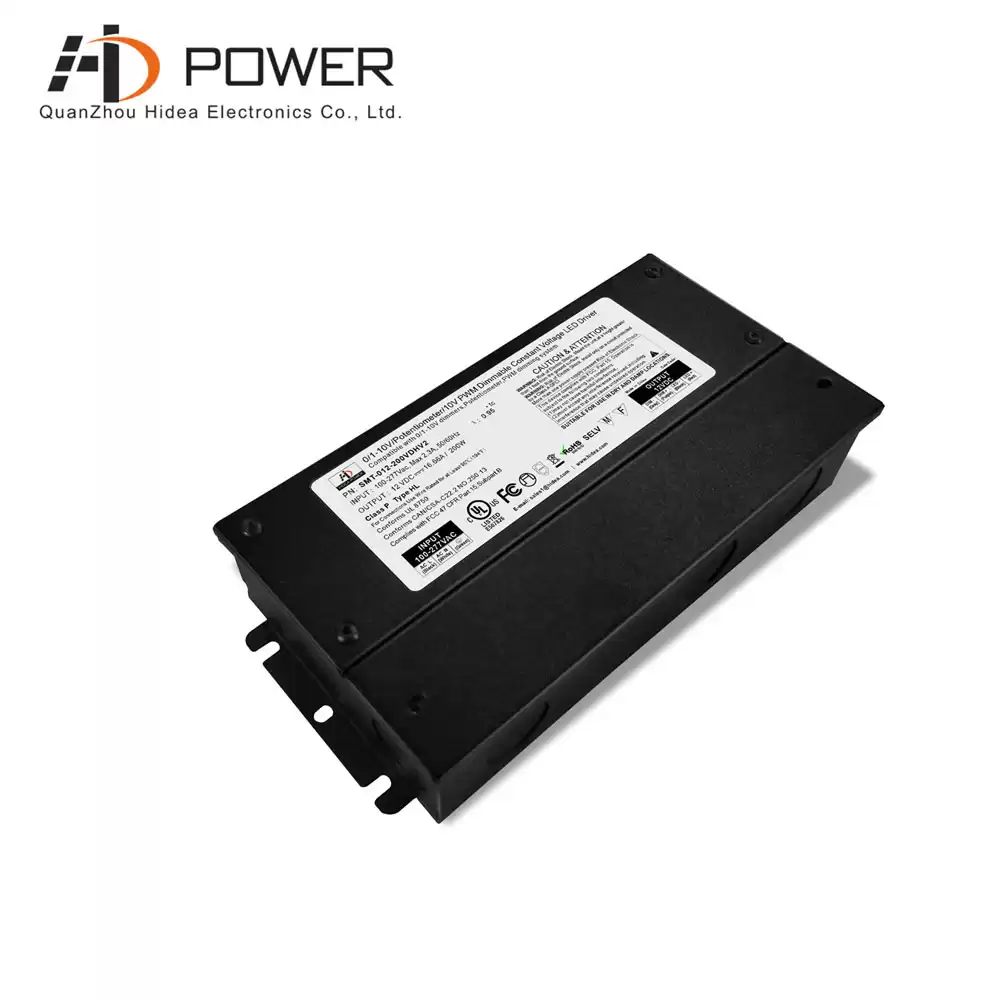

this 12v/24v 0-10v dimming 200w led power supply has got CE UL FCC ROHS approved with 7 years warranty. It is made by metal box integrated which is able to be used in wet, damp, dry location. It can be customized with 20KHz PWM output frequency, flicker free. It can work well with ANSELL led strip lights 12v/24v.
Specification
|
Model
|
SMT-012-200VDH (1.0 version)
SMT-012-200VDHV2 (2.0 version)
SMT-012-200VDHWV2 (3.0 version)
|
SMT-024-200VDH (1.0 version)
SMT-024-200VDHV2 (2.0 version)
SMT-024-200VDHWV2 (3.0 version)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated Current
|
16.67A
|
|
Rated Power
|
200W
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
|
Input
|
Voltage Range
|
110-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(Typ.)@ full load
|
0.98@120VAC 0.97@277VAC
|
0.98@120VAC 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ)@ full load
|
83% @120Vac / 87%@277Vac
|
86% @120Vac / 88%@277Vac
|
|
AC Current(Max.)
|
2.3A@100Vac
|
|
Inrush Current (Typ.)
|
15A, 50%, 1.4ms @120Vac 30A, 50%, 1.4m,s @277Vac
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
1.8Kg (1.0 version)
|
|
Size
|
1.0 version: 260*103*46mm /2.0 version: 260*105*45mm (L*W*H) 3.0 version: 260*125*45mm (L*W*H)
|
|
packaging
|
Packaging: 10PCS
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.
|
|
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
|
|
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Compatible Light Type
200W led power supply can power any standard led light in the industry. HIDEA provides 7 warranty of this VDHV2 series, so the quality can be assured. It can match good well with ELEGANT LIGHTING Maria Theresa 41-Light.
Related Products
|

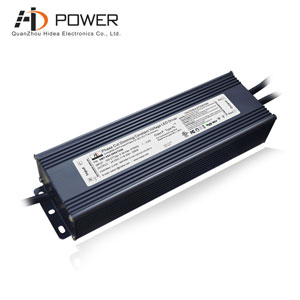

 12v 200w led power supply in triac dimming with 7 years warranty.
