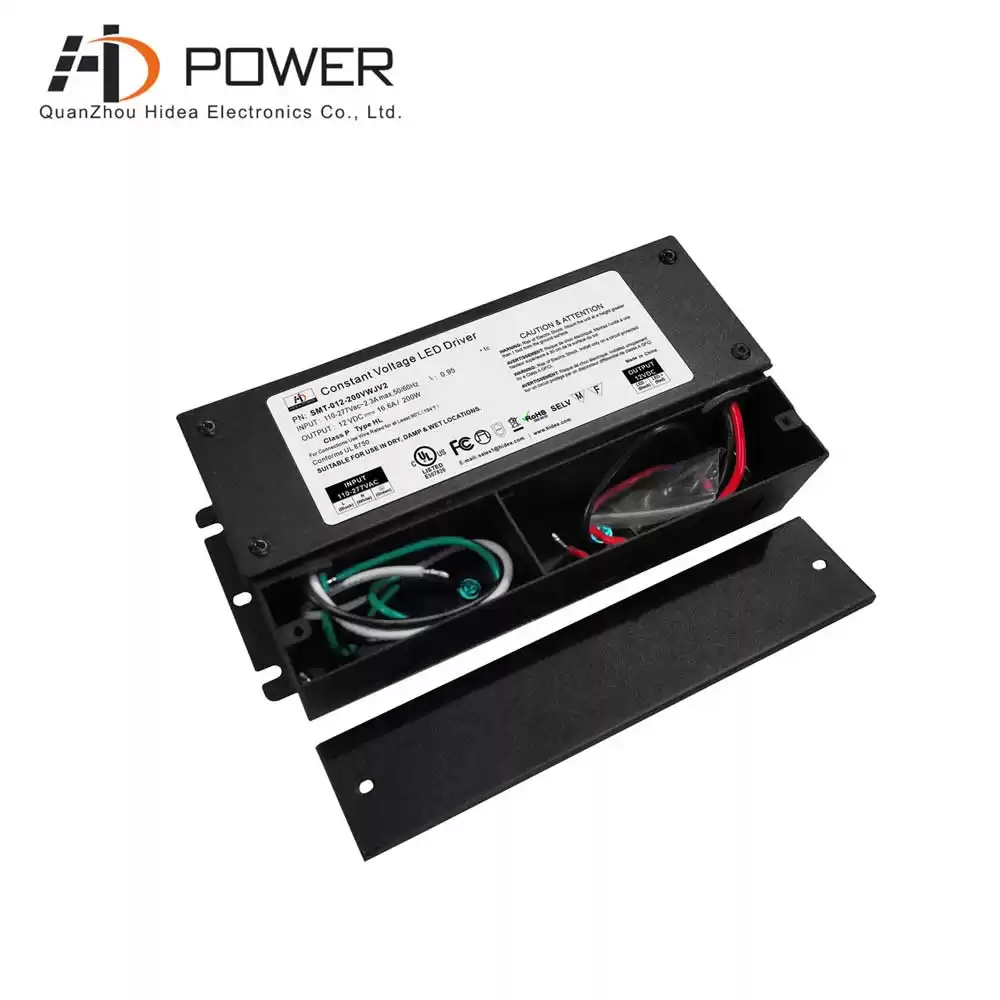

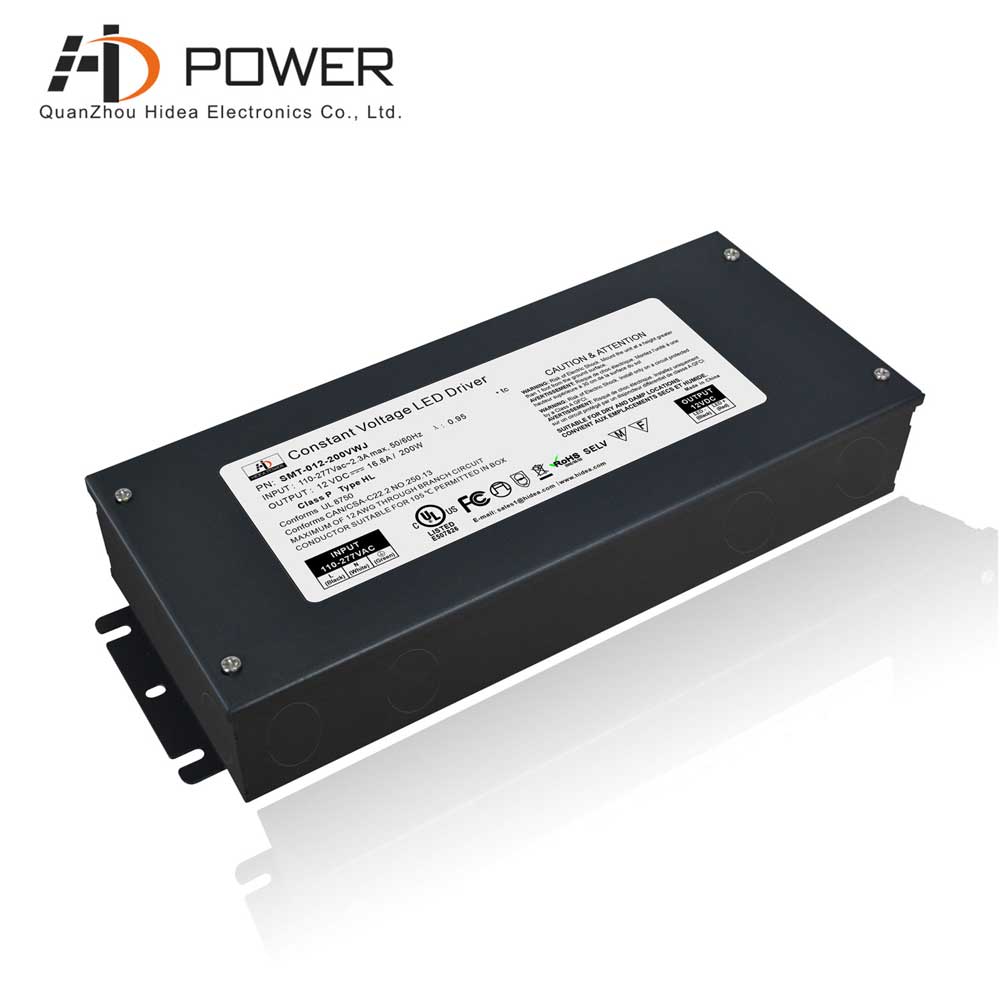

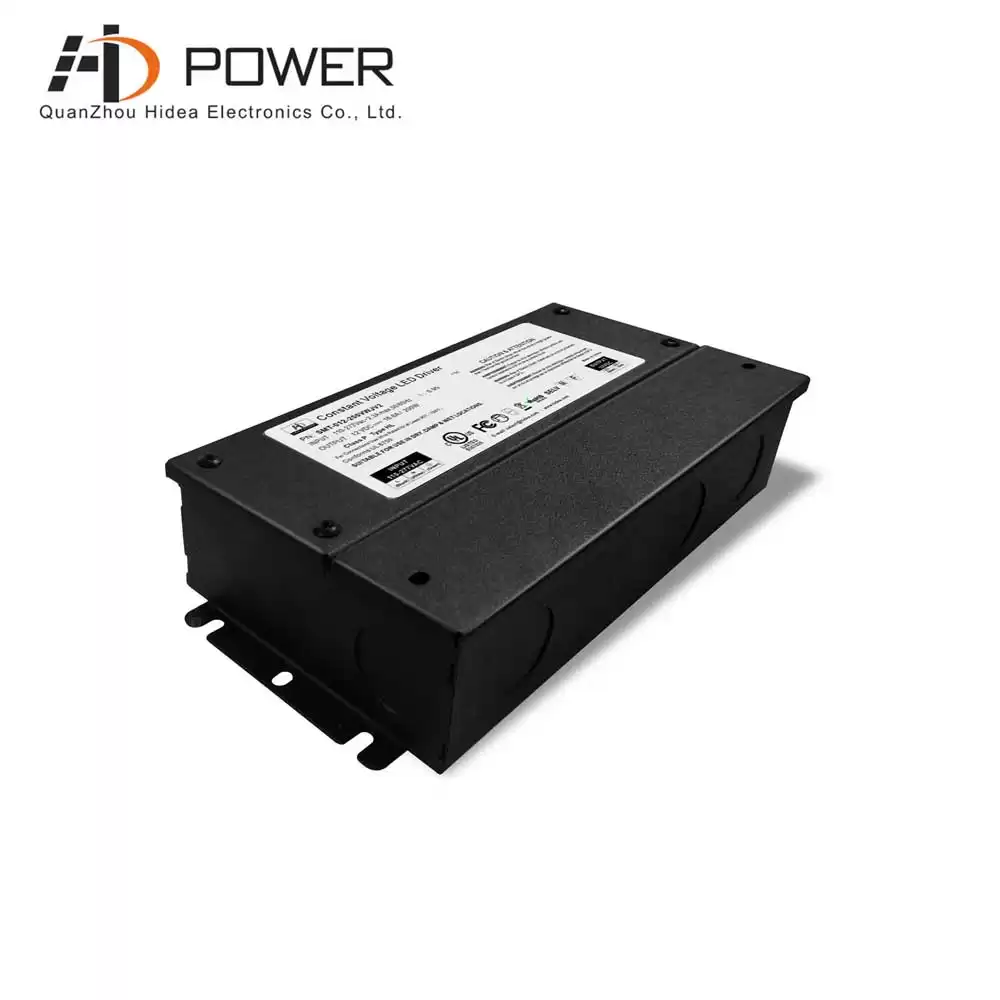

Smarts ul class p led driver 12V 200W also meet the standard type HL. 6 knockouts has been provided for installation. Normal strain reliefs 22mm can fit in. 7 years warranty is guaranteed.
Specification
|
Model
|
SMT-012-200VWJ
(1.0 ver.)
SMT-012-200VWJV2
(2.0 ver.)
SMT-012-200VWJWV2
(3.0 ver.)
|
SMT-024-200VWJ
(1.0 ver.)
SMT-024-200VWJV2
(2.0 ver.)
SMT-024-200VWJWV2
(3.0 ver.)
|
SMT-048-200VWJ
(1.0 ver.)
SMT-048-200VWJV2
(2.0 ver.)
SMT-048-200VWJWV2
(3.0 ver.)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
48V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Voltage Tolerance
|
±0.5V
|
|
Load Regulation
|
±2%
|
±1%
|
±1%
|
|
±1%
|
|
Rated current
|
16.67A
|
8.33A
|
4.16A
|
|
Rated power
|
200W
|
|
Input
|
Voltage Range
|
110-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(Typ.)@ full load
|
0.99@120V ;0.98@230V ;
|
0.99@120V ; 0.97@230V ;
|
0.98@120V ; 0.98@230V ;
|
|
0.97@277V
|
0.96@277V
|
0.97@277V
|
|
THD(Typ.)@ full load
|
<10% @120V <20%@230V <20% @277V
|
|
Efficiency(Typ.)@ full load
|
85%@120V;88%@230V 87%@277V
|
85%@120V;89%@230V 88%@277V
|
86%@120V;90%@230V
|
|
AC Current(Max.)
|
2.3A (100VAC)
|
|
Inrush Current (Typ.)
|
15A,50% ,1.4ms@120V ;55A,50% 220us@230V ; 30A,50% 1.4ms@277V
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle, period for 60min. each along X,Y,Z axes
|
|
|
Safety standards
|
UL8750
|
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
Safety&EMC
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
1.5Kg
|
|
Size
|
1.0 version: 260*103*46mm / 2.0 version:260*105*45mm /3.0 version:260*125*45mm
|
|
packaging
|
10PCS/CTN 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type
Our led power supply 200w are energy efficient and eco friendly with high PF>0.95. The compact design 1.0 is suitable for indoors and outdoors application.We suggest AQ lighting led strips for perfect tesing effect.
Related Products
|

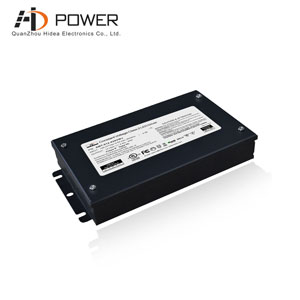

 This led driver 12v 30w is non dimming mode with junction box. Conforms to UL FCC safe standard. Suitable for various of lighting design solutions.
