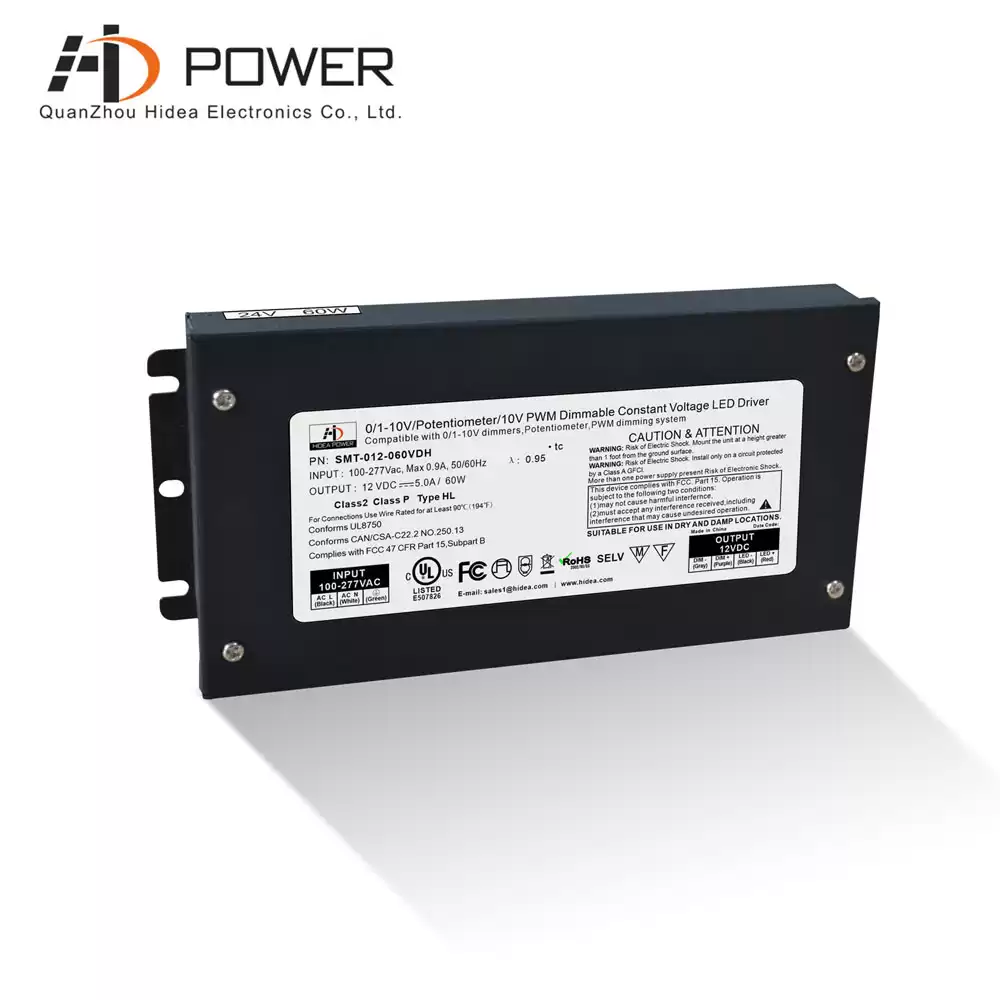

UL certification Class 2 60w led driver 0 10v dimming built in junction box

The 0 10v 60w led driver has a dimming range from 0-100%. Flicker free and somooth dimming. It can be dimmed using 0-10V dimmer such as Lutron dimmer. 120V or 277V.


  • CertificationUL/CUL
  • Weight1100g
  • Size188*92*26mm
  • Working ModeConstnat Voltage LED Driver

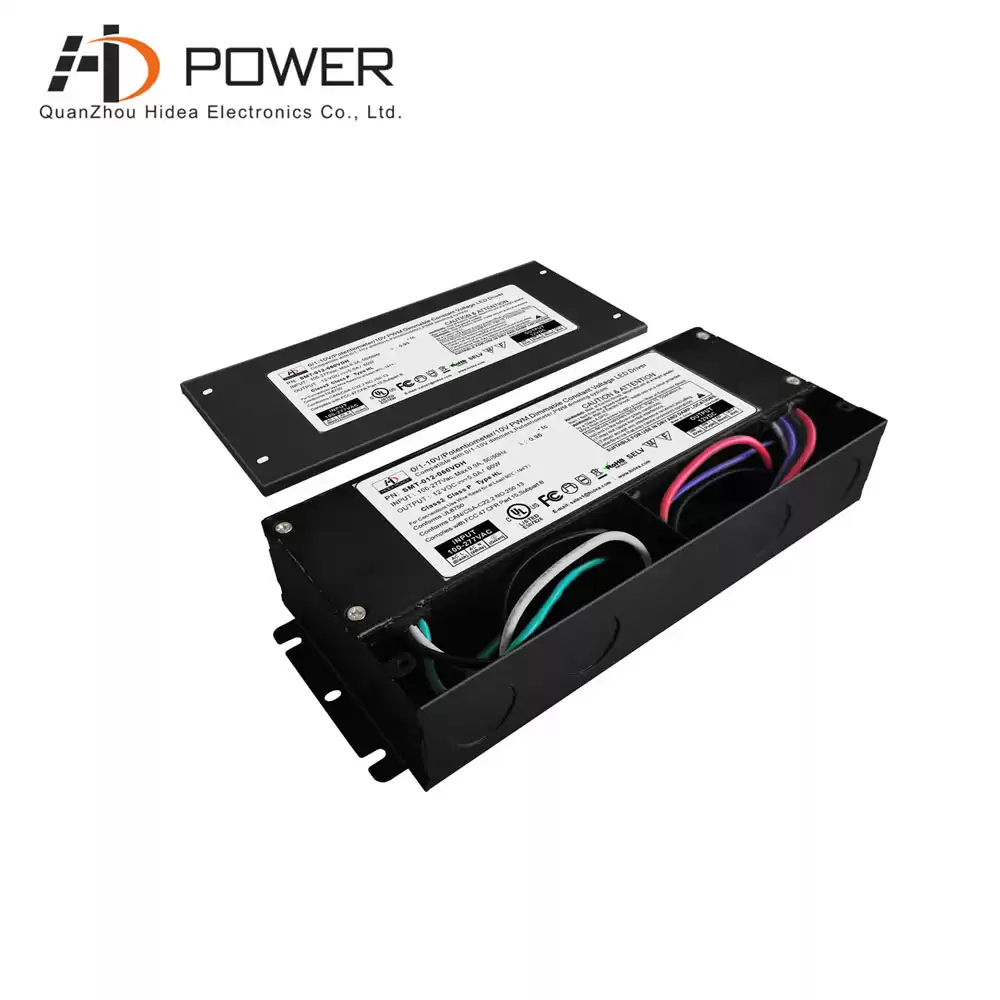

  • Shape & SizeJ-BOX Driver
  • Output Voltage12/24Vdc
  • Output Power(Watt)60W
  • Input Voltage100-277Vac
  • Dimming Mode0-10V Dimming
  • Warranty7 Years

Smarts led driver 0 10v dimming makes it advantageous for use in indoors lighting project. It is UL FCC safety approval and enables you use less energy but shining brighter.


  Specification

model SMT-012-060VDH (1.0 version)
SMT-012-060VDHV2 (2.0 version)
SMT-024-060VDH  (1.0 version)
SMT-024-060VDHV2 (2.0 version)
Output DC Voltage 12V 24V
Voltage Accuracy ±0.5V ±0.5V
Voltage Regulation ±0.5%
Rated current 5.00A 2.50A
Load Regulation ±1%
Rated power 60W 60W
Input Voltage Range 100-277V AC
Frequency Range 47~63HZ
THD(Typ.)@ full load <20%
Power Factor ( Typ.) 0.98@120VAC  0.95@277VAC 0.98@120VAC  0.95@277VAC
Full Load Efficiency(Typ.) >83% >86%
AC Current(Typ.) 0.9A/110VAC
Inrush Current (Typ.) 14A, 50%, 780us
Leakage current <0.50mA
Protection Over temperature 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Short Circuit shut down o/p voltage, re-power on to recover after fault condition removed
Over Loading ≤120% Hiccup mode,recovers automatically after fault condition is removed
Environment Working TEMP. -40~+60℃
Working Humidity 20~90%RH,non-condensing
Storage TEM.,Humidity -40~+80℃,10~95%RH
TEMP.coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
Safety& EMC Safety standards UL8750+UL1310
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION FCC Part 15 B
Others Weight About 1.1Kg
Size 1.0 version: 188*92*26mm(L*W*H) / 2.0 version: 188*94.5*40mm(L*W*H)
packing 305*200*180mm  /  10PCS/CTN  (L*W*H)
Notes 1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.

  Compatible Light Type

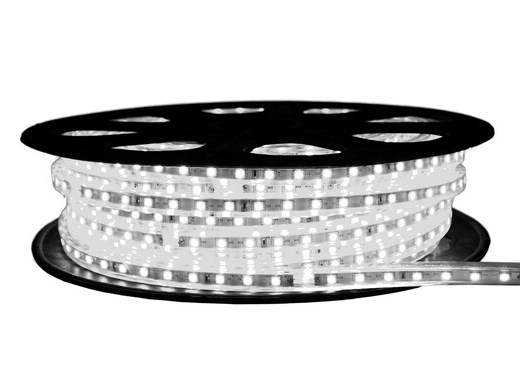

The 0 10v 60 watt led driver has long lifetime with constant voltage lamps. The driver meet safety regulations for use with LED flexible strip. Birddog Lighting LED strips is one of the options.
