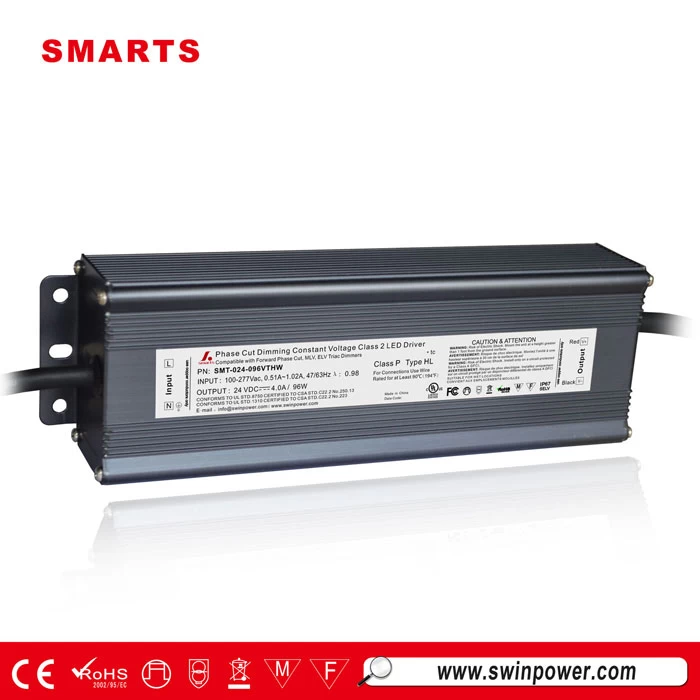

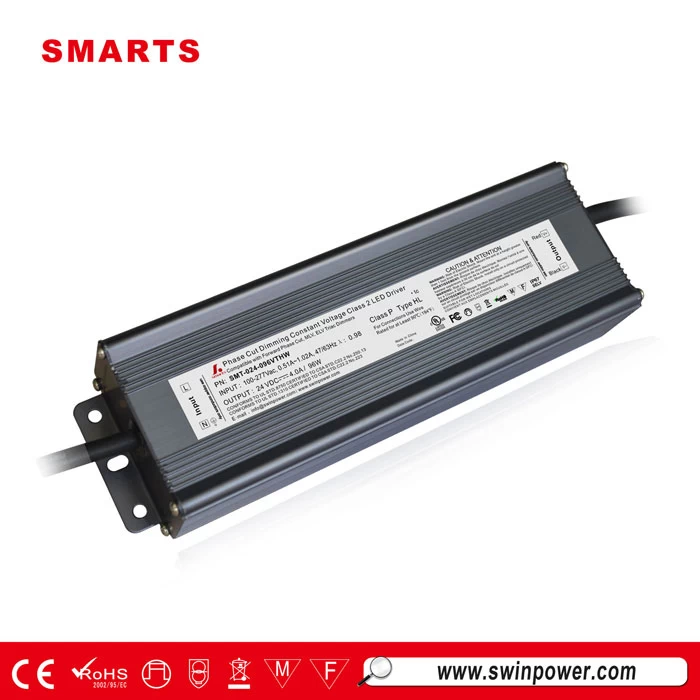

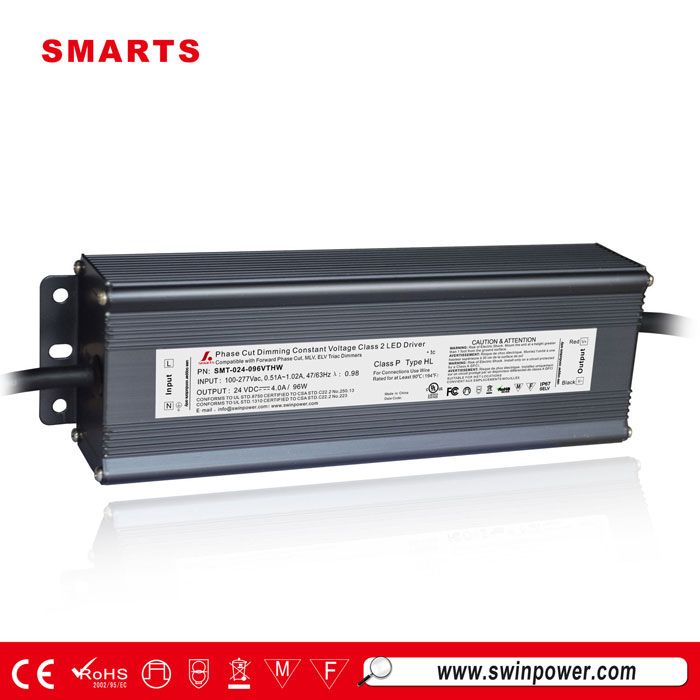

UL certificate 24v 100w triac dimmable constant voltage led driver for led light
24v dimmable led driver are suitable for indoor & outdoor LED illuminating lights,LED neon,LED panel. this series of triac dimmable led driver are have short circuit/overload/over voltage/over temp.
Destription
|
model
|
SMT-024-096VTHW
|
|
Output
|
DC Voltage
|
24V
|
|
|
Voltage Accuracy
|
±0.5V
|
|
|
Rated current
|
4.0A
|
|
|
Rated power
|
96W
|
|
Input
|
Voltage Range
|
100~277V AC
|
|
|
Frequency Range
|
47～63HZ
|
|
|
Power Factor ( Typ.）
|
PF≧0.95/110V,PF≧0.97/277V
|
|
|
Full Load Efficiency(Typ.)
|
>82%
|
|
|
AC Current（Typ.）
|
1.33A/110VAC
|
|
|
Inrush Current （Typ.）
|
20A, 50%, 1.6ms
|
|
|
Leakage current
|
﹤0.5mA/110V
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
|
Over voltage
|
≦140VAC(90~135V) , ≦270VAC(170~265V)
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
|
EMC IMMUNITY
|
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547
Alight industry level （surge4KV）
|
|
Others
|
Net Weight
|
1.1Kg
|
|
|
Size
|
230*70*46mm（L*W*H）
|
|
|
packing
|
329*279*176mm , 10PCS/ctn
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and
25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Label
|
|

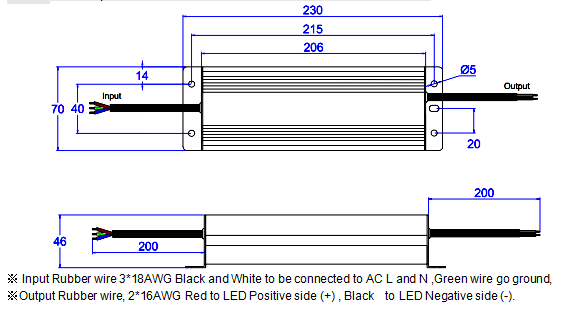

Mechanical Specification

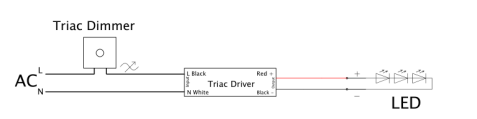

Simple Connection Diagram

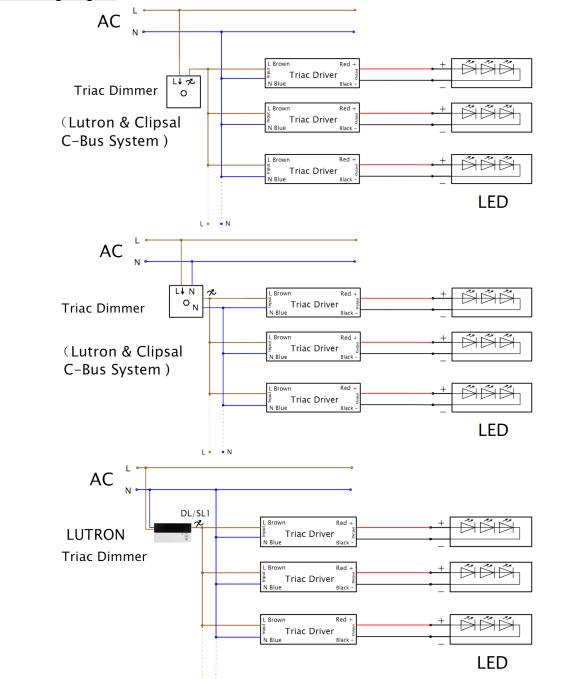

Connecting Diagram
Problem analysis
Question1:
Can we make our company information on the label?
Answer:
--As per the policy of ETL/UL, we can not make changes on the labels at liberty. If we make changes as your requirement , then our company will be punished if the ETL/UL department discover it . Really sorry for that and caused you so much trouble..
--If making changes on the labels are necessary for your company, I suggest you multi-list of our ETL/UL certification , then we can help you design the new label as requested.What is your opinion?
Question2:
Why does the 100W-PWM driver (SMT-012-100VT) have 2 x output cables ?
I need a driver with a single 100W output.
Can I draw the entire 200W from one cable ? Internally is it a single output ? just 2 x wires ?
Answer:
Yes, the internally dimmable led driver for SMT-012-100VTHW is single output type and just 2 wires.
