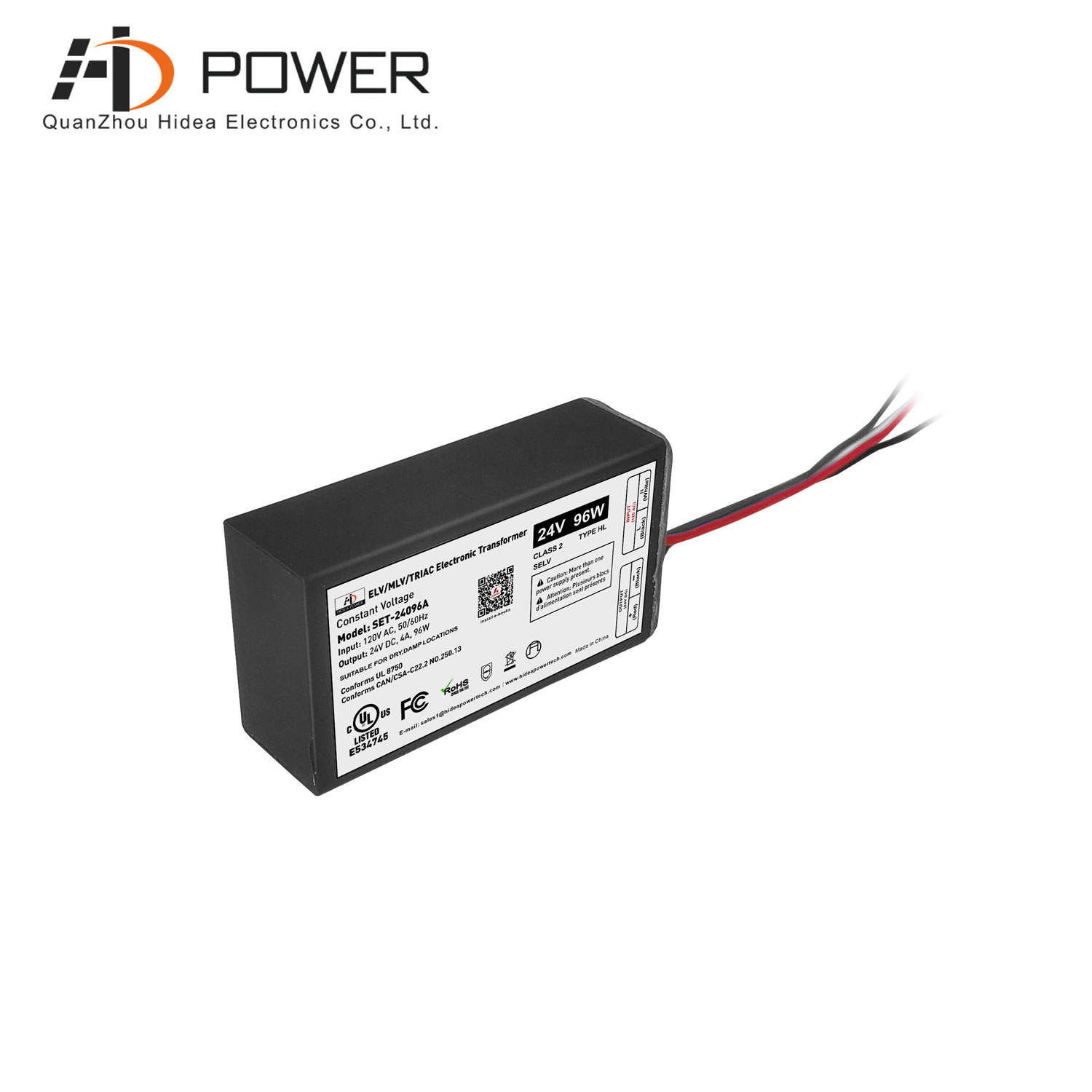

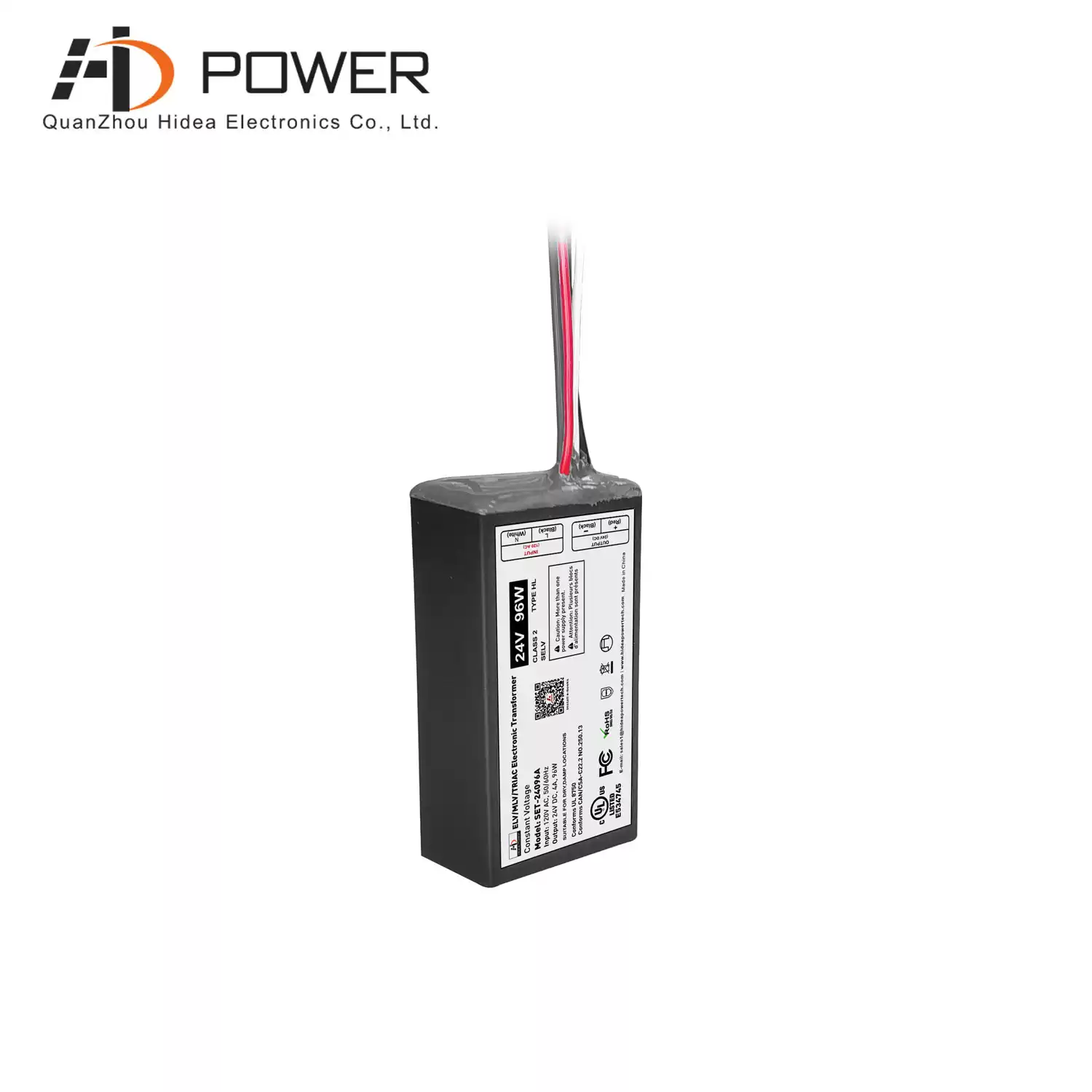

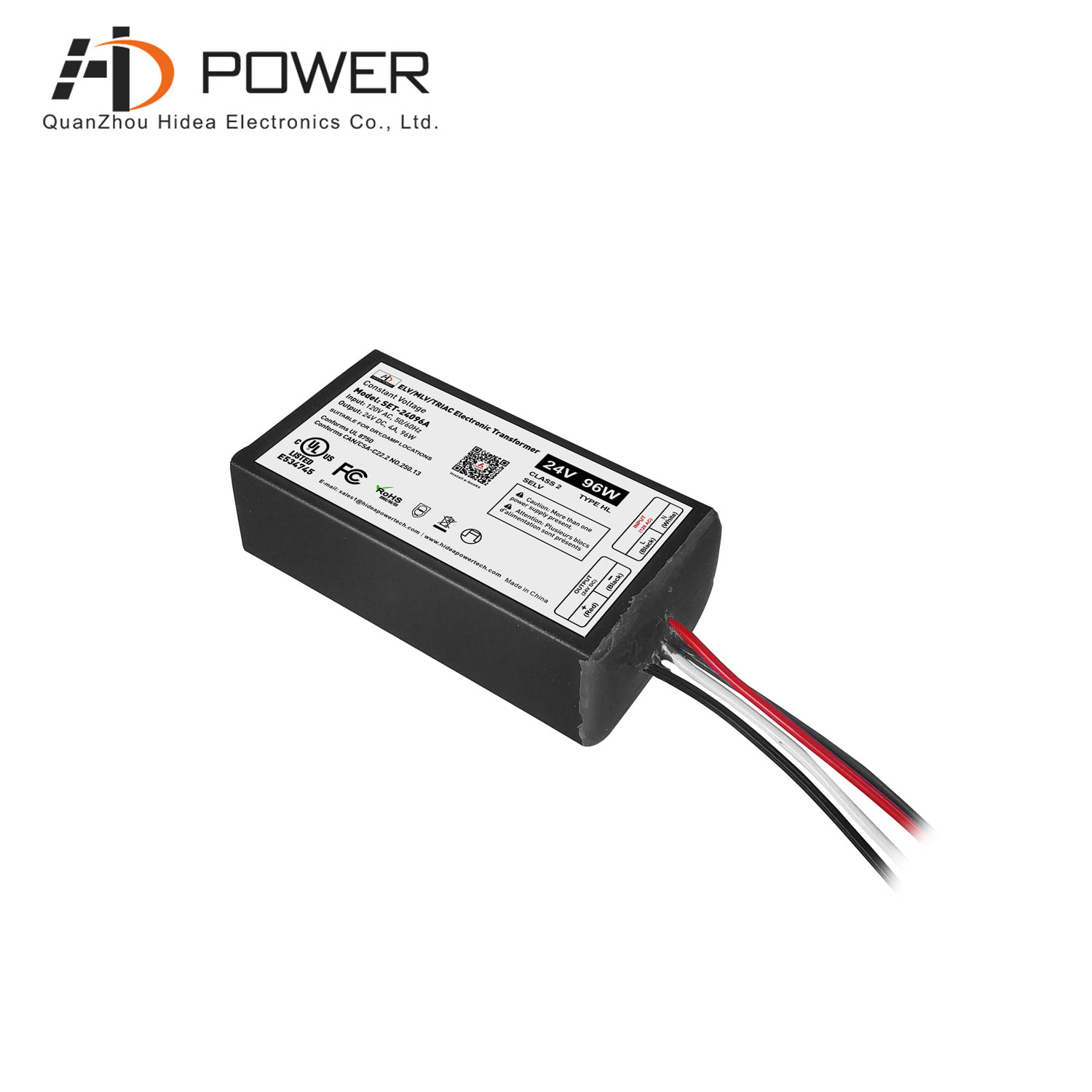

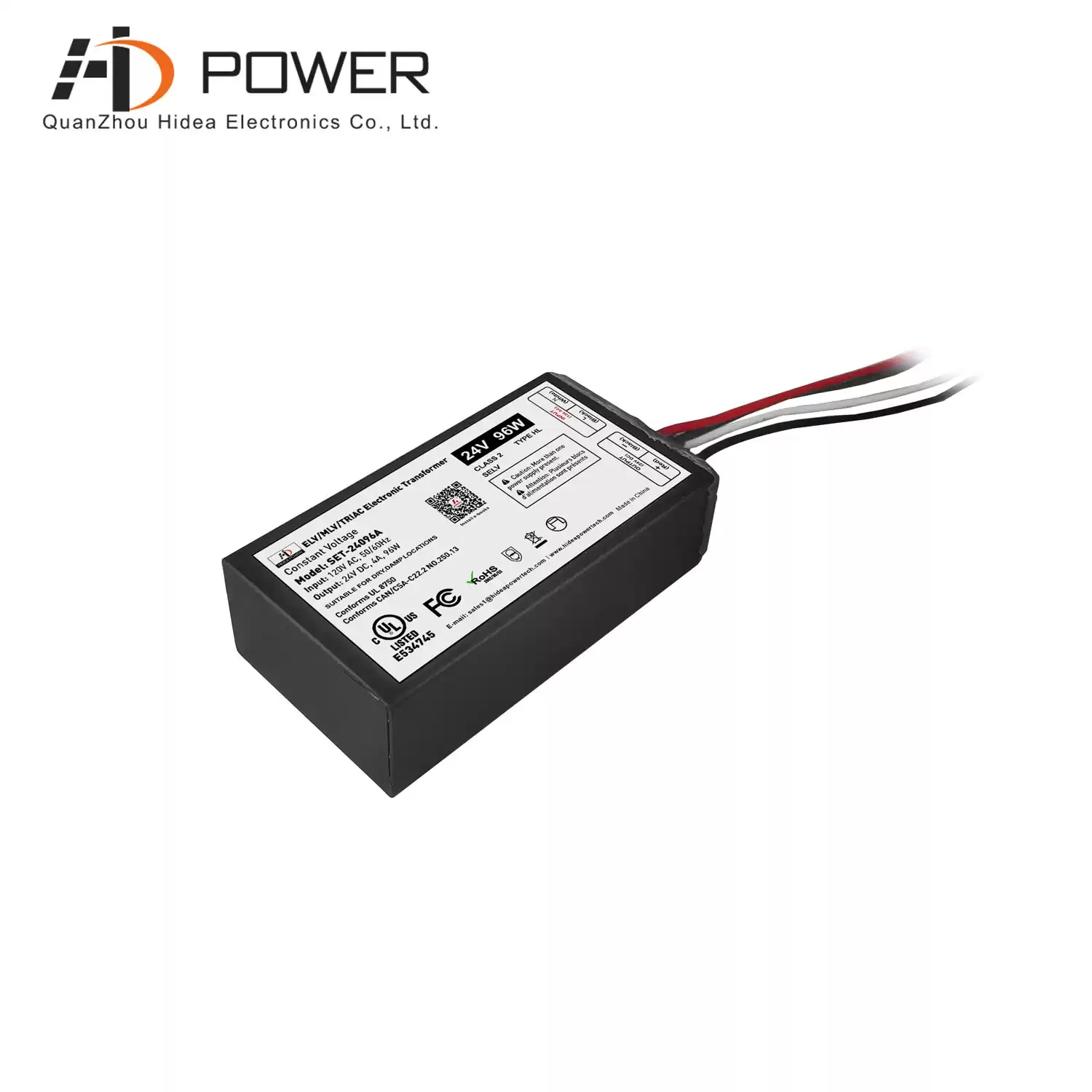

ul certification ip67 waterproof 24v 96w triac dimable led lighting driver transformer
This Triac/ ELV/ MLV dimmable led electronic transformer has passed UL certification, 120vac input, can be fully loaded, has excellent load regulation ability, has a five-year warranty, and complies with global safety lighting laws
Specification
|
Model Number
|
SET-24096A
|
|
Output Type
|
|
Reted Power
|
96W
|
|
Reted Voltage
|
24V
|
|
Reted Current
|
4A
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input Type
|
|
Voltage Range
|
120V
|
|
Frequency Range
|
47-63HZ
|
|
Efficiency(Typ.)
|
88%@120VAC
|
|
Total Harmonic Distortion
|
THD< 20%(@100% load)
|
|
Power Factor(typ.)
|
0.98@120VAC
|
|
AC Current(Typ.)
|
0.92A
|
|
Inrush Current(Typ.)
|
-
|
|
Leakage Current
|
<0.5mA/ 120VAC
|
|
PROTECTION
|
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Load
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
ENVIRONMENT
|
|
Working Temp.
|
Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section)
|
|
Working humidity
|
20 ~ 95% RH non-condensing
|
|
Storage temp., Humidity
|
-40 ~ +90, 10 ~ 95% RH
|
|
Temp .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
SAFETY & EMC
|
|
Safety standards
|
UL8750, Class 2
|
|
Safety standards
|
I/P-O/P:1.88KVAC
|
|
OTHERS
|
|
Dimension
|
2.83x1.57x0.98 inch (L*W*H)
|
|
Packing
|
-
|
Related Products
|

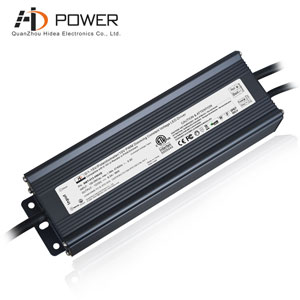

0-10V dimmable led driver 96W aluminum shell design, waterproof level IP67, can effectively waterproof and dust and dust, and most 0-10V lightweers on the market can well match to achieve smooth light adjustment light
