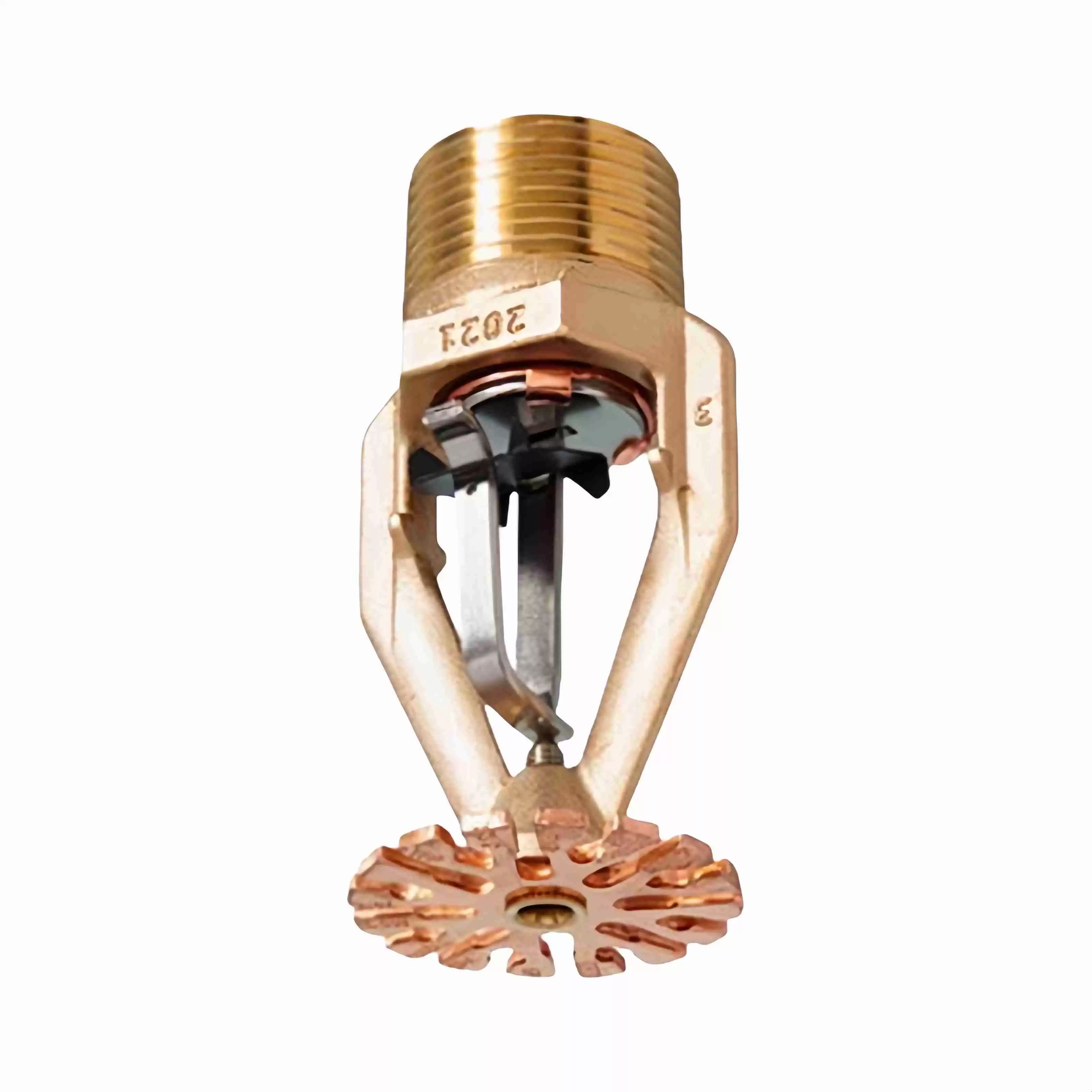

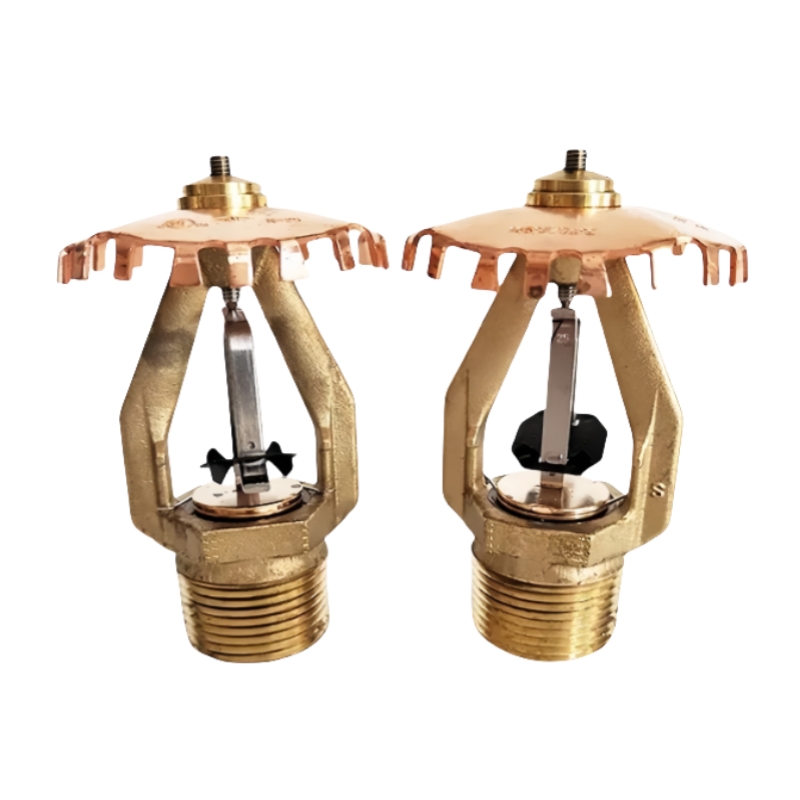

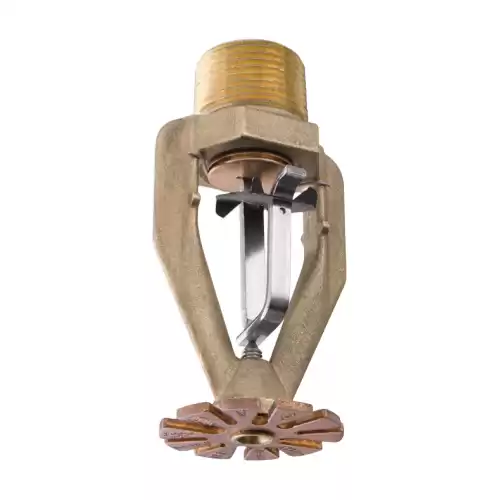

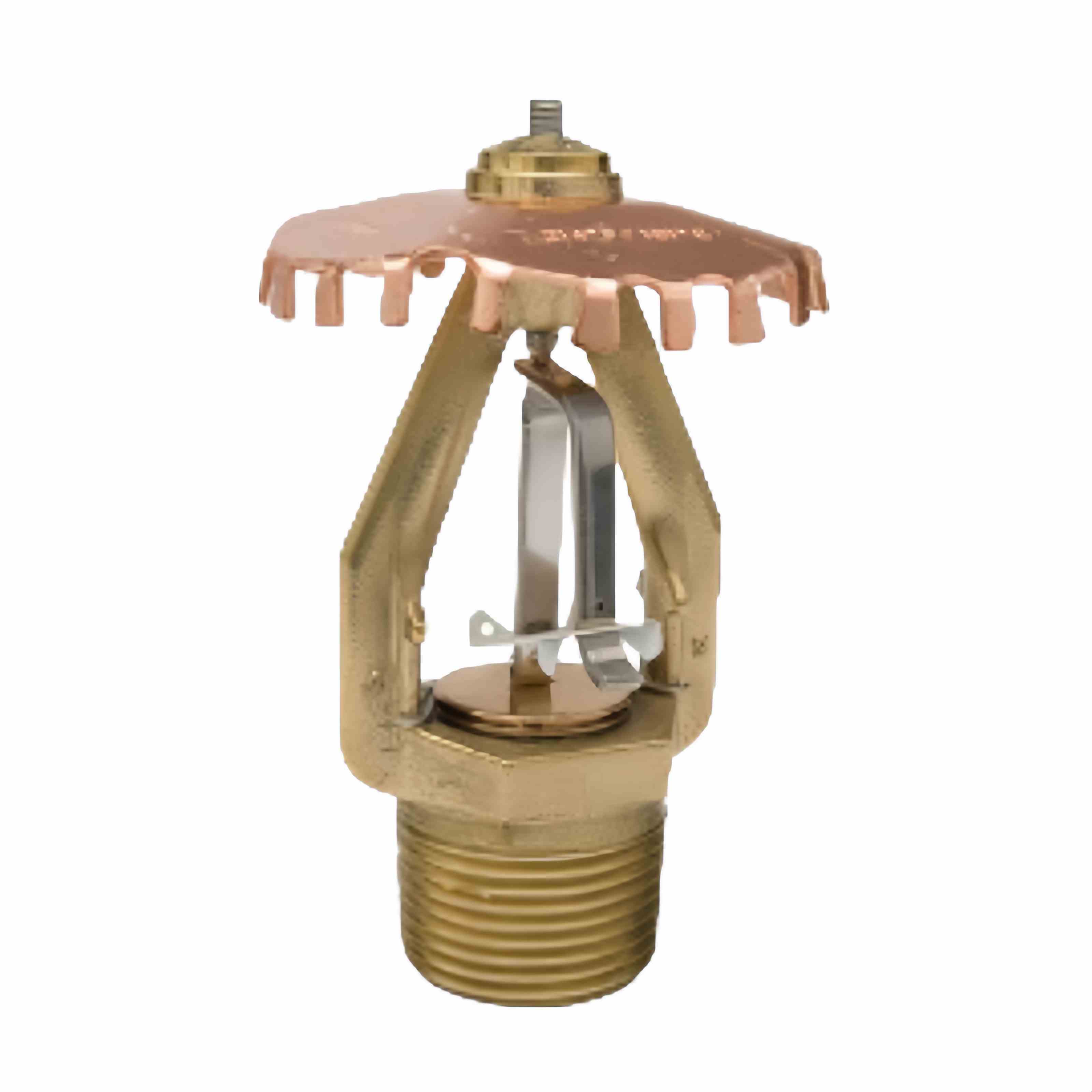

UL ESFR K17 Fire Sprinkler Head

 • Rapid response: In the early stage of a fire, the rapid response element of the ESFR sprinkler head acts promptly.

 • Powerful jet: When the nozzle is turned on, it sprays out a large flow and high momentum water column through a large hole diameter and a special splash pan.

 • Penetrating the fire column: High-momentum water droplets, like "bullets", ignore the obstruction of the ascending fire plume and directly penetrate through.

 • Direct hit on the fire source: Water droplets precisely strike the surface of burning goods.

 • Instantaneous suppression: A large amount of water rapidly cools the burning object, and the large amount of steam generated instantly can also suffocate the flame, thus quickly extinguishing the fire in an extremely short time.

Product Parameter

Model	TY7226
Installation Type	Pendent,Uright
Max.Working Pressure	175 psi（12 Bar）
K Factor	K16.8
Pipe Tread Connection	3/4 Inch NPT
Temperature Range	165℉(74℃) 212℉（100℃）

FAQ

Q：What’s the MOQ for ul fire sprinkler?

A：For standard sizes, our MOQ is usually 1000 pieces. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.



Q：What is your payment terms？

A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.



Q：What is the delivery time?

A：The production usually takes 15 to 30 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.
