UL FM Fire Sprinkler Head

UL FM fire sprinkler heads refer to those that have been certified by Underwriters Laboratories (UL) and Factory Mutual Research (FM) in the United States. They feature high quality and safety and are widely used in various fire protection systems.



Company Project

UL FM fire sprinkler heads usually use glass balls filled with organic solutions with a relatively high coefficient of thermal expansion as thermal sensitive elements. At normal temperature, the glass ball shell can withstand a certain supporting force to ensure the sealing of the nozzle. When a fire breaks out and the temperature rises, the organic solution inside the glass ball expands due to heat, generating a significant internal pressure until the outer shell of the glass ball breaks, thus opening the nozzle to spray water.

It is generally assembled from a copper alloy frame, glass balls, seals, glass ball seats, set screws and splash trays, etc.UL FM Fire Sprinkler Head is a precision-engineered, life-saving device. Its certification by both UL and FM Approvals is a non-negotiable requirement, providing the highest assurance that it will perform reliably to control a fire, protect lives, and minimize property damage. The correct selection of type, temperature rating, and style is governed by NFPA 13 and is critical to the system's effectiveness.

Features

 • The nozzle frame is precisely forged from high-strength copper alloy, featuring high strength and excellent corrosion resistance.

 • The temperature-sensing thermosensitive element (glass ball) adopts high-quality products, featuring high strength, reliable operation and fast response speed.

Product Parameter

Sprinkler Type Connection K Factor Glass Bulb Response Temperature

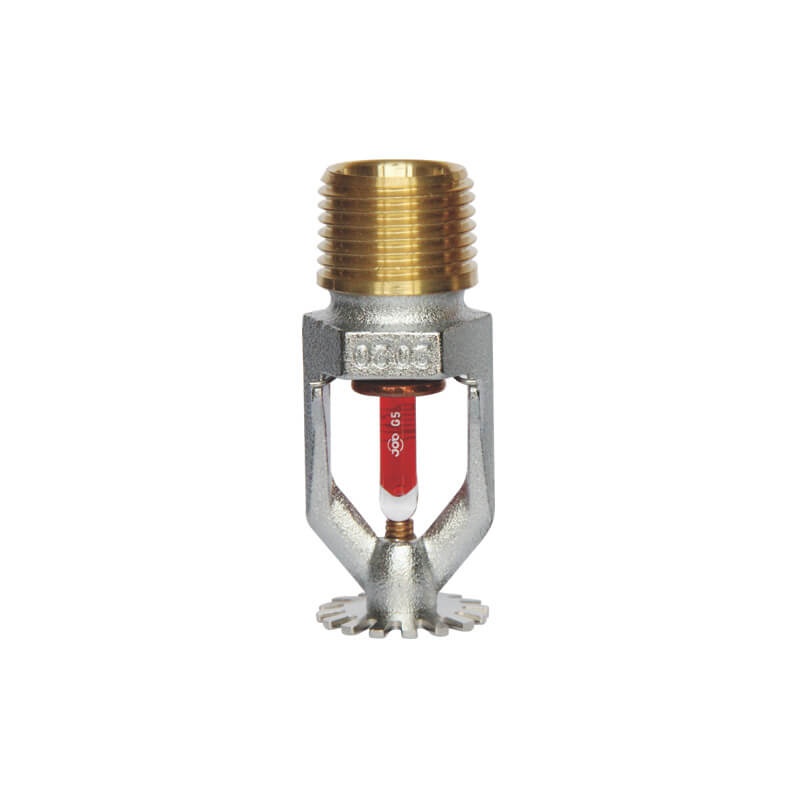

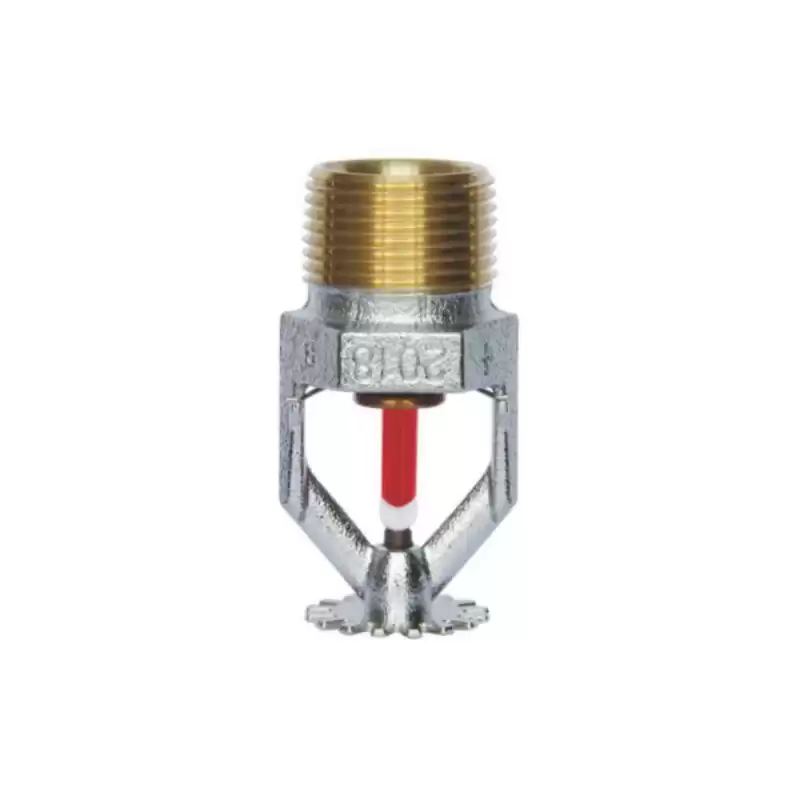

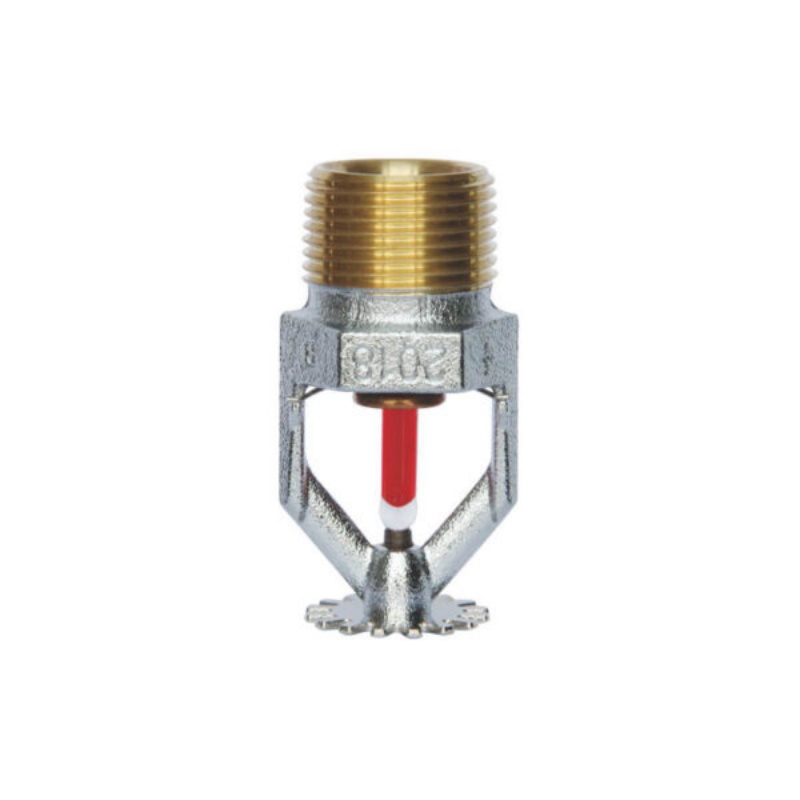

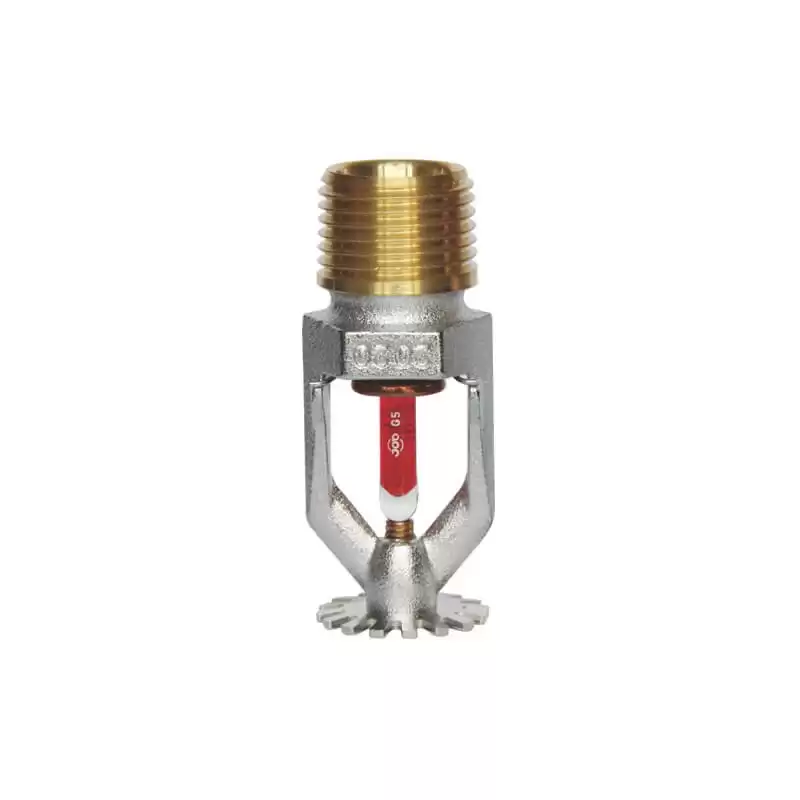

Pendent Fire Sprinkler 1/2"(DN15)BSP K5.6(K80) 3mm / 5mm Quick/Standard 57 ℃ / 68 ℃ / 79 ℃ / 93 ℃ / 141 ℃
3/4"(DN20)BSP K8.0(K115) 3mm / 5mm Quick/Standard 57 ℃ / 68 ℃ / 79 ℃ / 93 ℃ / 141 ℃

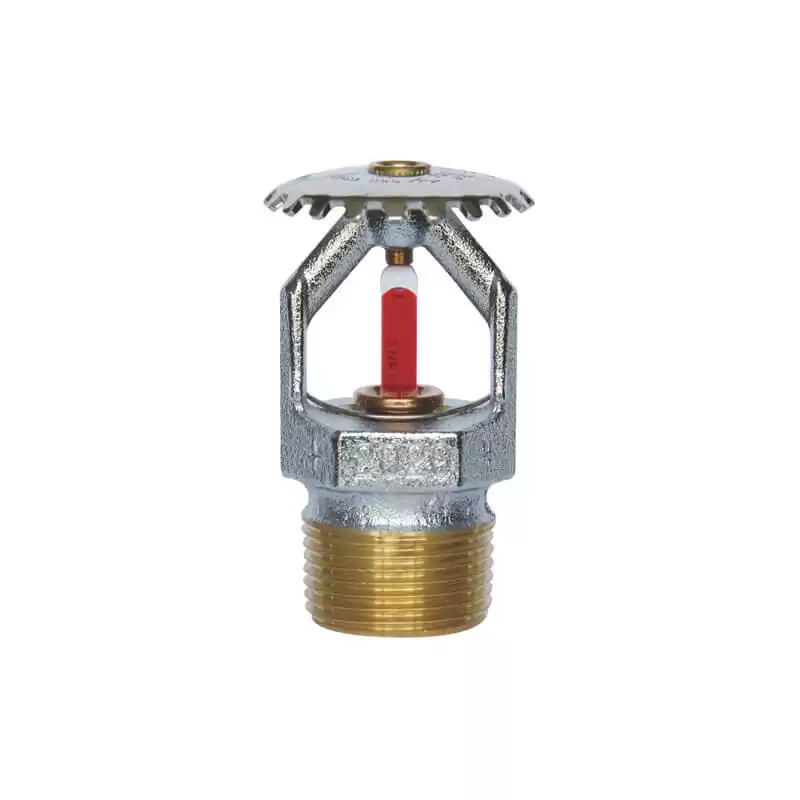

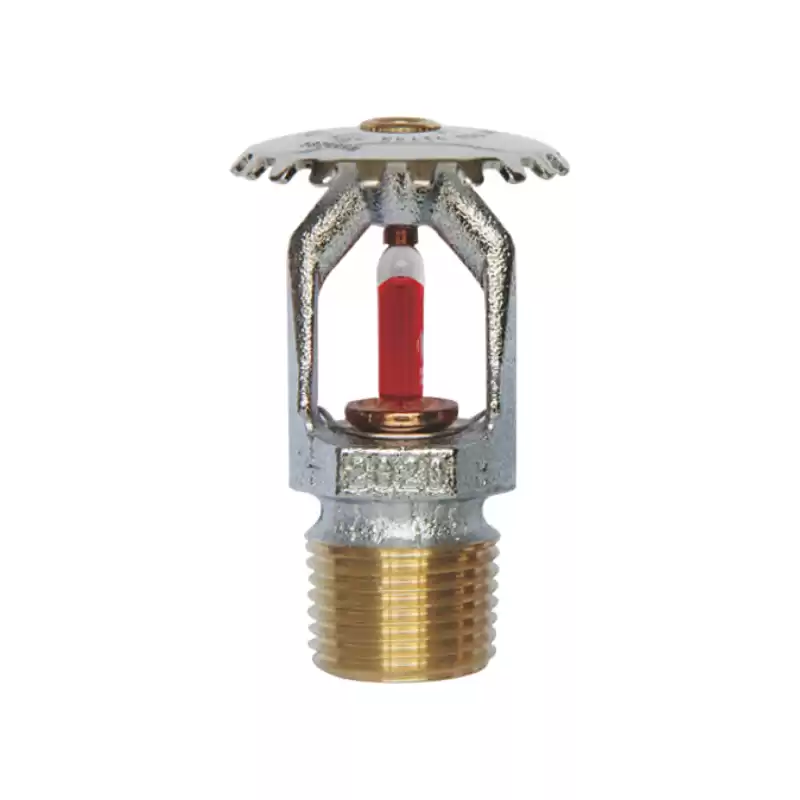

Upright Fire Sprinkler 1/2"(DN15)BSP K5.6(K80) 3mm / 5mm Quick/Standard 57 ℃ / 68 ℃ / 79 ℃ / 93 ℃ / 141 ℃
3/4"(DN20)BSP K8.0(K115) 3mm / 5mm Quick/Standard 57 ℃ / 68 ℃ / 79 ℃ / 93 ℃ / 141 ℃
Sidewall Fire Sprinkler 1/2"(DN15)BSP K5.6(K80) 3mm / 5mm Quick/Standard 57 ℃ / 68 ℃ / 79 ℃ / 93 ℃ / 141 ℃
3/4"(DN20)BSP K8.0(K115) 3mm / 5mm Quick/Standard 57 ℃ / 68 ℃ / 79 ℃ / 93 ℃ / 141 ℃

FAQ

Q:What’s the MOQ for ul fm fire sprinkler?

A:For standard sizes, our MOQ is usually 1000 pieces. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.



Q:What is your payment terms?

A:Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.



Q:What is the delivery time?

A:The production usually takes 15 to 30 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.



Q:Why choose us?

A:With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!

Contact us

Act now—stop fire risks at the source!

JINYUAN TECHNOLOGY DEVELOPMENT CO.,LTD

Tel.:86-18159244550   Mobil:18159244550

EMAIL:Jony@jyfire.com.cn

ADD:CHENGGONG TECHNOLOGY ZONE PHASE 3,XIMEI TOWN,NAN'AN QUANZHOU CITY


Product Tags 1/2 inch 3/4inch Fire Sprinkler          K5.6 Fire Sprinkler Head          K8.0 Fire Fighting Sprinkler          Pendent Fire Sprinkler Head          Uright Sprinkler Head          3mm 5mm Fire Sprinkler
