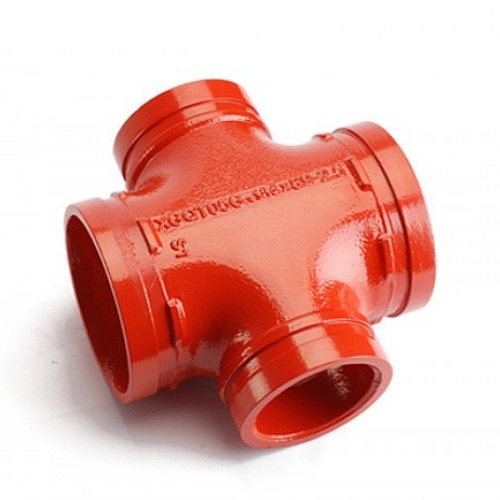

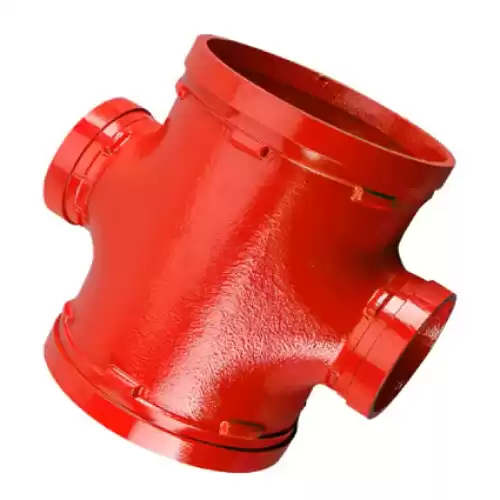

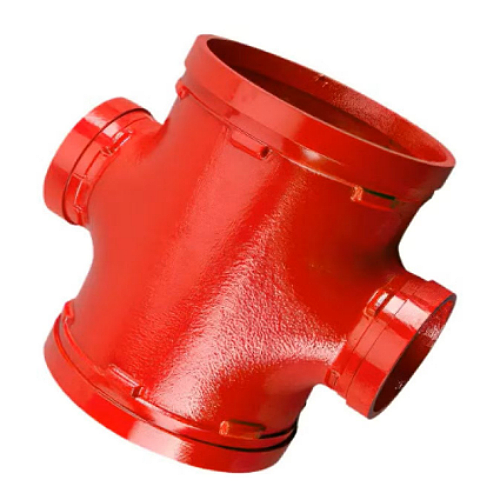

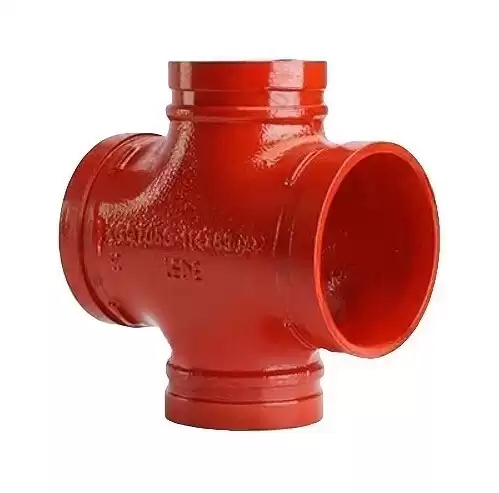

UL FM Grooved Reducing Cross

Grooved Reducing Cross is an efficient solution to the problem of "multi-directional intersections" in pipeline systems. Its value lies in transforming complex customized connections into a reliable, standard and easy-to-install prefabricated component.



Product Introduction

Grooved Reducing Cross (grooved reducing cross) is a standard pipe fitting for grooved piping systems. Its core function is to simultaneously connect branch pipes of different diameters in three different directions at one node of the main pipe.



Essentially, it is an integrally cast "crossroads", making complex multi-directional and reduced-path connections standardized and efficient.The difference from the Equal Cross lies in the combination of interface sizes, which is specially designed for diverting/merging of different diameters.

Product Features

• Simplify complex node design: It can replace the combination of multiple pipe fittings and integrate complex connections into a standard module.

• Enhance system reliability: Compared with on-site splicing of pipe fittings, it reduces potential leakage points and makes the connection more stable. Its internal flow channels have been designed to help optimize the distribution of water flow.

• The installation is extremely fast, facilitating the disassembly and maintenance of the system in the later stage. Moreover, there is no open flame during the installation process, making it safer.

Product Parameter

Nominal Size(mm) Pipe O.D(mm) Dimensions L(mm/in) Working Pressure(PSI/MPA)
100x25 114.3x33.7 102/4.01 300PSI / 2.07Mpa
100x32 114.3x42.4 102/4.01
100x40 114.3x48.3 102/4.01
100x50 114.3x60.3 102/4.01
100x65 114.3x76.1 102/4.01
100x80 114.3x88.9 102/4.01
125x32 139.7x42.4 124/4.88
125x50 139.7x60.3 124/4.88
125x65 139.7x76.1 124/4.88
125x80 139.7x88.9 124/4.88
150x25 165.1x33.7 140/5.5
150x32 165.1x42.4 140/5.5
150x40 165.1x48.3 140/5.5
150x50 165.1x60.3 140/5.5
150x65 165.1x76.1 140/5.5
150x80 165.1x88.9 140/5.5

FAQ

Q:What's the difference from Grooved Equal Cross?

A:The four interfaces of Grooved Equal Cross are exactly the same size and are used to connect four equal-diameter pipes. Among the four interfaces of Grooved Reducing Cross, there are at least two different sizes for connecting pipes of different diameters.



Q:What’s the MOQ for Grooved Reducing Cross?

A:For standard sizes, our MOQ is usually 300 pieces. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.



Q:What is your payment terms?

A:Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.



Q:What is the delivery time?

A:The production usually takes 15 to 45 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.
