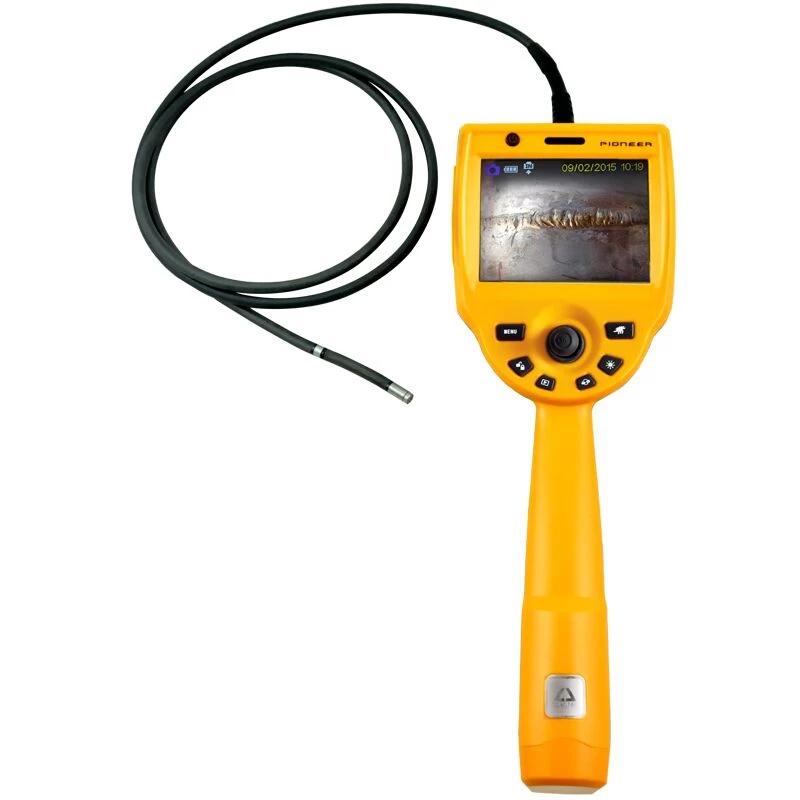

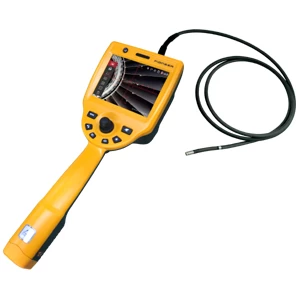

Ultra HD Mega Pixel Industrial Videoscope of Coantec C50 series

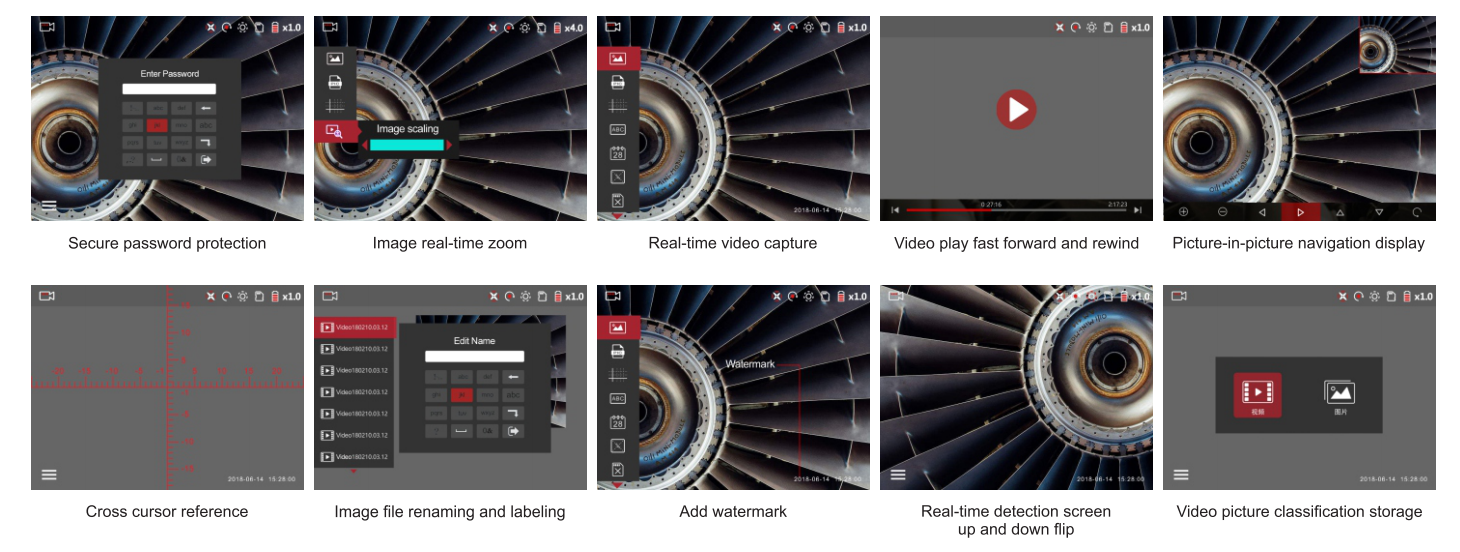

1. Excellent Performance --- Ten Prominent Software Features
-
Daylight display with full new intelligent software system
The C50 series features an LCD daylight display that is clearly visible in the sun. The new human-computer interaction software is more human, scientific, more powerful and more comfortable.
-
Million pixels HD camera, excellent image processing technology
Miniature 720P HD image sensor makes the image more delicate and the color more realistic, the image is uncompressed, the resolution is up to 1280*720, and every real detail is restored.
Equipped with HDMI video output interface, connected to the PC through a dedicated data cable, suitable for expert consultation, helping to quickly find the defect of the detected object.
-
100,000 Lx super light + Large field of view
Illumination is 50 times higher than that of ordinary endoscopes. It is suitable for dark and harsh environments. It has 8 levels of brightness adjustment function. The light source can be adjusted according to the environment during the testing.With a larger depth of field and a larger angle of view, even first-time users can get good visual effects.

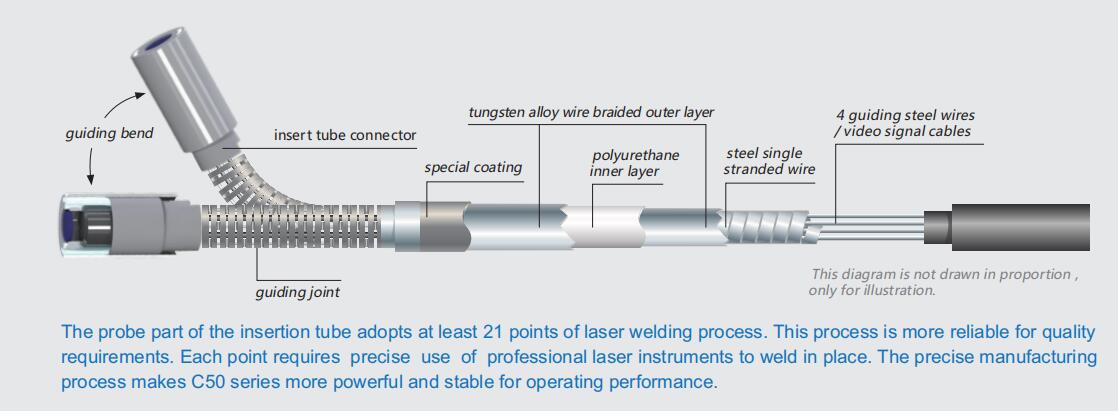

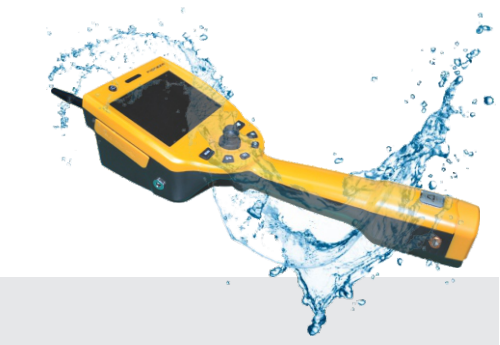

2. Excellent Quality --- Double tungsten alloy braided insert tube of 4 layers oilproof, waterproof, wearable and durable stable and reliable laser welding process
The insertion tube is woven with tungsten alloy wire, which has a tighter braiding layer than the stainless steel wire insertion tube, which improves the wear resistance of the insertion tube by 20 times and effectively prolongs its service life.
The C50 Series camera uses sapphire protection lenses to effectively prevent the lens from being damaged twice.
3. Easy Operation --- Intelligent Navigation Menu
The navigation menu design is simple and clear, easy to understand and easy to use, novices can get started without training.
Support ten languages: Simplified Chinese, Traditional Chinese, English, Japanese, Korean, German, French, Portuguese, Spanish, Russian.
0.1 second automatic exposure, automatic noise reduction, fast capture of the real details of the detected object, and feedback through high-definition pictures.
-

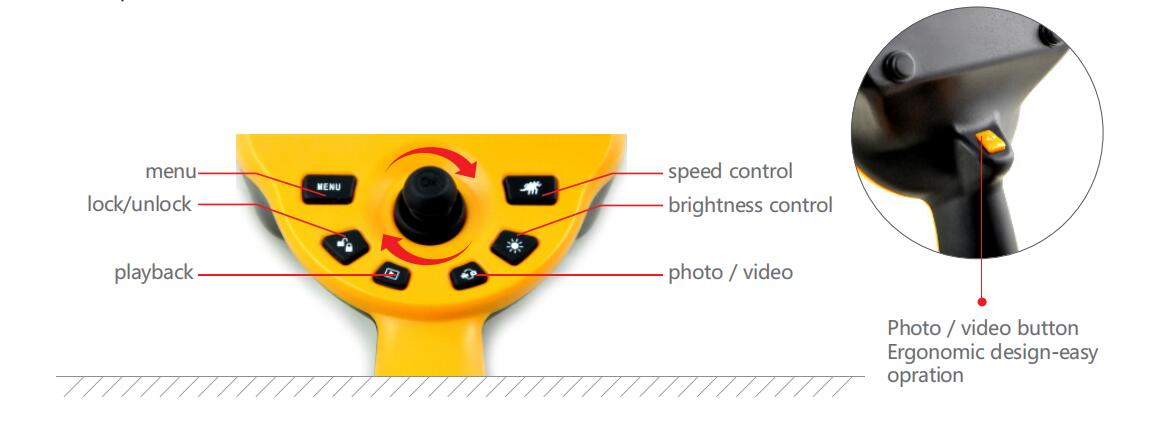

Intelligent and Humanized Design Multi-function Joystick
The unique rocker closed-loop control technology enhances the bending sensitivity and steering control of the probe for more precise operation.The multi-function joystick has one-key lock, step-by-step fine adjustment, fast and slow adjustment, automatic reset, OK confirmation, menu navigation function, making inspection work easier.
Camera:
|
Probe Diameter
|
φ4.8mm / φ6mm / φ8mm
|
|
Pixels
|
1,000,000 Pixels
|
|
Probe Material
|
Hard titanium alloy protective casing
|
|
Depth of Field (Direct View)
|
5-180mm; 10-100mm
|
|
Depth of Field (Side View)
|
3-30mm
|
|
Field of View (Direct View)
|
110° / 120° Optional
|
|
Field of View (Side View)
|
70° / 90° Optional
|
|
Visible direction
|
Standard direct view lens (side view lens optional)
|
|
Host:
|
|
|
Host size
|
380mm*135mm*85mm
|
|
Host weight
|
≤1.35kgs (with batteries), the total weight depends on the length and diameter of the insert tube
|
|
Instrument case size
|
600mm*395mm*235mm
|
|
Output port
|
HDMI
|
|
Fall-resistant
|
1.2m fall-resistant
|
|
Insert tube protection device
|
130mm wear-resistant tube anti-twist protection tube
|
|
Working Time
|
≥4 hours, endurance to 8 hours
|
|
System:
|
|
|
Integrated design
|
Probe, Screen, Insert tube, Handle, Battery and other integrated handheld design
|
|
Insert Tube
|
Four-layer tungsten wire wear-resistant braided tube
|
|
Effective Working Length
|
1.5m ~ 10m
|
|
Bending Control Mode
|
Electric control
|
|
Probe Articulation
|
360° all-way
|
|
Bending Lock
|
One-key Lock
|
|
Step Regulation
|
Step regulation between high-speed and low-speed bend
|
|
Bending Speed Control
|
Fast / Slow
|
|
Bending Angle
|
Within 5m ≥160°, Above 5m ≥ 120°
|
|
Light Type
|
Front LED light or Rear-mounted LED Fiber light (≥3W hours）
|
|
Illumination
|
Front LED light with max 20,000lx, Rear-mounted LED Fiber light with max 100,000lx
|
|
Image enlargement
|
Support real-time 4x zoom, 8x partial zoom when the picture is viewed
|
|
Bright Adjustment
|
Manual, 8 levels
|
|
Display
|
5-inch LCD daylight display
|
|
Image Resolution
|
1280*720 / 960*720
|
|
Video Resolution
|
1280*720
|
|
Shooting & recording function
|
With camera and video function, can be captured during recording
|
|
System security
|
With power-on passward unlock function
|
|
Image mode
|
Color, black and white, negative
|
|
Auxiliary measurement
|
Cross cursor
|
|
File editing
|
File can be renamed and add company logo
|
|
File Format
|
Picture: BMP / JPEG; Video: MP4
|
|
Video playback
|
Fast forward and rewind functions
|
|
Image flip
|
180°
|
|
Image preview
|
Two mondes for the list and the nine-square grid, the full- screen viewing/ deletion/ file name editing/ adding notes operation, time watermark and picture- in-picture guidance function can be performed in the preview mode.
|
|
Memory
|
Standard 8G SD card, support 32G at maximum
|
|
Equipment durability protection device
|
Buffer protection device for connecting host and insert tube
|
|
Emergency lighting
|
Glare LED emergency lighting
|
|
Insert Tube
|
Oil and corrosion resistant
|
Operation Environment:
|
Host System Working Temperature
|
-10℃ ~ 50℃, when 0℃ below, the display needs preheating
|
|
Camera Working Temperature
|
-20℃ ~ 75℃, when 0℃ below, please reduce oriented operation
|
|
Dustproof, waterproof
|
Insert Tube IP67
|
|
Store Temperature
|
-20℃ ~ 60℃
|
|
Relative Humidity
|
15% ~ 90%
|
Accessories:
|
Standard Configuration
|
Instrument case, C50 videoscope, 2 sets of batteries, card reader, 8G SD card, charger, file documents
|
|
Optional
|
HDMI cable, Hand-held casing, High-grade instrument case (with insert tube storage tray),
Lens storage box
|
