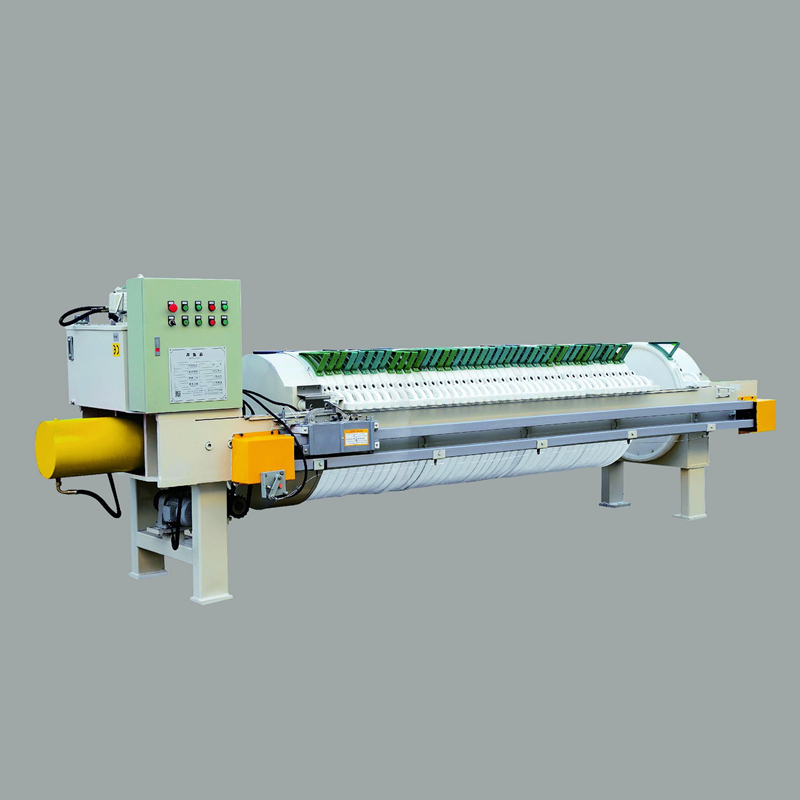

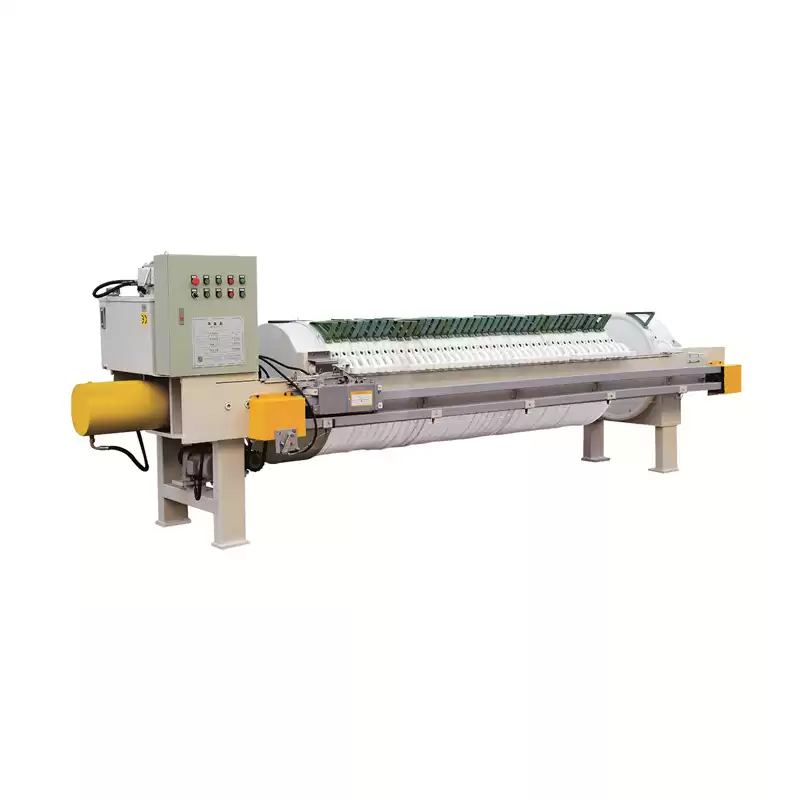

Ultra High Pressure Circular Filter Press

Suitable for sand washing and sewage treatment, stone processing and sewage treatment, ceramic kaolin and porcelain clay pressing, mine tailings treatment, factory sewage treatment and other industries.



Product Introduction

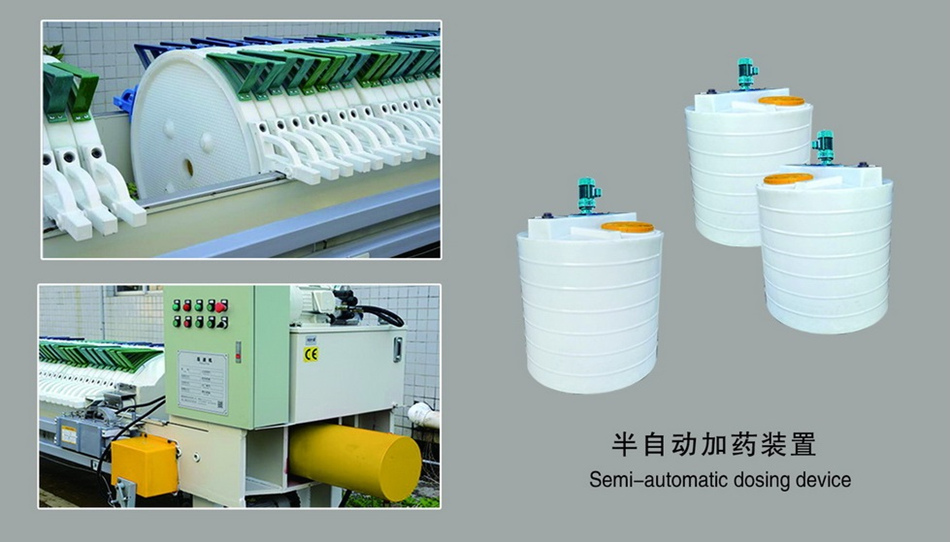

1. Adopt deformation resistance and high pressure imported polyethylene circular filter plate(PE), high pressure filter does not spray, can not add pharmaceutical high-pressure filter, filtering pressure can be up to more than 25 kg. Mud cake with moisture content of 20% (depending on different materials) can be obtained.

2. The new patented hydraulic system is equipped with precision hydraulic cylinder with high pressure, long continuous service life and automatic pressure-keeping function.

3. Complete with PLC automatic electric control system, the main frame is processed by precision machine tools.

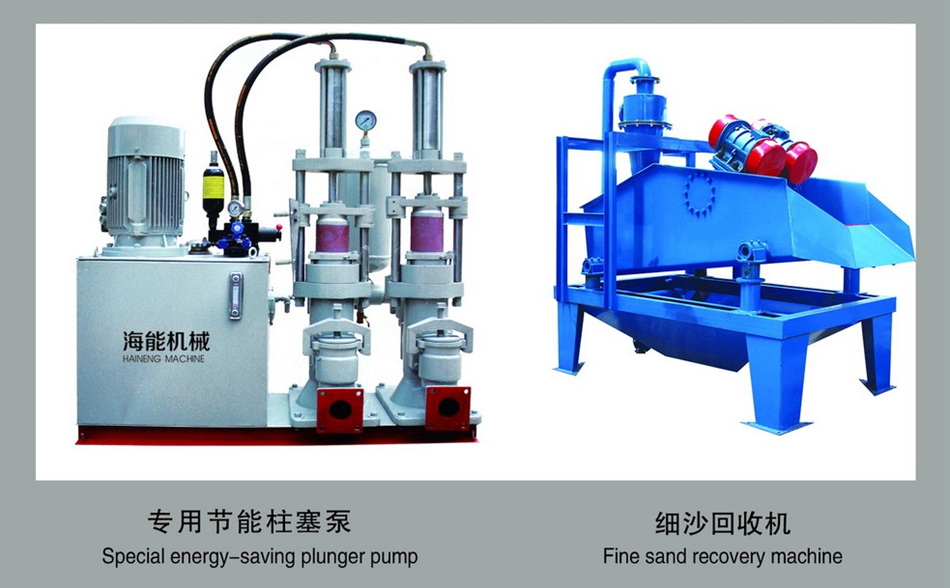

4. Supporting hydraulic high pressure ceramic plunger pump high pressure feed filter, feeding pressure is high, fast, supporting automatic variable system (high speed and low pressure in the early stage, medium speed and medium pressure in the middle stage, late stage low speed and high pressure) fast feed press. The whole process is completed automatically, saving more than 30% of the time.

5. Suitable for sand washing and sewage treatment, stone processing and sewage treatment, ceramic kaolin and porcelain clay pressing, mine tailings treatment, factory sewage treatment and other industries.

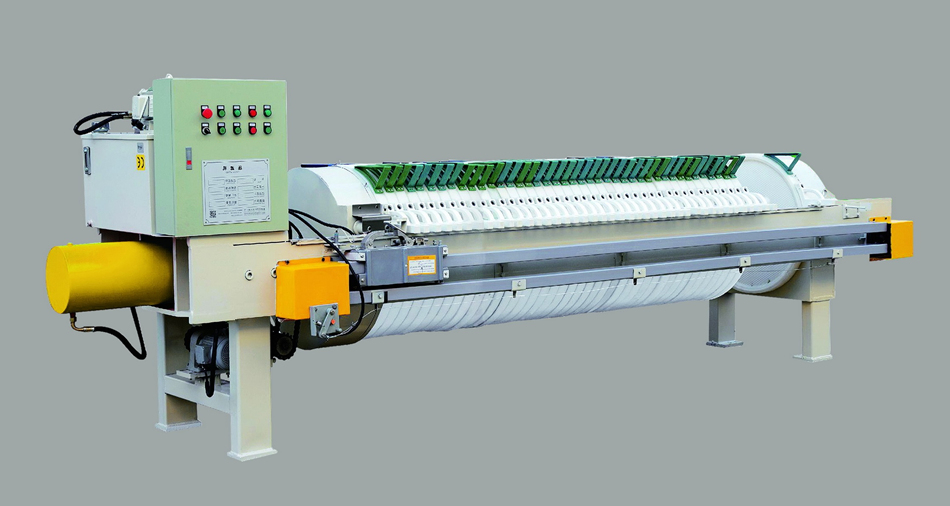

Ultra High Pressure Circular Filter Press

Technical Parameters


Ultra High Pressure Circular Filter Press

Type

Unit

820-40

820-60

820-80

1000-40

1000-60

1000-80

1000-100

Diameter of filter plate

mm

820

820

820

1000

1000

1000

1000

Number of filter plates

pcs

40

60

80

40

60

80

100

Filter pressure

mpa

0-2.5

0-2.5

0-2.5

0-2.5

0-2.5

0-2.5

0-2.5

Filter area

m²

40

60

80

60

90

120

150

Feed pump model



YNG15

YNG25

YNG25

YNG25

YNG40

YNG40

YNG40

Filter pressure

min

1-10cube

1-15cube

1-20cube

1-20cube

1-25cube

1-30cube

1-35cube

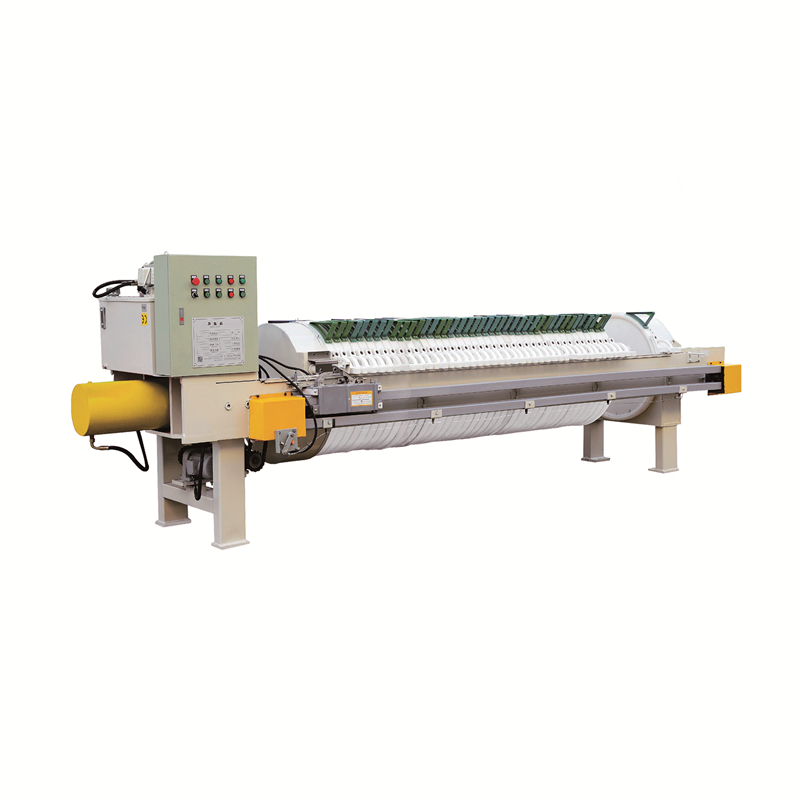

Ultra High Pressure Circular Filter Press

Ultra High Pressure Circular Filter Press
