Ultra Low Jitter LVPECL VCXO PV8F

Features

Low phase noise and jitter characteristics

High performance and reliability (over 20 years aging)

High frequency fundamental crystal (including inverted-mesa technology)


Applications

SONET/ SDH

Fiber Channel

Ethernet

VCXO for PLL application

Test and measurement

Networking

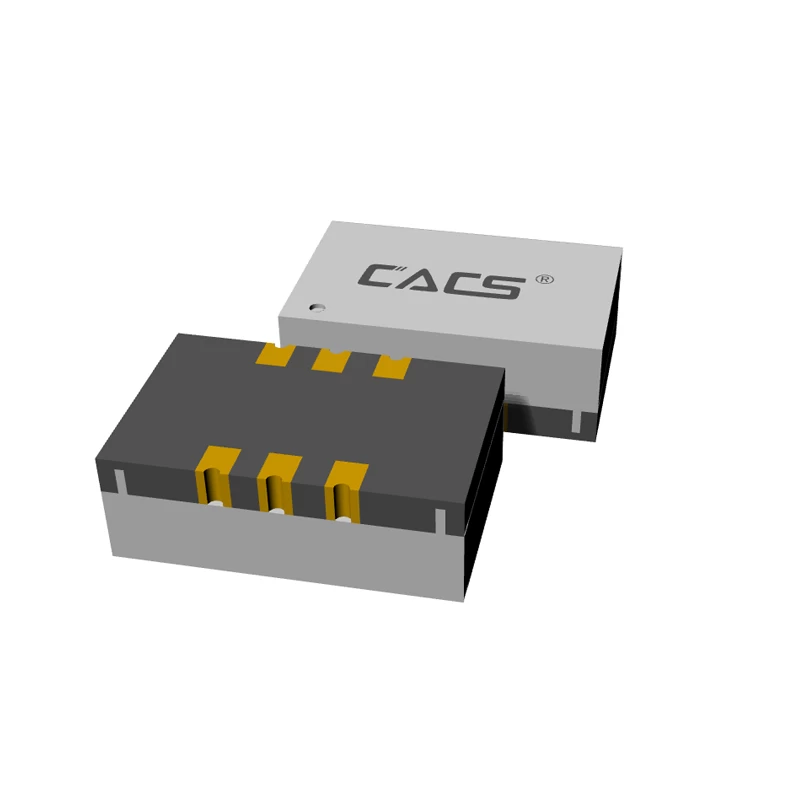

LVPECL Voltage controlled crystal oscillator PV8F

1. Supply voltage: 3.3V ±5%

2. Frequency range 50 to 800MHz

3. Frequency pulling up to ±150 ppm


4. Fundamental mode oscillation (50MHz to 250MHz)

5. Analog frequency multiplication (100MHz to 800MHz)

Electrical Parameters

PARAMETER CONDITION VALUE UNIT
Min. Typ. Max.
Frequency Range 3.3 volts ±5% 50 250 MHz
Supply Voltage ±5%, 25 3.3 V
Sub-Harmonics Delta Ref. to carrier - - - dBm
Spurs Delta Ref. to carrier -85 -75 dBm
Duty Cycle Output termination 50Ω / Vcc -2.0V 40 60 %
RMS Phase Jitter 12KHz -20MHz Bandwidth 0.4 0.7 ps
Frequency Stability -40 to +85℃, ref. to 25℃ -30 30 ppm
Voltage Control Input Range 0 3.3 V
Modulation Bandwidth -3db 25 KHz
VC Input Impedance, min. Vcc=3.3, 0≤ Vc≤ Vcc 100
Pull Range 0≤ Vc≤ Vcc 100 150 ppm
VC Tansfer Function 30.3 60.6 ppm/V
VC Linearity Positive slope 10 %
Voltage Control Center Freq. tolerance ±10ppm max. 1.65 V
Start-Up Time Ta=25℃ 10 ms
Aging Over 20 years life time 15 ppm
Operating Termperature -40 85
Storage Termperature Absolute max -65 150
Maximum Voltage 4.6 V
Moisture Sensitivity Level JEDEC J-STD-020 1
Termination Finish Au
ESD Sensitivity Human body model JESD22-A114 3 kV

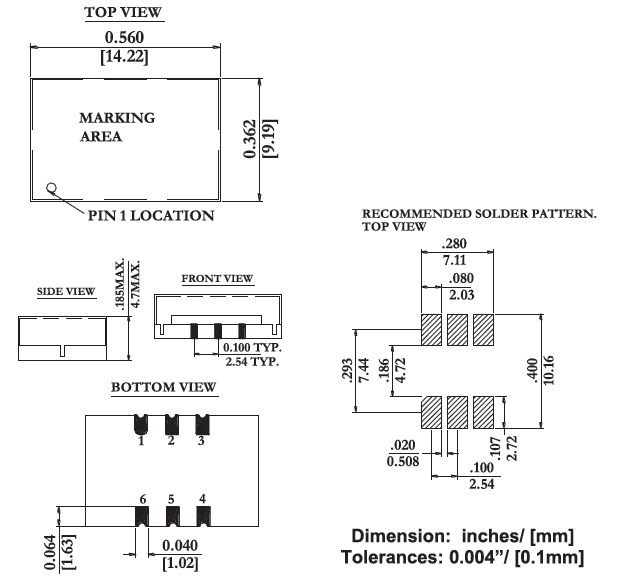

Dimension

Voltage Control Crystal Oscillators PV8F
