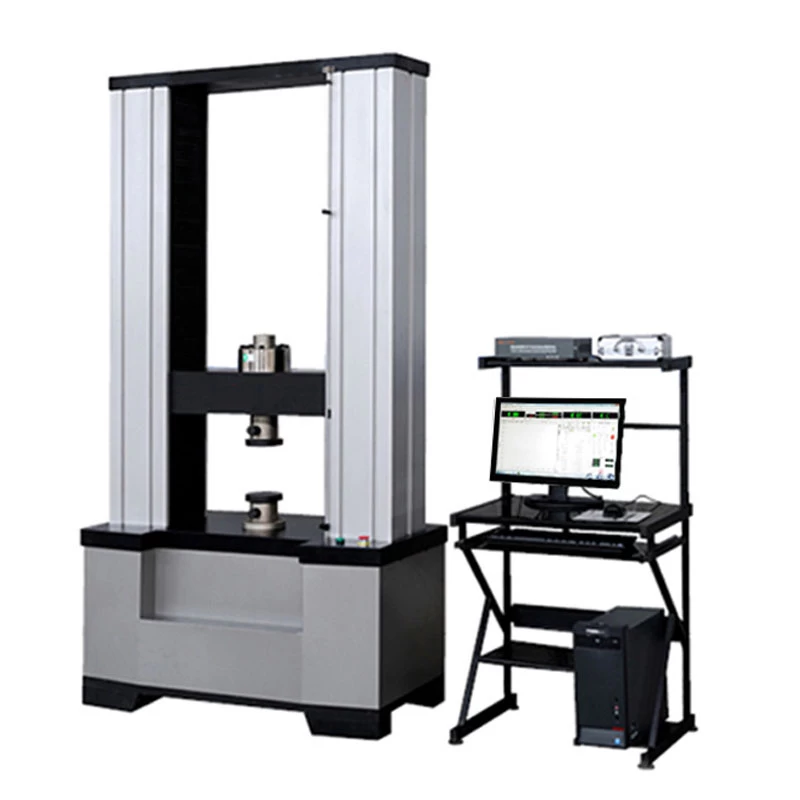

AG01-2-Universal Tensile Strength Tester (Double Column)
Application Of Universal Tensile Strength Tester (Double Column)
Universal Tensile Strength Tester (Double Column) is used for tensile, bursting, shearing, peeling, compression, bending, tearing, creep, elasticity, joint and other strength testing.
Key Specification Of Universal Tensile Strength Tester (Double Column)
|
Max. Capacity
|
30KN, 50KN
|
|
Display
|
Computer display mode
|
|
Force Resolution
|
1/100,000
|
|
Force Accuracy
|
≤±0.2%F*S
|
|
Stroke Resolution
|
0.01 mm
|
|
Test Speed
|
0.001-500mm/min, can be set
|
|
Walking space
|
1800mm (it can be custom made)
|
|
Force Unit Switch
|
Kgf, N, Ibf, g, ton, Mpa,Free conversion
|
|
Holding distance
|
Limit block control, numerical
setting
|
|
Machine Drive
|
AC servo system drive,
synchronous wheel and precision ball screw drive
|
|
Dimensions
|
90*60*170mm
|
|
Weight
|
400kg
|
|
Power Supply
|
220V 50/60HZ 500W, can according customer requirement
|
Accessories Of Universal Tensile Strength Tester (Double Column)
|
Standard Accessories
|
Manual
grips
|
1sets
|
|
English
operation software
|
1pc
|
|
Cable
connect with PC
|
1pc
|
|
Load
cell
|
1pc
|
|
Option
Accessories
|
Desk
Top Computer(HP)
|
|
|
Grips
and load cell
|
|
