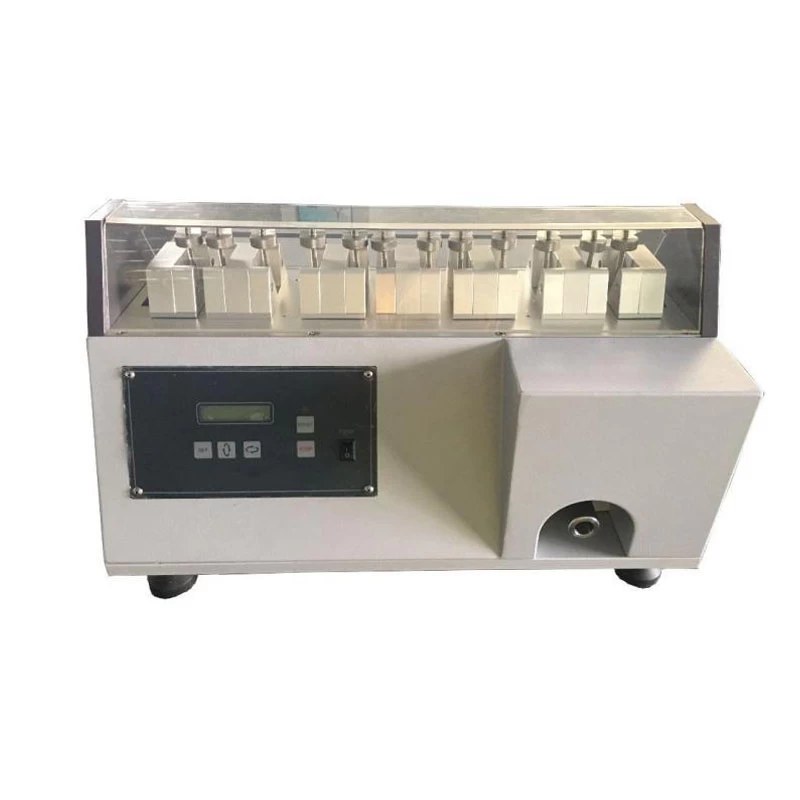

AF16 Upper and Vamp Material
Flexing Tester
Application Of Upper and Vamp Material Flexing Tester
Upper and Vamp Material Flexing Tester is designed for determining the flexing resistance or physical damage of all shoe vamps, and soft materials. The specimen is tested by simulating walking.
Standards Of Upper and Vamp Material Flexing
Tester
ISO 4643, SATRA PM25, ISO 5423-1992, GB/T 20991 6.5.2, ISO 22288
Key Specification Of Upper and Vamp Material Flexing Tester
|
Model
|
AF16 Upper and Vamp
Material Flexing Tester
|
|
Fixture
|
40°V-shape 6.4mm(R)
|
|
Sampling
|
12pcs
|
|
Counter
|
LCD,0~999,999
|
|
Motor
|
DC brushless,90W
|
|
Power supply
|
AC220V, 50/60HZ
|
|
Dimension
|
59×35 ×36cm
|
|
Weight
|
64 kg
|
