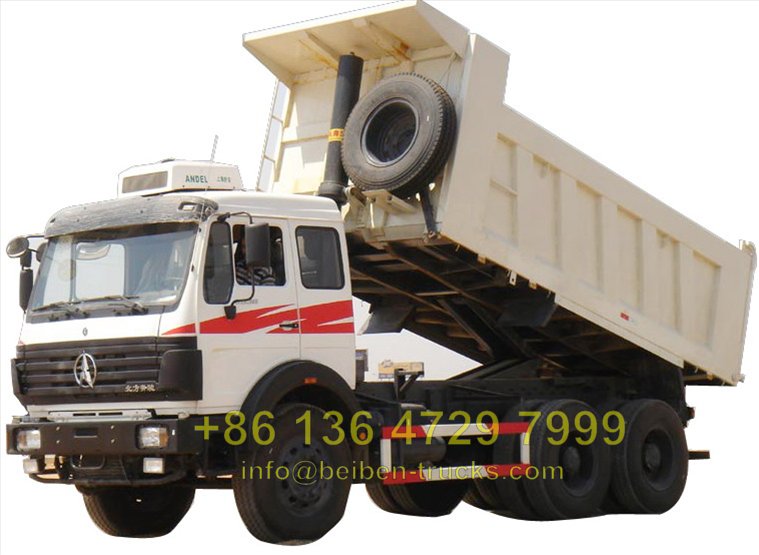

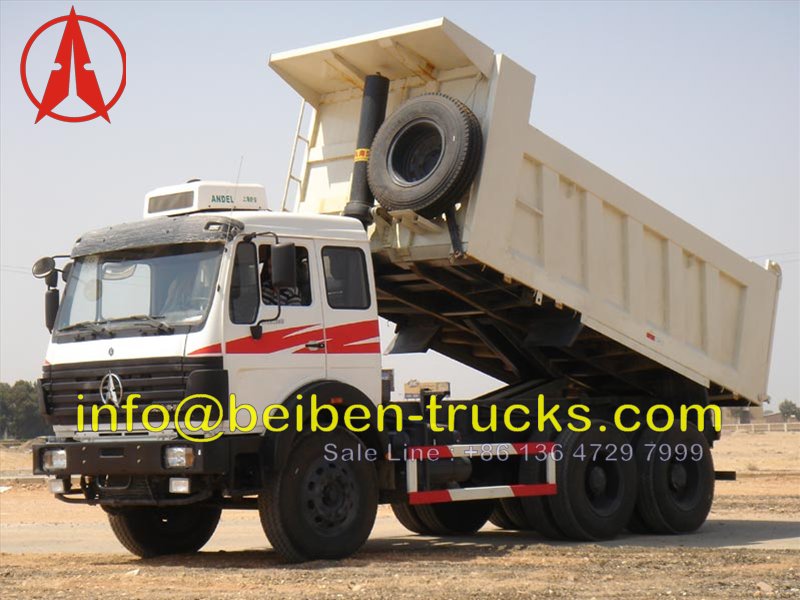

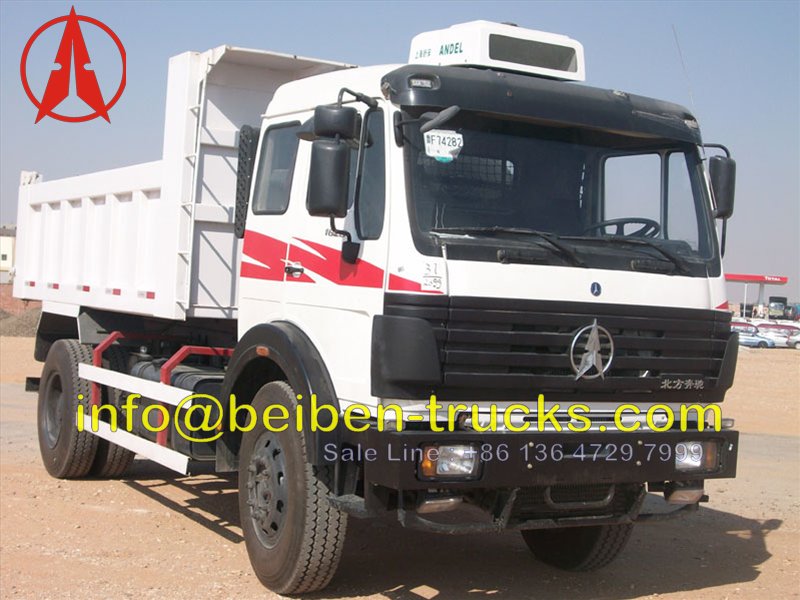

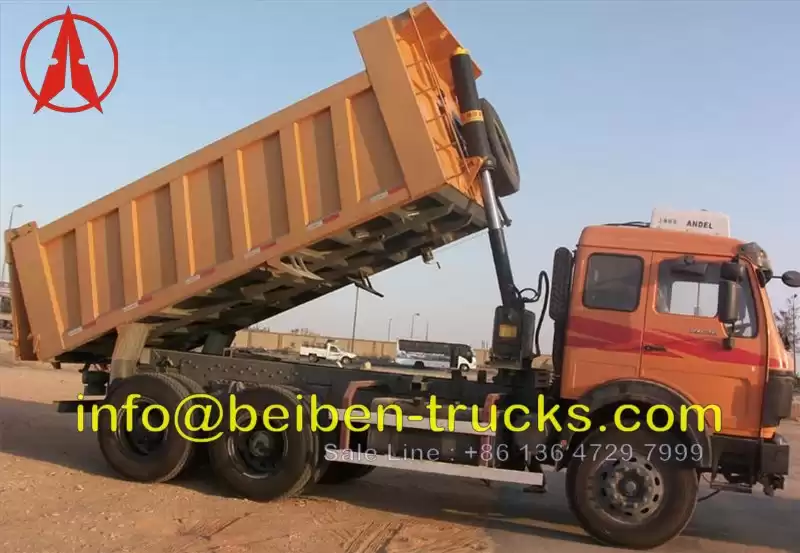

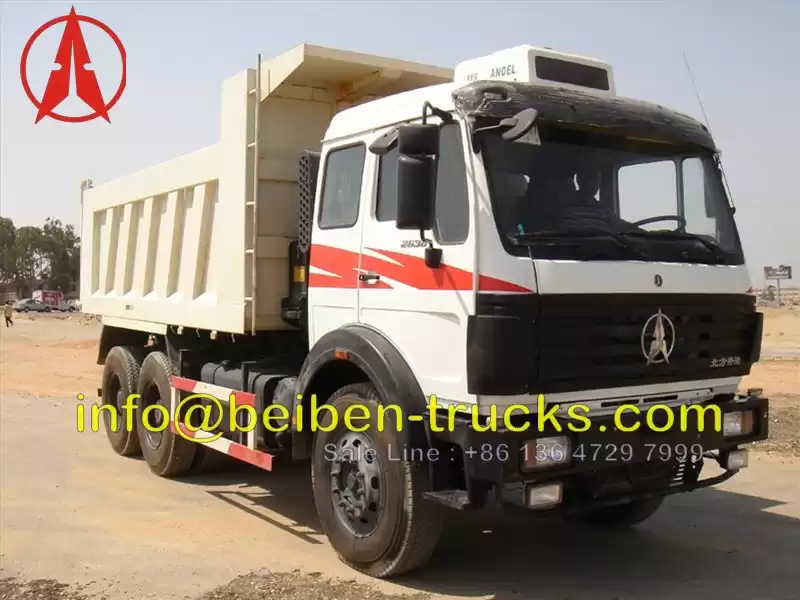

The selection of Dumper Truck 6 x 4 BEI BEN is the ideal choice for serious business, where it’s enjoy a high capabilities and provides them to work under maximum operating conditions
|
2536K
/6×4/4100+1450/Short Cab/LHD or RHD
|
|

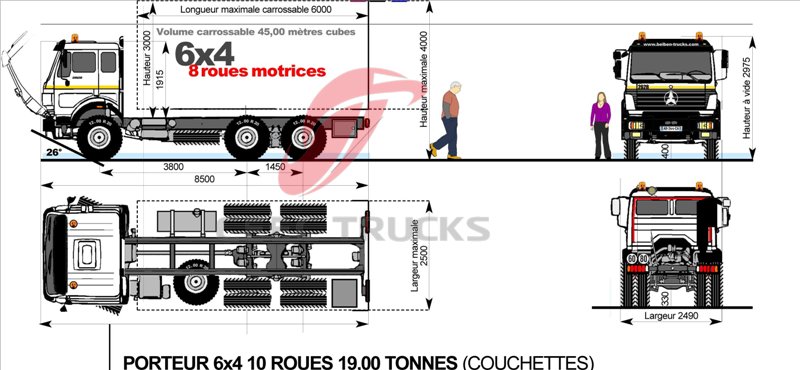

Dimension
|
8880*2500*3430mm
|
|
Cargo
box
|
5600x2300x1350mm,
HYVA hydraulic lifting system; thickness: bottom 8mm, side 6mm
|
|
Approaching
angle/Departure angle
|
26/28°
|
|
Overhang(front/rear)
|
1410/1720mm
|
|
Wheel
base
|
4100+1450mm
|
|
Max
speed
|
85km/h
|
|
Curb
weight
|
12650kg
|
|
Engine
|
Model
|
WP10.360E32,
water-cooled, four strokes, 6 cylinders in line, turbocharged, directly
injection
|
|
Displacement
|
9.726L/Diesel
|
|
Stroke
|
126/130mm
|
|
Max.
power
|
280/2200
(kw/rpm)
|
|
Max.torque
|
1600/1800(N.m/rpm)
|
|
Emission
|
Euro
III
|
|
Fuel
tanker capacity
|
300L
|
|
Clutch
|
∮430,
Single dry frictional disc,Hydraulic boosting
|
|
Gearbox
|
9JS180,
mechanism, 9 forward gears, 1 reverse gear, manual operated
|
|
Gear
ratio of gear box
|
12.65/8.38/6.22/4.57/3.4/2.46/1.83/1.34/1.00
R:13.22
|
|
Suspension
system
|
Front
|
Non-free
standing leaf spring,telescopic shock absorber with stabilizer bar suspension
, 10pcs
|
|
Rear
|
Non-free
standing stabilization spring, balance suspension system, 13pcs
|
|
Brake
system
|
Service
brake
|
Brake
gap can be adjusted automatically, double circulation air brake system
|
|
Assistant
brake
|
Engine
exhaust brake
|
|
Park
brake
|
Potential
springs pressing on middle and rear wheels
|
|
Steering
system
|
ZF8098
hydraulic steering with power assistance
|
|
Frame
|
Strengthened
Straight beam
|
|
Front
axle (Mercedes Technology)
|
Double-shoe
pneumatic brake, non-driving steering axle
|
|
Middle
and Rear axle (Mercedes Technology)
|
Double-shoe
pneumatic brake, ductile casting casing, with hub redactor, double reduction
driving axle
|
|
Tyre
|
315/80R22.5
tubeless tyres
|
|
Electrical
system
|
Battery
|
2X12V/135Ah
|
|
Generator
|
28V-35A
|
|
Starter
|
5.4Kw/24V
|
|
Cabin
|
NG80B
Long cabin one sleeper and inner A/C ;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver; With inner
A/C
|
The Dumper Truck 4 x 6 BEI BEN engine type is Diesel of 6 cylinders in line, turbo charger, intercooler, the power of this engine is HP/RPM 2200/360, torque N.M/RPM (1600-1400)/1460 and is compatible with the requirements of European environmental Euro 2.
The gear box in the dumper truck 4 x 6 BEI BEN type is Eaton (Fuller) with number of speed 9 front plus one rear and 12 front plus tow rear.
The cabin of the dumper truck BEI BEN is equipped with a long cab with double bed and driver suspend seat, the steering system in the BEI BEN dumper truck is power steering model ZF 8098.
The suspension system in the dumper truck is front and rear heavy duty leaf spring with shock Absorbers and front stabilizer bar with body type 17 m3 (cubic meters).
The additional equipment includes A/C for cabin, Air Deflectors, fog light, Radio/Cassette, Adopt for towing.
Beiben Genuine 12 months spare parts list
|
N°
|
DESIGNATION
|
QTY
|
|
1
|
ACCELERATOR CABLE
|
10
|
|
2
|
UNIVERSAL JOINT (BIG)
|
6
|
|
3
|
UNIVERSAL JOINT (SMALL)
|
6
|
|
4
|
CYLINDER GASKET
|
6
|
|
5
|
CYLINDER SEAL
|
6
|
|
6
|
OIL PUMP ASSEMBLY
|
6
|
|
7
|
DIESEL FILTER
|
30
|
|
8
|
OIL FILTER
|
30
|
|
9
|
AIR FILTER
|
15
|
|
10
|
SECURY FILTER
|
21
|
|
11
|
FUEL FILTER
|
30
|
|
12
|
OIL WATER SEPARATOR
|
6
|
|
13
|
FRONT WHEEL BOLT
|
12
|
|
14
|
REAR WHEEL BOLT
|
12
|
|
15
|
FAN BELT
|
6
|
|
16
|
CRAN SHAFT FRONT OIL SEAL
|
12
|
|
17
|
AFTER CRANK OF SEAL
|
12
|
|
18
|
ALL BEARINGS OF REAR TYRE
|
12 X 6
|
|
19
|
ALL BEARINGS OF FRONT TYRE
|
8 X 9
|
|
20
|
HYDRAULIC PUMP
|
3
|
|
21
|
HYDRAULIC OIL FILTER
|
3
|
|
22
|
STEERING PUMP
|
3
|
|
23
|
MAIN CYLINDER OF CLUTCH
|
6
|
|
24
|
RECEPT CYLINDER OF CLUTCH
|
6
|
|
25
|
REGULATOR
|
3
|
|
26
|
ALTERNATOR
|
3
|
|
27
|
STATER
|
3
|
