UV Glue Fast Curing UV LED Linear Light Source 5*50mm Ink Curing UV LED

UV LED Linear Light Source Machine do not need to replace the ink, is power saving, high efficiency, practical, mercury free, etc..



UV Glue Fast Curing Small UV LED Linear Light Source 5*50mm Ink Curing UV LED Linear Light Source is extra-long life, energy saving, UV output adjustable, multiple control modes, stable output, etc..


Parameters of Industrial Specialized UV LED Line Light Source :

Brand

DSX

Type

DSX-LINE1&4

Cooling Method

Air Cooling

Irradiation Area

3*25mm, 5*50mm, 1*100mm, etc.

Size of Irradiation Head

70*30*90mm (L*W*H) can be customized the size

Wavelength

365mm

Weight of Irradiation Head

0.3kg

Weight of Controller

1.5kg

Quantity of Irradiation Head

1-5

Irradiation Intensity

>6000mW/cm2 (customized the higher power intensity)

Total Weight

1.8kg

Irradiation Mode

Manual Irradiation, Point Dynamic Irradiation, Automatic Irradiation (set time and stop automatically)

Control Method

External Control (mechanical key control, foot switch control, parallel I/O RS232 port control)

Operation Voltage

100-240V  50/60Hz

Size of Controller

180*100*145mm (L*W*H)

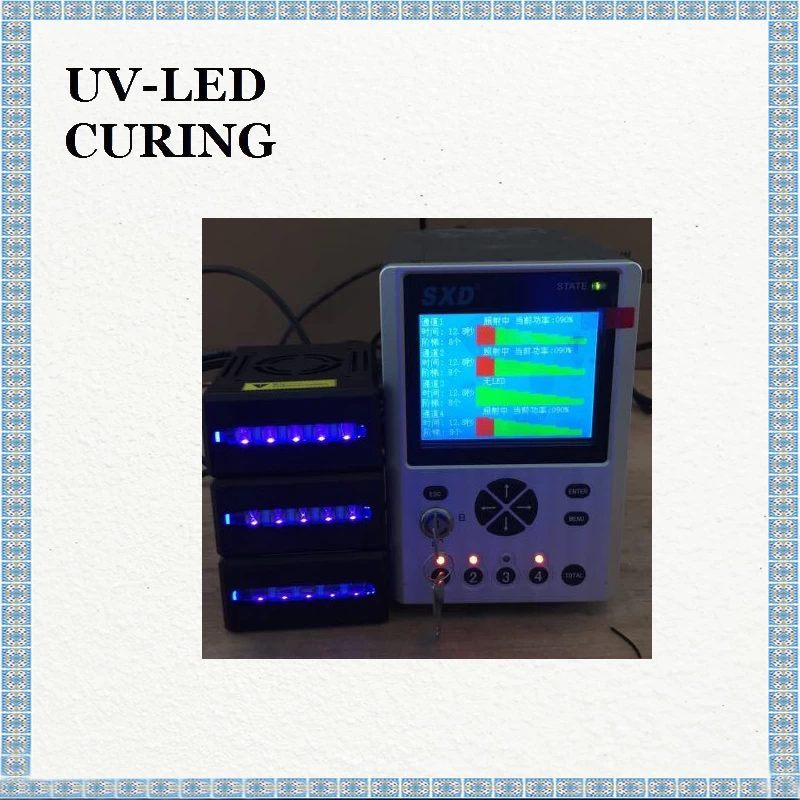

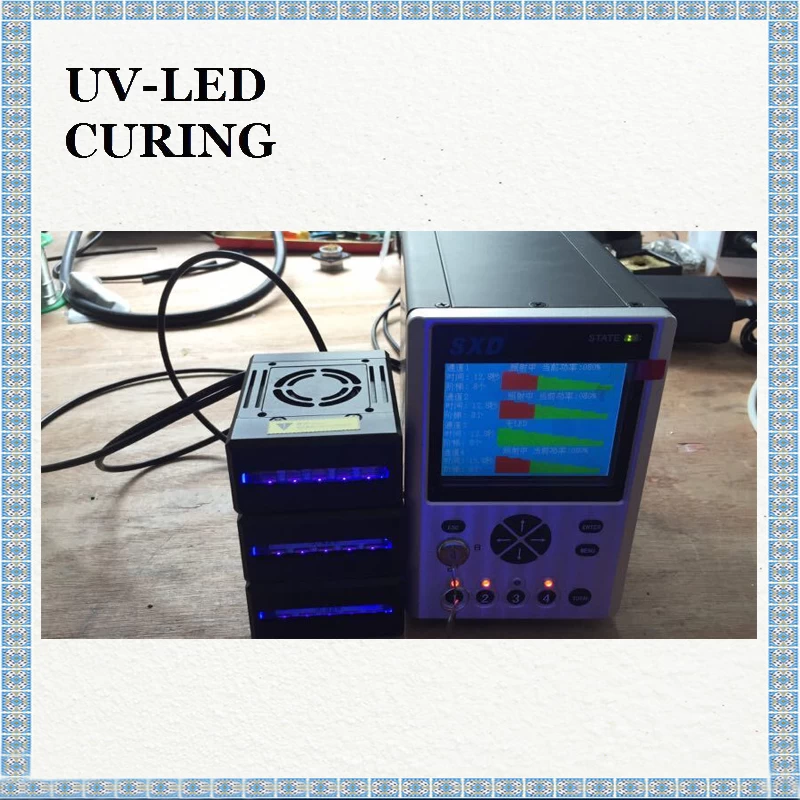

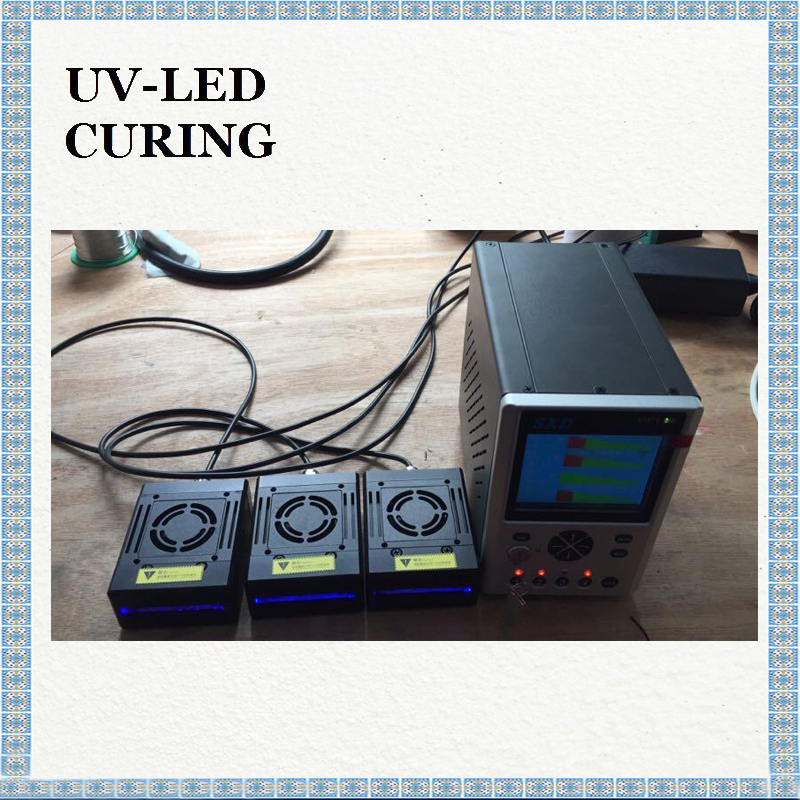

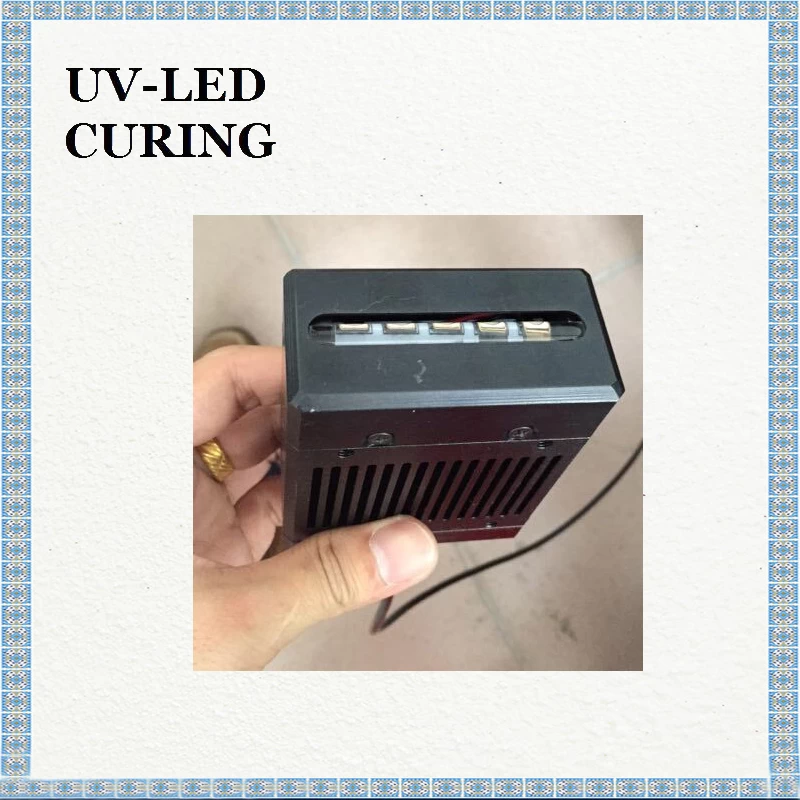

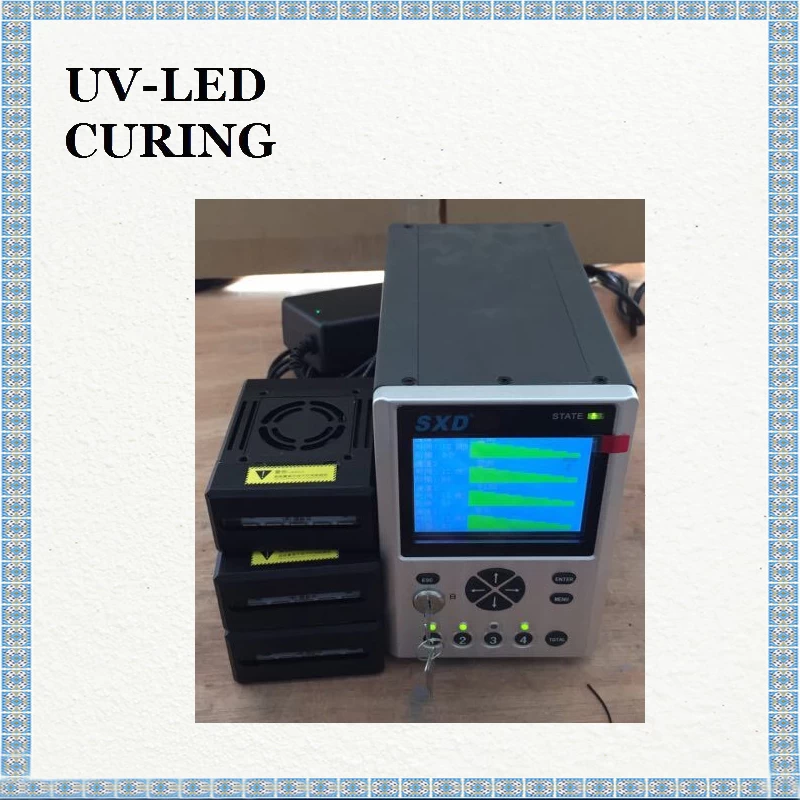

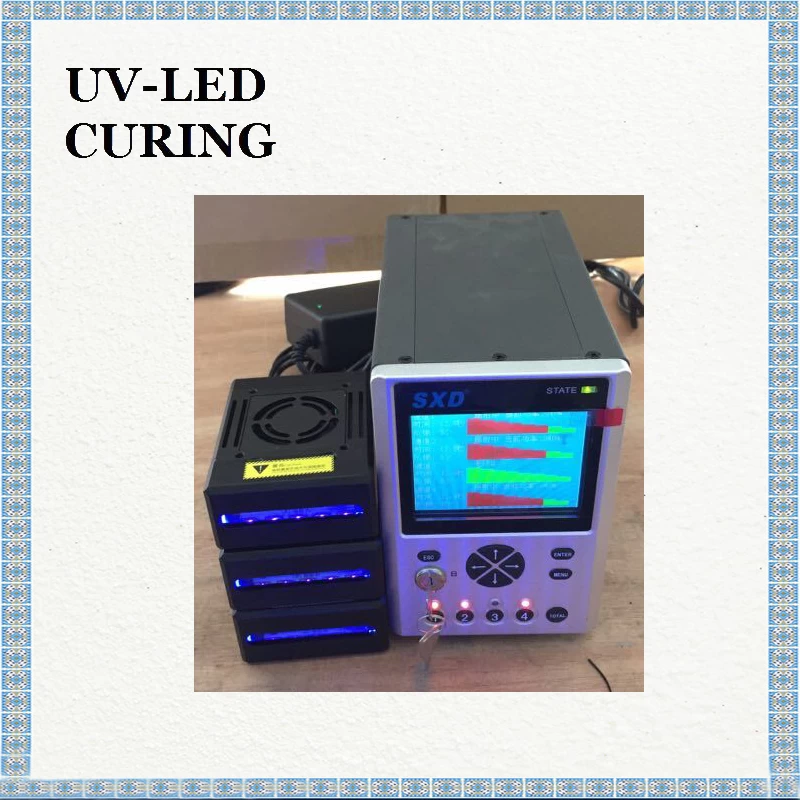

UV LED Linear Light Source


Characteristics of Uniform UV LED Linear Light Source Equipment :

LED light source is cold light source, without thermal radiation, the temperature of the irradiated product is almost constant, and the irradiation will not be damaged.

1.It is not required to be lighted up immediately, and it reaches 100% power ultraviolet output immediately. The irradiation intensity can reach 9000mW/ cm2, and the irradiation effect is very outstanding.

2.The machine adopts ultra small body, only 1/8 volume of the original high pressure mercury lamp irradiation machine.

3.Without toxic mercury, no ozone, safer, more environmentally friendly, is the best substitute for traditional light sources.

4.Reduce cost, LED direct irradiation, equipment is simple, do not need to output optic cable, reduce cable loss.

5.Foreign imported leading brand, new UV LED lamp bead, its light source life is considerable, reaching 30,000 hours.

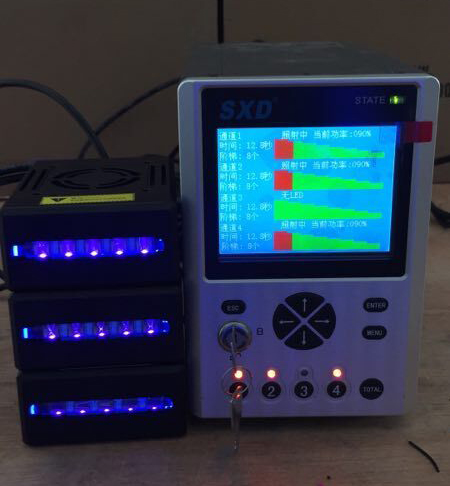

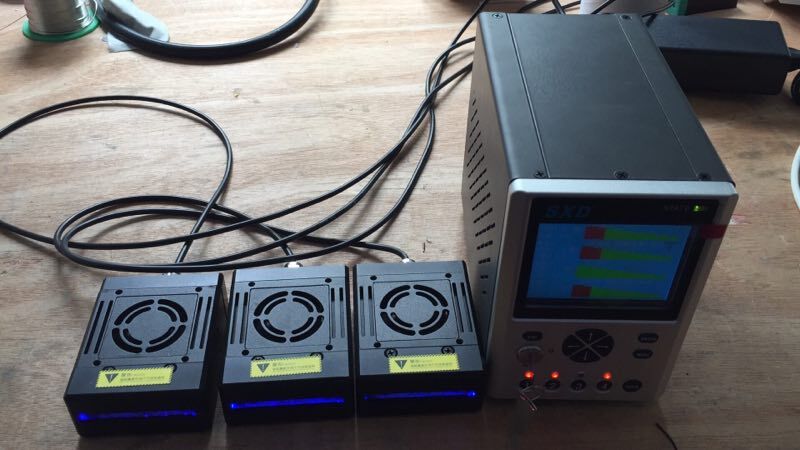

UV LED Linear Light Source Facility Curing Glue


Advantages of Automatic UV Curable Glue Systems without Ozone :

1.Capacitance screen side curing, encapsulation curing.

2.Mobile phone screen refurbished adhesive side curing.

3.The screen of LED, LCD, OLED encapsulation curing.

4.Linear curing, gap curing, gap adhesive.


Application Area of 365nm UV LED Linear Curing Light Source :

1. UV LED Linear Light Source can be used in smart-phone.

2. Microelectronic Industry UV Light Curing Application

3. PCB Industry UV LED Light Curing Application

4. Medical Equipment UV LED Light Curing Application

5. Optical Industry UV LED Light Curing Application

6. Optical Communication Industry UV LED Light Curing Application

7. Research Institute ST UV LED Light Curing Application


FPC Surface Adhesive Curing - The Characteristics of UV LED Line Light Source :

1.Cold light source, no heat radiation, especially suitable for liquid crystal seal edge, thin film printing requires small heating area.

2.Instant lighting, instant achieve 100% power UV output, irradiation intensity can reach 8000-9000mW/cm2.

3.Small appearance - makes the device easily integrated into fully automatic production line and equipment.

4.Without toxic mercury, it will not produce ozone, which is a safer and more environment friendly alternative to traditional light sources.
