UV Ink Curing Light Source Machine Ruler Stationery Ink Cured

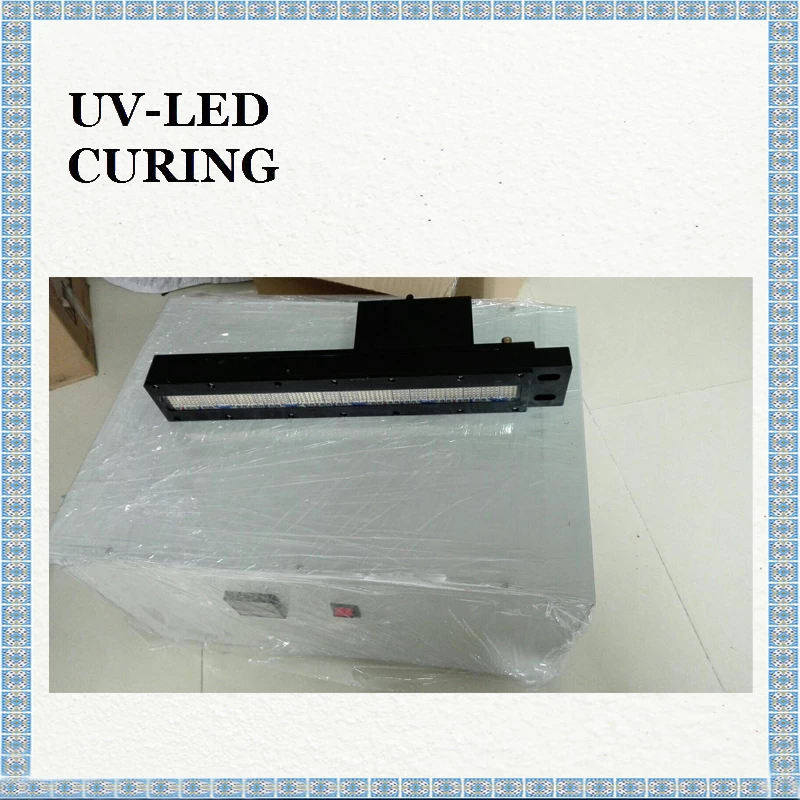

Rectangular 365nm Ultraviolet Curing Light Source for Crack Bonding, irradiation area 360*20mm, greatly reduce the power consumption of traditional mercury lamp, but also reduce the complexity of installing UV curing lamps.




UV Ink is used as the base material of the light curing resin as the ink. Under the irradiation of ultraviolet light, the free radical is produced by the photo-initiator, which causes the base material polymerization and the photocrosslinking reaction to solidify the ink.

UV Glue is selectively absorbed by the photon, and its drying is affected by the total energy of the emitted light of UV light source and the distribution of light energy of different wavelengths. Under the irradiation of UV light, the photo-polymerization initiator of UV ink absorbs a certain wavelength of photons and triggers the excitation state to form free radicals or ions. Then, through the transfer of energy between molecules, the polymeric prepolymer and photosensitive monomer are transformed into excited states, which produce charge transfer complexation. These complexes are constantly crosslinked and solidified into membranes.


The Characters of Linear 365nm UV Ink Curing Machine Without Ozone :

1.Instantly curing, high production efficiency.

2.No volatile solvent. There will be no solvent erosion and damage to print; Will not pollute the human body and environmental protection.

3.The ink concentration is stable, and it will not be cause by the difference of concentration.

4.Ink does not dry out, solvent-free stench.

5.The light curing speed is extremely fast, and the UV equipment is small and occupies little space.

6.The heat emitted of UV light does not cause damage to the hot print.

7.Transparent or semi-transparent ink, hardening speed and color effect.


Parameters of Ultra High Power UV Light-Curing Equipment Curing UV Ink

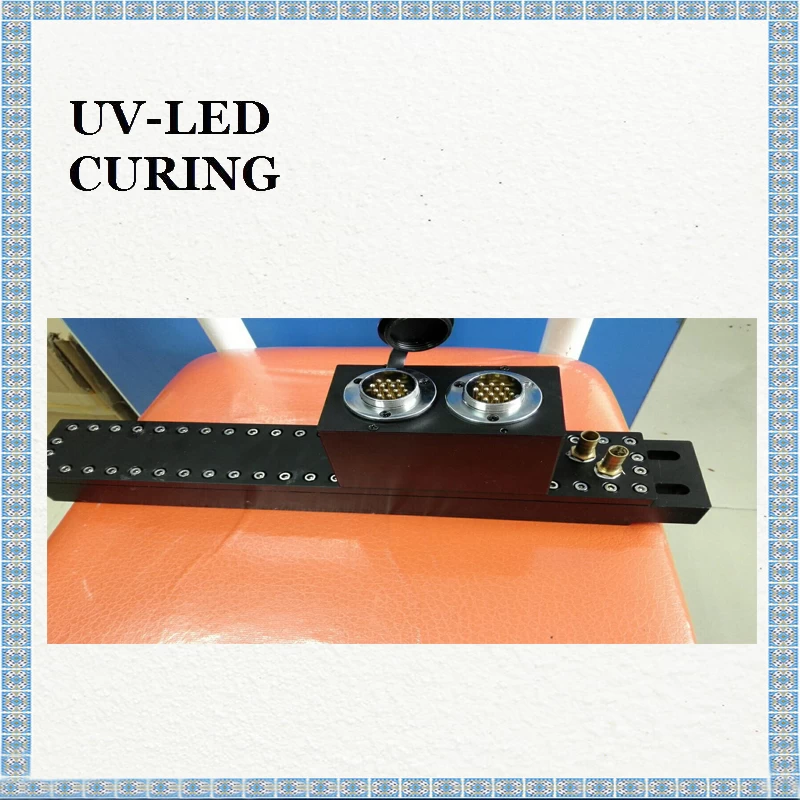

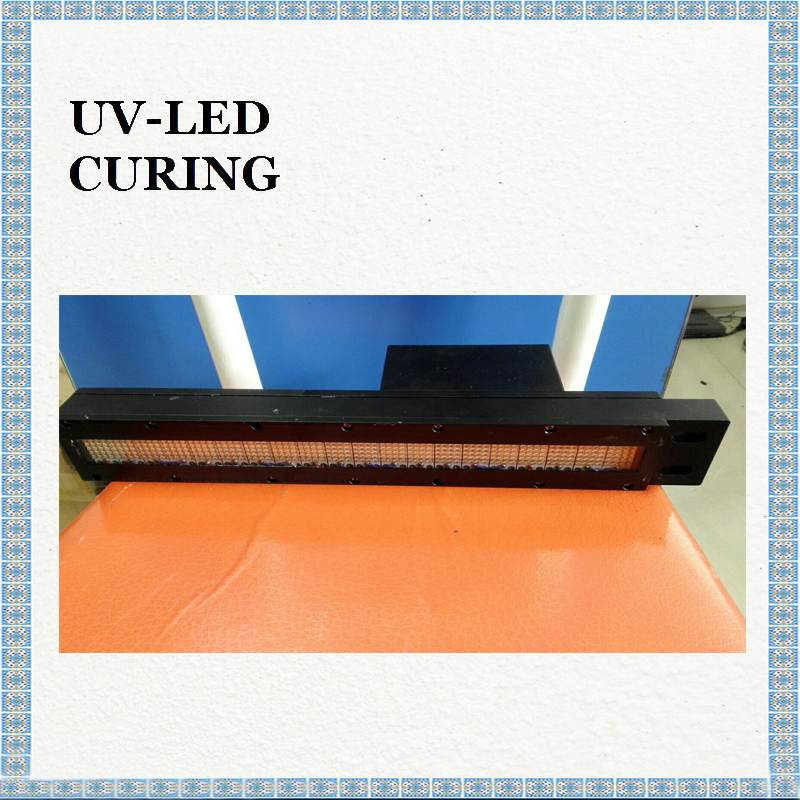

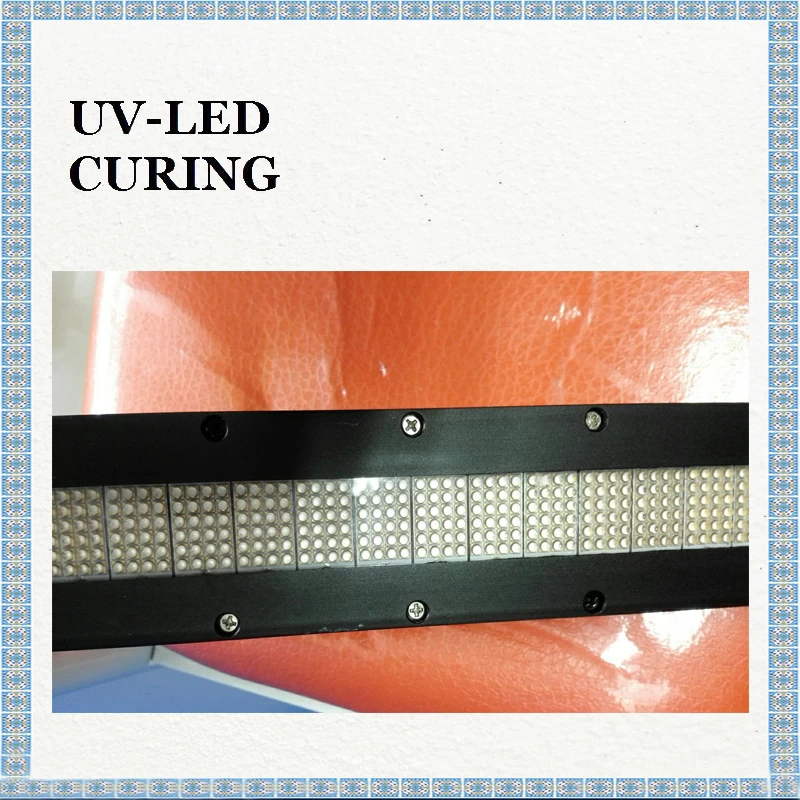

Technical Data of the UV Irradiation Light Head:

Wavelength(±5nm)

365nm/385nm/395nm/405nm

Curing Area

Other Sized Available

Electronic Power

800w

Input voltage

90-260VAC 50Hz / 60Hz

Cooling method

Water cooling

Life

>10000H

Conveyor Speed

100-400mm Adjustable

Irradiation distance

10-100mm adjustable

Optic power

800mw/cm2 (10mm irradiation distance)

Recommend Irradiation Distance

10-100mm

Irradiation Area

360*20mm

Size of Irradiation Head

400*38*55mm

Weight

2kg
