Steel Ball Bearing V Groove Wheels For Sliding Gates Specification
1.With Material: steel,Q235 and we can finish surface treatment with yellow zinc plating or silver zin plating .
2.We can produce with wheel diameter with 30mm ,38mm etc and customized size also welcome
4.We can produce with inside with single or double bearings
5.Except V groove wheels ,we can produce sliding gate wheel with U groove and Y groove

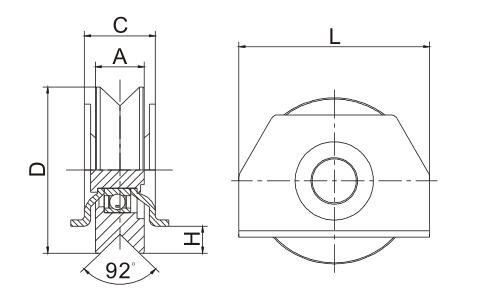

Sliding Roller Wheel Inside With Single Bearing
|
NO.
|
D
|
A
|
C
|
H
|
d
|
WT/KG
|
|
HS1U60
|
58
|
17
|
28
|
7
|
16.5
|
0.31
|
|
HS1U70
|
68
|
20
|
29
|
11
|
16.5
|
0.491
|
|
HS1U80
|
78
|
20
|
29
|
16
|
16.5
|
0.627
|
|
HS1U90
|
88
|
20
|
29
|
12
|
16.5
|
0.838
|
|
HS1U100
|
98
|
22
|
30
|
16
|
16.5
|
1.225
|
|
HS1U80R10
|
78
|
25
|
30
|
16
|
20.5
|
0.6
|
|
HS1U90R10
|
88
|
25
|
30
|
12
|
20.5
|
0.808
|
|
HS1U100R10
|
98
|
25
|
30
|
17
|
20.5
|
1.085
|
|
HS1U120
|
118
|
22
|
32
|
22
|
20.5
|
2.062
|

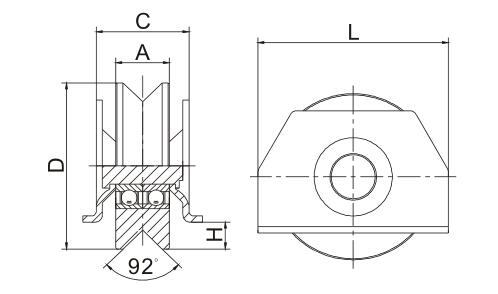

MKL also can produce sliding gate door whee with two bearing which can bear double weight capacity ,for more informations ,pls contact with us directly .
|
NO.
|
D
|
A
|
C
|
H
|
d
|
WT/KG
|
|
HS2U80
|
78
|
25
|
33
|
16
|
20.5
|
0.932
|
|
HS2U90
|
88
|
25
|
35
|
12
|
20.5
|
1.294
|
|
HS2U100
|
98
|
25
|
37
|
17
|
20.5
|
1.508
|
|
HS2U120
|
118
|
30
|
37
|
22
|
20.5
|
2.66
|
1. inside for this roller has 2 bearings
2. this roller has steel plates supported
3. surface can be in yellow or white zinc galvanized
Other Type of Sliding Gate Bearing wheels
|
sliding gate wheel with exterior bracket
|
sliding gate wheel with double plates
|
sliding gate wheel with interior bracket
|
sliding gate wheel with bolt
|
sliding gate wheel with bolt
|
|
|
|
|
|
Sliding Gate Roller Wheels Are Widely Used In :
Gate doors
Factory doors
Entrance doors
Warehouse sliding doors
Sliding Gate V Track Packing:
Normally we packed gate wheel in plastic per 2 pcc ,then take it in cartons,finally packing pallet;if you have own requirements ,pls let us know.
