Vacuum Filling System Electrolyte Filling Machine for Lithium Battery

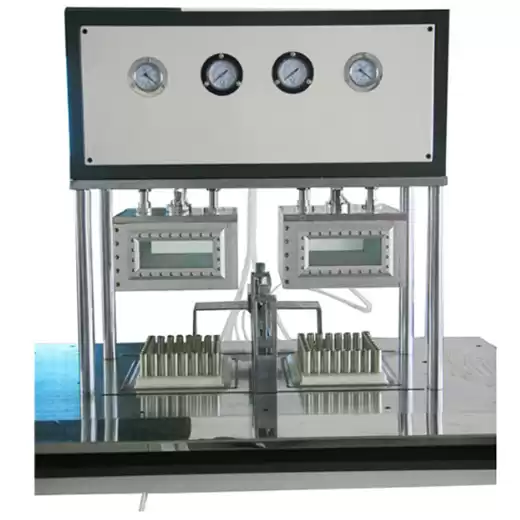

1 TMAX-JK-ZYJ-02 Vacuum linear filling machine is used for lithium battery electrolyte injection with high precision and simple operation.
2 This vacuum filling machine can be used for various cylindrical cell cases including CR123,18650 26650, 32650 and AA with changing clamps.

SPECIFICATIONS:

Model

Vacuum Filling Machine TMAX-JK-ZYJ-02

Source voltage

110V-220V AC, 50/60Hz Single Phase

Power

1500W

Warranty

One year limited and lifetime support

Suitable battery model

18650 / 26650 / 32650, For all kinds of cylindrical battery

Advantages

1 Customized die for all kinds of cylindrical cell types is available according to request

2 Adopt PLC and man-machine interface centralized control, easy operation.

3 Filling speed and times can be set

4 All the parameters such as vacuum time, air input time,

filling quantity and battery distance can be adjusted freely.

5 Vacuum box for static control independently

Vacuum filling accuracy

±0.02g

Vacuum filing time

1-10times adjustable

Vacuum filling quantity

0-7g

Vacuum degree

-0.1Mpa

Air supply

0.3-0.6MPa

Working clamps

18650 clamps battery tray 10 rows 8 columns (It can be customized)
