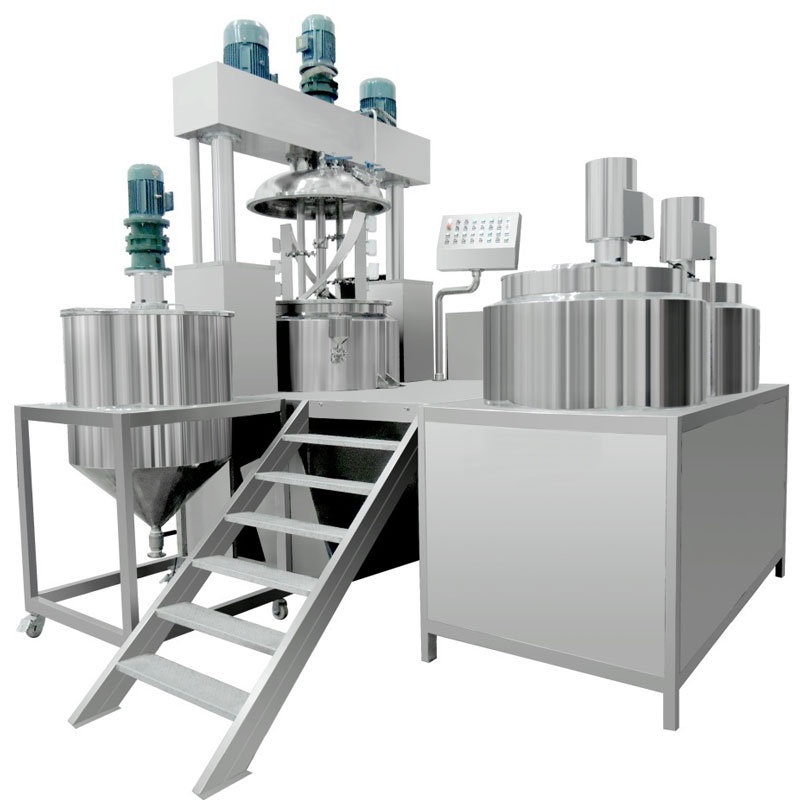

Vacuum mixing tank emulsifying machine homogenizer for cream

The Vacuum Homogenizer Emulsifying Mixer is suitable for Cosmetic and chemical industry such as facial cleanser/Shower gel/body wash product making machine. China factory wholesale Cream Vacuum Emulsifier.



Vacuum Mixing Tank Emulsifying Machine Homogenizer for Cream

Customized And OEM Service Available

Liquid Homogeneous Mixer

Descriptions:

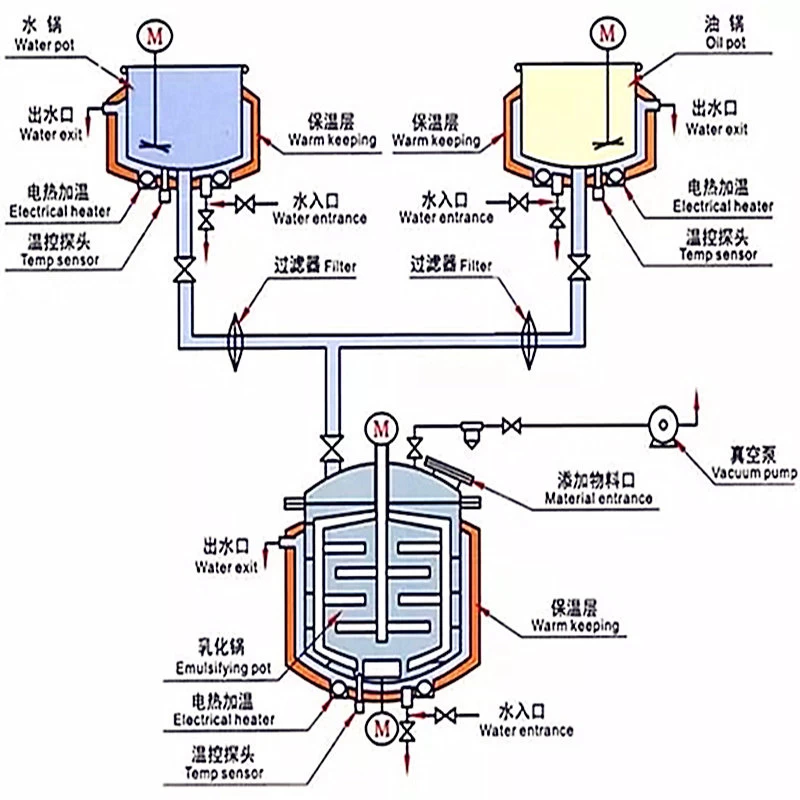

Homogenizer Mixer Type and Liquid Application electric cosmetic cream mixer is mainly composed of water pot, oil pot, emulsifying pot, vacuum system, lifting system(optional), electronic control system (PLC is optional), operation, etc.


Work principle:


After heating & mixing the materials in the water boiler and oil boiler, inhalated it into the emulsification boiler by the vacuum pump, make it mix and down flow to the homogenizer by birdirection cutting, compression and folding of the scraping mixing box and center impeller.

It means that when the materials are under the vacuum condition, it makes use of the high shear emulsifier to distributeone or several to another continuous phase rapidly and evenly.

The materials will be processed in the narrow space between stator and rotor by strong energy of motion produced by the machine effect.


Appication:


Portable Homogenizer Mixerproduct mainly applied in such industries as cosmetics cream making factory, daily chemical care products, food industry, biopharmaceutical industry, paint and ink ,nanometer materials, petrochemical Industry, printing and dyeing auxiliaries, pulp & paper, pesticide, fertilizer, plastic & rubber, electronic and electronics, fine chemical industry, etc. The emulsifying mixing effect is more prominent for materials of high base viscosity and high solid content.



Technical Parameters:


Item

MixerKW


homogenizer

Main pot heater


Water pot heater

Oil pot heater


Water pot mixer


Oil pot mixer


Vacuum pump


Hydraulic


50L

1.1

2.2kw


3kw

6kw

3kw


0.37kw


0.37kw


0.75kw

0.75kw


100L


2.2


4kw


6kw


6kw


6kw


0.55kw


0.55kw


1.5kw


0.75kw


200L


3


5.5kw


9kw


12kw


9kw

0.75kw


0.75kw


1.5kw


1.1kw


300L


4


5.5kw


9kw

12kw


12kw


1.1kw


1.1kw

2.2kw


1.5kw


500L


4


7.5kw


12kw


18kw


18kw


1.5kw


1.5kw


2.2kw


1.5kw


1Ton


5.5


11kw


18kw


18kw


18kw


2.2kw

2.2kw


4kw


2.2kw


2Ton

7.5


15kw

27kw


27kw


27kw


3kw


2.2kw


4kw



3Ton

11


18kw


36kw


36kw


36kw


4kw


3kw


5.5kw
