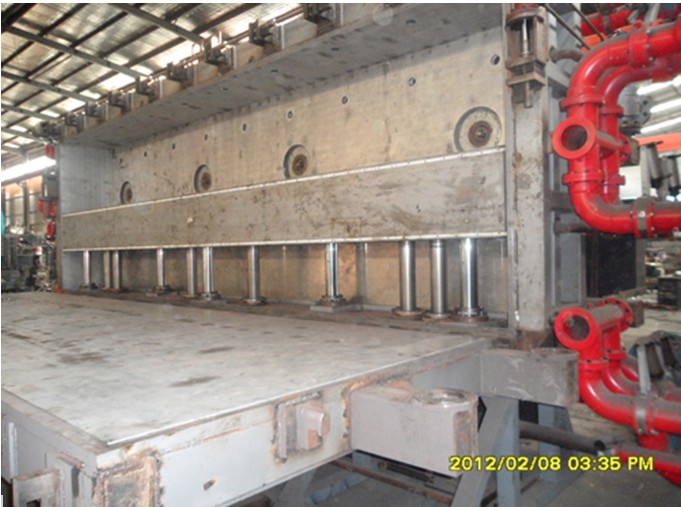

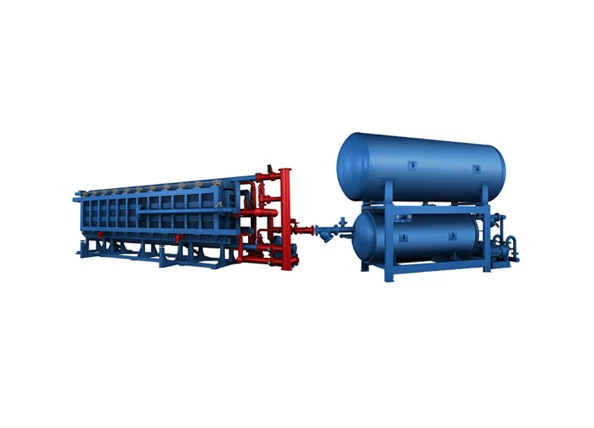

Vacuum type EPS block molding machine

Features

1. Touch Screen Panel –MCGS ,ISO STANDARD, MADE IN CHINA

2. PLC System –LG,SOUTH KOREA

3. Pressure Gauges – FROM TAIWAN

4. Butter Fly Valves – ISO STANDARD ,CHINA

5. With material level sensor to control material hopper. so that the machine   can fill automatically.(Optional )

6 Block move out conveyer and weighing scale

7 Heatingrelay--- French schneider

8 Intermediate relay--- Omron Japan

9. Hopper with level senor

10. All frame are done by heat treatment for less deform

11. All machine are done by sand -blasting treatment for lasting painting

12.Teflon coating for the aluminum board .

13.Unique design of piping layout, combination of steam inlets ensures sufficient, even, stable steam pressure, thus resulting in shorter cycle time.

14. The new developed hydraulic drive concept ensures the opening and closing of the moulding machine in a total and even way, fast, strong, and energy saving.

15. Highly efficient material filling system, faster and sufficient.

16. Low moisture contents, better energy saving, shorted cycle time, perfect stabilization of performance.

17. Modern communication interface/Machine control.

18. Multiple safety protection.

19.The mold cavity surface is coated with Teflon, ensuring easy de-mold and good finish of the block.

20. The machine adopt highly efficient vacuum cooling system, condensate device to improving molding speed and reduce the moisture content. Vacuum supported machine is very efficient for making high-density and thick block.


Technical data:

Subjects Unit HS-ⅢD-2000 HS-ⅢD-3000 HS-ⅢD-4000 HS-ⅢD-6000 HS-ⅢD-8000
Mould size mm 2040×1240
   ×1040
3050×1240
   ×1040
4070×1240
   ×1040
6110×1240
   ×1040
8120×1240
   ×1040
Product size mm 2000×1200
   ×1000
3000×1200
   ×1000
4000×1200
   ×1000
6000×1200
   ×1000
8000×1200
   ×1000
       Steam Inlet size mm φ100 φ100 φ150 φ150 φ150
Consumption Kg/cycle 30-50 40-70 55-85 70-130 80-150
Inlet pressure Mpa 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8
       Compressed air Inlet size mm φ40 φ40 φ50 φ50 φ50
Consumption Kg/cycle 1-1.5 1.5-1.8 1.8-2 2-2.3 2.2-2.5
Inlet pressure Mpa 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8
Injector Entry number pc 6 8 10 14 18
Entry size mm 60 60 60 60 60
Drainage size mm φ80 φ80 φ100 φ100 φ100
Main drainage size mm φ150 φ150 φ200 φ200 φ200
Vacuum drainage mm φ125 φ125 φ125 φ125 φ125
Condensation drainage mm φ100 φ100 φ100 φ100 φ100
Cycle time 15g/L Min/ cycle 4 5 6 7.5 7.5
Vacuum pump motor KW 7.5 17.5 11 11 11
Power Capacity KW 24.5 24.5 35.5 35.5 35.5
Consumption KW/h 14 14 15 18 20
Overall dimension mm 5700×4300×
   3200
6700×4300×
   3200
11300×4300×
   3500
11300×4300×
   3500
15500×4300×
   3500
Weight T 8.5 9.3 12.8 14.5 17.5

Note: this information is for reference only, further details to be confirmed with the company.


Size-adjustable EPS block molding machine is also available.





How we make machines?

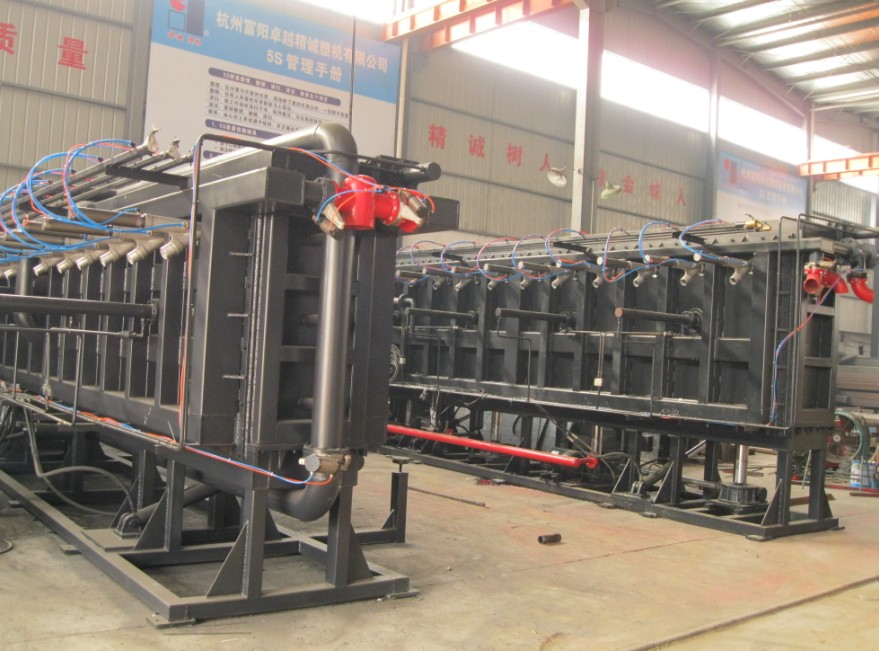

To see our workshop and delivery
