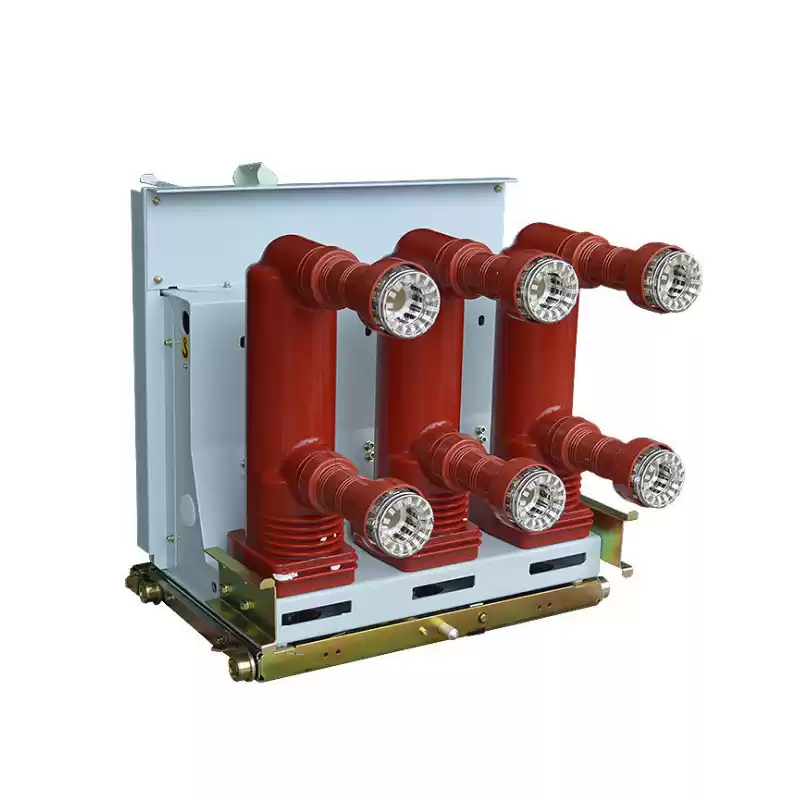

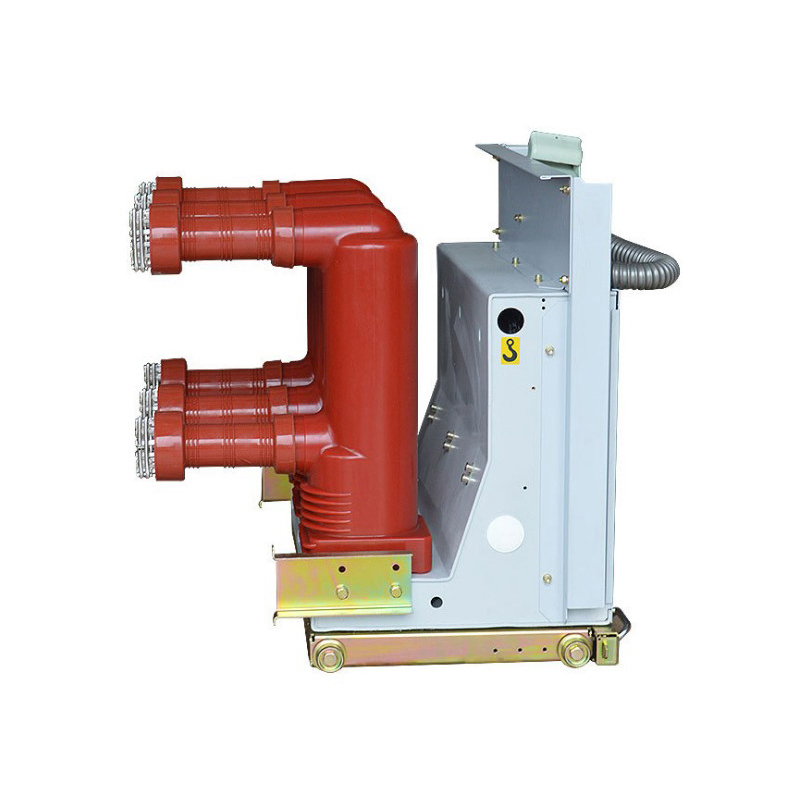

VB5(ZN21B) vacuum circuit breaker is suitable for indoor switching systems with air as insulation,can be installed in the switchgear in the form of fixed, or installed on the handcar chassis can be withdrawable.
VB5(ZN21B) type vacuum circuit breaker can satisfy all kinds of operation of power grid in normal or accident state, including closing and opening short circuit current, as long as it is within the normal service conditions and the technical parameters of the circuit breaker,has excellent performance in the case of frequent operation and short circuit current.Fully meet the requirements of automatic reclosing and has high operational reliability and service life.
|
NO.
|
Item
|
Unit
|
Data
|
|
1
|
Rated voltage
|
kV
|
12
|
|
2
|
Rated short-time power frequency withstand voltage ( 1min)
|
kV
|
42( phase to phase,to earth) / 48( isolating distance）
|
|
3
|
Rated lightning(1 min) impulse withstand voltage(peak)
|
kV
|
75( phase to phase,to earth) / 85( isolating distance）
|
|
4
|
Rated
frequency
|
Hz
|
50/60
|
|
5
|
Rated
current
|
A
|
630、1250
|
630、 1250、 1600、
2000、 2500、 3150
|
1250、 1600、 2000、
2500、 3150、 4000
|
|
6
|
Rated
short-circuit breaking current
|
kA
|
20
|
25
|
31.
5
|
40
|
|
7
|
Rated
short-time withstand current( 4s)
|
kA
|
20
|
25
|
31.
5
|
40
|
|
8
|
Rated
peak withstand current
|
kA
|
50
|
63
|
80
|
100
|
|
9
|
Rated short-circuit making current
|
kA
|
50
|
63
|
80
|
100
|
|
10
|
Rated
short-circuit breaking current(different directions)
|
kA
|
17.
3
|
21.
7
|
27.
3
|
34.
6
|
|
11
|
Rated
operation order
|
|
open - 0.3S - close open- 180S - close open
|
open - 180S - close open - 180S - close open
|
|
12
|
Opening
time（rated voltage）
|
ms
|
30-60
|
|
13
|
Closing
time（rated voltage）
|
ms
|
25-55
|
|
14
|
Rated
output power of the energy storage motor
|
W
|
100
|
|
15
|
Breaking
times under rated short-circuit current
( E2 grade）
|
times
|
30
|
|
16
|
Rated
voltage of energy storage motor
|
V
|
AC/ DC220 、AC/ DC110
|
|
17
|
Rated
close operating voltage/current
|
V/A
|
AC/ DC220/ 1 、110/ 2
|
|
18
|
Rated
open operating voltage/current
|
V/A
|
AC/ DC220/ 1 、110/ 2
|
|
19
|
Rated
instantaneous overcurrent tripping action current
|
A
|
5
|
|
20
|
Rated
voltage of the voltage loss trip
|
V
|
AC220、AC110
|
|
21
|
Rated
on-off current of auxiliary switch
|
A
|
16
|
|
22
|
Energy
storage time (in rated voltage)
|
s
|
<7
|
|
23
|
Secondary
circuit (1 min) power frequency withstand voltage
|
V
|
2000
|
|
24
|
Main
circuit resistance(without plum blossom contact)
|
μΩ
|
≤ 45(630
~800A) 、≤ 35(1250A) 、≤30(1600-2000A) 、
≤25(2500A) ≤
20(3150A and above）
|
|
25
|
Rated
breaking current of capacitor bank
( C2 grade）
|
A
|
single fuse 800、back to back fuse 400
|
|
26
|
Distance
between contacts
|
mm
|
9±1
|
|
27
|
Contact stroke
|
mm
|
3±1
|
|
28
|
Average
closing speed
|
m/
s
|
0. 5~0. 9
|
|
29
|
Average
opening speed
|
m/
s
|
1- 1. 7
|
|
30
|
Three
- phase contactor opening and closing simultaneity
|
ms
|
≤1
|
|
31
|
Contactor
closing bounce time
|
ms
|
<2
|
|
32
|
Mechanical
life(M2 grade)
|
times
|
20000
|
|
33
|
Moving
and static contactor allows accumulated wear thickness
|
mm
|
3
|
1. Altitude: ≤1000m.
2. Surrounding air temperature: upper
limit +40 ° C, lower limit -25 ° C (alpine region) and -1 ° C (general region).
3. Relative humidity of surrounding air:
when the maximum temperature is +40℃,
it is not more than 50%. When the temperature is low, it is allowed to have a
large relative humidity. Due to the change of temperature, it may occasionally
has condensation effect.
4. Outdoor wind speed shall not exceed
34m/s.
5. The slope of the ground shall not
exceed 3°.
6. The horizontal acceleration of the
earthquake shall not more than 0.4m/s, and the vertical acceleration shall not morn
than 0.2m/s;
7. The installation site shall be free
from fire, explosion, serious pollution, chemical corrosion and violent
vibration.
Note: if the actual conditions of use
cannot be met, please negotiation with the manufacturer.
