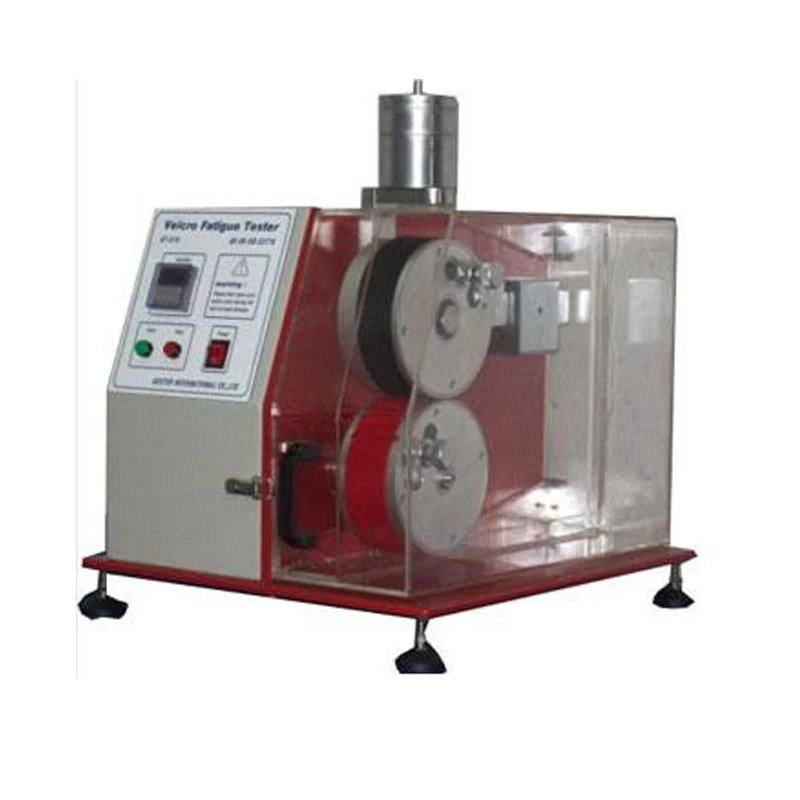

AF07 Velcro Fatigue Tester
Application Of Velcro Fatigue Tester
Velcro Fatigue Tester is designed to achieve Velcro (hook & loop) to repeated stripping and peeling after a certain times, then use AF01 Tensile Strength Tester to check the adhesion and bonding strength.
Standards Of Shoe Lining Leakproofness Tester/Shoes lining seepage tester
GB/T3903.20, GB/T3903.21.GB/T23315, ISO 22777, ISO 22776, DIN3415, SATRA TM123
Key Specification Of Shoe Lining Leakproofness Tester/Shoes lining seepage tester
|
Model
|
AF07 Velcro Fatigue Tester
|
|
Roller diameter
|
Upper rollerφ162.5mm±0.5mm
lower rollerφ160mm±0.5mm
|
|
Rolling speed
|
0-100rpm,can be set
|
|
Roller width
|
70mm
|
|
Reversed time
|
30±5 s
|
|
Load
|
1±0.1N/mm
|
|
Power supply
|
AC220V, 50/60HZ
|
|
Dimension
|
450x540x550mm
|
|
Weight
|
75kg
|
