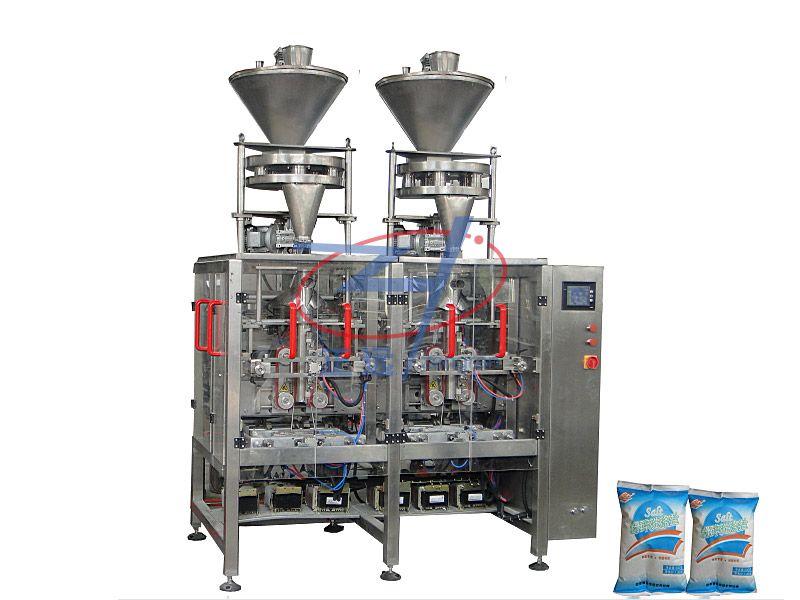

VFS5000DS packaging machine for salt

This unit consists of a measuring cup metering machine and one VFS5000D vertical filling packaging machine. It is especially suitable for metering and packaging of fine particle material. It integrates the functions of automatic metering, bag-making, packaging, sealing, printing and counting. The operating interface adopts advanced touch screen.

Facebook Twitter Pinterest LinkedIn 分享

VFS5000DS measuring cup metering packaging unit



measuring cup metering packaging unit


Introduction:

Measuring cup metering packaging unit consists of a measuring cup metering machine and one VFS5000D vertical filling packaging machine. It is especially suitable for metering and packaging of fine particle material. It integrates the functions of automatic metering, bag-making, packaging, sealing, printing and counting. The operating interface adopts advanced touch screen.


Technical information:

Bag size:(50mm-280mm)*(80mm-180mm)(L*W);
Weighing range:100g-1000g;
packaging speed:45-60bags/min;
Accuracy: ±1%

Compressed air requirement: 0.3m3/min

Machine weight:500kg;

Powder Source:5.5KW AC380V 50Hz;


Specification:


Model



Bag size

mm



Metering range

g



Measuring accuracy



Packaging speed

 bags/min



Remarks

VFS5000DS

(50~280)×(80~180)

100~500

(Other weight is customizable)

1%

30~70

Single-row   unit
