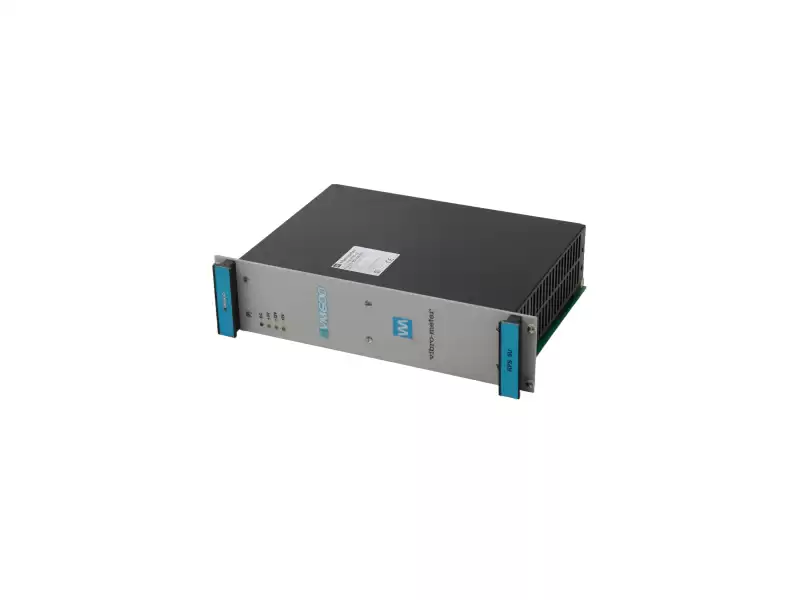

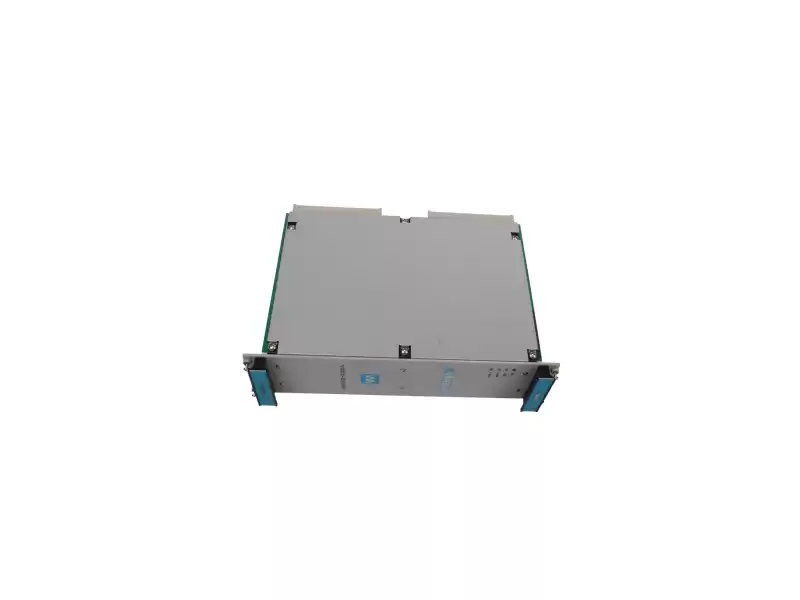

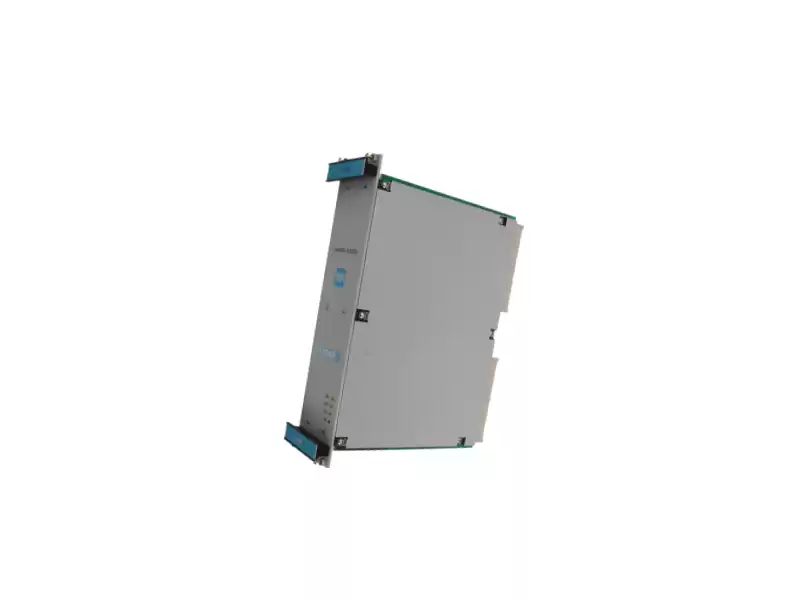

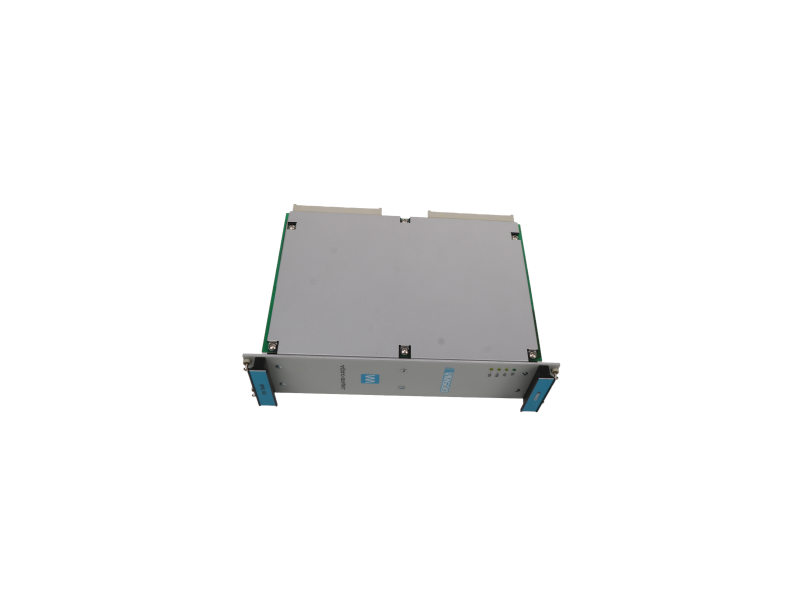

VIBRO-METER SIM-275D-B0 200-582-600-013 power supply module

Q1: What role does SIM-275D-B0 200-582-600-013 play in a VM600 rack?
A1: It is the "power heart" of the chassis, supplying +24 V, ±12 V and +5 V buses with hot-swap redundancy—zero rack downtime even if one module fails.

Q2: What input-voltage options exist? What if only a battery bank is available on site?
A2: Order either DC or AC suffix: DC 18-36 V wide-range can be connected directly to a 24 V battery bus; AC 200-240 V works with mains or UPS, switching automatically without operator action.

Q3: Will the module "run out of steam" when the rack is fully loaded?
A3: Rated 150 W per module, efficiency >90 %. A typical fully-loaded VM600 consumes ≈110 W, leaving a 30 % margin.

If calculations exceed this, simply slide in a second module—it current-shares automatically with no external bus required.

Q4: How long can the housing resist salt-spray on an offshore platform?
A4: Aluminium enclosure uses powder-coat + anodising; passes 1000 h neutral salt-spray test.

PCBs are conformally coated—five years of continuous offshore operation with no red rust or track failures reported.

Q5: Does the power supply have built-in self-diagnosis?
A5: Yes. Front 3-colour LED bar plus relay dry-contact (Power-Good) can be wired to DCS/SCADA for remote monitoring.

Internal temperature, output current and share-error are all readable via the VM600 back-plane and web page.

Q6: Can I really pull it out live for maintenance?
A6: Yes. The back-plane uses "make-after-break" guide rails; as you withdraw, the parallel module takes over instantly.

System voltage dip <50 mV—CPU cards keep running and the process stays on-line.

Q7: Does the PLC Autocontroller offer international delivery?

A7: Yes, we partner with multiple international express delivery companies, including DHL, FedEx, TNT, and UPS, to provide fast global delivery, with an average delivery time of 3–6 business days.

Q8: What after-sales service is included?

A8: We offer a one-year warranty, including product replacement, technical support, and remote installation and commissioning guidance, ensuring peace of mind for our customers.

Q9: How do I place an order for the SIM-275D-B0?

A9: Customers can contact Sales Manager May at ab@mooreplc.com and provide the model, quantity, and delivery address. We will confirm a quote and delivery time within 24 hours.
