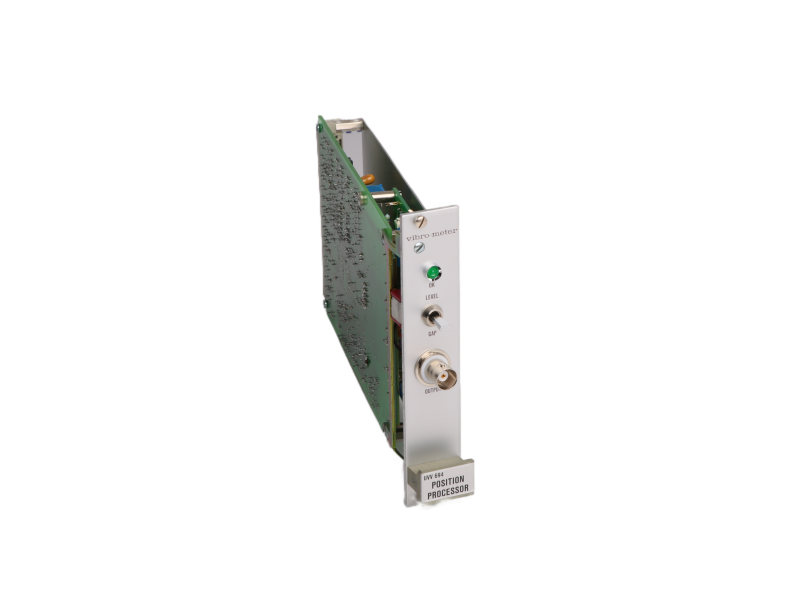

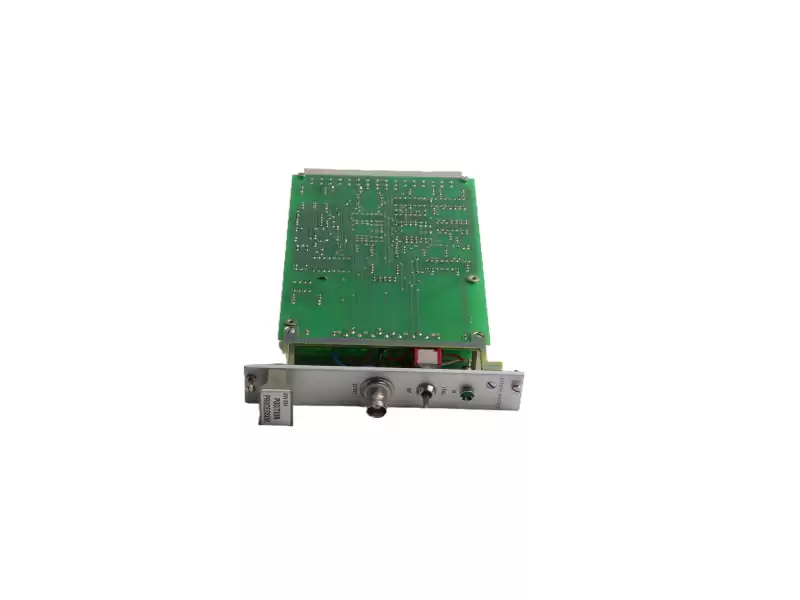

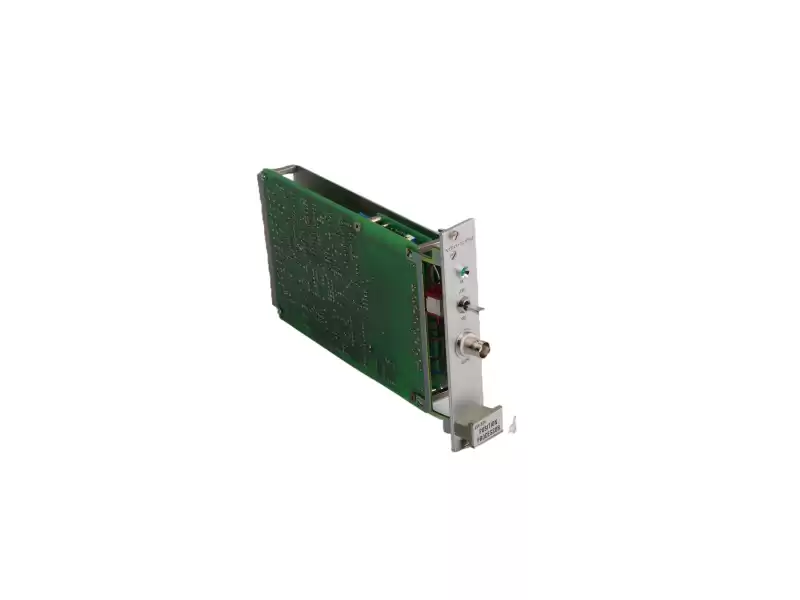

VIBRO-METER UVV694 204-694-000-023S Industrial vibration analyzer

Q1: What are the hardware differences between UVV694 204-694-000-023S and the standard -023?
A1: The -023S suffix adds conformal coating and a nickel-plated shell, raising the salt-spray rating from 96 h to 1000 h; all other electrical specifications remain identical to -023.

Q2: What are the rack power supply and power consumption of the module?
A2: Back-plane 5 V/1.2 A hot-pluggable, full-load consumption 6 W; automatic current sharing error <3 % when dual power supplies are used redundantly.

Q3: What are the output refresh rate and protection delay?
A3: 4-20 mA loop refreshed at 1 kHz, relay protection response <20 ms; RS-422 data stream outputs continuously at 10 kHz for third-party DAQ synchronization.

Q4: What is the input anti-interference capability?
A4: Differential input impedance 10 kΩ, common-mode rejection >60 dB, withstands 300 m long-line transmission without attenuation; built-in 2 Hz/10 Hz high-pass selectable to suppress mains and slow drift.

Q5: What is the environmental operating range and certification?
A5: Operating -20 ℃ to +70 ℃, storage -40 ℃ to +85 ℃; certified CE, UKCA, ATEX II 3G Ex ec IIC T4 Gc (cabinet mounting).

Q6: If the rack is not fully populated and I want to expand later, can PLC Autocontroller supply the complete VM600 card family in one go?
A6: Yes. PLC Autocontroller warehouse keeps the full VM600 range in stock: power SIM-275A, CPU-M, MPC4, IOC4T, RLC16, UVC752, UVL682, UVV694, etc. (>50 models); ordering in one batch enjoys combined freight and prepaid duty, saving 15 % delivery cost.

Q7: I am concerned about moisture during sea transport—how does the -023S packaging differ from ordinary cards?
A7: Uses vacuum aluminium foil bag + foam cradle + 5-ply carton + two 5 g molecular-sieve desiccant packs; outer carton marked with moisture warning. No condensation after 30 days at sea; humidity indicator card included—returnable if value exceeded.

Q8: Besides VM600, which other brands can PLC Autocontroller supply for the same compressor train?
A8: One single order can cover:

PLC: Allen-Bradley 1756-L73, Schneider Quantum 140CPU67160

DCS: ABB 800xA CI867K01, Yokogawa AAI143-H50

TSI: Bently Nevada 3500/42M, EPRO MMS6120
One purchase order, one customs declaration, one DHL delivery.
