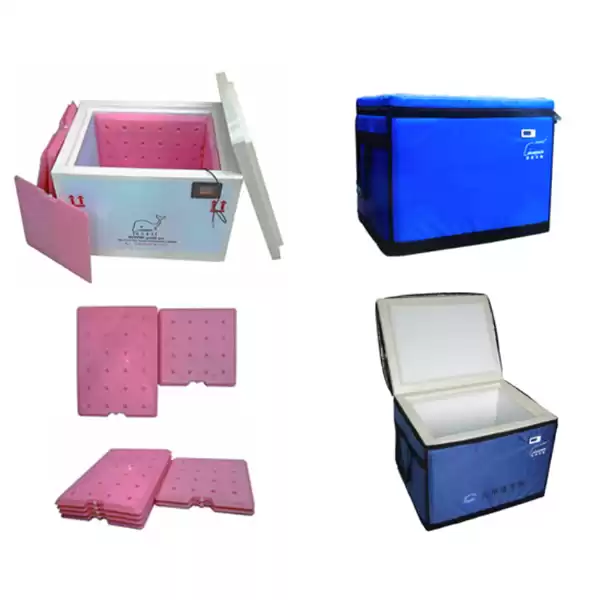

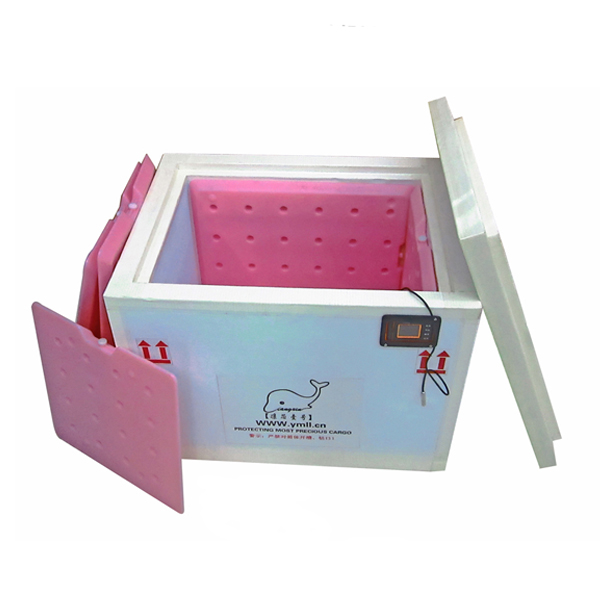

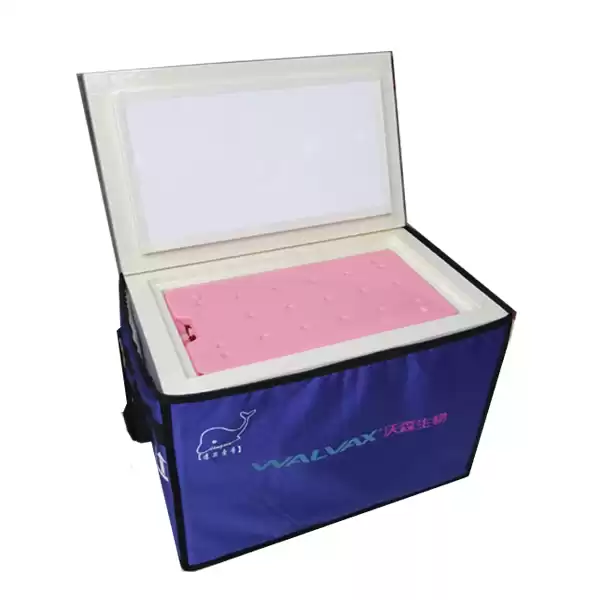

VIP insulation cold chain shipping box with PCM element for different temperature ranges
Many of the medicines have to be stored between a temperature range from 2 to 8 °C. So the medicine has to be packaged from a warehouse or hospital and to be transported to a local pharmacy and the temperature should be within 2 to 8°C until it reaches the destination. The VPU786 can be achieved through the use of VIP and VPU packaging in Cold Chain Packaging and shipping process.
|
Category
|
Medical cooler box
|
|
Main Material
|
VPU high performance insulation panel
|
|
Application
|
Medical, vaccine, blood storage and transport
|
|
Dimension
|
Outer Dimension:648 mm x 508 mm x 508 mm
Inner Dimension:528 mm x 388mm x 388 mm
|
|
Capacity
|
78L
|
|
Cold source
|

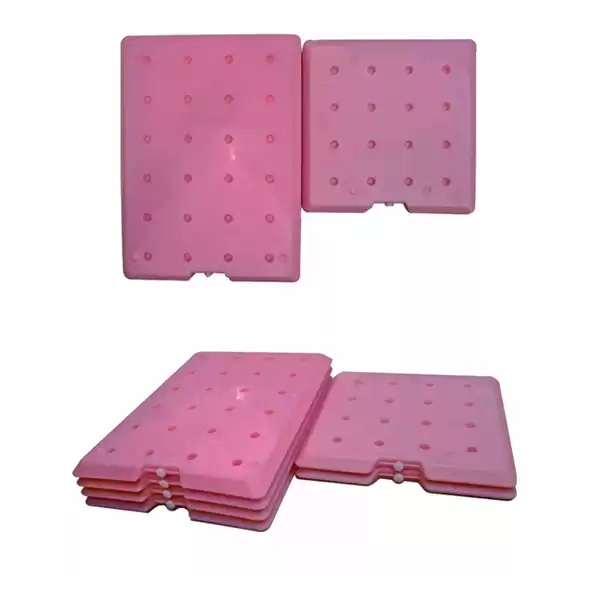

Ice Pack: combine cube ice bricks
|
|
Cold life
|
>30 hours at 2°C to 8°C in an ambient temperature of 43°C
|
Application
Cold Chain Bags and Boxes, specially designed to hold temperatures within essential safe temperature limits without electricity during transport or use for: Vaccines,Insulin,Biopharmaceutical, Life Science and other Medical Products,IVD products and biological specimens,Selected fresh food, drink and dairy products
Usage
1. Before using, wipe the non toxic sealed HT Ice Bricks dry, and place into a freezer until they are fully frozen (about 10 hours). If using HT Ice Packs, fill with clean fresh water, firmly replace the screw cap, then follow the same procedure.
2. Remove the frozen packs from the freezer, and place every pack into the box in the positions indicated, and close the lid.
3. When the temperature of the box reduces to below 8°C, open the lid and place the contents to be kept cold in the cold transport container. Close the lid.
