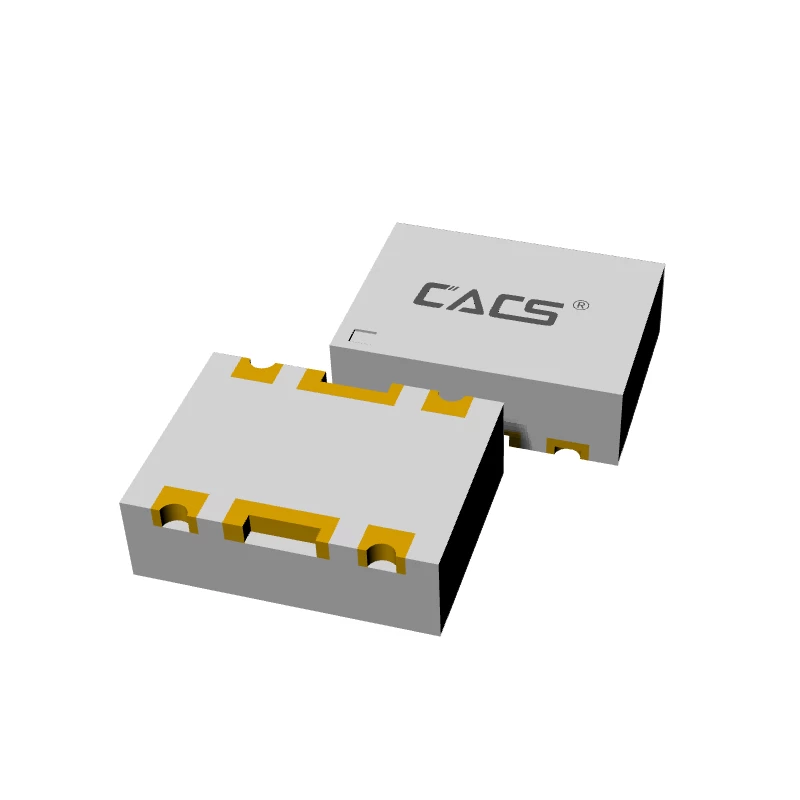

Voltage Controlled Oscillator PVCO1012
The RQC-type is a general purpose VCO. Components are selected for high-Q and tight tolerances.
Raltron's RQC-series is developed and manufactured in its ISO9000 certified facility in Miami. RF-simulation (CAE), automated test-equipment (Agilent VCO/PLL-Analyzer) and statistical process control (SPC) are integral part of R&D and manufacturing - which ensure minimal process variances and a high degree of repeat ability.
Electrical Specification
|
PARAMETER
|
COMMENTS, EXAMPLES
|
MIN
|
TYP
|
MAX
|
UNIT
|
|
Max Frequency
|
Currently available in RQR-package
|
|
|
2000
|
MHz
|
|
Tuning Ratio
|
Ratio of upper-to-lower freq. (2="Octave-VCO")
|
|
1.1
|
1.5
|
-
|
|
Tuning Voltage
|
Battery operated 2V, Stationary: 5V or higher
|
0~2
|
0~5
|
0~25
|
V
|
|
Supply Voltage
|
Battery operated 3.3V to 5V, Stationary up to 12V
|
3.3
|
5
|
12
|
V
|
|
Supply Current
|
Dependent on Frequency and Output Power
|
10
|
20
|
30
|
mA
|
|
Output Power
|
Output Power Tolerance is typ. ±3dB (min. ±1dB)
|
-3
|
+3
|
+10
|
dBm
|
|
Harmonic Suppression
|
Dependent on Tuning Range and Freq.
|
|
-20
|
|
dBc
|
|
Pushing
|
Dependent on Freq. Tuning R., typ 0.1%~0.5% fo
|
|
1
|
|
MHz/V
|
|
Pulling
|
Dependent on Freq. Output Power and Circuit
|
|
3
|
|
MHz
|

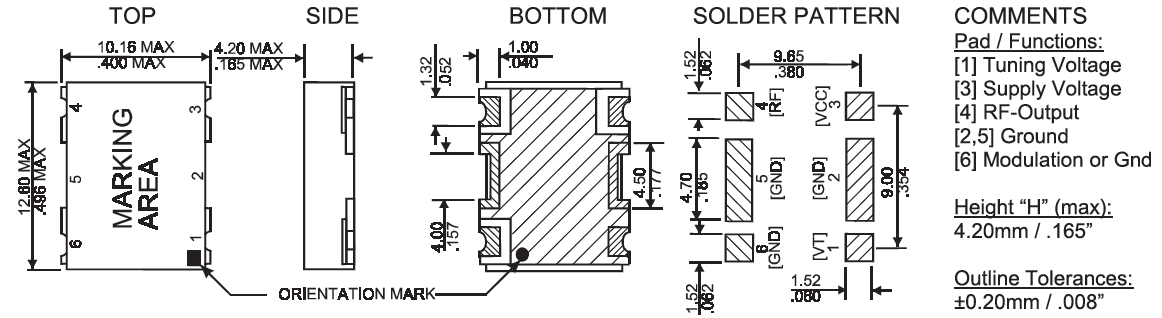

Dimensions
General Specification
1. Load impedance is 50 Ohms.
2. Operating temperature range is typically - 40°C ~+85°C .
3. The package is non-hermetic. Substrate is glass-reinforced laminate, cover is folded nickel-silver.
4. Bypass-capacitors (ceramic) from Vcc to Ground are recommended: 1nF||100pF.
5. Customized specifications may deviate from this general Specification.
6. Phase-noise performance depends on the individual specification. Phase Noise is strongly dependent on (a) frequency (b) supply voltage and (c) tuning range.

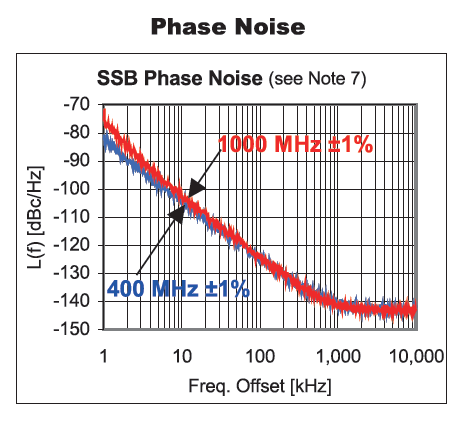

7. The phase noise graph (to right) shows the characteristic of 2 typical RQC-VCOs.
Samples are measured at 5V supply and have 3dBm output power and±1% tuning range.
