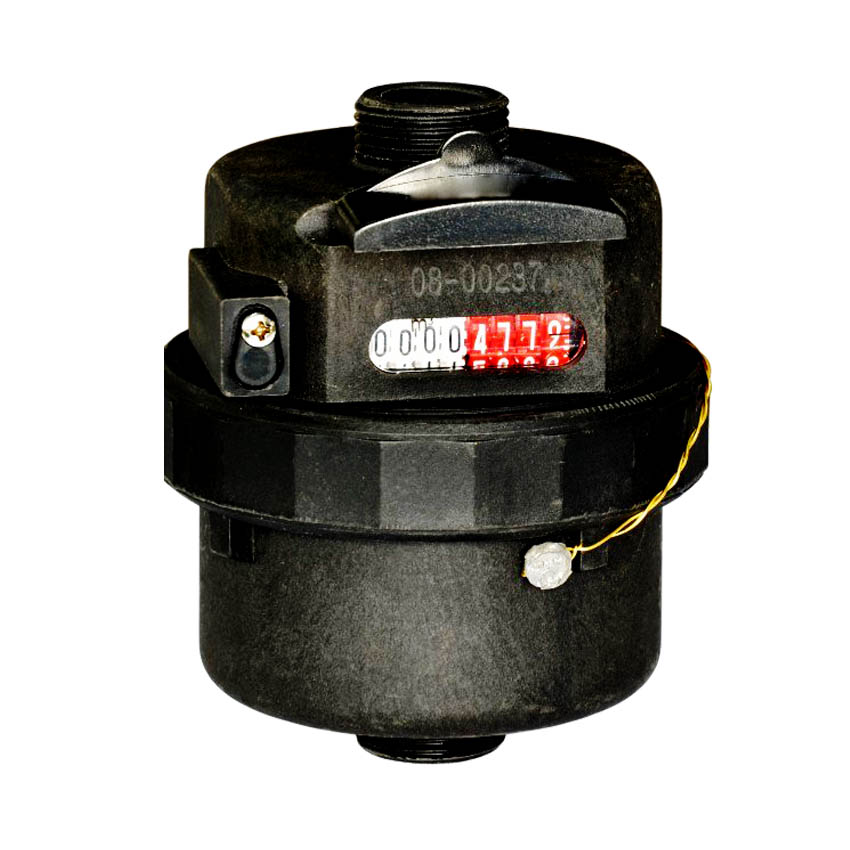

APPLICATION AND FEATURES:

Meter with pulse output: Available 1L, 10L, 100L or 1000L per pulse for choice.
Water meter equipped with a Reed Switch Pulser which can be connected to remote reading systems.
The Reed Switch Pulse sends out electric signals per a preset water quantity.
Comes in several model variation, which indicate different pulse rates. To choose the variation best suited to your needs as per optional data in below diagram.
Liquid sealed register.
Durable tamperproof construction
can be Applied for remote automatic reading system.
Composite plastic body and durable tamper proof construction. Robust, leak-proof construction
Performance to ISO 4064 Class C
Maximum working temperature of 50 C
Volumetric rotary piston type, wet type register with mechanism transmission.C
Optimum accuracy with very low starting flow rate.C
Performance well at all times and in any position.C
Maximum working pressure of 16 bar.
Suitable for horizontal, vertical and inclined installation

REED-SWITCH ELECTRIC DATA:
Switch voltage: 24VAC/ DC
Switch current: 0.01A max
