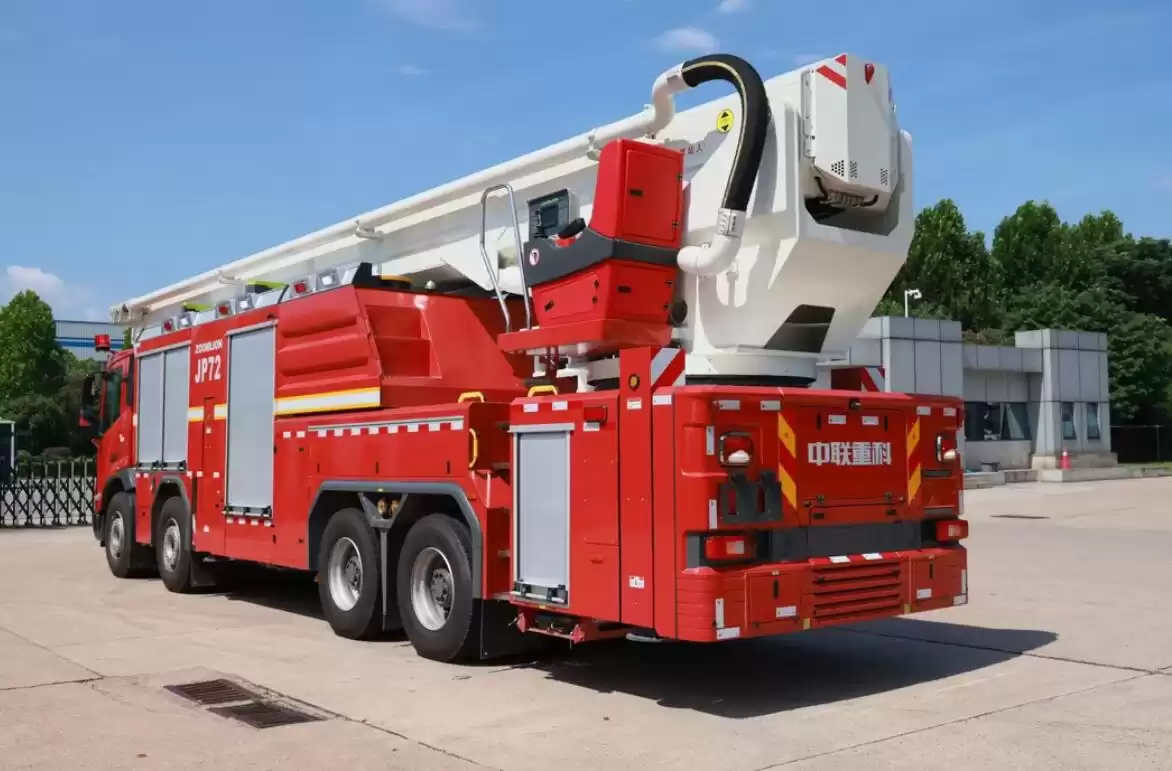

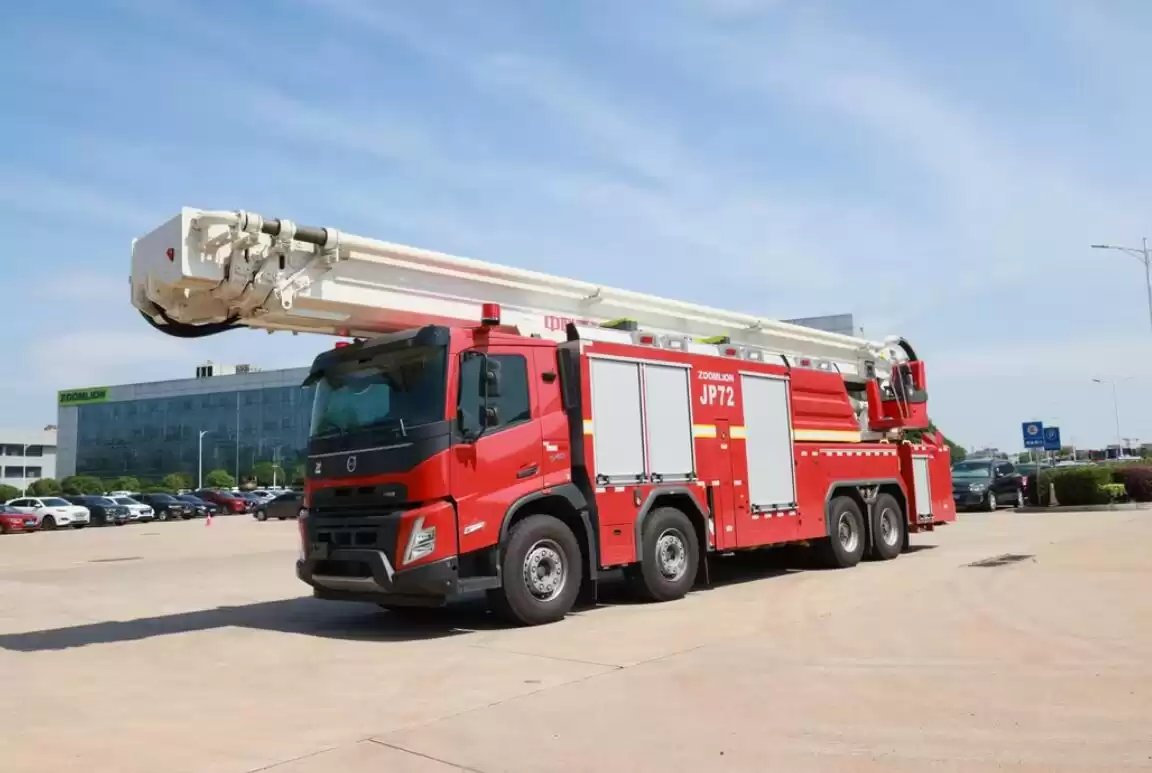

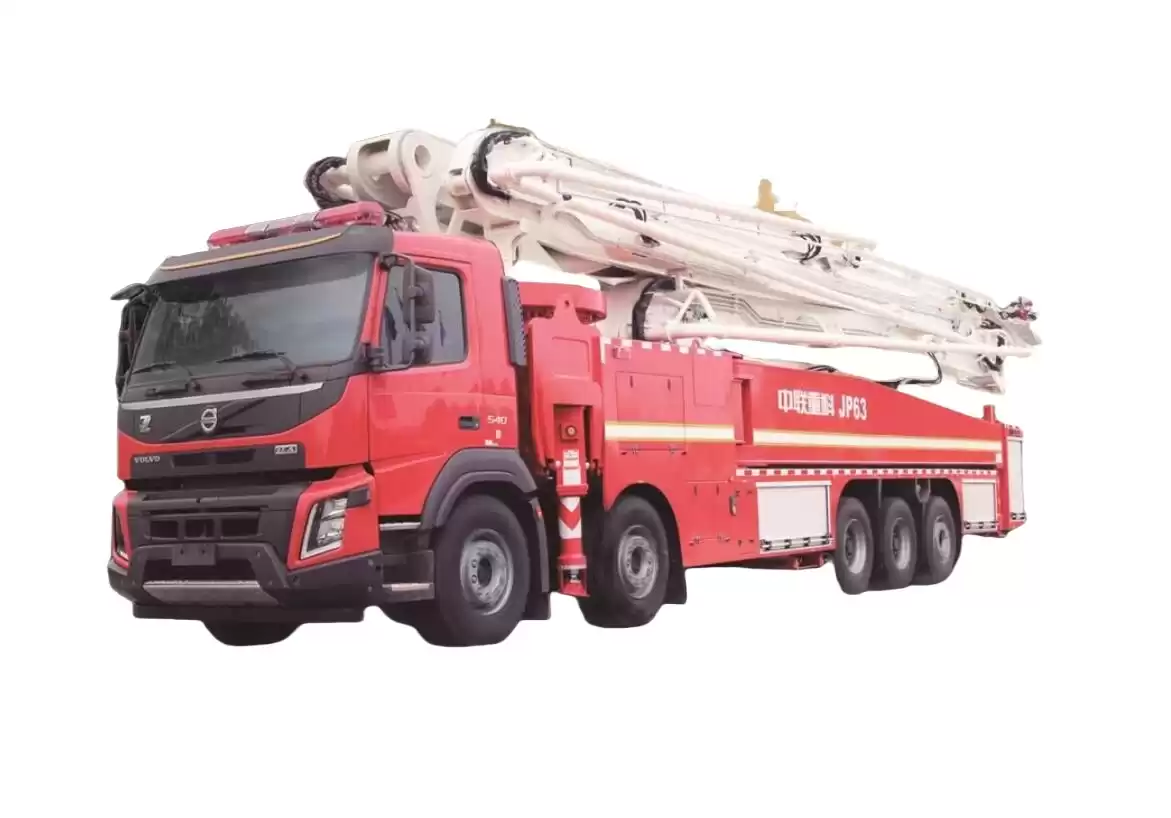

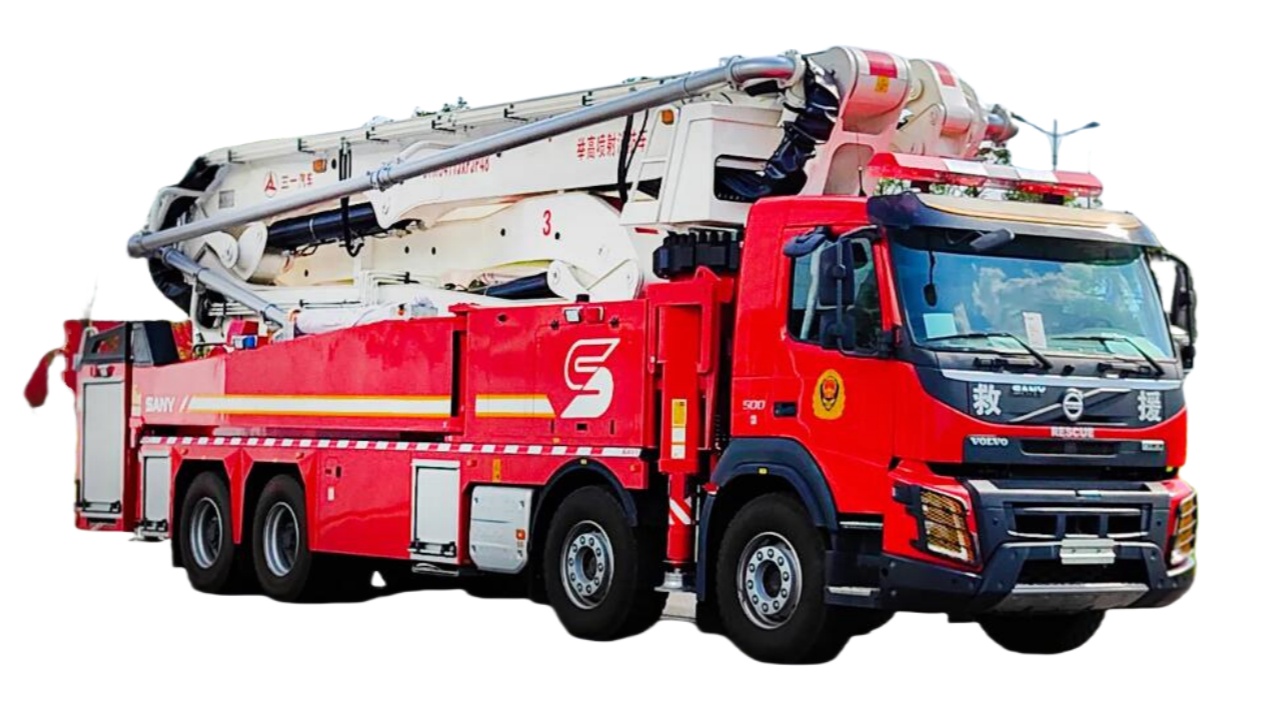

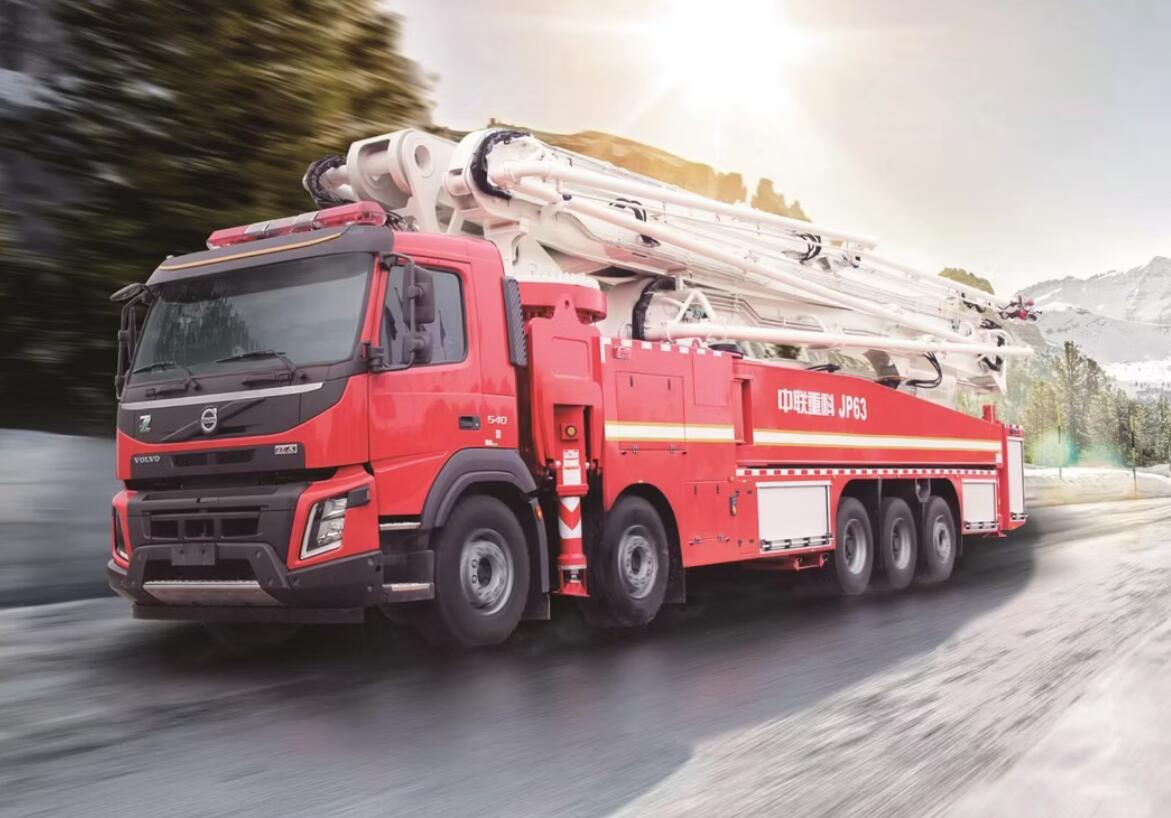

Volvo 65m Rescue Water Tower Fire Truck

Volvo 65m Resce Water Tower Fire Truck， also named Volvo high-rise jet fire truck is a type of high-rise fire truck, which is mainly used for fire fighting in high-rise buildings, large-span spaces and petrochemical enterprises. The vehicle has ultra-large span operation capabilities, realizing three-dimensional collaborative operations and ultra-close fixed-point fire extinguishing; Wide range of operation, strong obstacle crossing ability, flexible operation, excellent high, low-altitude rescue, fire extinguishing function, with high fire fighting height, large water spray flow and other advantages, is a collection of foam, water in one of the multi-functional fire fighting equipment: suitable for industrial and mining enterprises and petrochemical, oil tanks, warehouses and other large buildings fire fighting.The following is a comprehensive introduction:

● 30 years experience in water tower fire truck designing
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● Be designed according to your requirements
● We can offer your a good after-sell service

1. Structural composition

Basic structure: It consists of a folding telescopic boom system (two to four sections of boom), an electric remote-controlled fire cannon, a tank (water tank and foam tank), a second-class chassis and a hydraulic control system.

Auxiliary system: It includes outriggers, a rotating disk, a fire pump, a foam proportioning mixer, an emergency gasoline engine, etc. Some models integrate water tanks and fire pumps to achieve independent fire fighting.

2. Functional characteristics

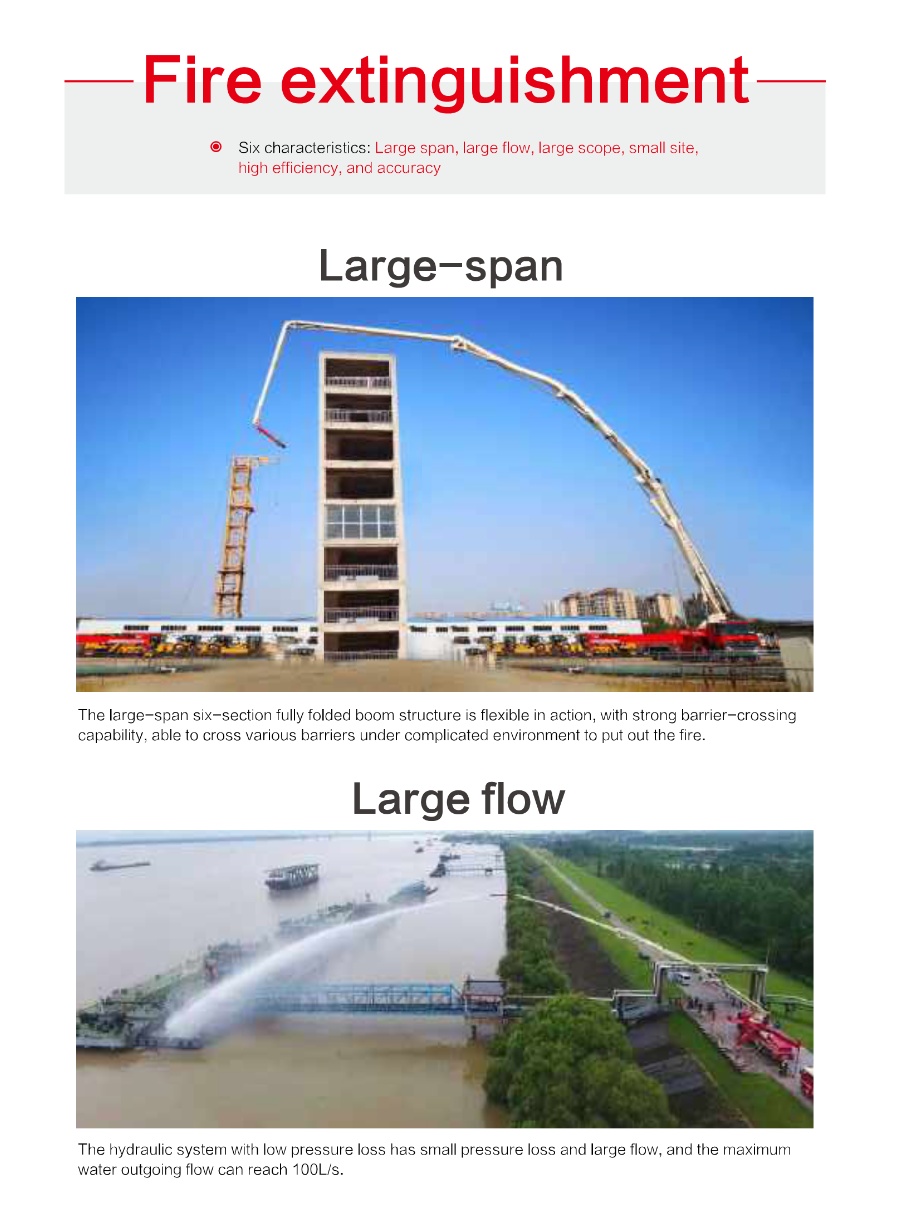

High-altitude firefighting capability

The maximum operating height can reach 42 meters (JP42 type), the boom can be retracted, folded and rotated 360°, and the top is equipped with an electric remote-controlled cannon, which supports DC, spray and foam spraying.

The water cannon has a range of more than 70 meters (water ≥ 75 meters, foam ≥ 65 meters), and a flow range of 30~80L/s, which has the advantages of long distance and large flow.

Operational flexibility ‌

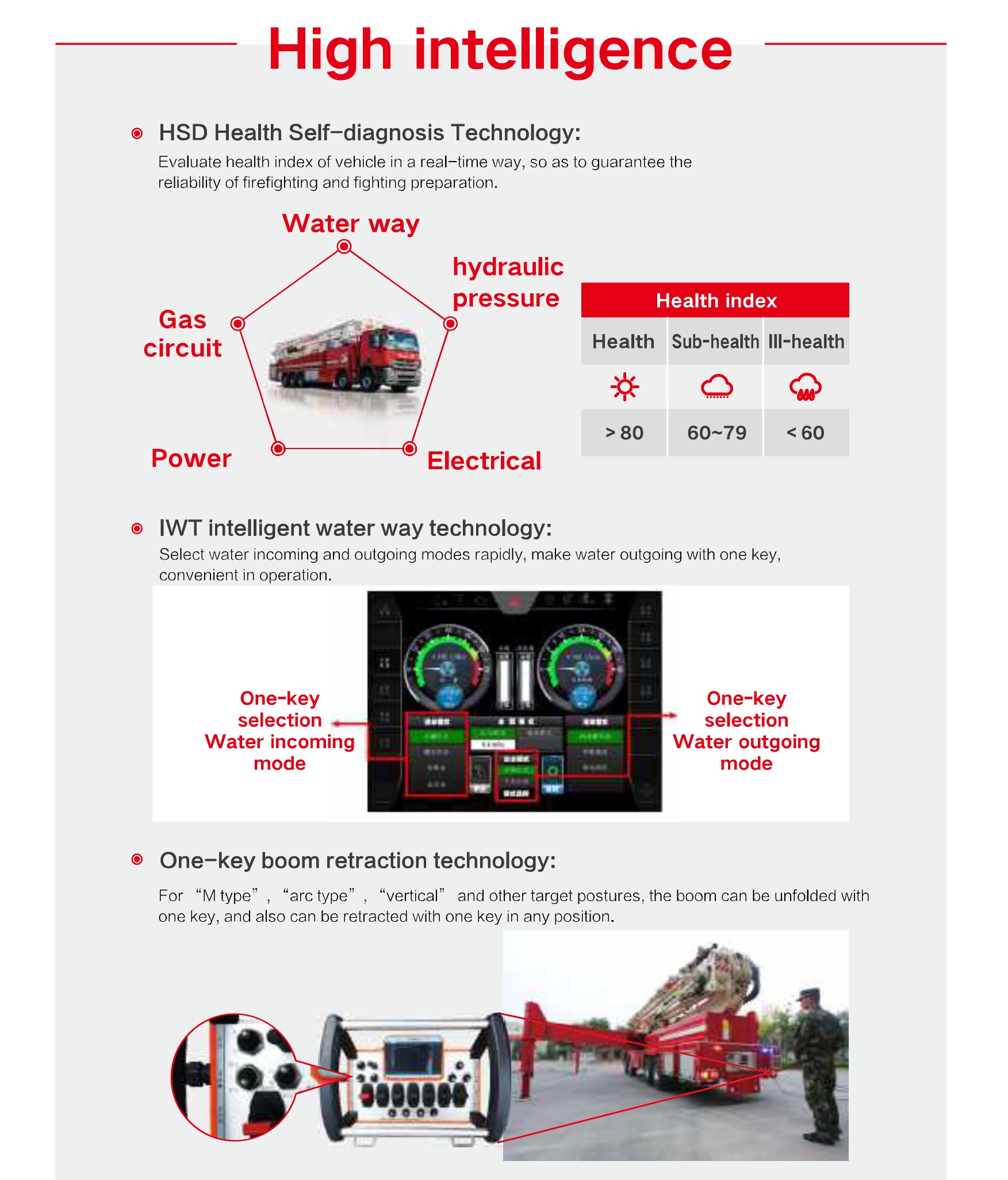

By controlling the boom extension, rotation and water cannon angle through the turntable electric control handle or wireless remote control, firefighters can accurately extinguish fires without climbing. ‌

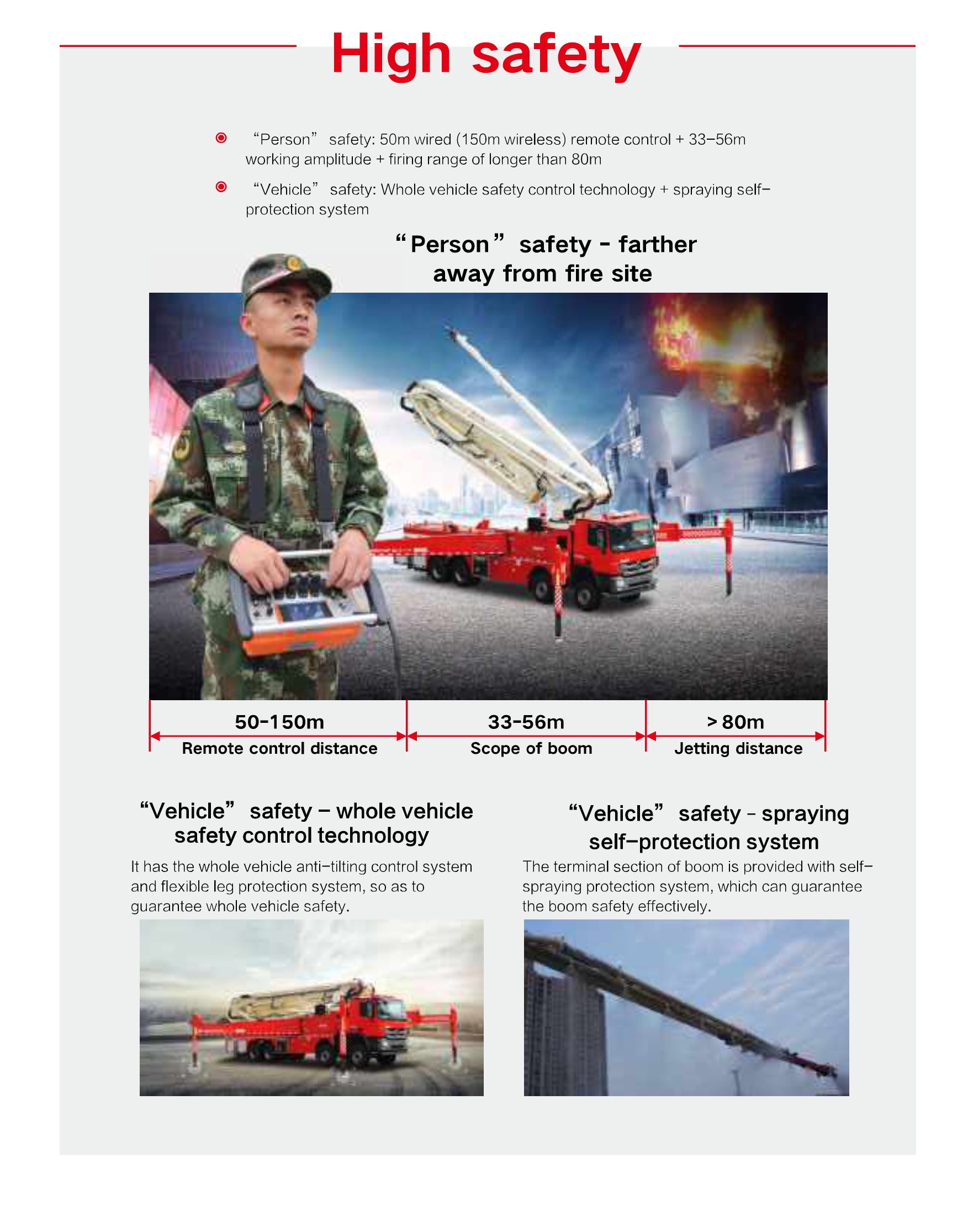

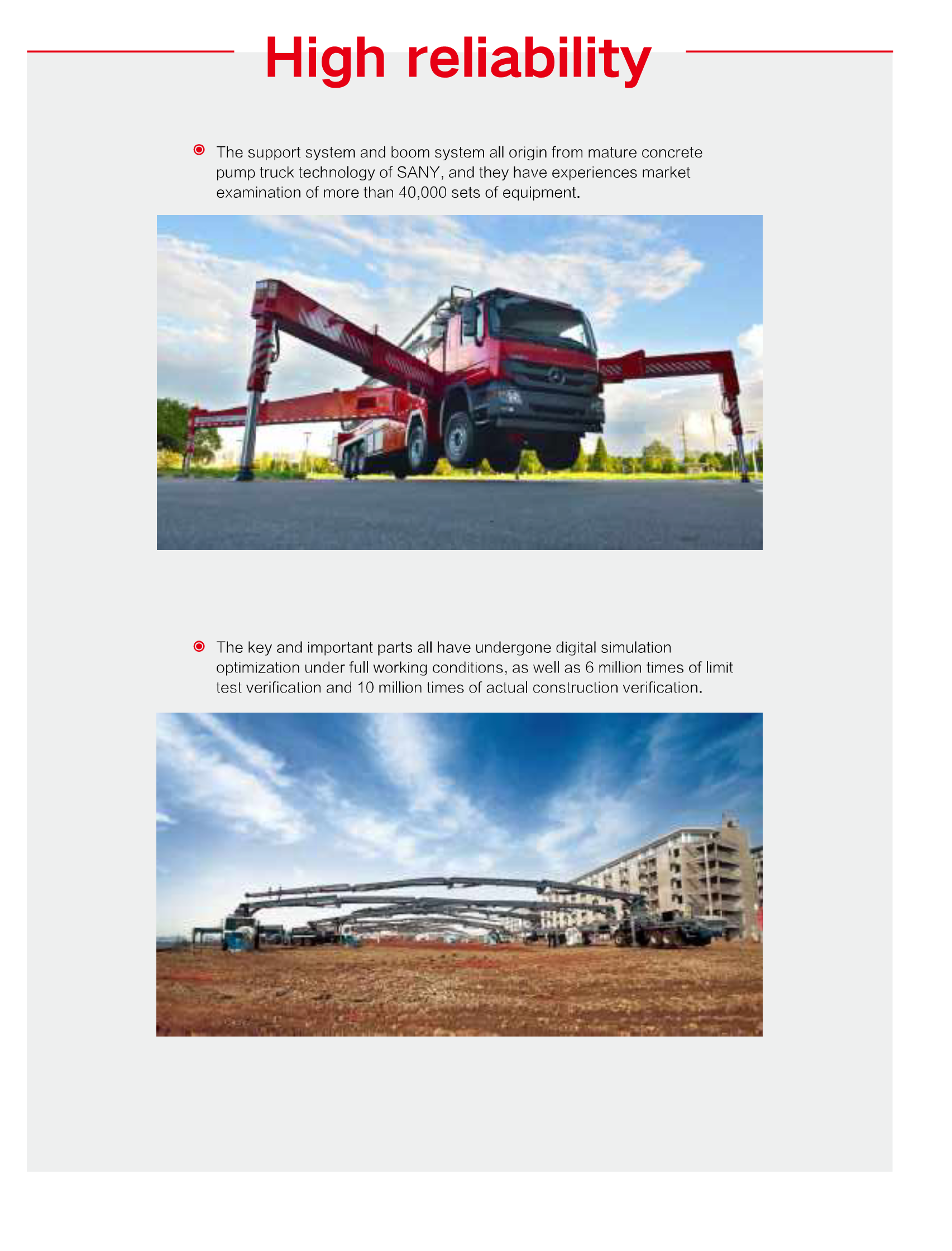

Safety design ‌

Equipped with interlocking devices for getting on and off the vehicle, soft leg alarm, boom limit deceleration and other devices to ensure operational stability; some models are equipped with emergency systems to maintain basic functions when the main power fails. ‌

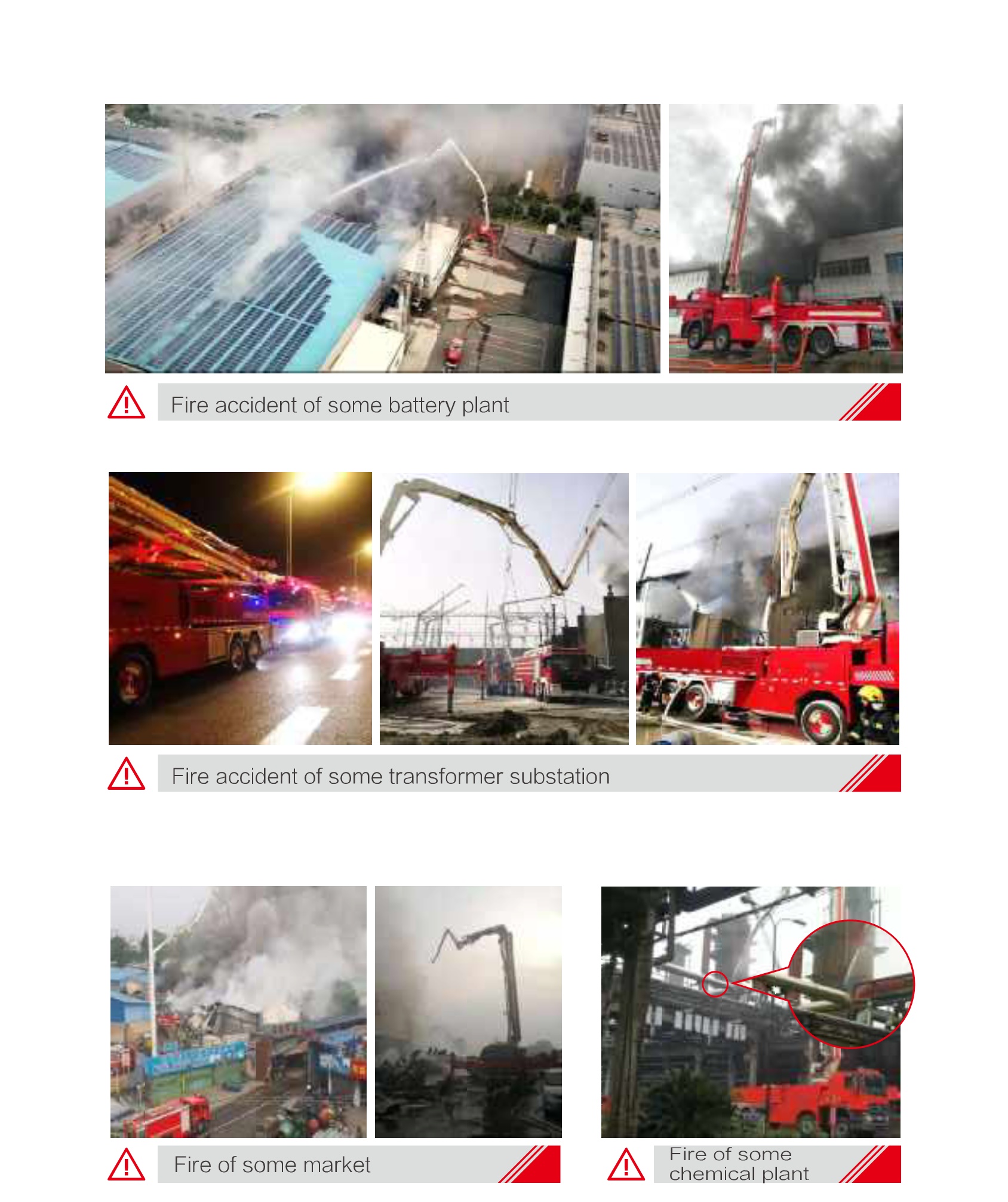

3  Applicable scenarios ‌

Fire in high-rise buildings ‌: Use the boom to cross obstacles and directly extinguish high-rise fire sources ‌. ‌

Petrochemical facilities/large-span plant ‌: Control fires in flammable and explosive places such as oil tanks and warehouses through large-flow foam spraying ‌. ‌

Complex terrain rescue ‌: Strong span operation capability, can be deployed in narrow or obstacle areas, reducing the need for vehicle movement ‌. ‌

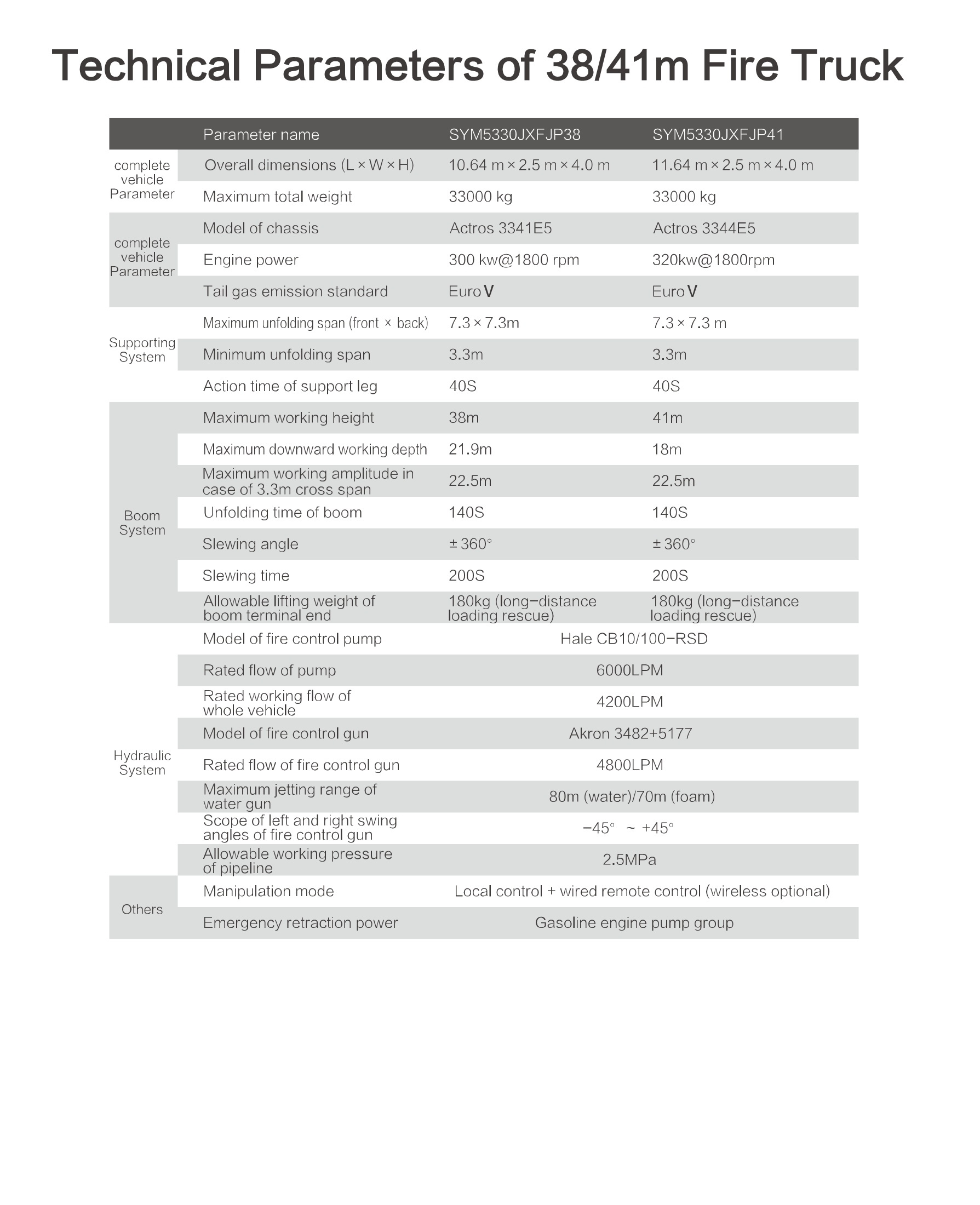

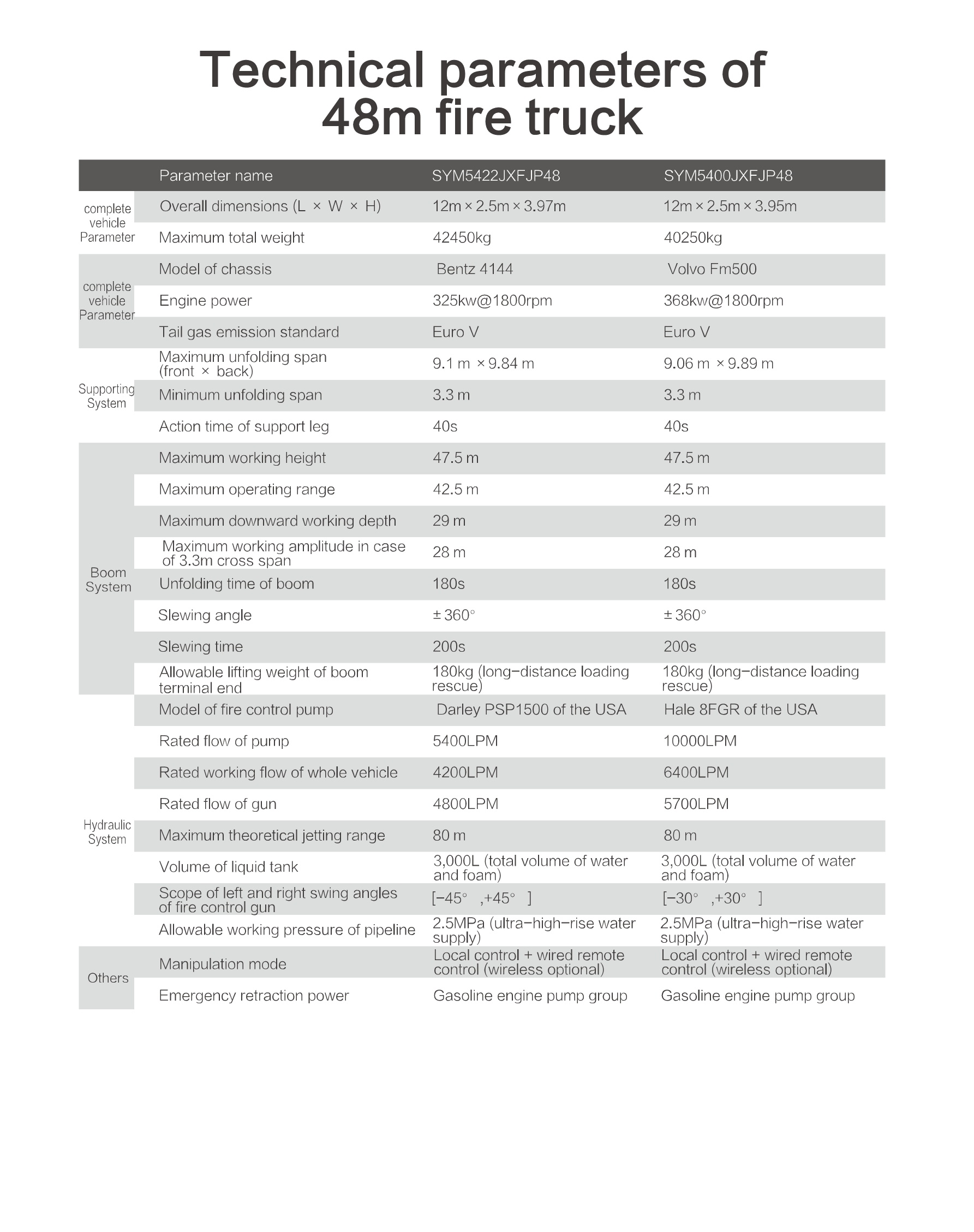

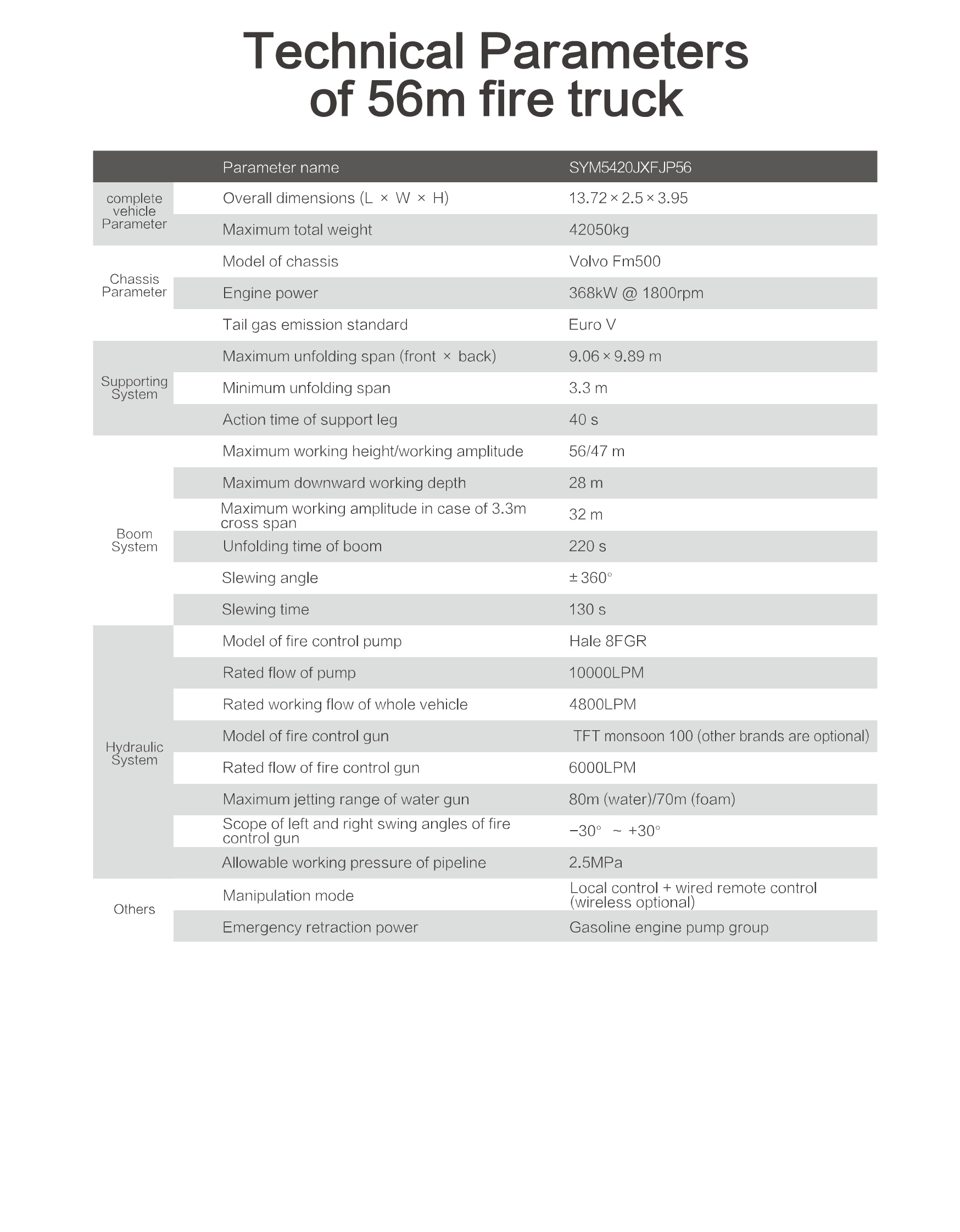

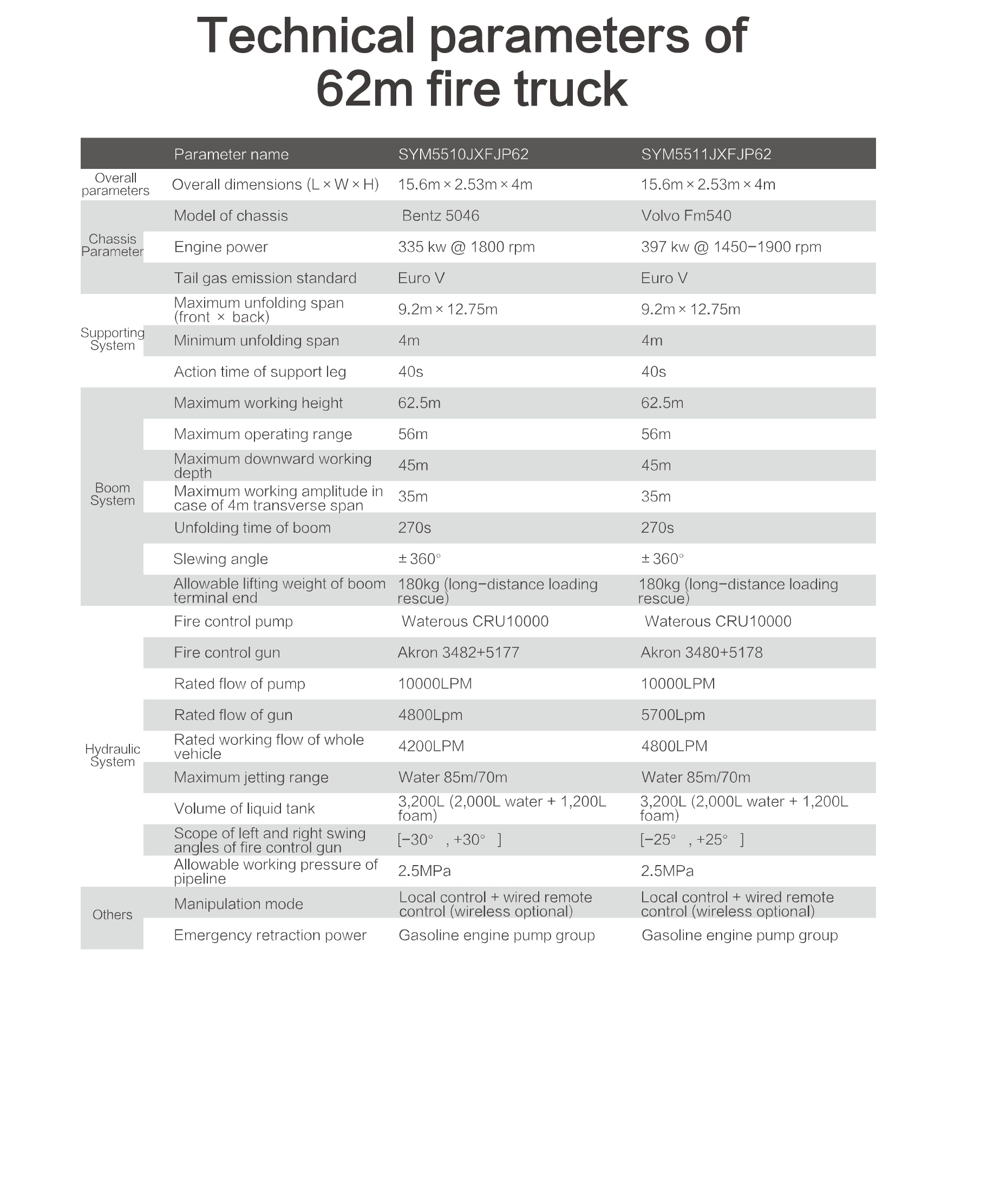

4. Technical parameter examples ‌

Typical model ‌: JP42 (Mercedes-Benz chassis), 4.8 tons of water, 2.7 tons of foam, leg deployment time ≤40 seconds, boom full extension time ≤190 seconds ‌. ‌ Chassis performance: Mostly adopt 6×4 drive form, with a maximum speed of ≥90km/h, which can meet the needs of quickly reaching the scene.

5. Comparison with other high-rise models

Compared with ladder fire trucks, high-rise spray trucks have higher fire extinguishing efficiency (large liquid carrying capacity and strong water cannon flow), but weaker rescue and manning capacity; compared with aerial platform vehicles, they focus more on high-altitude firefighting rather than personnel rescue, and have a lighter structure.

Through integrated design and advanced control technology, high-rise spray fire trucks have become one of the core equipment for modern urban and industrial fire fighting.

JP25 is a new type of water tower fire fighting vehicle designed and developed by our company. The fire engine combination with different fire fighting equipment requirements of fire fighting industry, comprehensive application of new technology, new technology and new materials, and combined with our own technical advantages, in order to enrich the function configuration of high-pressure jet vehicle and improve its single vehicle combat capability.

Engine

Braking system

ABS function, front axle disc brake/rear axle drum brake

352CC air compressor

Tyre

Boom structure

PTO
