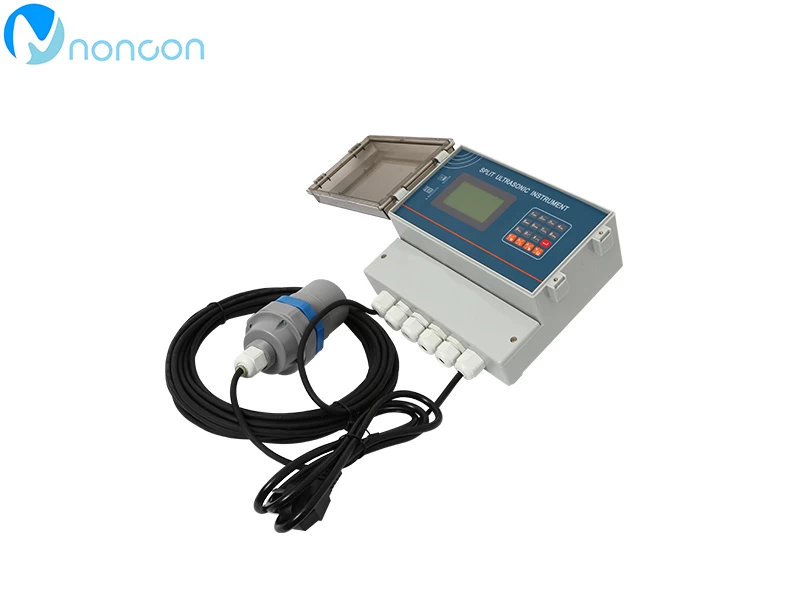

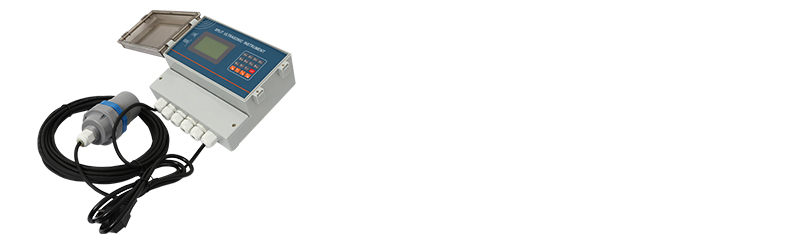

Performance indicators
|
|
Flow measurement range
|
0 ~ 93m3/s(related to the specification of weir slot for determining the range)
|
|
Cumulative flow range
|
9999999999 Km3
|
|
Suitable groove type
|
Triangular weir, rectangular weir, equal width weir, bacher trough
|
|
Display precision
|
Depending on the input signal
|
|
Use triangular weir
|
1 ~ 2% with rectangular weir: 1 ~ 4% with bascher tank: 3%
|
|
Calibration
|
Factory calibration, field calibration
|
|
Display
|
Chinese and English large screen LCD, color TFT (optional)
|
|
Display screen
|
Liquid level height, instantaneous flow, cumulative flow, hourly flow, daily flow, weekly flow, monthly flow, year/month/day, battery power (can be set arbitrarily)
|
|
Signal input (selected when ordering)
|
|
Digital signal
|
RS485(support Modbus protocol)
|
|
Current signal
|
4-20mA
|
|
Transducer signal
|
Voltage
|
|
Signal output (selected when ordering) DC12V or 24V
|
|
Voltage output
|
0 ~ 20mA; 4 ~ 20mA load > 300Ω; 0 ~ 5V;
|
|
Analog output signal
|
0～10V
|
|
Digital output
|
RS485 (support Modbus);USB, memory card 8G
|
|
Wireless transmission
|
Built-in GPRS wireless communication optional SMS data prompt (collection system can be customized)
|
|
Switch output
|
Two-channel NPN/3 relay (AC:5A 250V DC:10A 24V)
|
|
Power supply
|
|
|
Operating Voltage
|
DC12-24V or AC160V～250V
|
|
Normal power consumption
|
＜5W
|
|
Physical characteristics
|
|
Main frame dimensions
|
240mm×184mm×110mm/185mm×256mm×60mm
|
|
Shell material
|
ABS engineering plastics/cast aluminum
|
|
Installation method
|
Wall mount
|
|
keyboard
|
16-bit tile button
|
|
Environmental performance
|
|
Working temperature
|
0～65℃
|
|
Environmental humidity
|
≤85RH
|
|
Pressure
|
Atmospheric pressure
|
|
Data storage
|
|
Past 168 hours of traffic, past 31 days of traffic, past 14 weeks of traffic, past 36 months of traffic, past 10 years of traffic
|
|
Sensor performance index parameters
|
|
Range
|
2m、5m、8m、10m、12m、15m、20m、25m、30m(selected when ordering)
|
|
Blind area
|
<0.25-1.5m (different depending on the range)
|
|
Launch Angle
|
less than 12°(different by sensor)
|
|
Precision
|
±0.25%F.S
|
|
Temperature compensation
|
Automatic temperature compensation
|
|
Frequency
|
20 KHz～43.0KHz
|
|
Physical characteristics
|
|
Overall dimensions
|
Φ55mm×119mm×G1 1/2 (2m range)
|
|
Φ92mm×198mm×M60 (5m-15m range)
|
|
Φ92mm×270mm×DN80 non-standard flange (20m-30m range)
|
|
Shell material
|
ABS engineering plastics, nylon
|
|
Button
|
16-bit keyboard
|
|
Incoming cable
|
10m(optional arbitrary length)
|
|
Installation interface
|
G1 1/2 or ￠50mm round hole (2 m range)
|
|
|
M60 x 2 or ￠61mm round hole (5 m to 15 m range)
|
|
DN80 non-standard flange (20m-30m range)
|
|
Environmental performance
|
|
Protection level:
|
IP65 (higher protection grade can be customized)
|
|
Explosion-proof grade:
|
EXiaII BT4Gb(selected when ordering)
|
|
Working temperature
|
－10℃～60℃
|
|
Work pressure
|
Atmospheric pressure
|
|
Storage humidity:
|
≤80%RH without condensation
|
