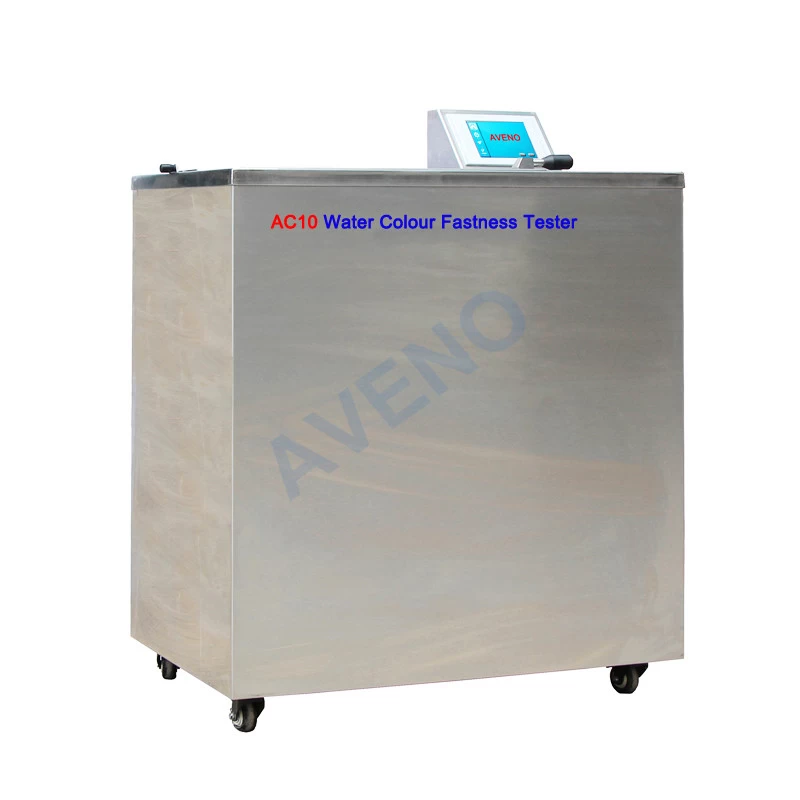

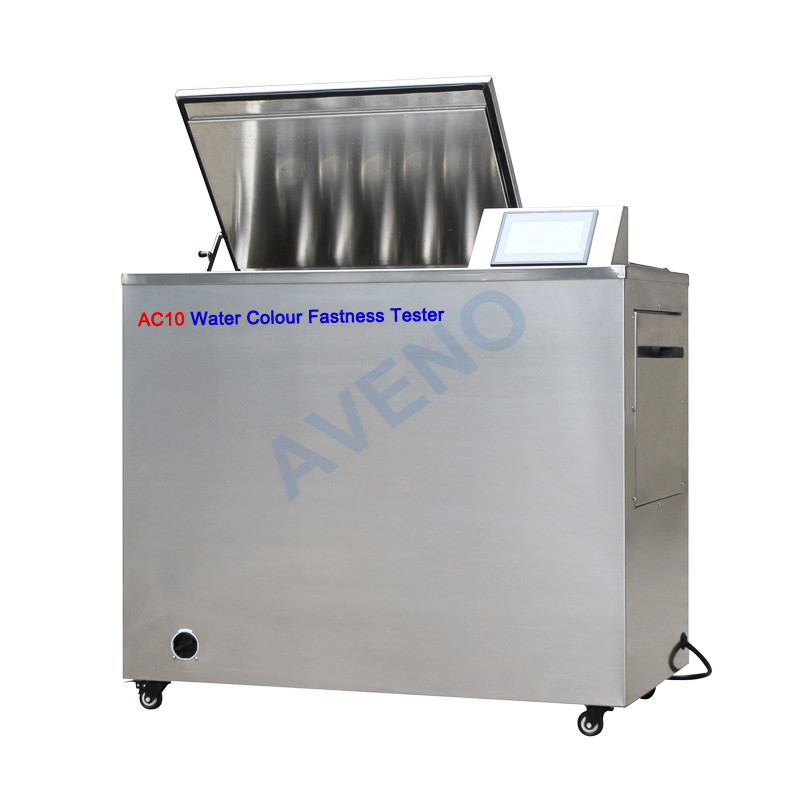

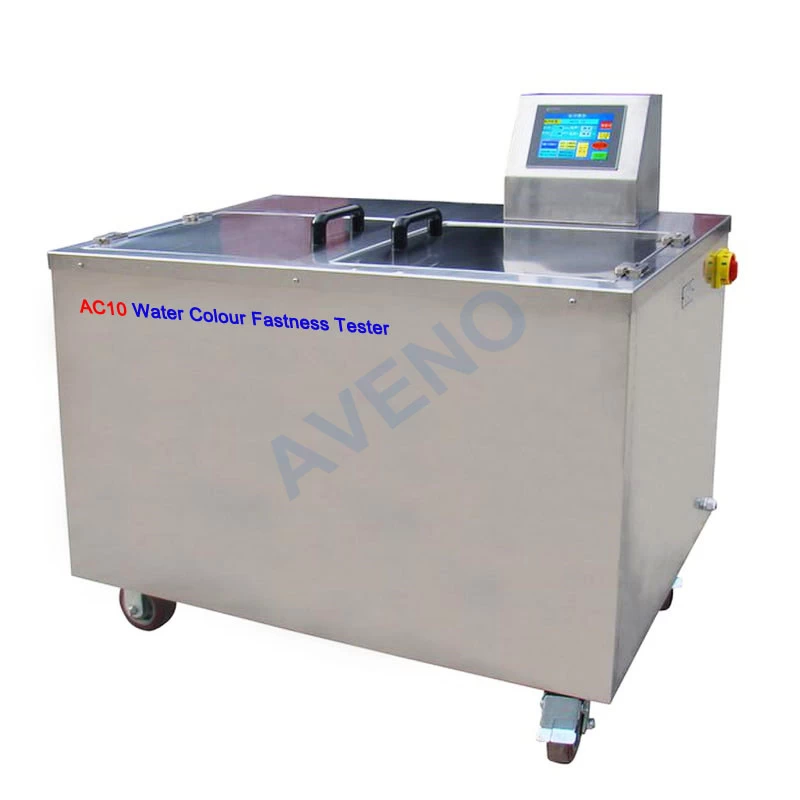

AC10- Wash Colour Fastness Tester
Application Of Wash Colour Fastness Tester
Wash Colour Fastness Tester is used to determine color fastness to washing or dry cleaning of fabrics consisting of cotton, wool, silk, ramie, chemical fiber, etc.
Feature Of Wash Colour Fastness Tester
-

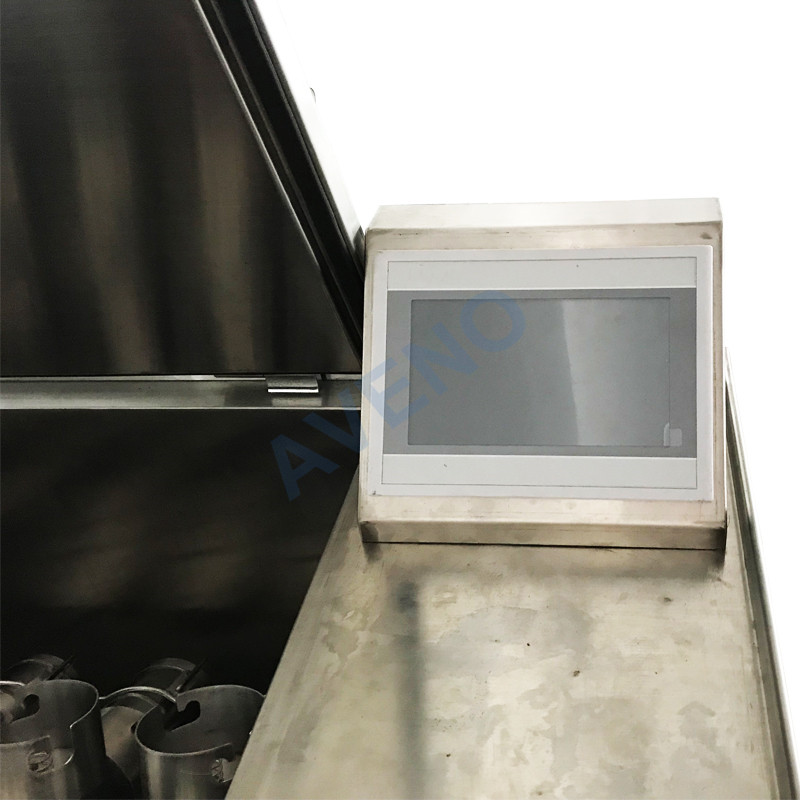

It adopts color high-precision touch screen display and control, which is easy to operate and avoid human error.
-
It has built in 5 sets of national standard fixed procedures, and reserves 3 sets of procedures that can be freely edited to meet more test needs.
-
Automatic water inlet and drainage design greatly facilitates the maintenance and cleaning of the instrument.
-
Under the experimental state, the data can be displayed in real-time curve, which can better observe the temperature change.
-
The temperature includes self-correction function, which can avoid the sensor deviation caused by long-term use.
-
The inner and outer cabinets are all made of 304 stainless steel, and the door is installed with a detecting device. When the door is opened, the motor is stopped to prevent hot water burns.
-

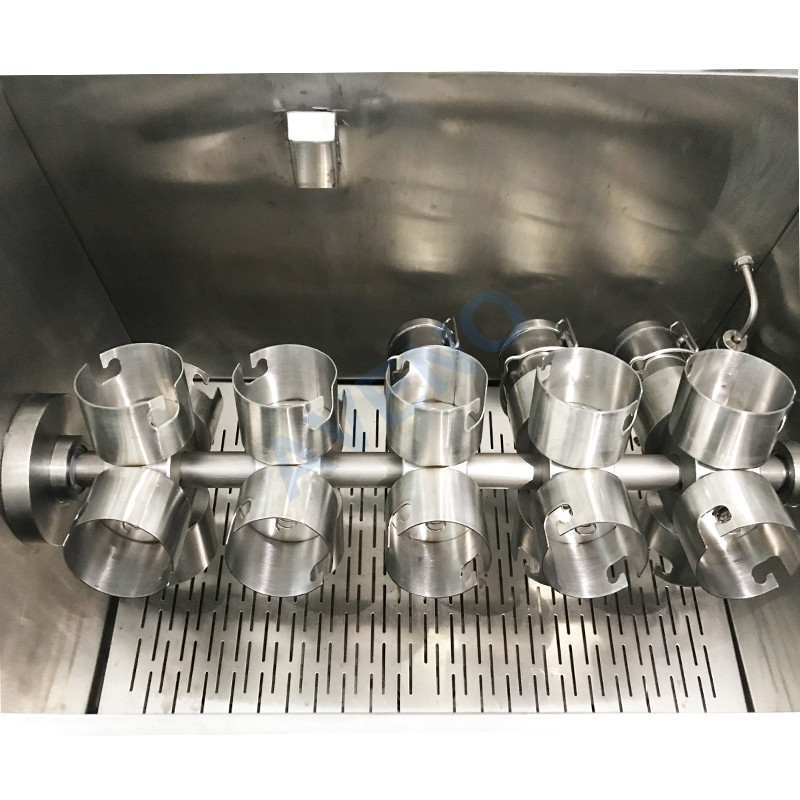

The transmission structure adopts all-aluminum reducer, which is durable; the transmission uses synchronous belt, no noise and accurate and stable speed. The bearing is installed outside the box and will not be vulnerable to scaling due to long-term immersion in water.
-
Different sizes and sizes of test cups can be customized according to customer requirements.
Standards Of Wash Colour Fastness Tester
AATCC 61/86/132/151/190, ISO105-C01/C02/C03/C04/C06/C07/C08/C09/D01/E03/E12, BS 1006, M&S C4A/C5/P3B/C10A/C11/C26/C37/C49A/P137, NEXT 2/3/5, IWSTM 7/115/177/193/199/240/241, FTMS 191-5610/5622

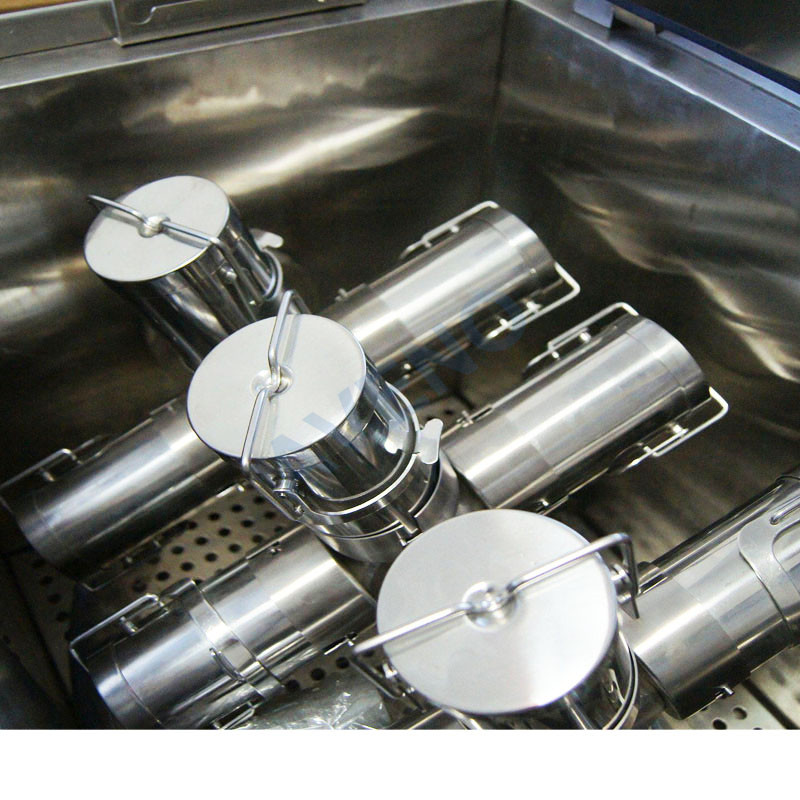

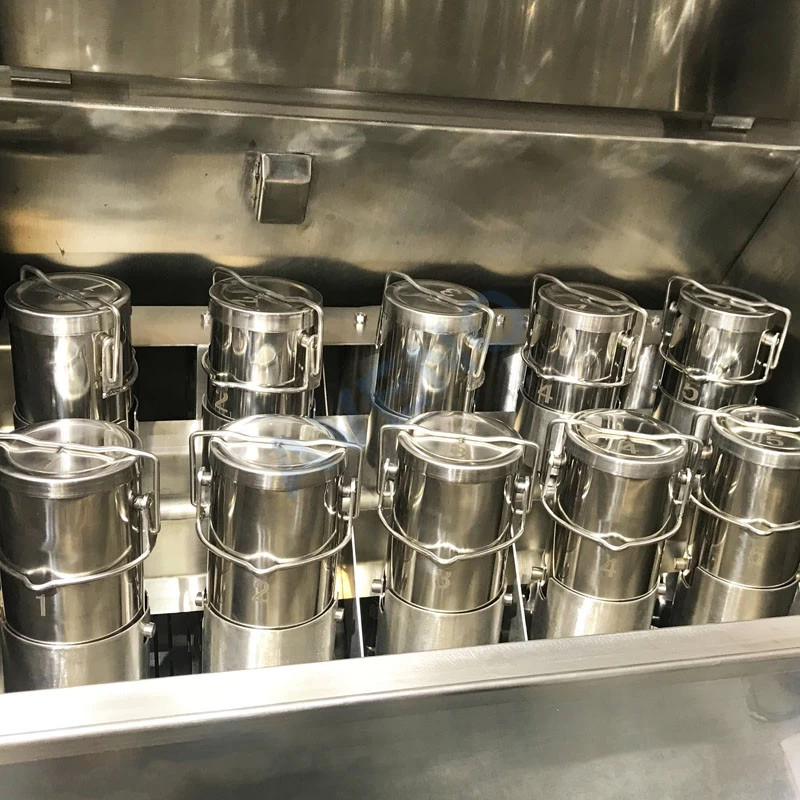

Cup combination Of Wash Colour Fastness
Tester
|
Model
NO.
|
AC10-4A
|
AC10-4B
|
AC10-4AB
|
|
Cup
combination
|
4A
|
4B
|
2A+2B
|
|
Model
NO.
|
AC10-8A
|
AC10-8B
|
AC10-8AB
|
|
Cup
combination
|
8A
|
8B
|
4A+4B
|
|
Model
NO.
|
AC10-12A
|
AC10-12B
|
AC10-12AB
|
|
Cup
combination
|
12A
|
12B
|
6A+6B
|
|
Model
NO.
|
AC10-20A
|
AC10-20B
|
AC10-20AB
|
|
Cup
combination
|
20A
|
20B
|
10A+10B
|
|
Model
NO.
|
AC10-24A
|
AC10-24B
|
AC10-24AB
|
|
Cup
combination
|
24A
|
24B
|
12A+12B
|
Key Specification Of Wash Colour Fastness Tester
|
Model
|
AC10 Water Colour
Fastness Tester
|
|
Volume
of washing cup
|
Cup
A: 1200ml (AATCC cup)
|
|
Cup
B: 550ml (ISO cup)
|
|
Control
mode
|
Touch
screen control
|
|
Cups
volume
|
150ml(ISO),
1200ml(AATCC)
|
|
Rotating
speed
|
40±2r/min
|
|
Temperature
range
|
RT~99.9 ℃
|
|
Temperature
controlled fluctuation
|
＜±1℃
|
|
Stainless
steel ball
|
Φ6mm, SUS 304
|
|
Stainless
steel dry cleaning discs
|
Φ32mm, thickness 3.2mm, weight 20g, SUS304
|
|
Power
supply
|
AC380V/50HZ,
or according customer requirement
|
Accessories Of Wash Colour Fastness Tester
|
Standard Accessories
|
Stainless steel ball(φ6mm)
|
1box
|
|
Rubber gloves
|
1set
|
|
Steel bead spoon
|
1pc
|
|
Test cup rubber sealing
ring
|
1pc/cup
|
|
counting cup (100ml)
|
1pc
|
Related products

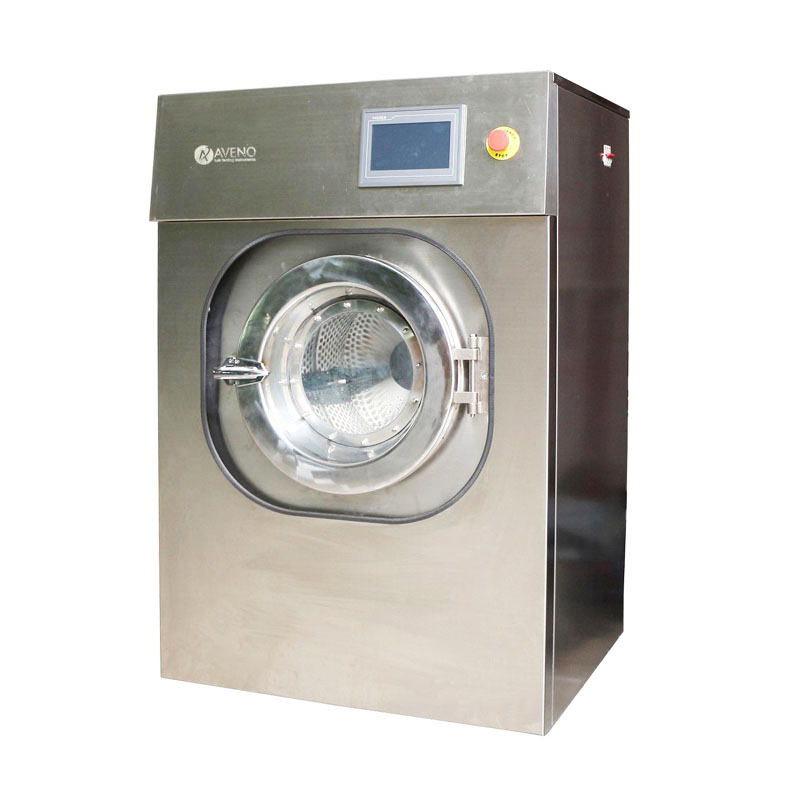

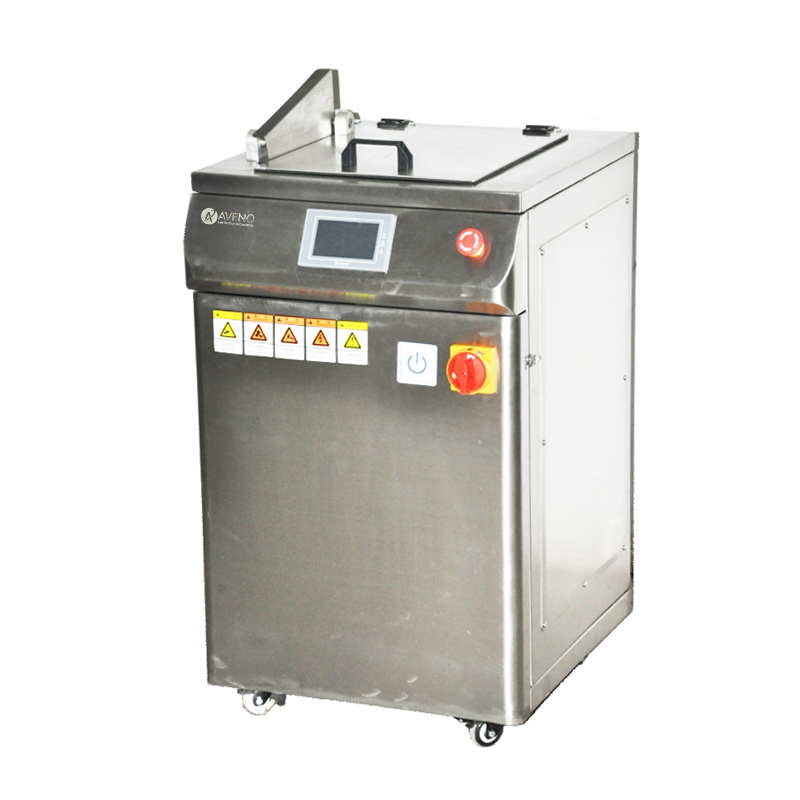

High Temperature Dyeing Machine Automatic Wascator Shrinkage Tester Durawash Garment & Printed Durability Tester
